The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Torque™ 1 ½" - 2" Diameter Rail Base - B Size Aluminum Ball

SKU Copied
SKU: RAM-B-415-15-2U
UPC Copied
UPC: 793442954283

RAM® Torque™ 1 ½" - 2" Diameter Rail Base - B Size Aluminum Ball
Copy SKU
SKU: RAM-B-415-15-2U
Copy UPC
| UPC: 793442954283

B SIZE
Size Guide

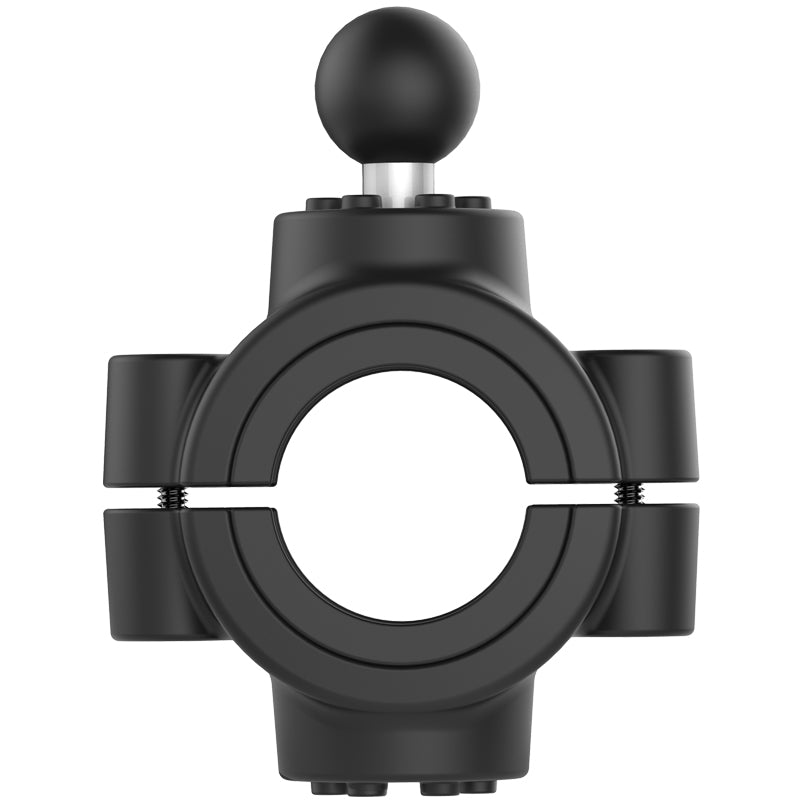

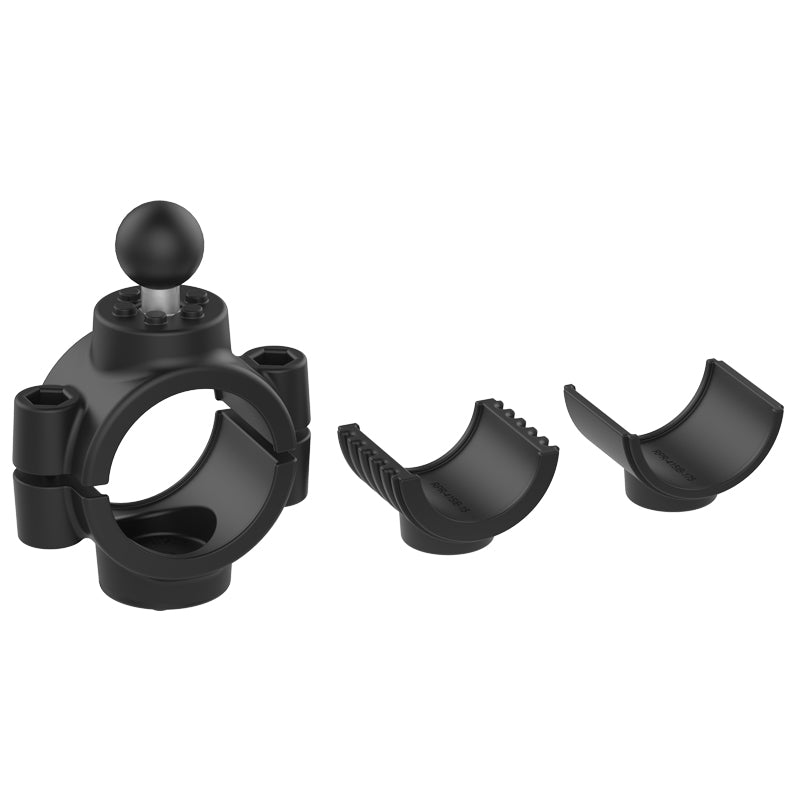

The RAM Torque Rail Base accommodates rails and bars ranging from 1.5 to 2 in diameter the perfect mounting solution for your ATV or UTV. The include B size hex ball adapter can connect to either side of the Torque base, and is suitable for rugged environments for supporting action cameras, spotlights or other devices. Two sizing inserts one for attachment to 1.5 rails and the other for attachment to 1.75 rails are included to create a tight hold while nylon-insert lock nuts prevent loosening in high-vibration environments. Available separately, the RAM B Size Ball Add-On allows you to attach an additional B Size Ball to the Torque Rail Base for mounting multiple devices.

Information

Resources

Information

Product Weight
0.35 kg (0.78 lbs)
Hardware Included

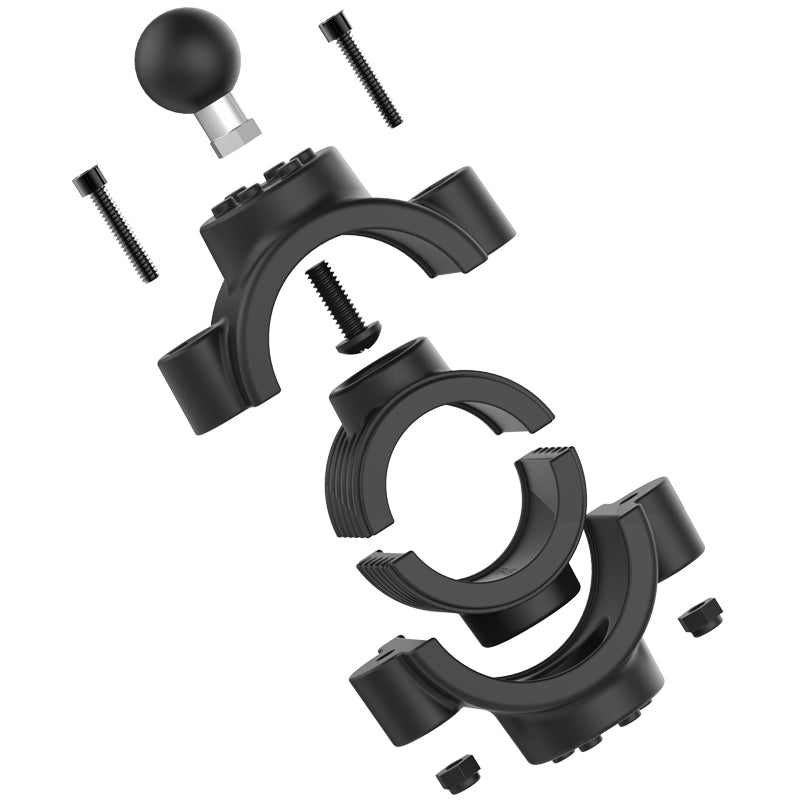

Assembly Hardware(2) #10-24 x 2.54cm (1") Socket Head Cap Screws(2) #10-24 Nylock Nuts(1) 12.70 cm (5")/81.28 cm (32") Hex Key Wrench(2) 3.81cm (1.5") Split Reducing Bushings(2) 4.45cm (1.75") Split Reducing Bushings(1) 172mm x 38.5mm Rubber Adhesive Strip
Clamp Range
3.81cm (1.5") - 5.08cm (2") diameter
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminum
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
