The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Lock™ Spring Loaded Holder for 7" Tablets

SKU Copied
SKU: RAM-HOL-TABL2U
UPC Copied
UPC: 793442935848

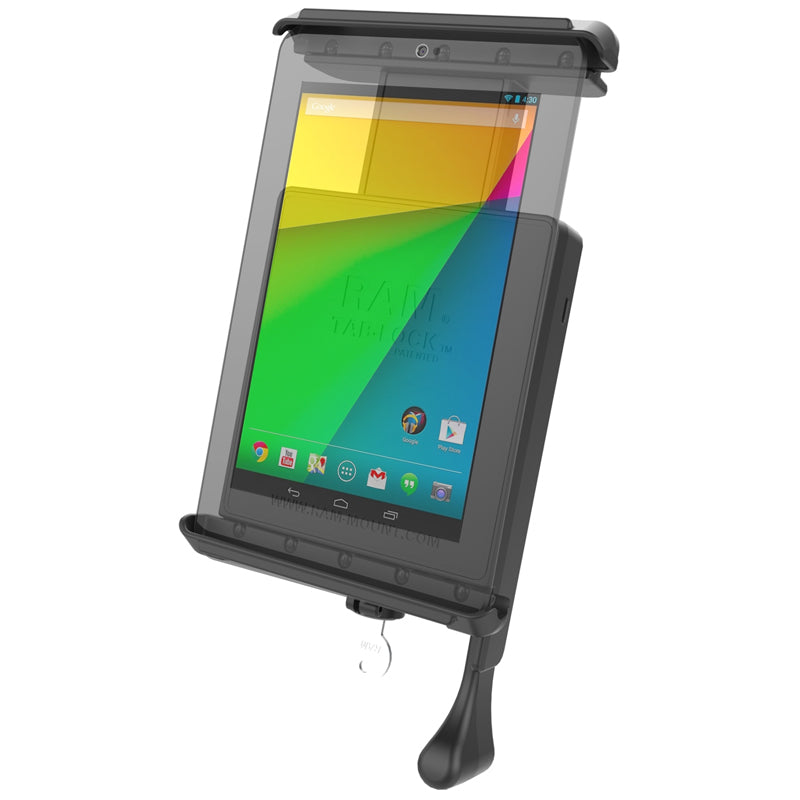

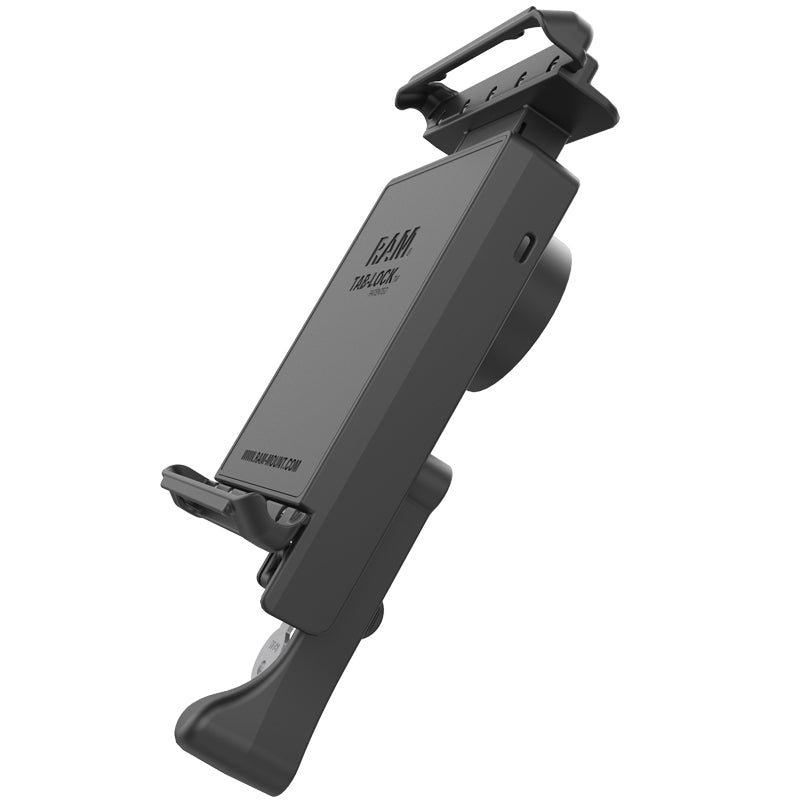

RAM® Tab-Lock™ Spring Loaded Holder for 7" Tablets
Copy SKU
SKU: RAM-HOL-TABL2U
Copy UPC
| UPC: 793442935848

Almost everyone wants a tablet pc so don't let someone get yours for free. Keep it safe with the new RAM locking Tab-Lock tablet cradle. This product is sure to make most would-be thieves think twice about trying to steal yours. Our easy to use locking cradle not only looks great and performs flawlessly, but it is compatible with RAM's full line of mounting solutions ideally suited for personal and fleet use. Spring loaded and form fitting, this compact yet durable cradle won't take up a lot of space yet provides loads of security. With the new Tab-Lock tablet cradle, RAM lets you keep your tablet where it belongs...in your possession. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features

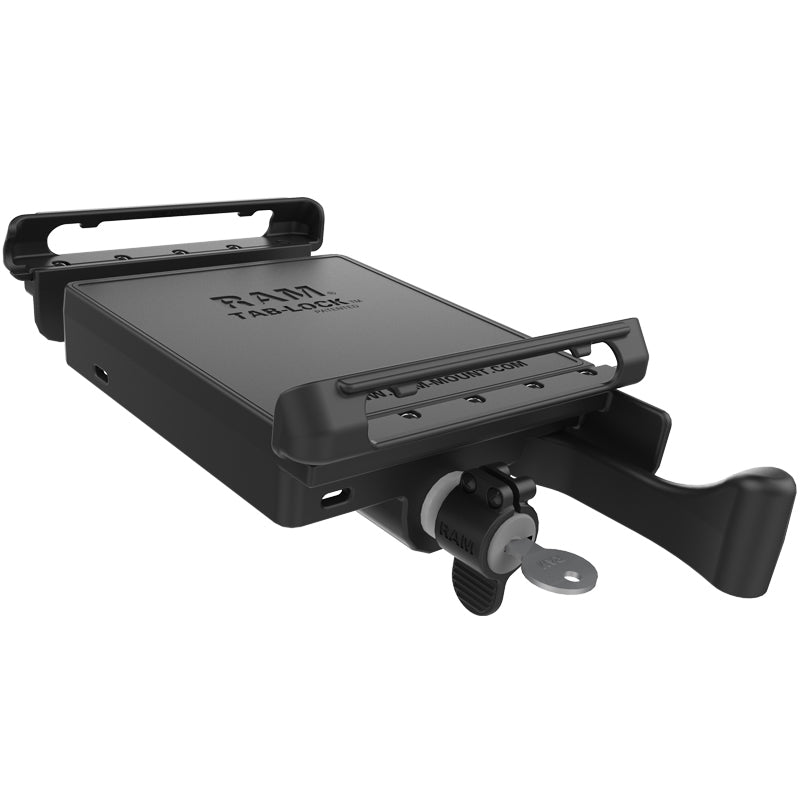

  • Locking mechanism for theft deterrence
  • Support cups contain open slots to accommodate for tablets of various sizes

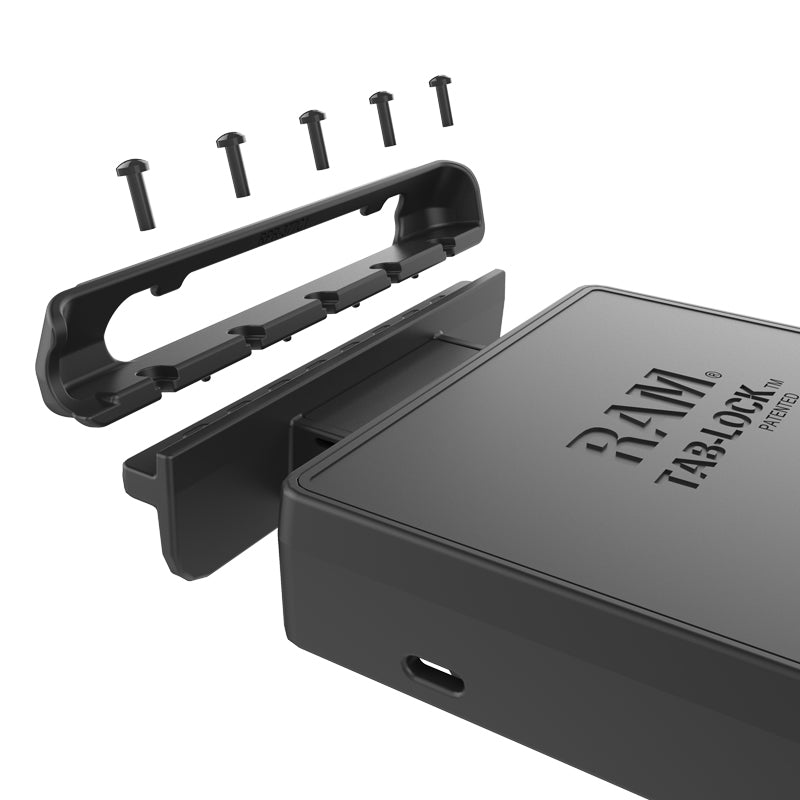

  • Back plate can support various size support cups
  • Spring loaded tension provides secure support and quick release for your tablet
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.54 kg (1.18 lbs)
Hardware Included
Assembly Hardware(2) #8 x 12.70 cm (5")/20.32 cm (8") Sheet Metal Screws(2) M4 x 32mm Machine Screws(2) M4 Nylock Nuts(2) Keys
Holder Dimensions
Height Range: 17.78cm (7") - 24.45cm (9.625") Width Range: 10.16cm (4") - 13.49cm (5.31") Depth Range: 0.33cm (0.13") - 1.42cm (0.56")
Hole Pattern

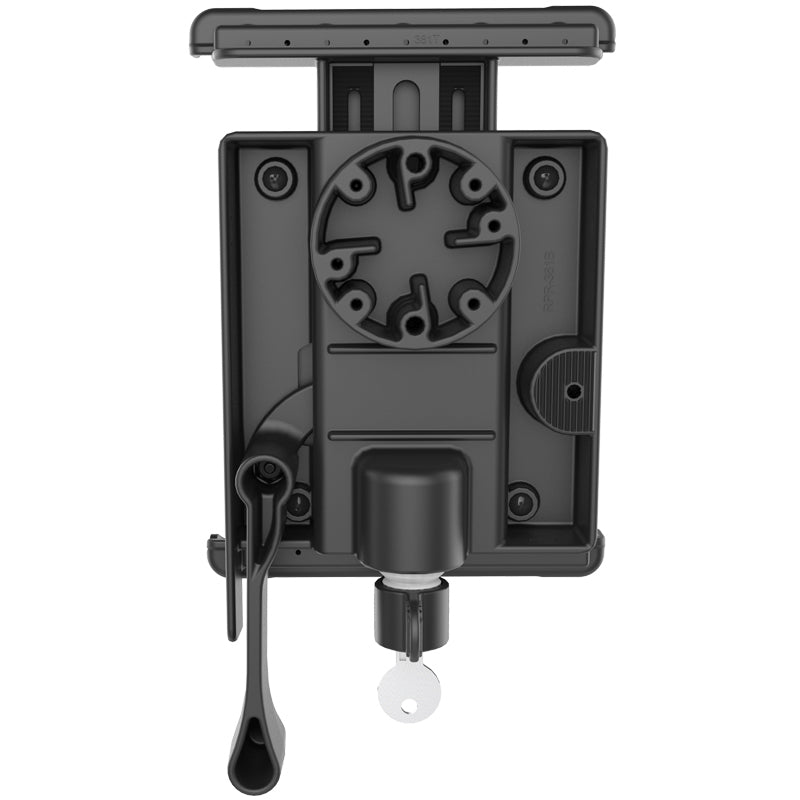

4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
