World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Lock™ Holder for 10”-11” Rugged Tablets

SKU Copied
SKU: RAM-HOL-TABL19U
UPC Copied
UPC: 793442941252

RAM® Tab-Lock™ Holder for 10”-11” Rugged Tablets
Copy SKU
SKU: RAM-HOL-TABL19U
Copy UPC
| UPC: 793442941252

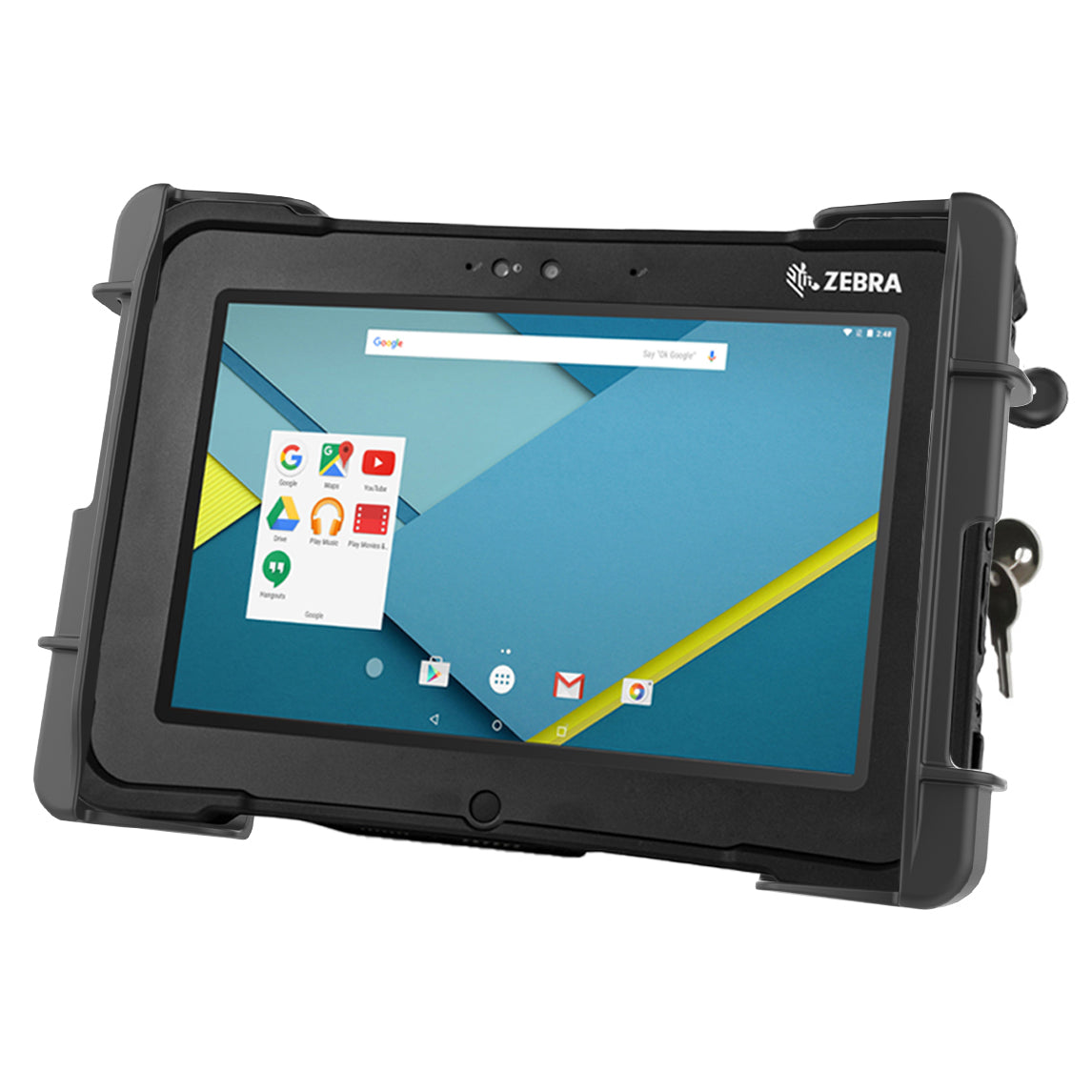

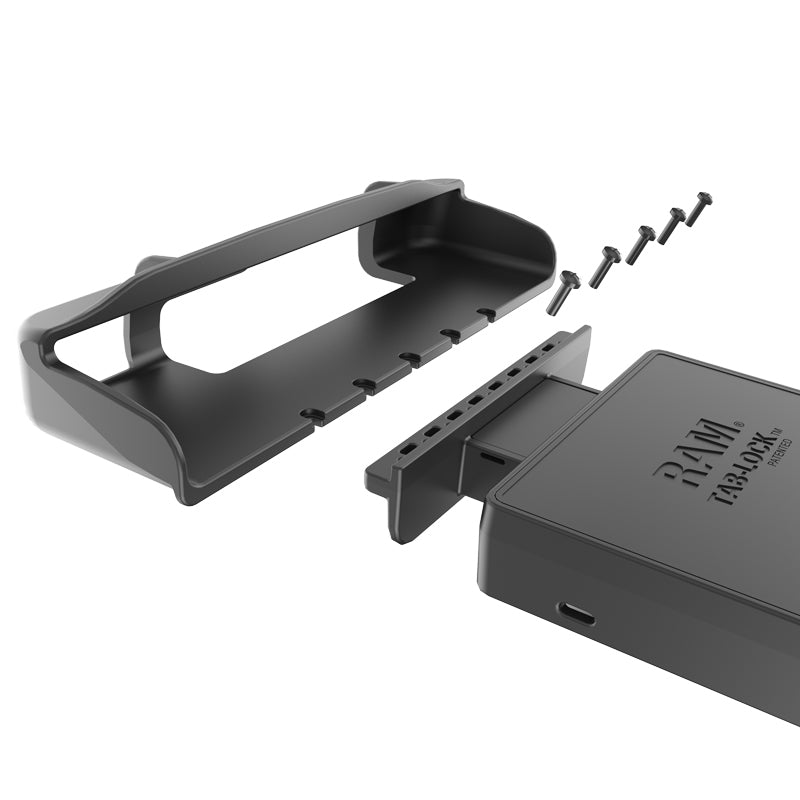

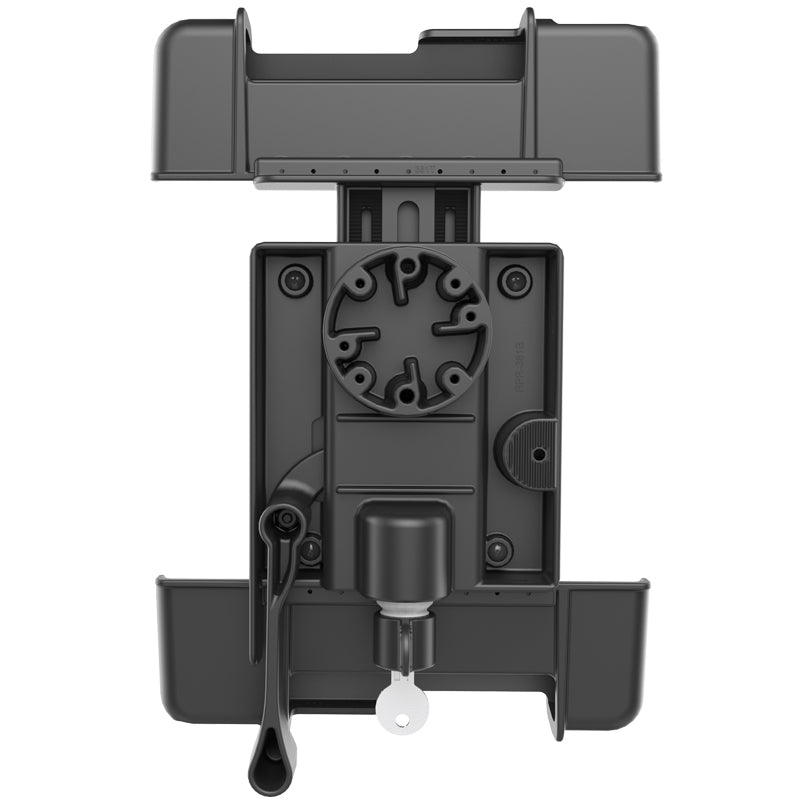

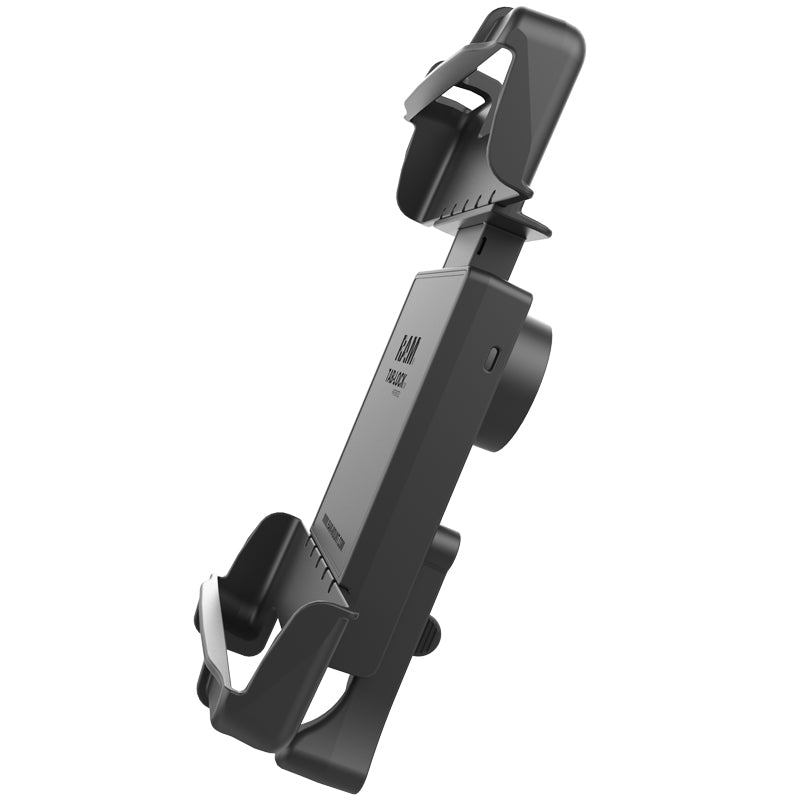

The RAM-HOL-TABL19U consists of a spring loaded back plate, custom support cups and locking mechanism. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Quickly lock the cradle, keeping your tablet secure and safe from theft. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. If your tablet has an extended battery or handstrap integrated in the back, a set of risers may be required to offset the cups to accommodate the added thickness. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features
  • Locking mechanism for theft deterrence
  • Support cups contain open slots to accommodate for tablets of various sizes
  • Back plate can support various size support cups
  • Spring loaded tension provides secure support and quick release for your tablet
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.65 kg (1.43 lbs)
Hardware Included
Assembly Hardware(2) #8 x 12.70 cm (5")/20.32 cm (8") Sheet Metal Screws(2) M4 x 32mm Machine Screws(2) M4 Nylock Nuts(2) Keys
Holder Dimensions
Height Range: 27.31cm (10.75") - 33.97cm (13.375") Width Range: 16.51cm (6.5") - 19.69cm (7.75") Depth Range: 0.33cm (0.13") - 2.36cm (0.93")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
