World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Quick-Grip™ Pro XL Phone Mount with Handlebar U-Bolt Base - Medium

SKU Copied
SKU: RAM-B-149Z-PD7U
UPC Copied
UPC: 793442026782

RAM® Quick-Grip™ Pro XL Phone Mount with Handlebar U-Bolt Base - Medium
Copy SKU
SKU: RAM-B-149Z-PD7U
Copy UPC
| UPC: 793442026782

B SIZE
MEDIUM ARM
Size Guide

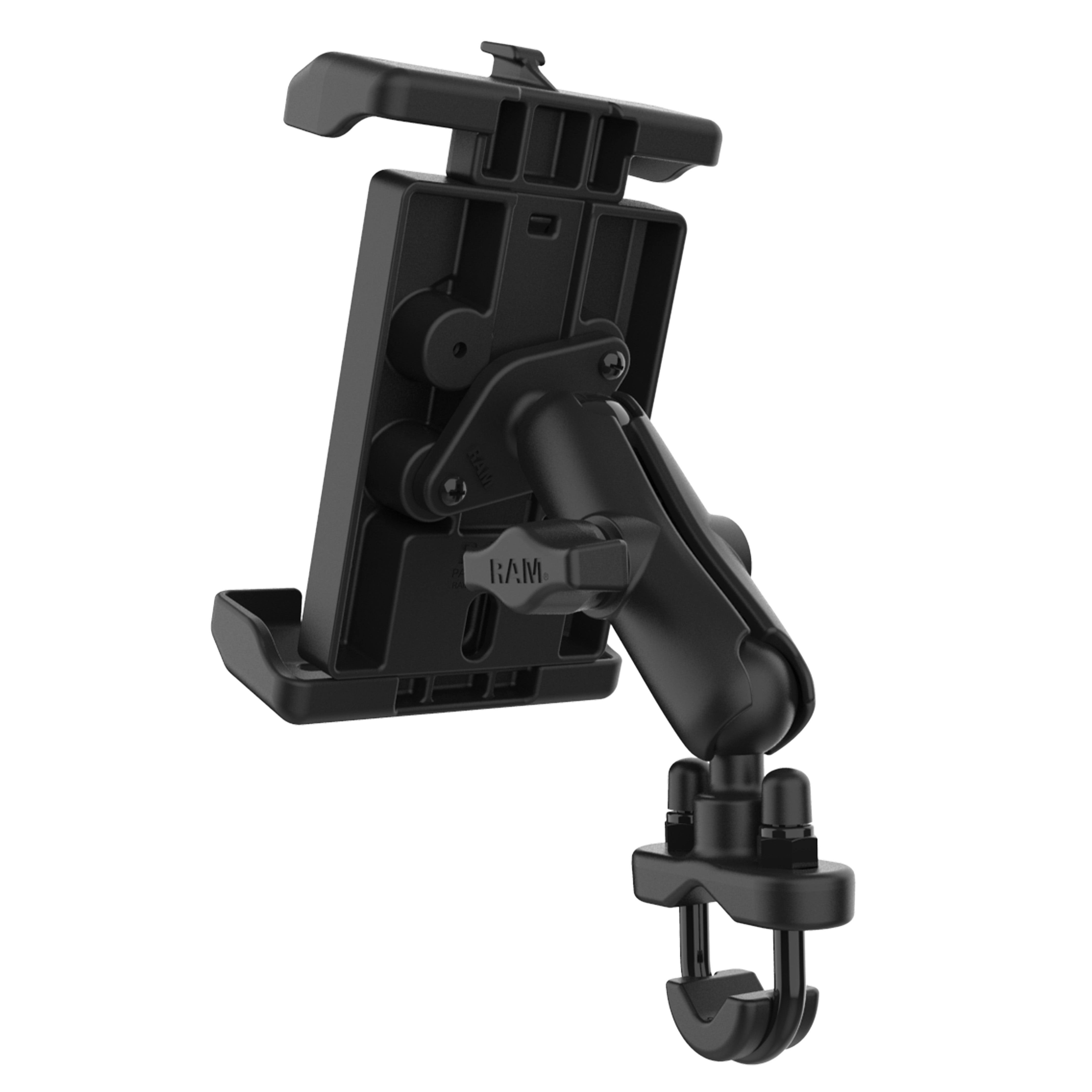

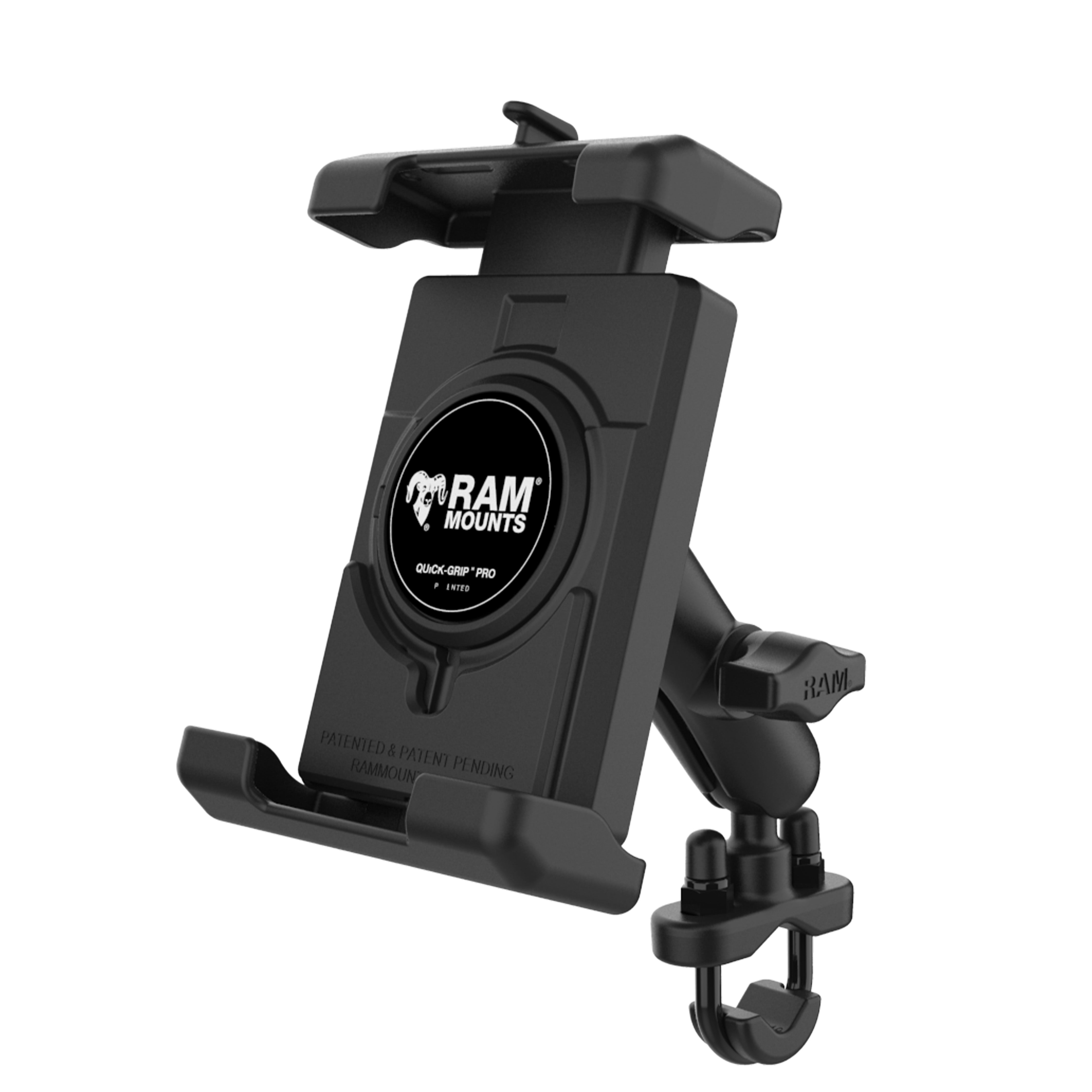

The RAM Quick-Grip Pro XL Phone Mount with Handlebar U-Bolt Base - Medium (RAM-B-149Z-PD7U) is the next evolution of the RAM Quick-Grip series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices.This phone holder features an integrated cavity for an Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when the Apple MagSafe puck is not installed. The RAM Quick-Grip Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes zinc-coated handlebar U-Bolt base that accommodates rails from .5 to 1.25 in diameter. RAM recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Features
  • Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand
  • Includes U-bolt base that accommodates rails from 1.27cm (0.5") to 3.18cm (1.25") in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Center cavity compatible with Apple MagSafe puck; non-slip cover and puck adhesive included
  • Comes with optional device tether for open cockpit environments
  • Backed by a lifetime warranty
Tags: .5" - 1.25", 7 plus, 7 Pro, 7T Pro, 8 Sirocco, 9 PureView, Apple, Aristo 2, B Size 1" (Holds 2 lbs), b-231, b-231-1, Blackberry, Complete kits, Eluga X1 Pro, EM45, Evolve X, Fiesta 2 LTE, Fiesta LTE, G6 Plus, G7 ThinQ, G8 ThinQ, G8S ThinQ, Galaxy A10, Galaxy A10e, Galaxy A10s, Galaxy A11, Galaxy A15, Galaxy A20, Galaxy A20e, Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy A6, Galaxy A6 Plus, Galaxy A7, Galaxy A70, Galaxy A8, Galaxy A8 Plus, Galaxy A80, Galaxy A9, Galaxy A90 5G, Galaxy J2, Galaxy J5, Galaxy J7 (2017), Galaxy J7 (2018), Galaxy J7 Max, Galaxy J7 Prime 2, Galaxy Note 10, Galaxy Note 10 Plus, Galaxy Note 20, Galaxy Note 20 Ultra, Galaxy Note 8, Galaxy Note 9, Galaxy Note Fan Edition, Galaxy S10, Galaxy S10 5G, Galaxy S10 Plus, Galaxy S10e, Galaxy S20 5G, Galaxy S20 FE 5G, Galaxy S20 Plus 5G, Galaxy S20 Ultra 5G, Galaxy S21 5G, Galaxy S21 Plus 5G, Galaxy S21 Ultra 5G, Galaxy S22 5G, Galaxy S22 Plus 5G, Galaxy S22 Ultra 5G, Galaxy S23, Galaxy S23 Plus, Galaxy S23 Ultra, Galaxy S24, Galaxy S24 Plus, Galaxy S24 Ultra, Galaxy S8, Galaxy S8 Active, Galaxy S8 Plus, Galaxy S9, Galaxy S9 Plus, Galaxy XCover 4, Galaxy XCover 5, Galaxy XCover Pro, Galaxy XCover6 Pro, Galaxy XCover7, Google, Handheld PC, Handlebar, Harmony, HTC, Huawei, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 Pro, iPhone 12 Pro Max, iPhone 13, iPhone 13 Pro, iPhone 13 Pro Max, iPhone 14, iPhone 14 Plus, iPhone 14 Pro, iPhone 14 Pro Max, iPhone 15, iPhone 15 Plus, iPhone 15 Pro, iPhone 15 Pro Max, iPhone 16, iPhone 16 Plus, iPhone 16 Pro, iPhone 16 Pro Max, iPhone 8, iPhone 8 Plus, iPhone SE, iPhone X, iPhone Xr, iPhone Xs, iPhone Xs Max, K20, K20 Plus, Mate 20 Pro, Medium Arm, Mi 9, Mi 9 Explorer, Mi Mix 2S, Mi Mix 3, moto e4, moto e4 plus, moto g5s plus, moto g6, moto g7 power, moto X4, moto z2, moto z2 play, moto z3, Motorcycle, Motorcycle - Handlebar, Motorola, Nokia, OnePlus, P30 Pro, Panasonic, Phone, Phone 2, Pixel 2, Pixel 2 XL, Pixel 3, Pixel 3 XL, Pixel 3a, Pixel 3a XL, Pixel 4, Pixel 4 XL, Pixel 4a, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, Pixel 7 Pro, Pixel 8, Pixel 8 Pro, Quick-Grip™ Pro XL, Rail, RAM-B-149Z-PD7U, Razer, Samsung, Sony, Stylo 3 Plus Titan, Stylo 4, Supports Device With Case, U11, V30, V35 ThinQ, V40 ThinQ, V50 ThinQ, X venture, Xiaomi, Xperia L1, Xperia L2, Xperia XZ1, Xperia XZ2, Xperia XZ3, Zebra, Zone 4

Information

Resources

Compatible Devices

Information

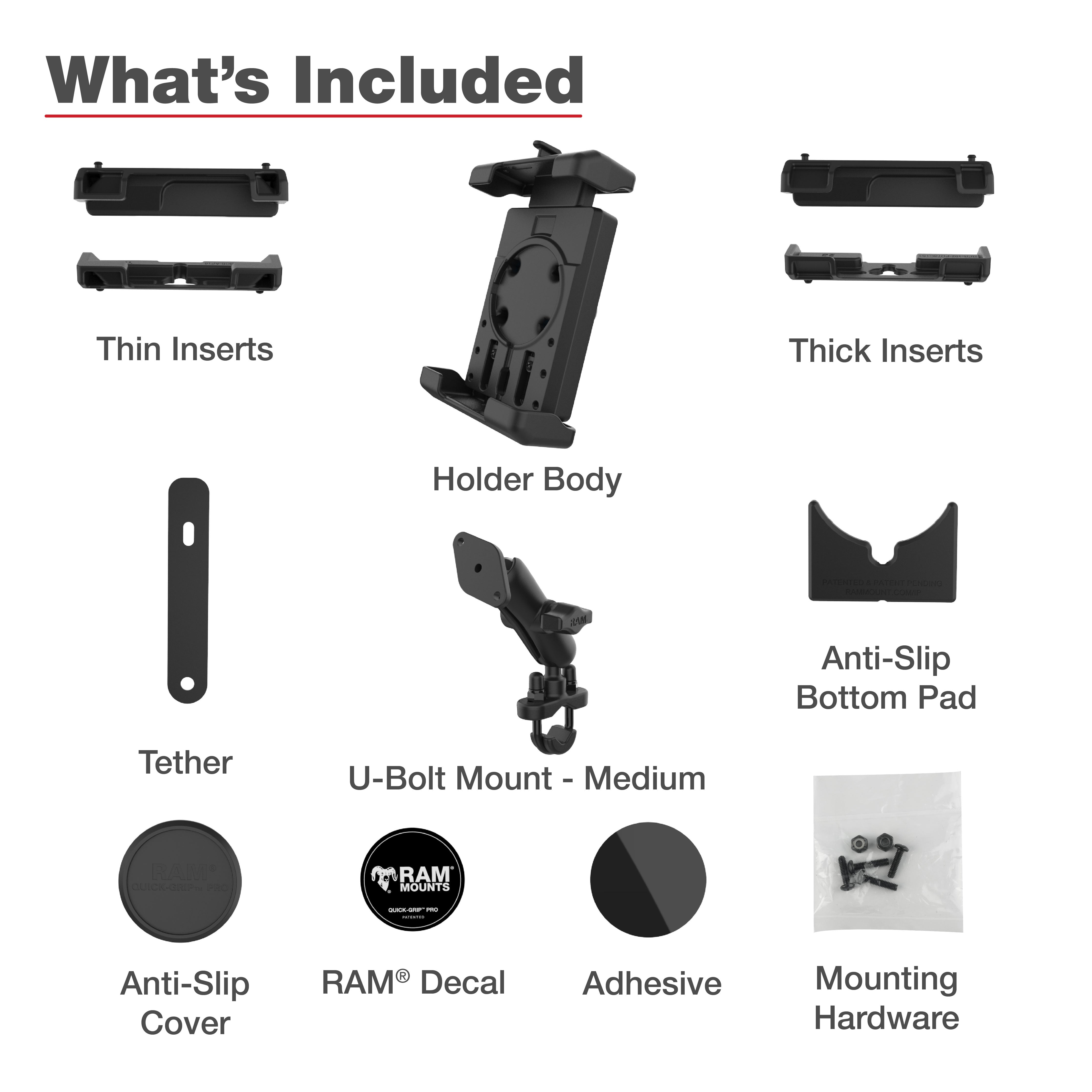

Hardware Included
Assembly Hardware(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer
Holder Dimensions
Height Range: 13.65cm (5.375") - 17.78cm (7") Width Range: 6.99cm (2.75") - 8.89cm (3.5") Max Depth: 1.91cm (0.75")
Clamp Range
1.27cm (0.5") - 3.18cm (1.25") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag
