The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Handlebar Mount

SKU Copied
SKU: RAM-B-149Z-A-UN14W-V7M-1
UPC Copied
UPC: 793442932243

RAM® Quick-Grip™ 15W Waterproof Wireless Charging Handlebar Mount
Copy SKU
SKU: RAM-B-149Z-A-UN14W-V7M-1
Copy UPC
| UPC: 793442932243

B SIZE
SHORT ARM
Size Guide

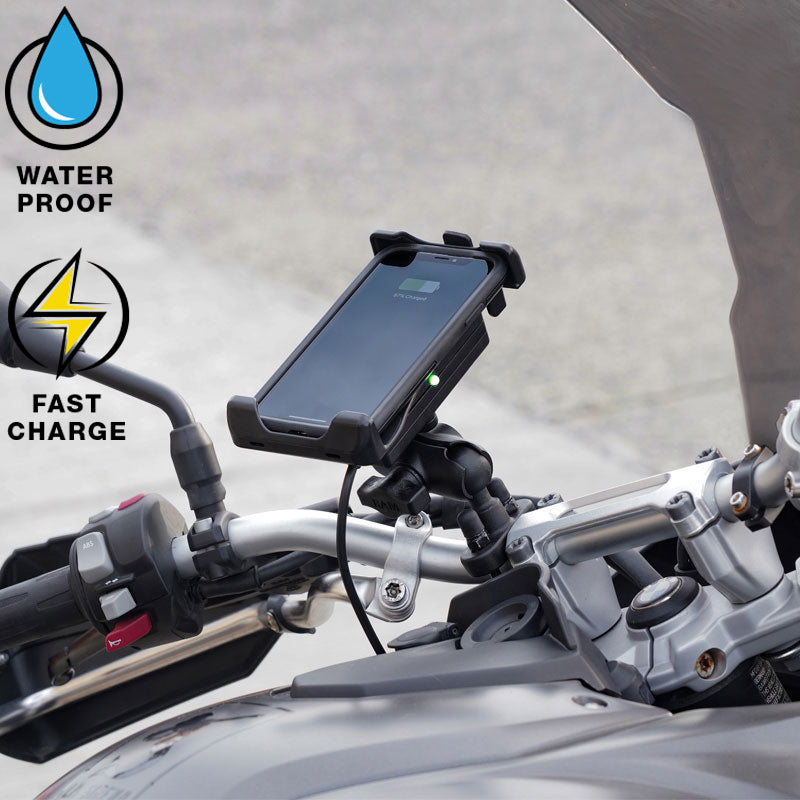

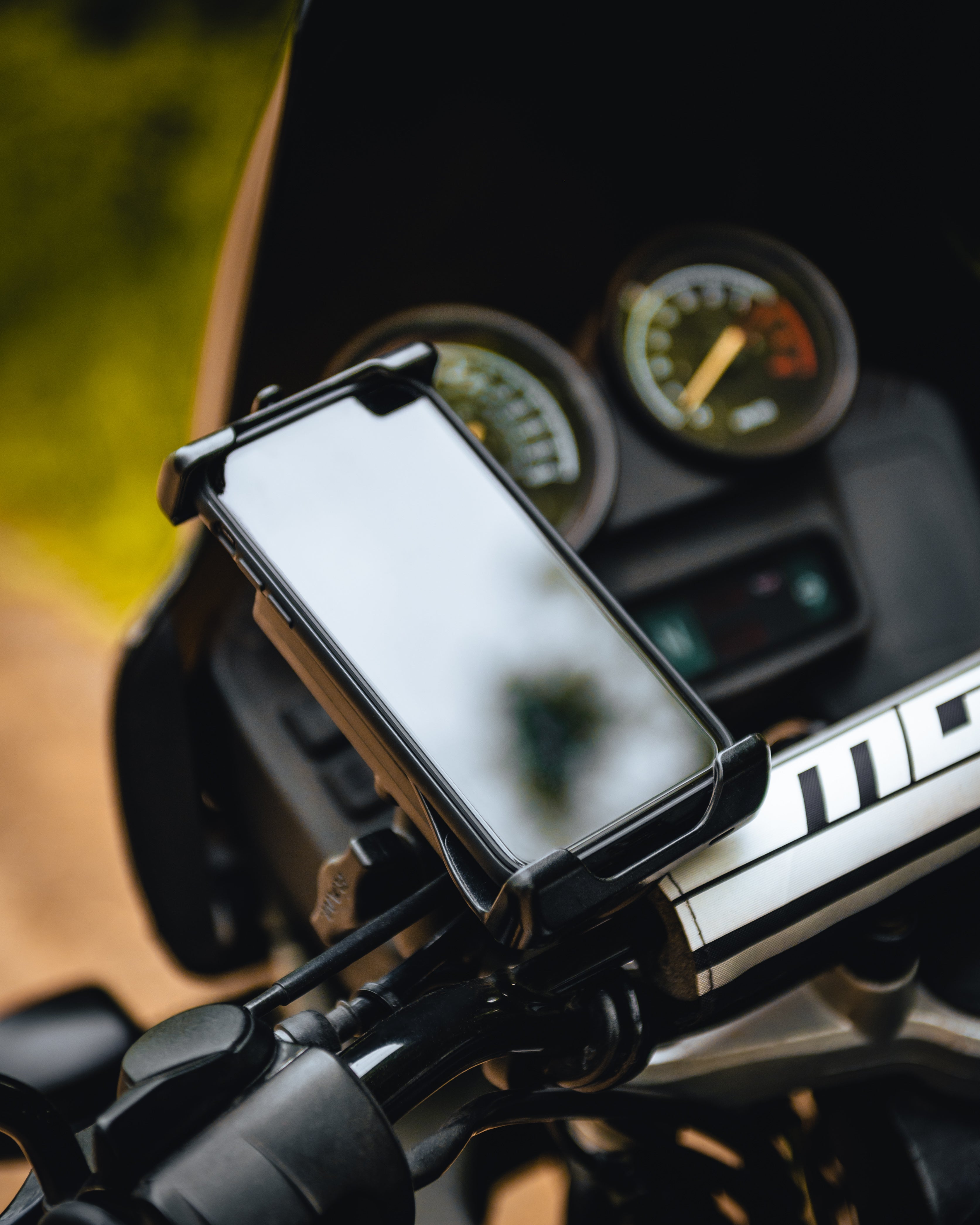

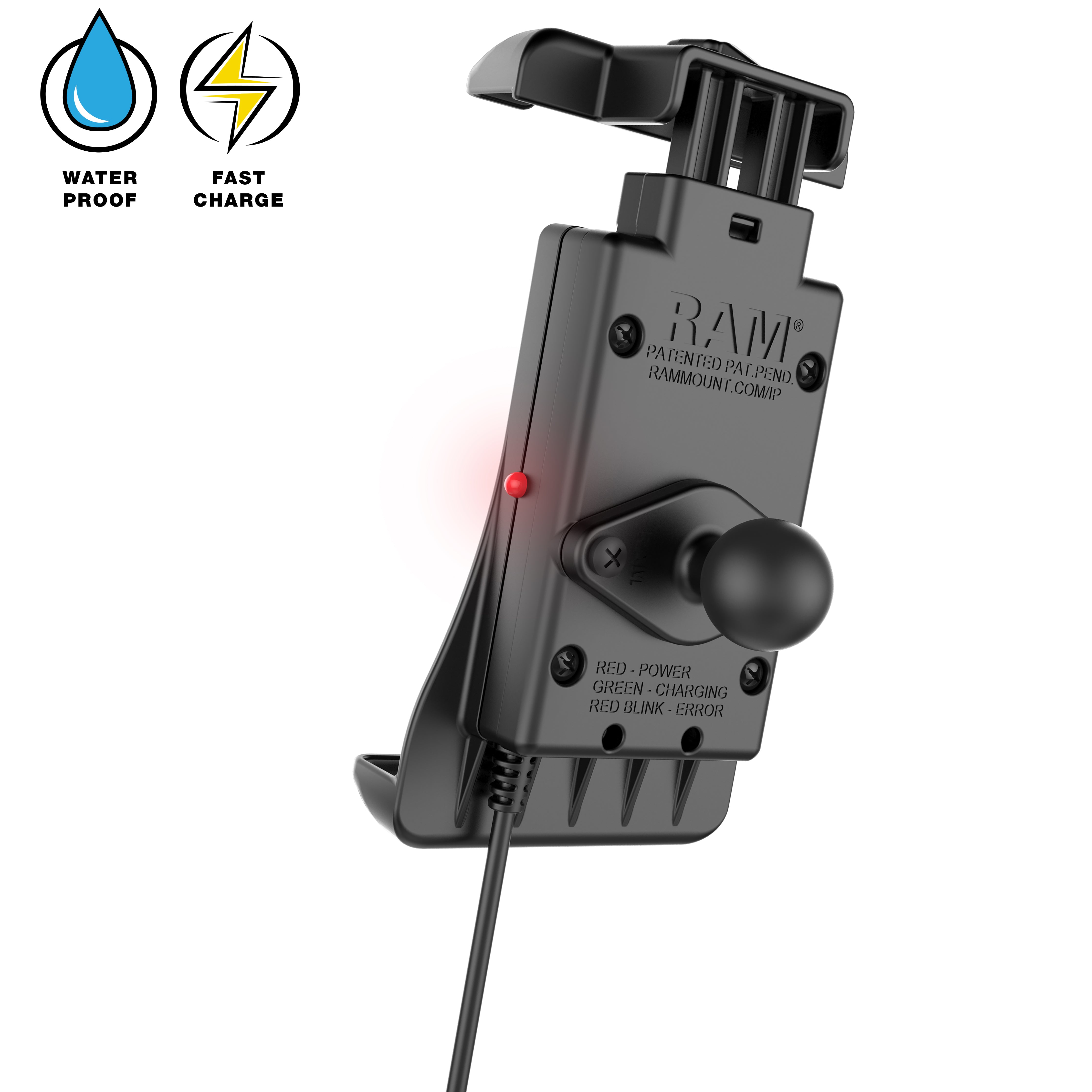

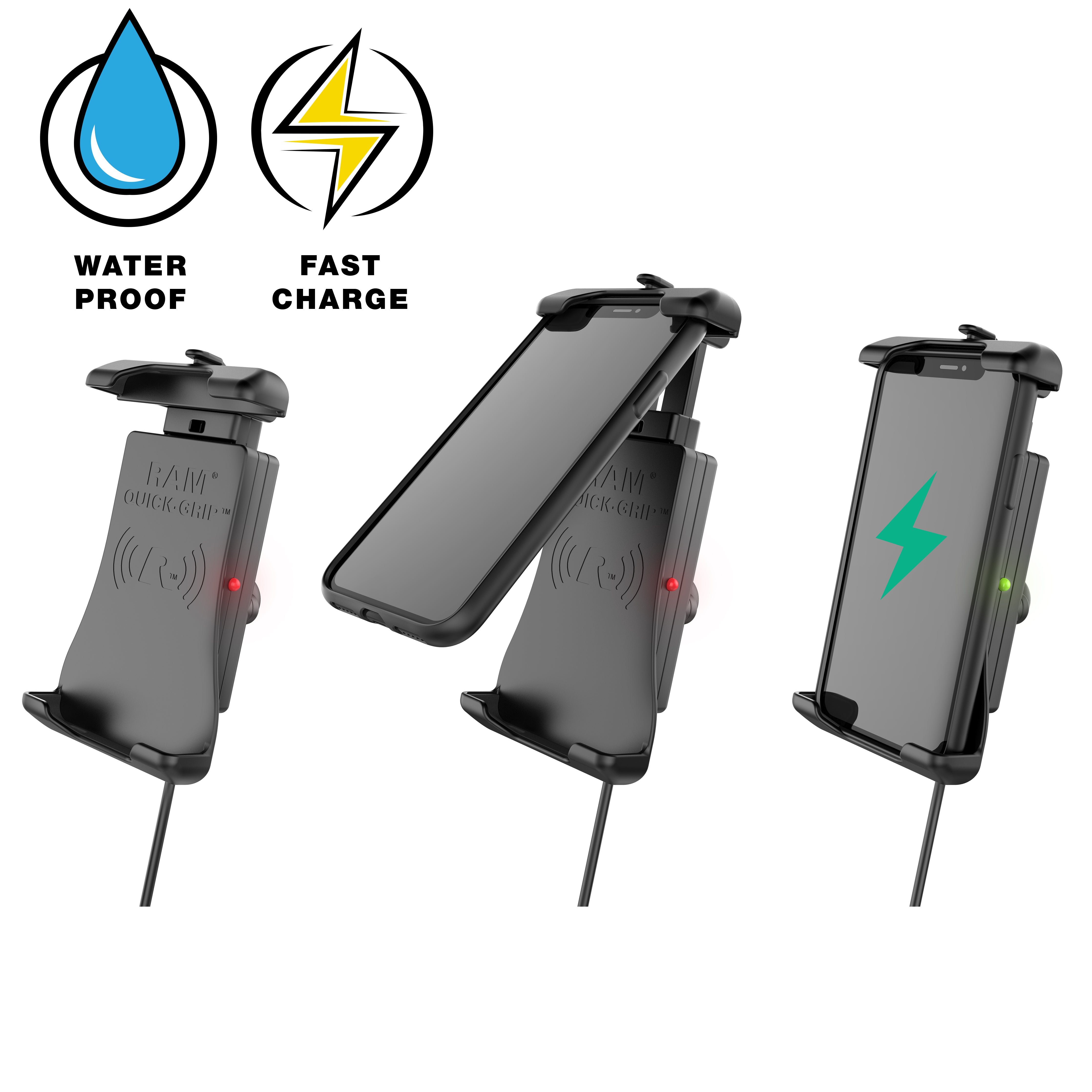

The RAM Quick-Grip Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM Quick-Grip family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi compatible wireless charging cradle ensures your compatible phone charges as long as its within the listed compatible dimensions. For added security and peace of mind, a device tether is included thats recommended for outdoor applications. This RAM Quick-Grip Wireless handlebar kit includes a B size diamond base featuring a 1 rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from 1.27cm (0.5") to 3.18cm (1.25") in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

Features
  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

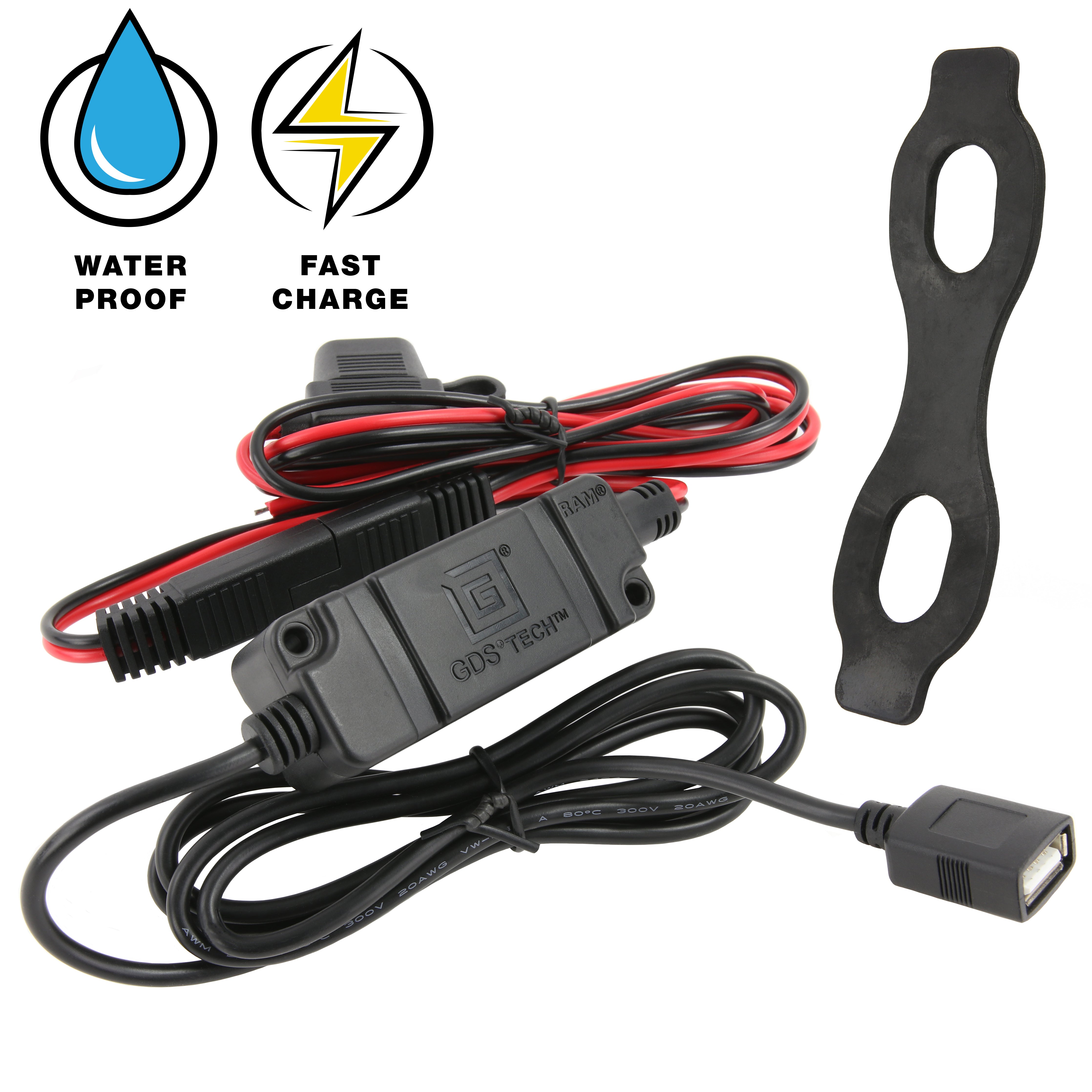

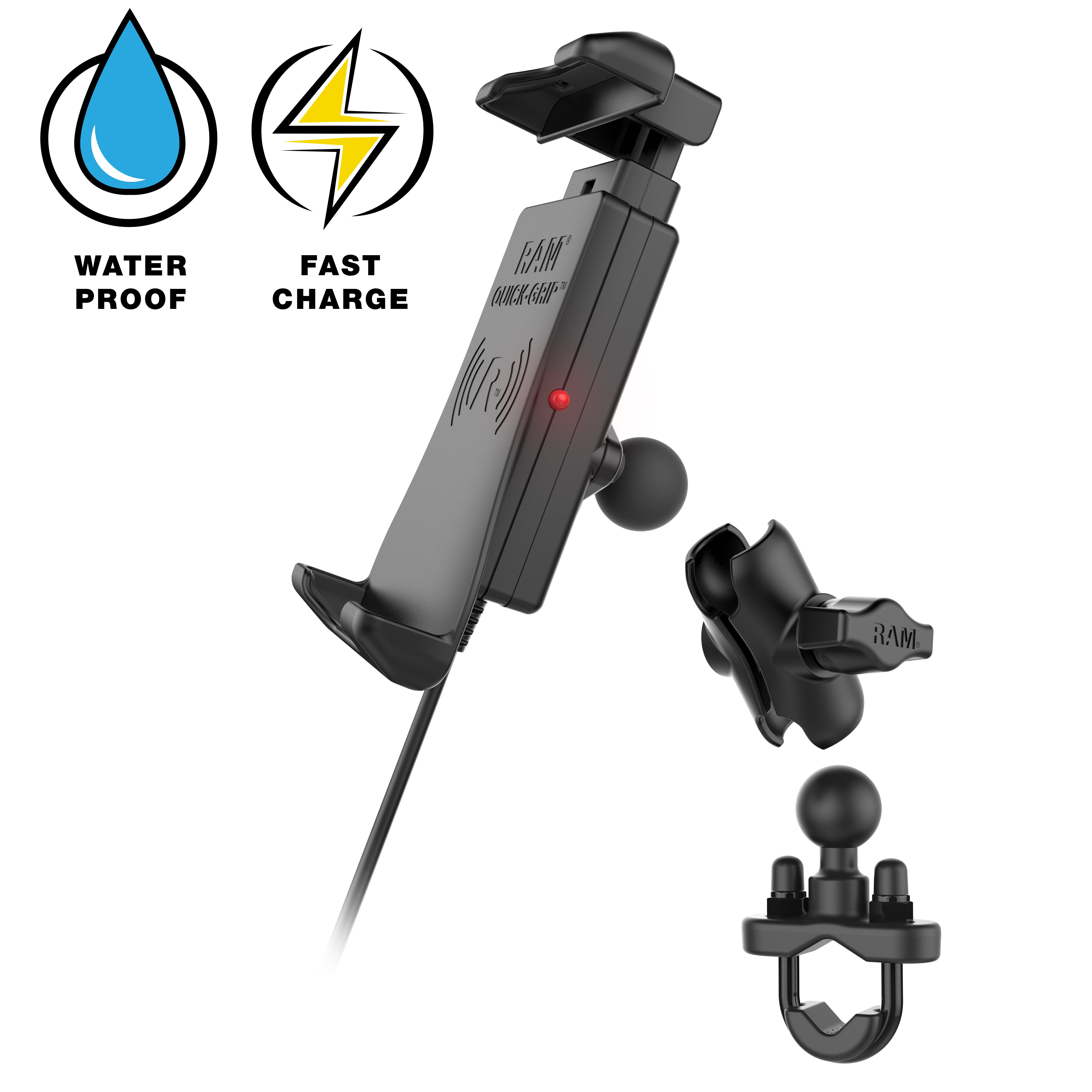

  • Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, U-bolt handlebar base, and hardwire charger
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

Information

Resources

Compatible Devices

Information

Product Weight
0.85 kg (1.87 lbs)
Hardware Included
(1) Safety Tether(1) Silicon sleeve for USB waterproof connection(1) Hardwire Charger with Cable(4) Small zip ties(4) Large zip ties(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer
Holder Dimensions
Height Range: 14.29cm (5.625") - 16.83cm (6.625") Max Width: 7.94cm (3.125") Max Depth: 1.78cm (0.7")
Clamp Range
1.27cm (0.5") - 3.18cm (1.25") diameter
Socket To Socket Length
4.45cm (1.75")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Retail Box
Power Specifications
Input Power:5V-2A; 9V-1.67AOutput: 15WConversion Efficiency: 85% MaxMaximum Case Thickness: 6mmWorking Frequency: 110-205KHZProduct Standard: WPC v.1.2.4Qi CompatibleCompatible with QC2.0/QC3.0 power supplies
Input Connector
USB Type-A Male
Input Cable Length
50.80cm (20") with optional 1.2M extension cable
Operating Temperature
0°C to +37.7°C
Regulatory
Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture Resistant
Certifications
CE CertificationE-Mark CertificationRCM CertificationFCC Certification

Resources

INSTRUCTIONS

Compatible Devices
