The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins

SKU Copied
SKU: RAM-HOL-HON12PDHU
UPC Copied
UPC: 793442019265

RAM® Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins
Copy SKU
SKU: RAM-HOL-HON12PDHU
Copy UPC
| UPC: 793442019265

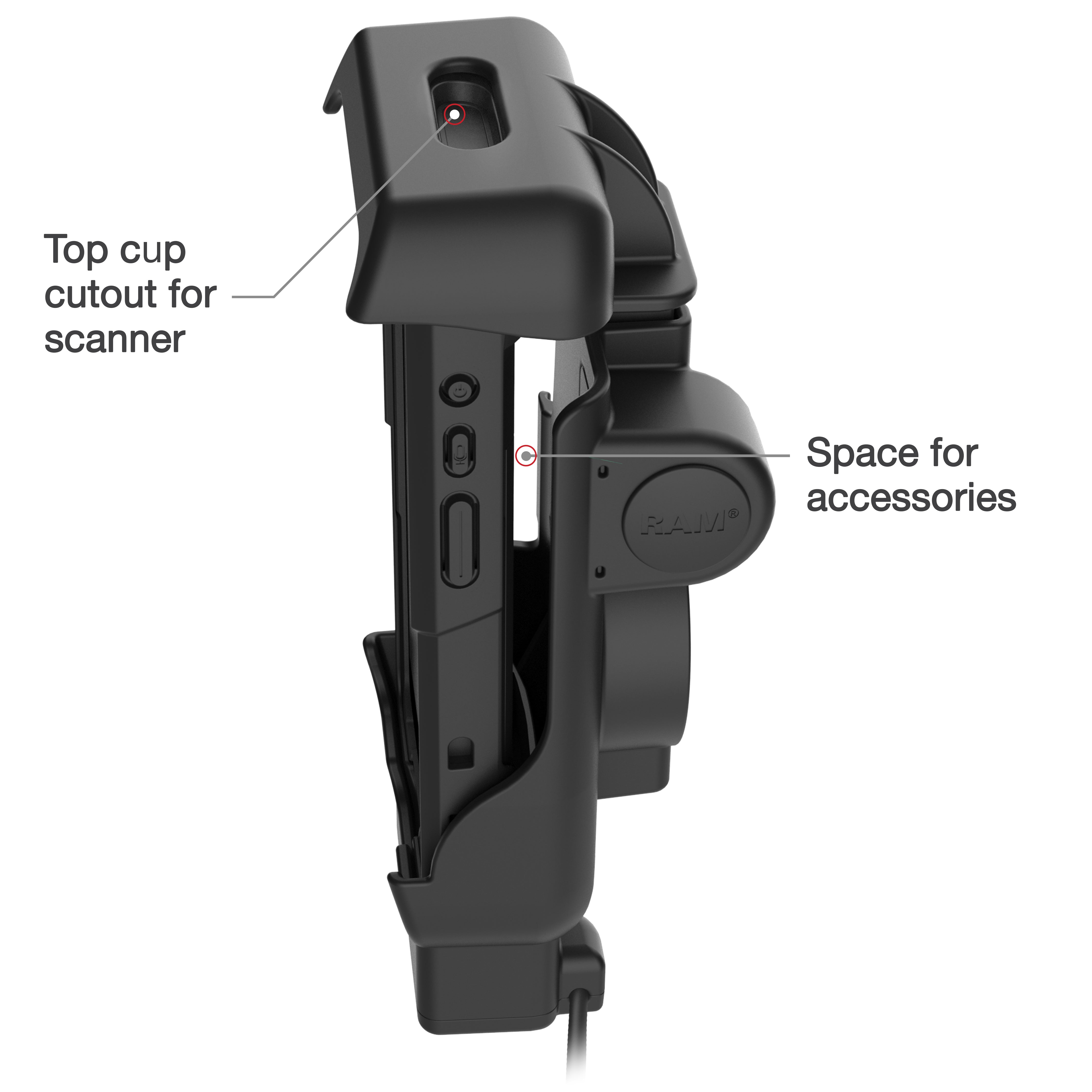

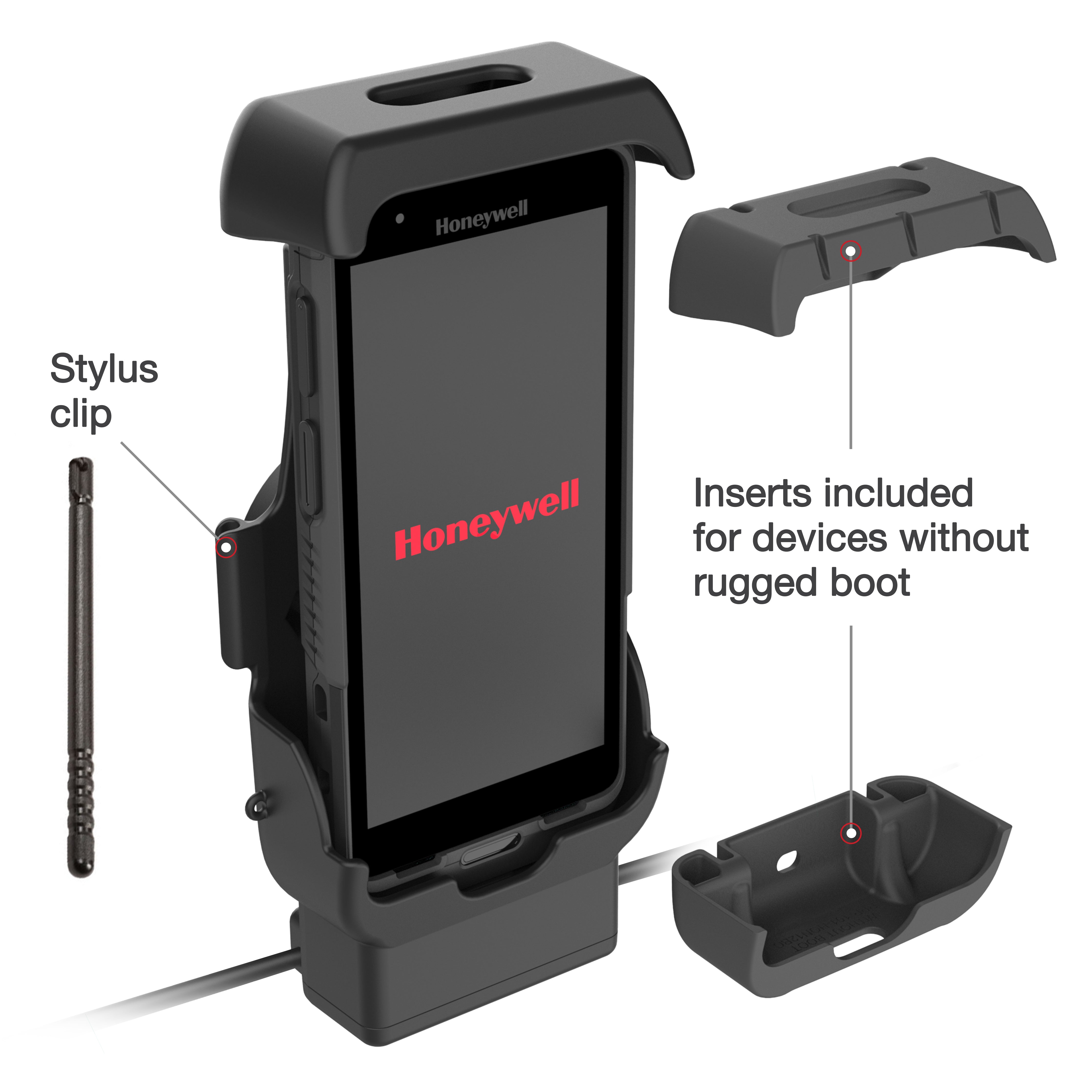

The RAM Powered Dock + USB-A for Honeywell CT40/45/47 - Heated Pins (RAM-HOL-HON12PDHU) is a spring-loaded, form-fit powered dock that allows workers to secure and charge their Honeywell device. Power to the device is delivered via a 1m long female 5.5mm DC barrel connector and supports a single peripheral device via USB-A female connector. This dock includes an integrated stylus holder that snaps your stylus into place while not in use and is designed to accommodate OEM accessories, such as the hand strap. The top cup of the holder features a cut-out, so workers can utilize the device's scanner while docked. This holder comes with optional inserts to support devices with or without the protective rubber boot. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond base and double ball mount, allowing for a wide variety of mounting options (hardware included).

Features
  • Spring-loaded form-fit dock perfectly secures the Honeywell CT40/45/47 Handheld Computer; provides power through 1-meter long DC connector and supports a single peripheral via USB Type-A pigtail connector

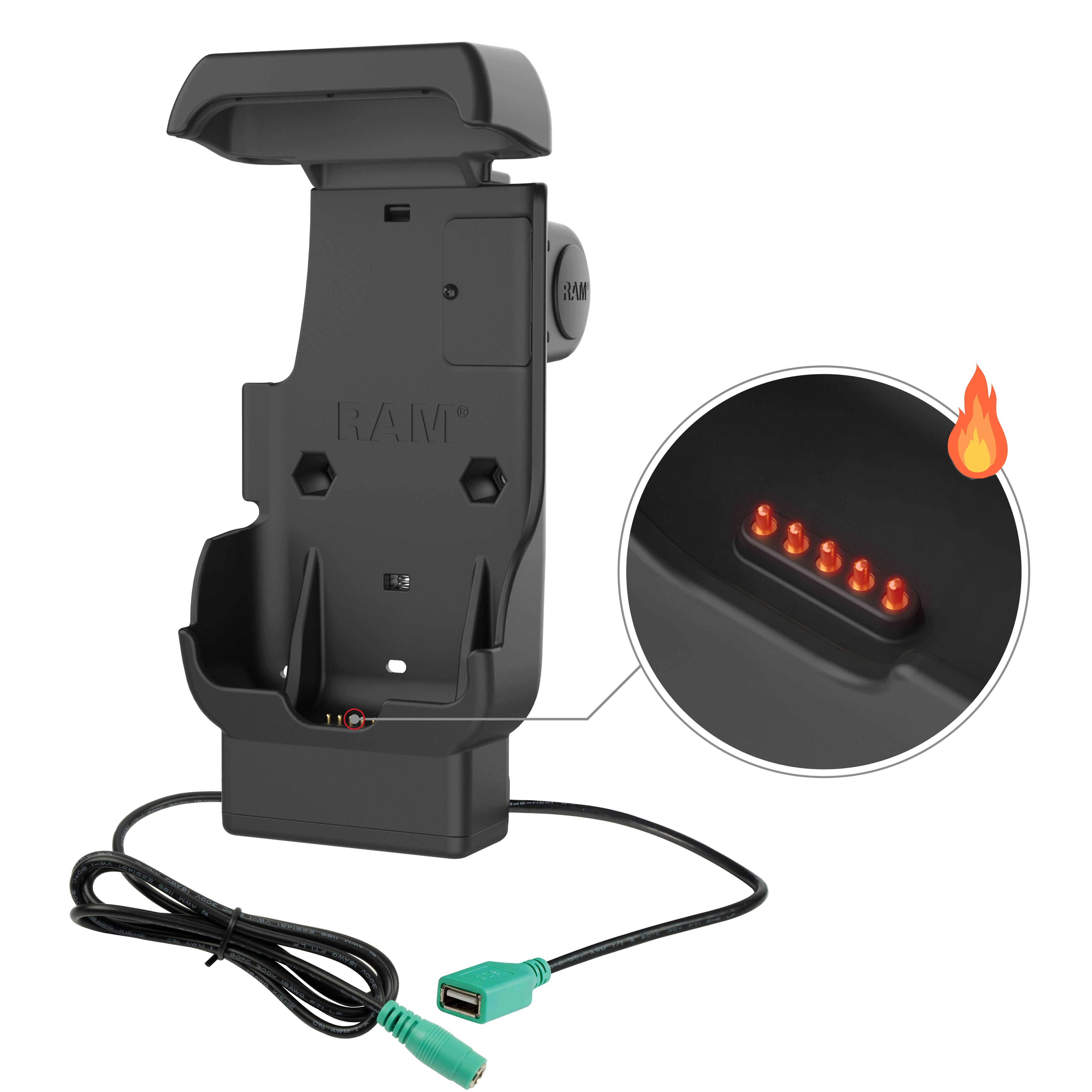

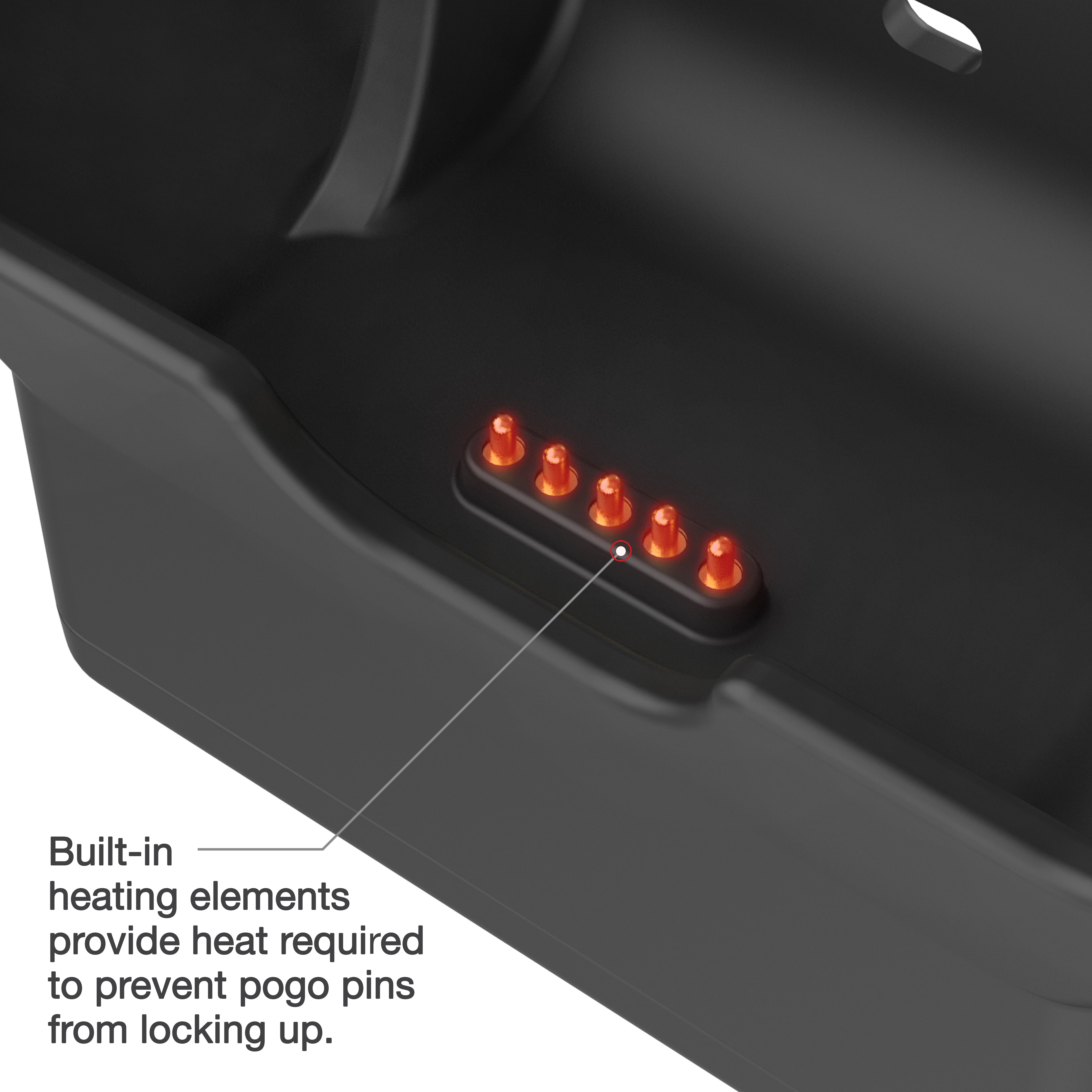

  • Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments
  • Compatible with RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.36 kg (0.80 lbs)
Hardware Included
(2) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(2) #8-32 x 7.62 cm (3")/10.16 cm (4") Machine Screws(2) #8-32 Nylock Nuts
Product Dimensions
Overall Height: 19.89cm (7.83") Overall Width: 9.40cm (3.7") Overall Depth: 8.05cm (3.17")

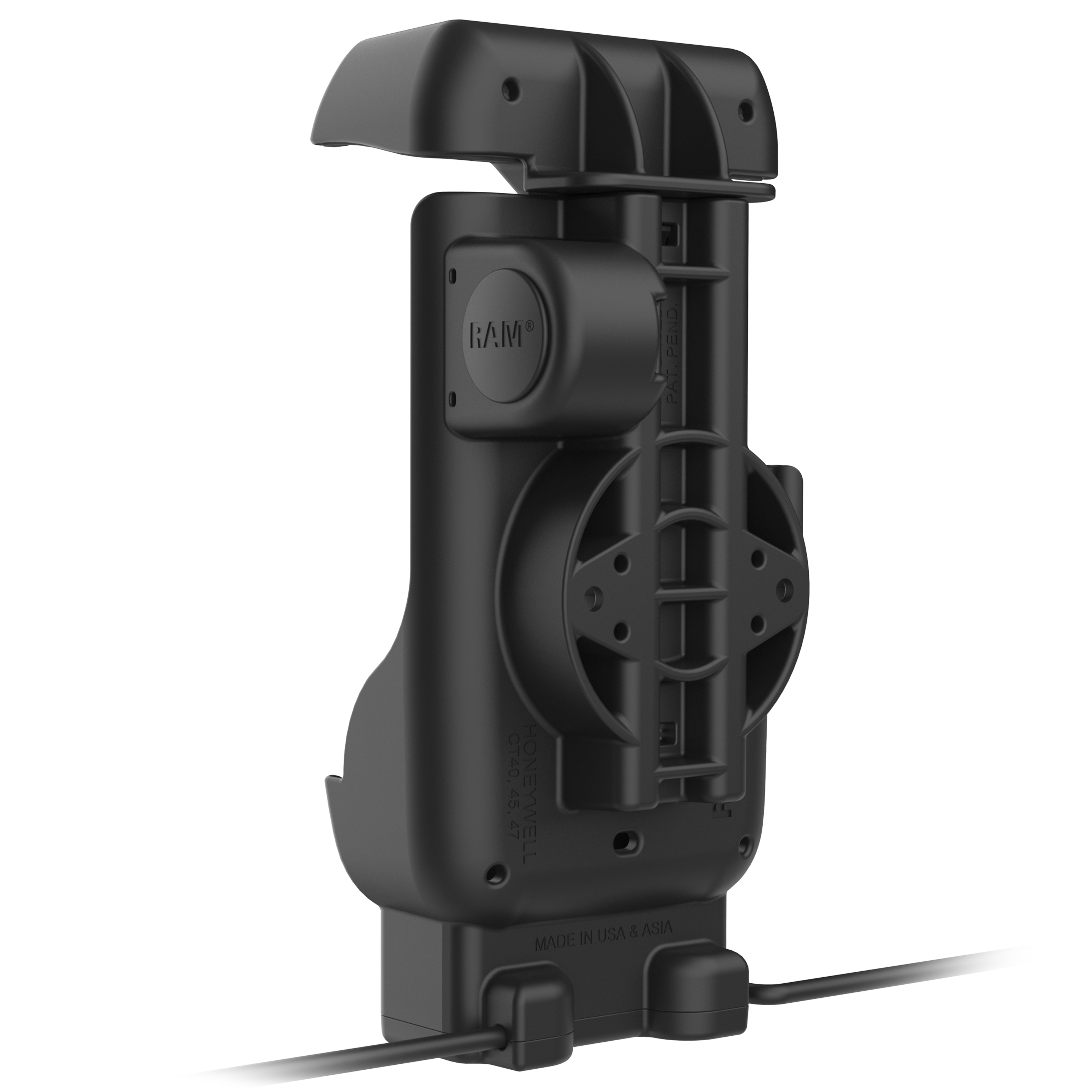

Hole Pattern
2-Hole AMPS: 4.86cm (1.912")
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5 VDC
Input Connector
5.5mm DC Connector
Input Cable Length
1 Meter
Output Connector
USB 2.0 Type A Female
Output Cable Length
1 Meter
Peripheral Output
500mAh
Certifications
FCC, IC, CE, UKCA, RoHS, WEEE
