The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Power-Grip™ Universal Scanner Gun Holder

SKU Copied
SKU: RAP-396U
UPC Copied
UPC: 793442942303

RAM® Power-Grip™ Universal Scanner Gun Holder
Copy SKU
SKU: RAP-396U
Copy UPC
| UPC: 793442942303

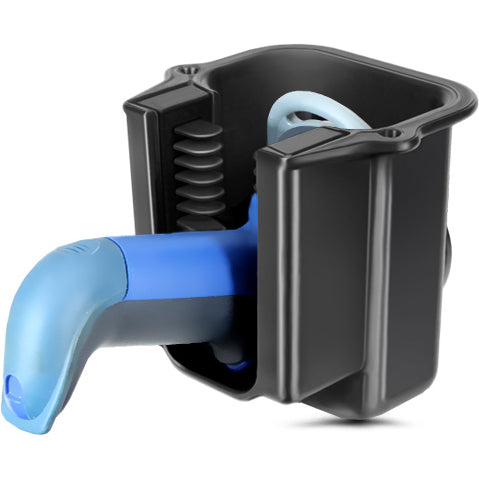

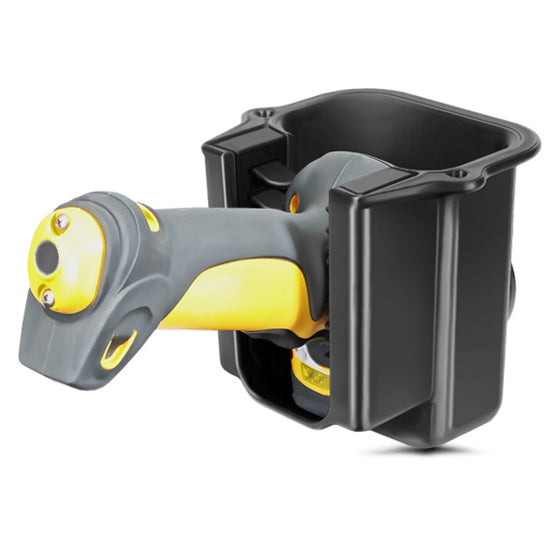

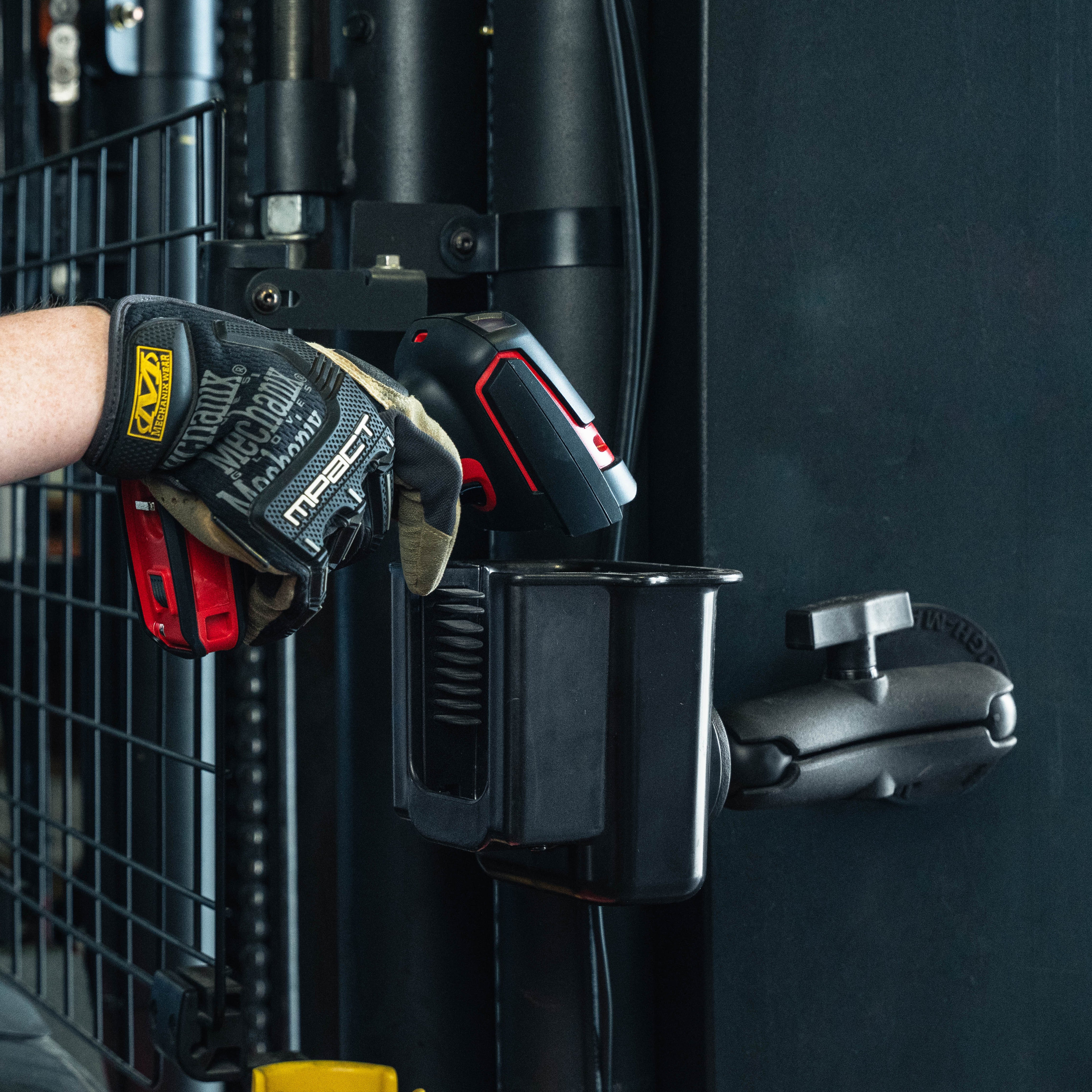

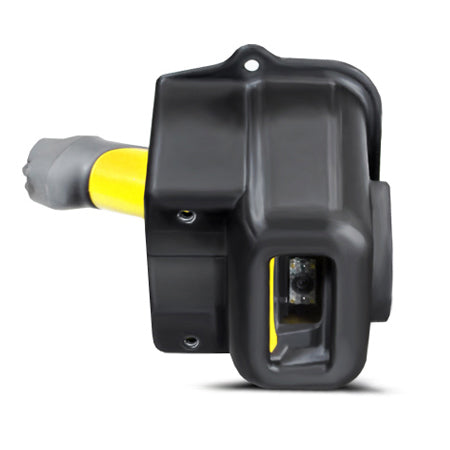

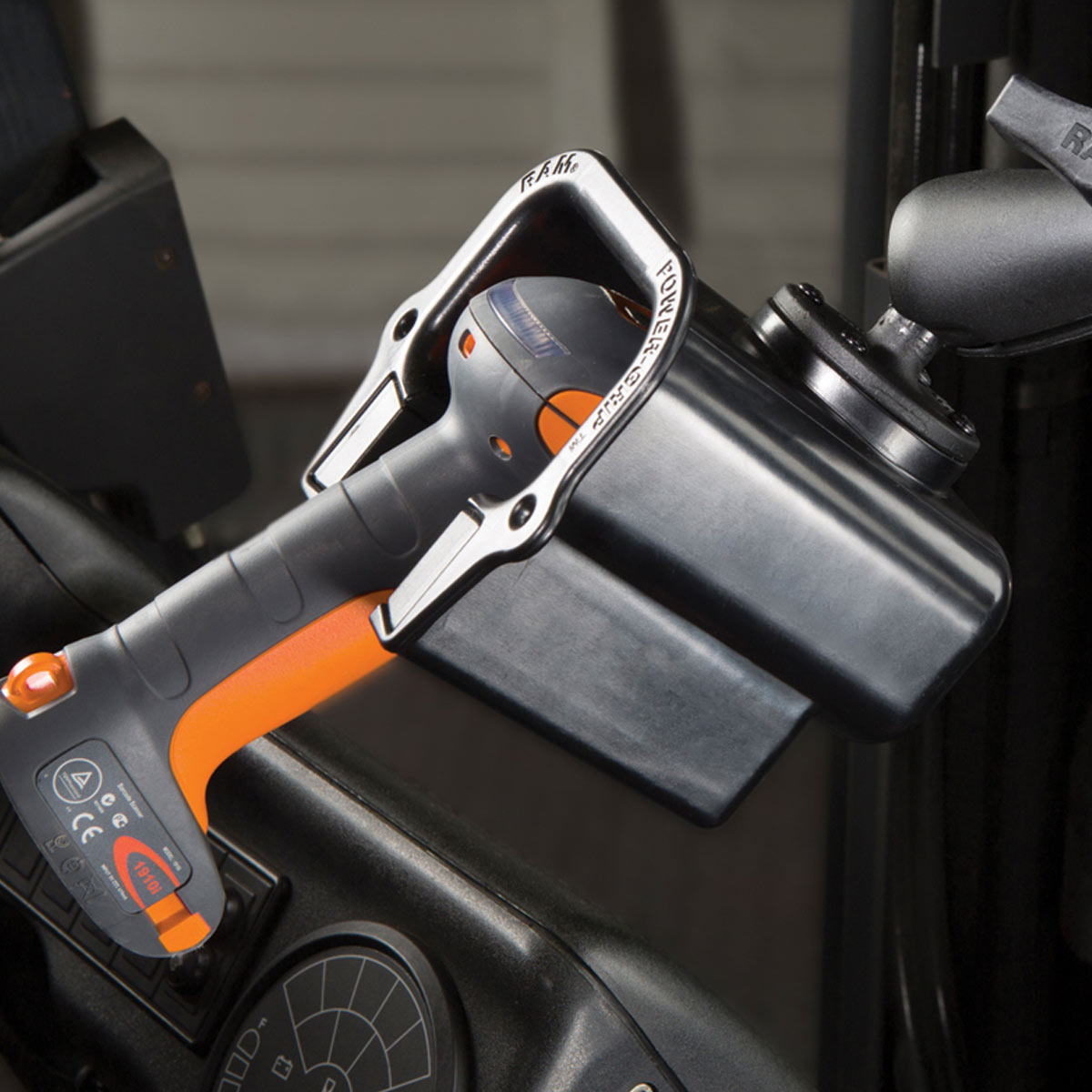

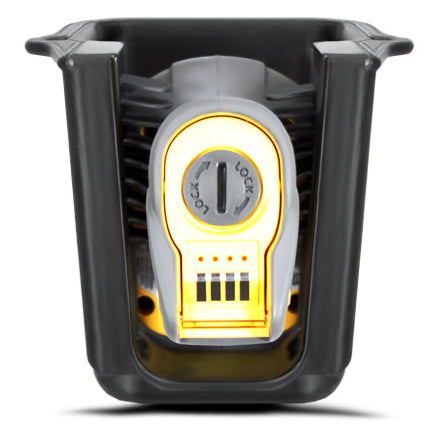

Whether it is a vehicle mounted terminal, tablet or monitor mount, RAM has a full range of solutions to meet the demands of the toughest users. RAM has once again innovated with the Power-Grip Universal Scanner Gun Holder. This product is compatible with a wide range of ruggedized 2D barcode scanners and is compatible with RAM's full range of forklift mounting systems, as well as mounting systems for a variety of mounting scenarios. Using a variety of high strength, quality materials, The Power-Grip securely locates your 2D barcode scanner while you aren't using it. When required, the 2D barcode scanner easily removes to quickly scan the desired item. The unique open bottom design enables scanning while in the holder. Replaceable elastomeric fins grip the handle of the scanner tight to ensure the most secure fit, and can be easily replaced if required. Backed with RAM's renowned lifetime warranty, the Power-Grip Universal Scanner Gun Holder is an essential accessory for your 2D barcode scanner.

Features

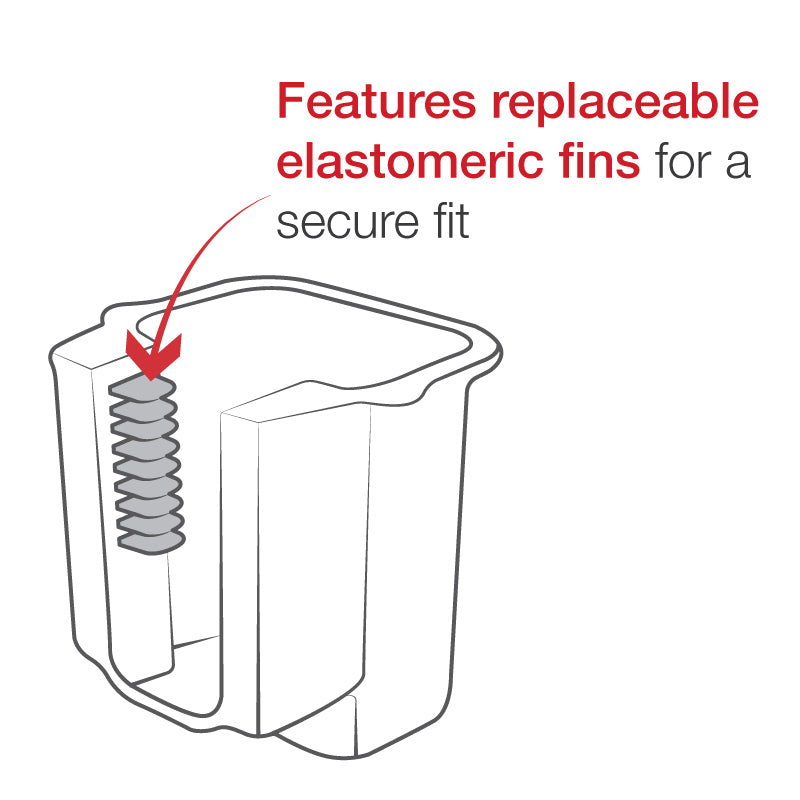

  • Universal scanner gun holder features replaceable elastomeric fins for a secure fit
  • Includes both side and bottom mounting attachment points; compatible with GDS® shoulder strap accessory and third-party lanyards
  • Made of high-strength composites with stainless steel thread post for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.32 kg (0.71 lbs)
Hardware Included
(4) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(4) #8-32 Nylock Nuts
Internal Dimensions
Width: 8.81cm (3.47") Length: 5.49cm (2.16") Depth: 12.45cm (4.9")

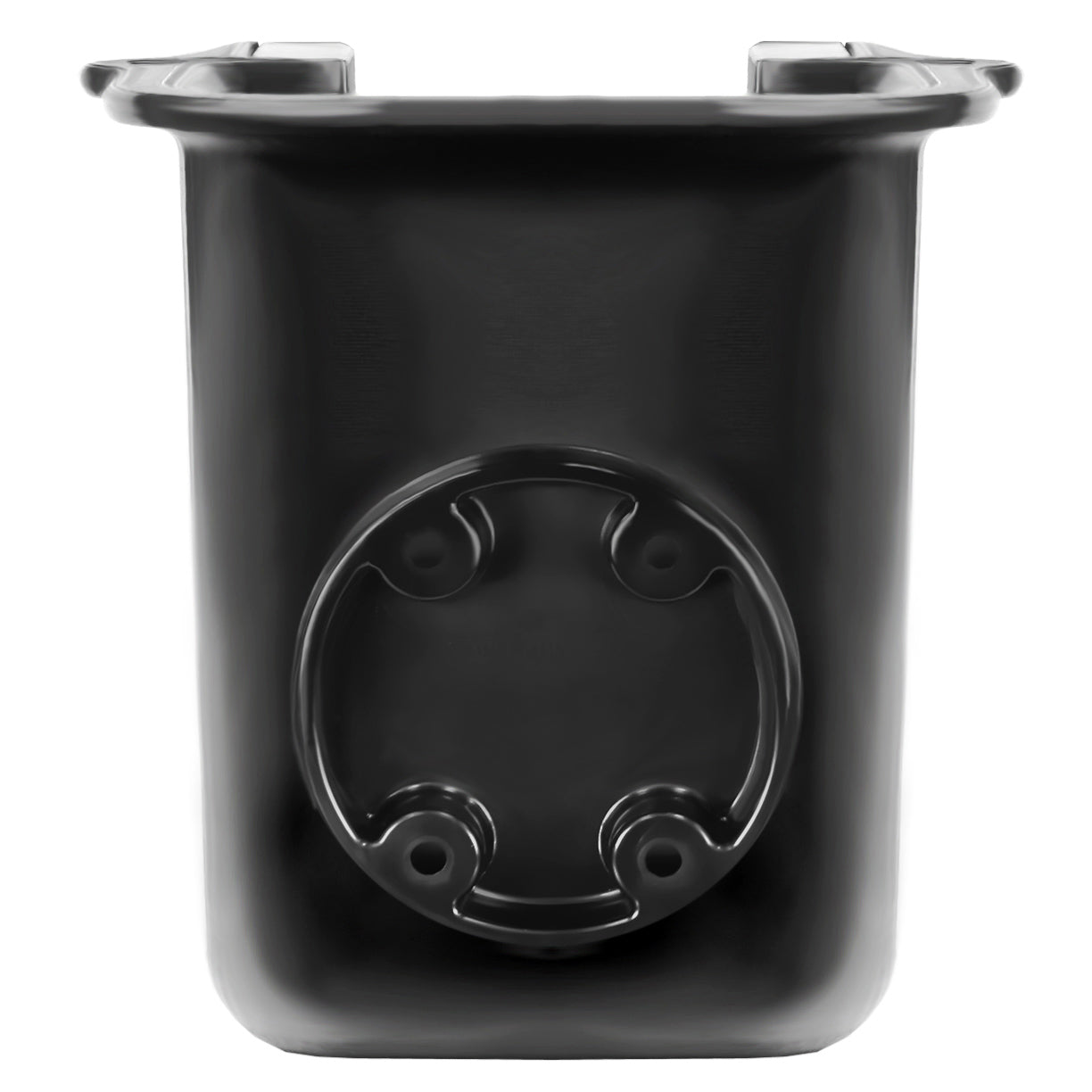

Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag

Resources

DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAP-396F-2U
RAM® Power-Grip™ Universal Scanner Gun Fin Replacements


Complete Your Solution

C Size Ball & Socket Mounts

RAM Mounts
Copy SKU
RAM-101U
RAM® Double Ball Mount with Two Round Plates - C Size Medium
RAM Mounts
Copy SKU
RAP-401-202U
RAM® Tough-Claw™ Large Clamp Double Ball Mount with Round Plate
RAM Mounts
Copy SKU
RAM-101-B-225B2U
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short

Accessories for 4-Hole AMPS Holders

RAM Mounts
Copy SKU
RAM-HOL-ROTO1U
RAM® Roto-View™ Adapter Plate
RAM Mounts
Copy SKU
RAP-403FU
RAM® Spacer Plate Accessory for Flush Mounting
