The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® No-Drill™ Universal Laptop Mount with Reverse Configuration

SKU Copied
SKU: RAM-VB-196-1-SW1
UPC Copied
UPC: 793442947797

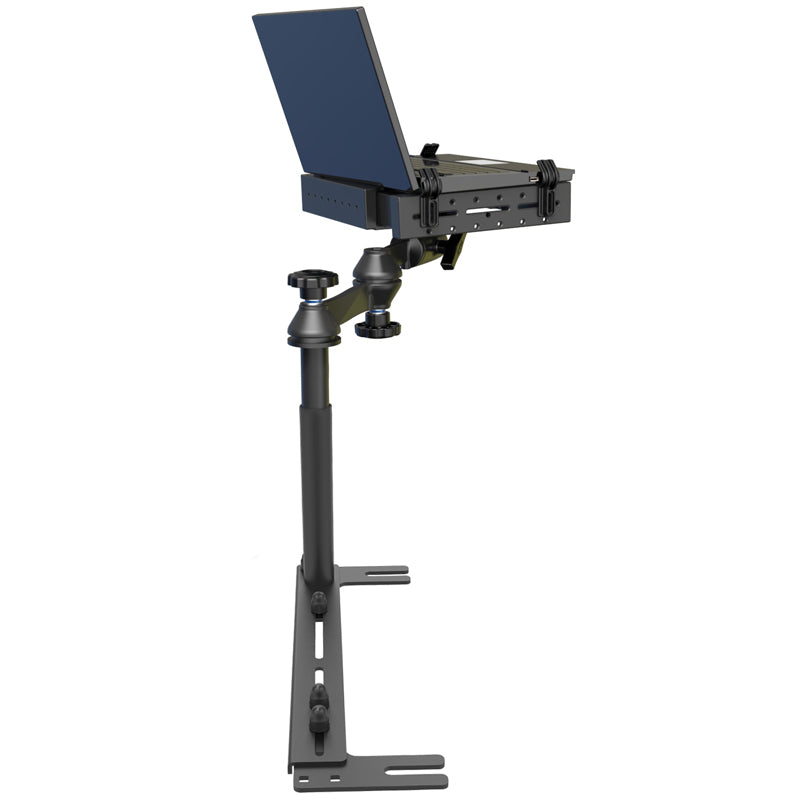

RAM® No-Drill™ Universal Laptop Mount with Reverse Configuration
Copy SKU
SKU: RAM-VB-196-1-SW1
Copy UPC
| UPC: 793442947797

C SIZE
Size Guide
The RAM Reverse Configuration Universal No-Drill Laptop features a heavy-duty steel mounting base designed to fit a variety of vehicles. Using the front bench or passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle. The included RAM Tough-Tray is spring loaded to accommodate 25.40cm (10") to 43.18cm (17") laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics.

Features
  • Custom, RAM® No-Drill™ mounting base offers lowest profile in the industry
  • Universal adjustable base accommodates a wide range of vehicles (see Additional Information)
  • Patented ball and socket mounting system offers shock and vibration damping
  • Dual articulating swing arm offers the simplest and most comfortable adjustment points in the industry
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
6.35 kg (14.00 lbs)
Hardware Included
Assembly HardwareStabilizer Foot
Product Dimensions
Height Range: 46.36cm (18.25") - 60.96cm (24")
Tray Dimensions
Width Range: 25.40cm (10") - 40.64cm (16") Side Arm Clamp Height: 1.27cm (0.5") - 4.45cm (1.75") Tray Depth: 25.40cm (10") Tray Thickness: 5.40cm (2.125")
Hole Pattern
Seat Bolt Distance: 22.86cm (9") - 47.94cm (18.875") center to center
Ball Size
C Size ( 3.81cm (1.5") )
Materials
Powder coated steelMarine grade-aluminumHigh strength composite
Packaging Type
Box

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-234-3
RAM® Tough-Tray™ Spring Loaded Laptop Tray
RAM Mounts
Copy SKU
RAM-VB-196-1
RAM® No-Drill™ Universal Vehicle Base with Reverse Configuration
RAM Mounts
Copy SKU
RAM-VP-SW1-8
RAM® 8" Upper Pole with Double Swing Arms & Round Plate


Complete Your Solution

RAM® Laptop Tray Accessories

RAM Mounts
Copy SKU
RAM-234-5U
RAM® Power Caddy™ Accessory Holder for RAM® Tough-Tray™
RAM Mounts
Copy SKU
RAM-234-S2U
RAM® Adjustable Laptop Screen Support Arm
RAM Mounts
Copy SKU
RAM-234K1-4U
RAM® Tough-Tray™ Flat Clamping Arm Kit
