The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Level Cup™ XL 32oz Drink Holder with Large Strap Clamp Base

SKU Copied
SKU: RAP-B-417-200-1-231Z-2NUBU
UPC Copied
UPC: 793442953033

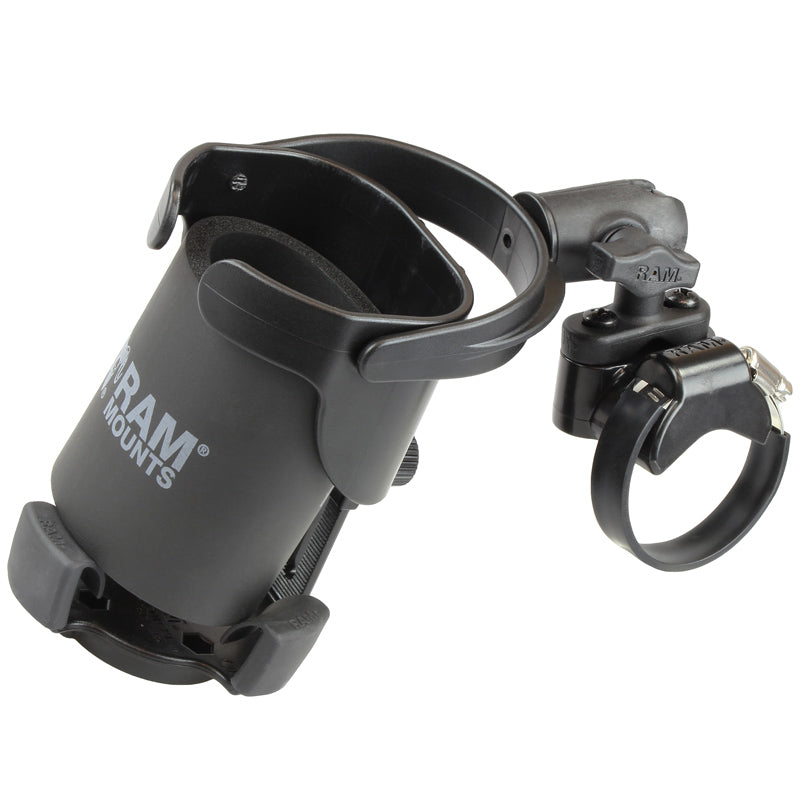

RAM® Level Cup™ XL 32oz Drink Holder with Large Strap Clamp Base
Copy SKU
SKU: RAP-B-417-200-1-231Z-2NUBU
Copy UPC
| UPC: 793442953033

B SIZE
Size Guide
Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup XL keeps your drink upright, regardless of the conditions. This kit includes a standard length socket arm and hose clamp base for handlebars, rails and roll bars for ATV's and UTV's. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. The rubber feet flex to fit various size cups as well. RAM Mounts has refined the self-leveling action to keep your cups full.

Information

Resources

Information

Product Weight
0.48 kg (1.06 lbs)
Hardware Included
(3) Rubber Support Fins(1) Glue Tube for Rubber Fins(1) Strap Clamp Adapter(2) 1/4" -20 x 2.54cm (1") Machine Screws(2) 1/4" -20 Nylock Nuts(1) Zinc Worm Drive Strap Clamp(1) 15.24cm (6") Rubber Strip
Drink Size
12-32 oz
Clamp Range
3.99cm (1.57") - 8.00cm (3.15") diameter
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-231Z-2NUBU
RAM® ATV/UTV Rail Base with no U-Bolts
RAM Mounts
Copy SKU
RAP-B-417-200-1U
RAM® Level Cup™ XL 32oz Drink Holder with Single Socket Arm
