The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3

SKU Copied
SKU: RAM-HOL-SAM58CPKLU
UPC Copied
UPC: 793442021961

RAM® Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3
Copy SKU
SKU: RAM-HOL-SAM58CPKLU
Copy UPC
| UPC: 793442021961

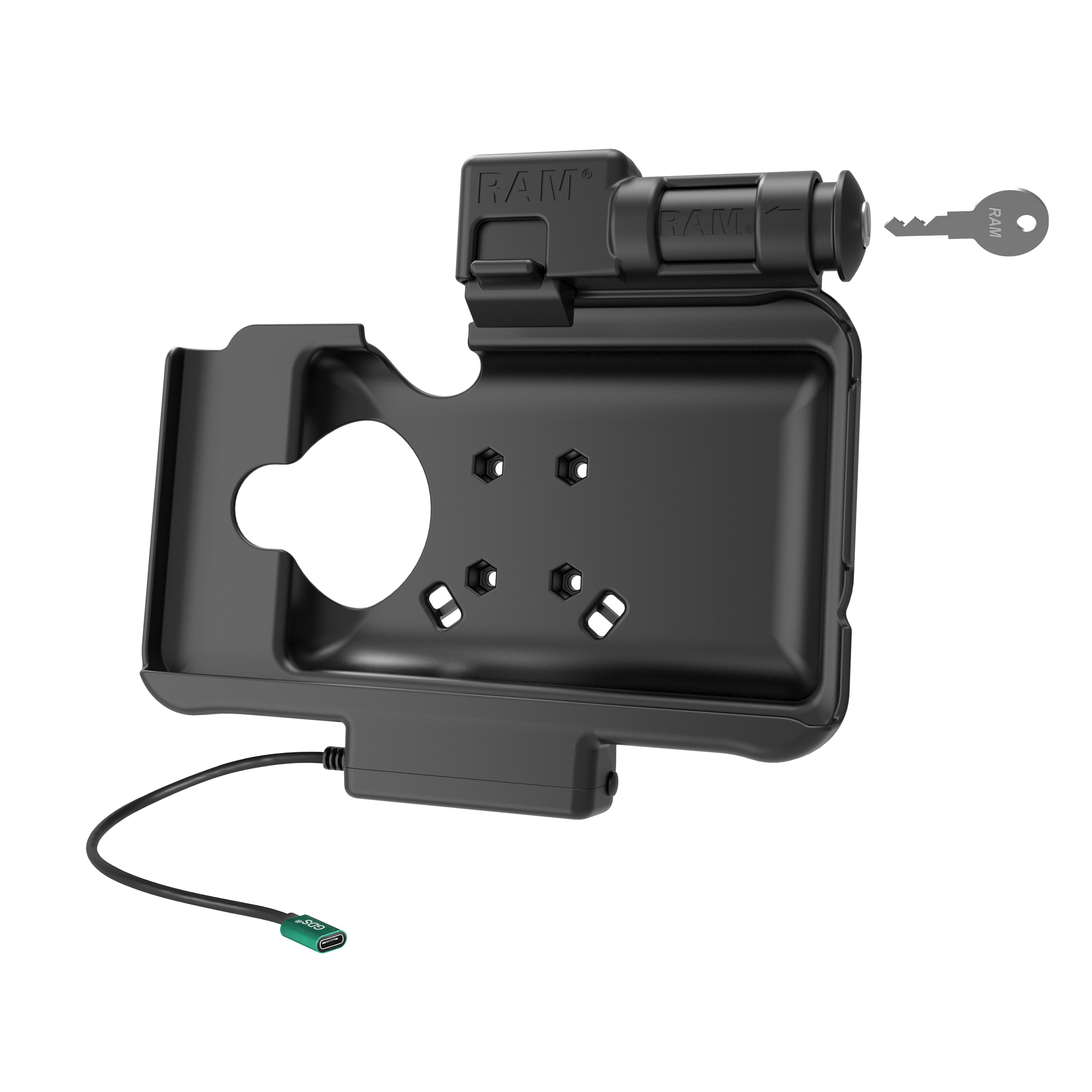

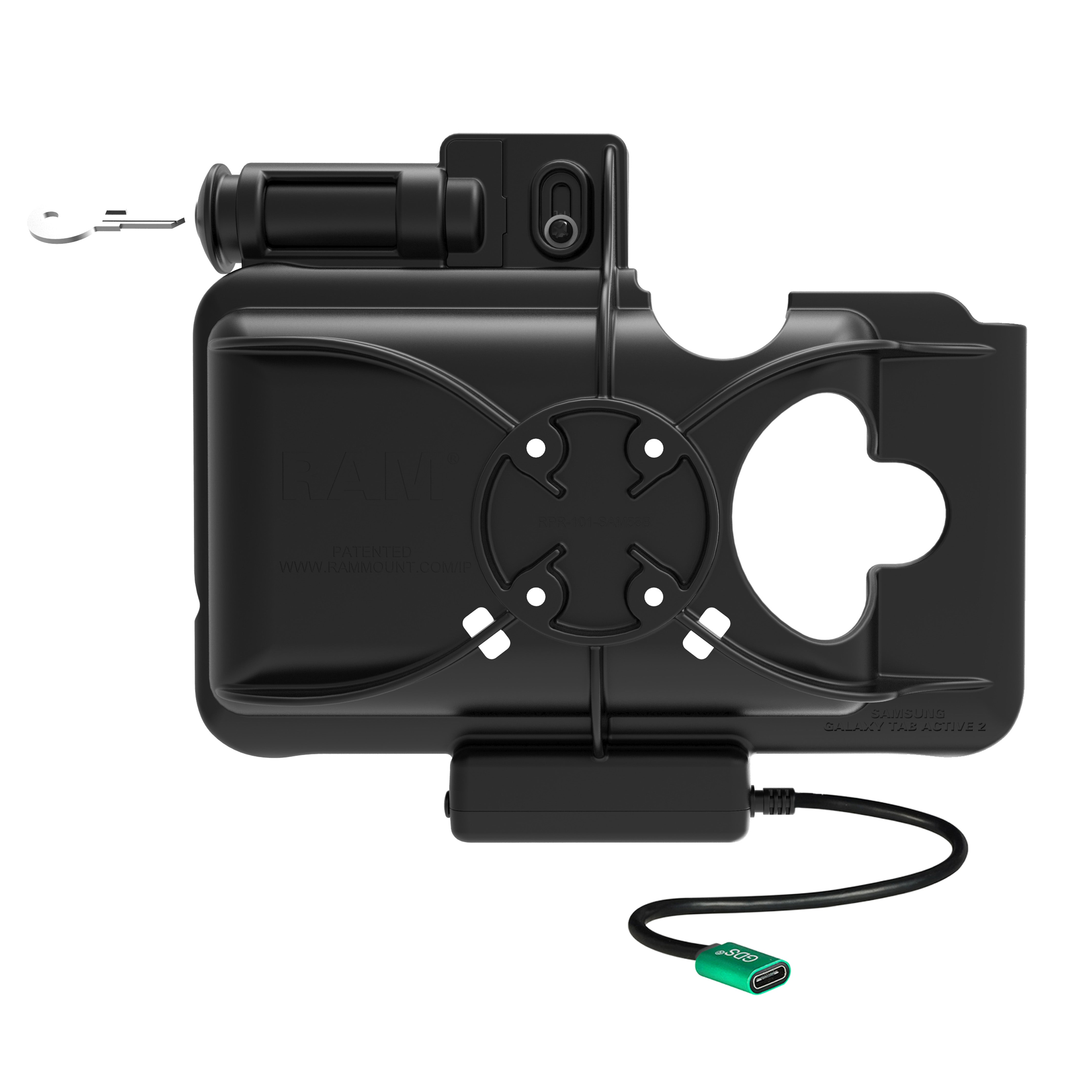

This powered key locking cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key lock thats compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern.

Features
  • Key locking powered cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
  • Contains 4-hole AMPS hole pattern for RAM® ball components
  • Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

Information

Compatible Devices

Information

Product Weight
0.47 kg (1.03 lbs)

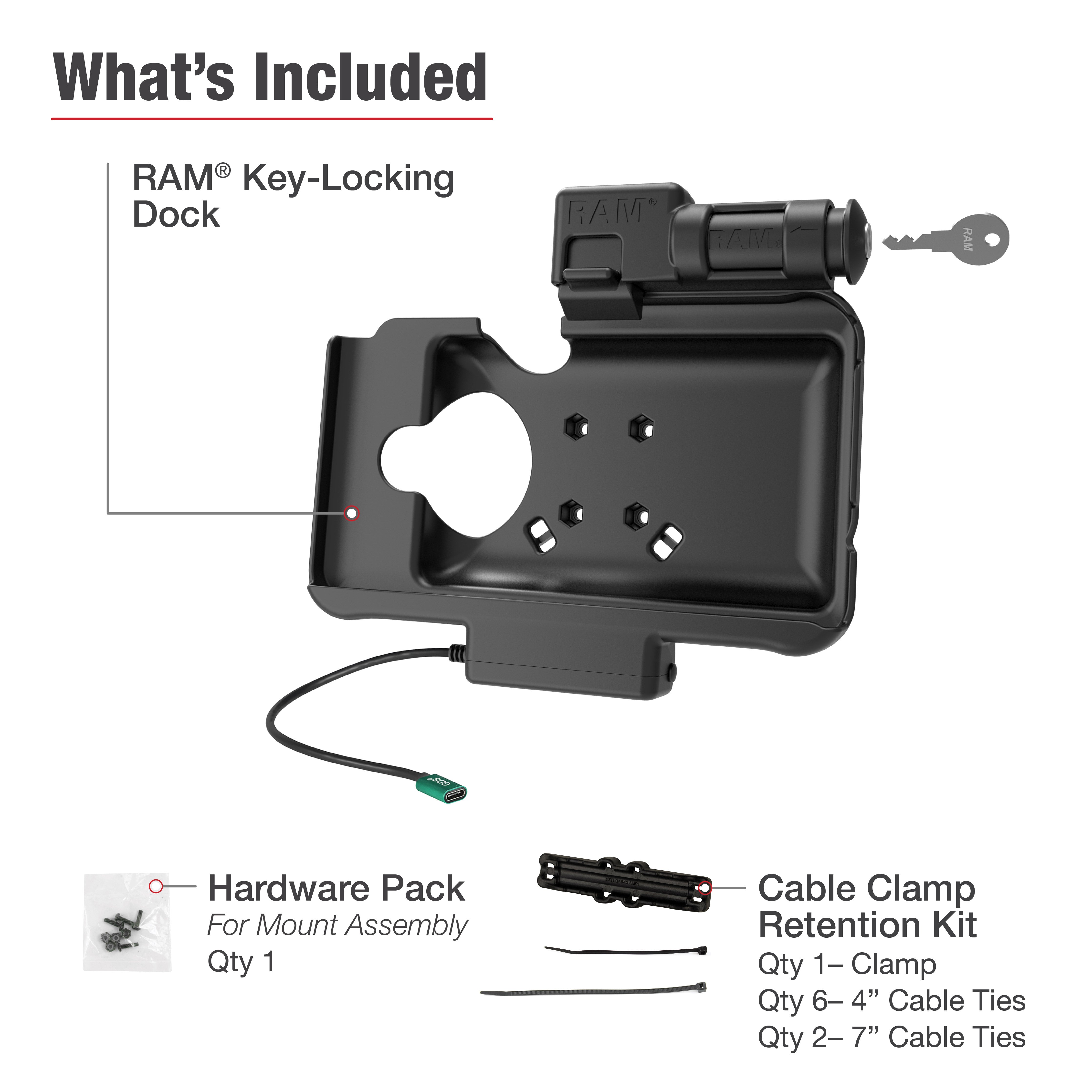

Hardware Included
(4) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(4) #8-32 Nylock Nuts(1) Optional Cable Clamp Housing(2) Large Cable Ties(7) Small Cable Ties
Product Dimensions
Width: 23.50cm (9.25") Height: 19.69cm (7.75") Depth: 7.62cm (3")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag
Input Voltage
5.3-5.4VDC
Output Voltage
5VDC
Power Output
500mA
Input Connector
USB Type-C Female
Input Cable Length
215mm

Compatible Devices
