The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Handlebar U-Bolt Mount with Locking Case for Garmin nuvi + More

SKU Copied
SKU: RAM-B-149Z-GA25LU
UPC Copied
UPC: 793442930997

RAM® Handlebar U-Bolt Mount with Locking Case for Garmin nuvi + More
Copy SKU
SKU: RAM-B-149Z-GA25LU
Copy UPC
| UPC: 793442930997

B SIZE
MEDIUM ARM
Size Guide
The RAM-B-149Z-GA25LU consists of a zinc coated u-bolt base, double socket arm, locking knob, diamond adapter base and custom high strength composite locking case. The locking case features the ability to secure your Garmin nuvi in place, adding much needed protection and enables full access to the screen, power plug, and memory card slot. The case consists of a front and back cover that can be secured together using standard pop rivets or security screws (not included.) The RAM cradle features a unique cable retention system that prevents accidental unplugging of the USB cable. Included in this package is hardware that will accommodate rails from 1.27cm (0.50") to 3.18cm (1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 1.27cm (0.5") . The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Information

Resources

Compatible Devices

Information

Product Weight
0.31 kg (0.68 lbs)
Hardware Included
Assembly Hardware(2) Keys(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer
Clamp Range
1.27cm (0.5") - 3.18cm (1.25") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-201LU
RAM® Double Socket Arm with Key Lock Knob - B Size Medium
RAM Mounts
Copy SKU
RAM-B-231ZU
RAM® Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter - B Size
RAM Mounts
Copy SKU
RAM-B-238U
RAM® Diamond Ball Base - B Size
RAM Mounts
Copy SKU
RAM-HOL-GA25LU

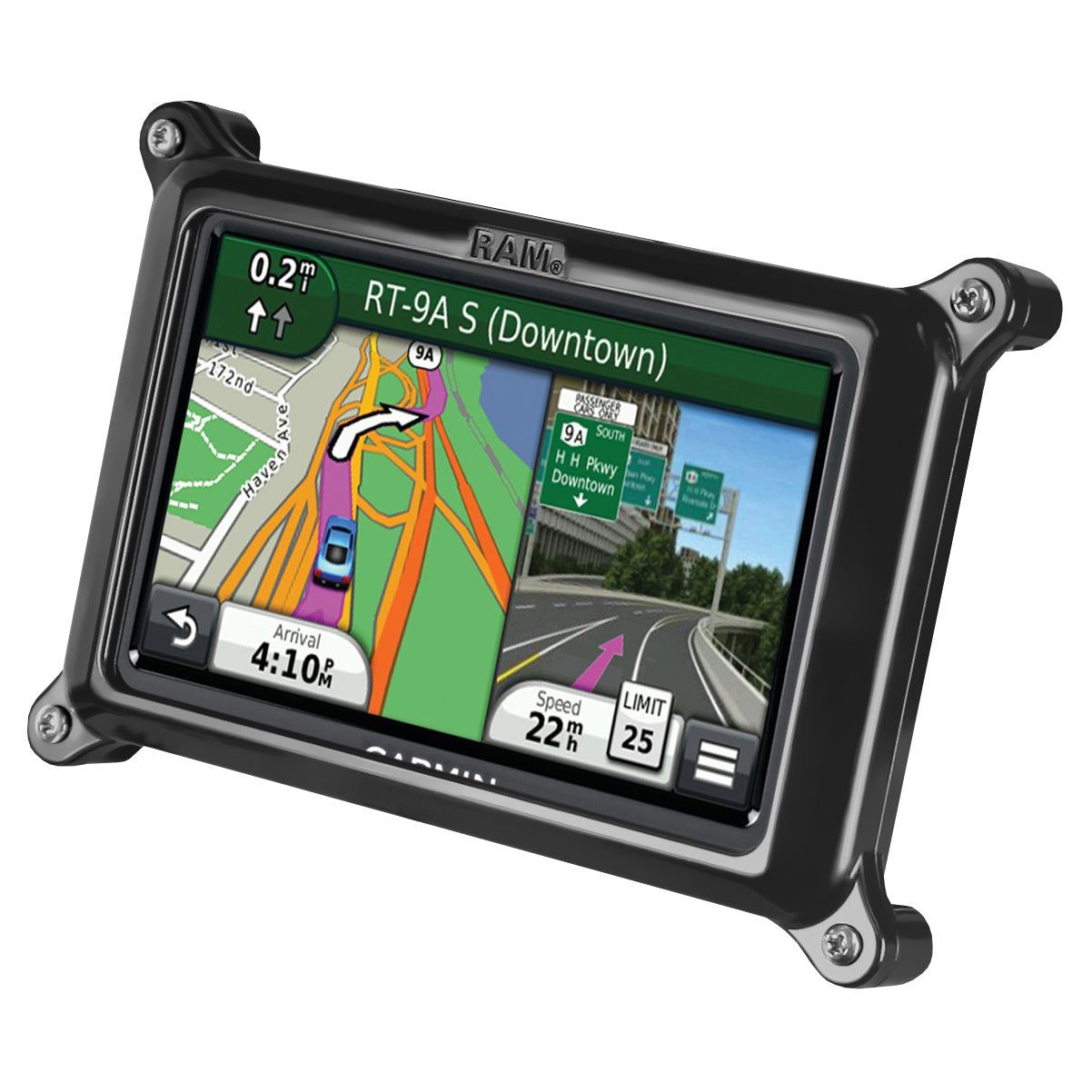

RAM® Form-Fit Locking Cradle for Garmin nuvi 200W, 285WT & 465T + More
