World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

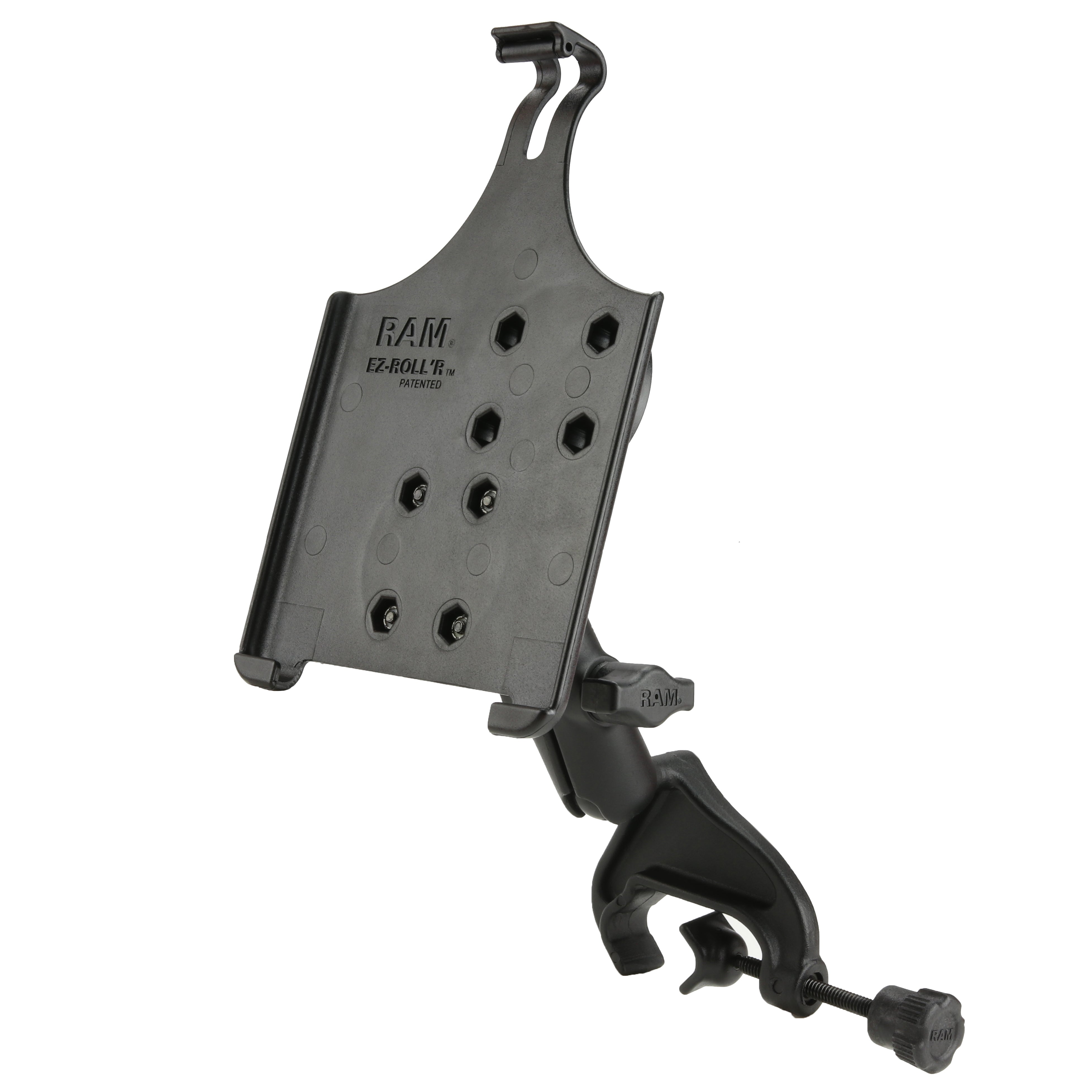

RAM® EZ-Roll'r™ Cradle with Yoke Clamp Mount for Apple iPad mini 4 & 5

SKU Copied
SKU: RAM-B-121-AP20U
UPC Copied
UPC: 793442014321

RAM® EZ-Roll'r™ Cradle with Yoke Clamp Mount for Apple iPad mini 4 & 5
Copy SKU
SKU: RAM-B-121-AP20U
Copy UPC
| UPC: 793442014321

B SIZE
MEDIUM ARM
Size Guide
This ideal airplane yoke mount is designed specifically to hold an Apple iPad mini 4 or iPad mini 5, and consists of a yoke clamp base, B size medium length double socket arm and round 6.35cm (2.5") base that contains the universal AMPs hole pattern to attach the holder. The yoke clamp base will fit rails in diameter from 1.59cm (00.625") to a maximum of 3.18cm (1.25") . The 2.54cm (1") rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.

Features
  • RAM® EZ-Roll'r™ cradle designed specifically for a caseless Apple iPad mini 4 and iPad mini 5
  • Yoke clamp base fits rails from 1.59cm (0.625") to 3.18cm (1.25") in diameter for the ideal airplane mount
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Compatible Devices

Information

Product Weight
0.44 kg (0.97 lbs)
Hardware Included
Assembly Hardware
Clamp Range
1.59cm (0.625") - 3.18cm (1.25")
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-121-202U
RAM® Double Ball Yoke Clamp Mount with Round Plate - Medium
RAM Mounts
Copy SKU
RAM-HOL-AP20U
RAM® EZ-Roll'r™ Cradle for Apple iPad mini 4 & 5


Complete Your Solution

Locking Knobs for B Size Socket Arms

RAM Mounts
Copy SKU
RAM-KNOB3LSU
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB3-7U
RAM® Pin-Lock™ Security Knob with 7-Pin Pattern for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB3U
RAM® Pin-Lock™ Security Knob for B Size Socket Arms

RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms

RAM Mounts
Copy SKU
RAM-B-273U
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
