The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
| Ball Sizes | Short Arm | Medium Arm | Long Arm | |
|---|---|---|---|---|
| B Size | Overall Length | 2.42" / 6.1468cm | 3.73" / 9.47cm | 6.00" / 15.24cm |
| Socket-to-Socket Length | 1.75" / 4.45cm | 3.00" / 7.62cm | 5.31" / 13.49cm | |
| C Size | Overall Length | 3.56" / 9.04cm | 5.69" / 14.45cm | 9.13" / 23.19cm |
| Socket-to-Socket Length | 2.50" / 6.35cm | 4.66" / 11.84cm | 8.00" / 20.32cm | |
| D Size | Overall Length | 5.10" / 12.95cm | 8.44" / 21.44 | 12.98" / 32.97 |
| Socket-to-Socket Length | 3.60" / 9.14cm | 6.88" / 17.48cm | 11.41" / 28.98cm | |
| E Size | Overall Length | 7.31" / 18.57cm | 12.63" / 32.08cm | N/A |
| Socket-to-Socket Length | 4.98" / 12.65cm | 9.88" / 25.10cm | N/A | |

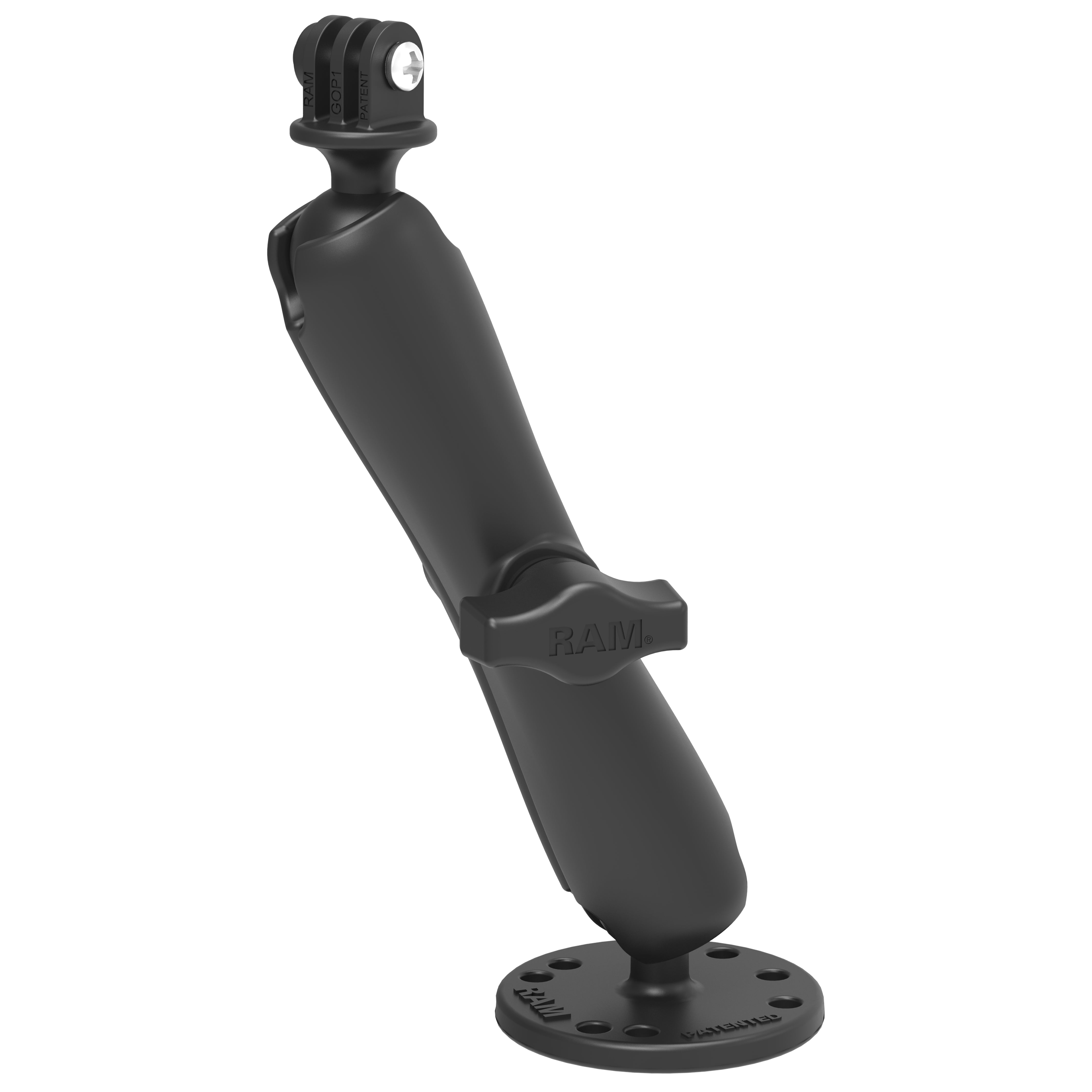

B SIZE
LONG ARM
