Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Double Ball Mount with Hardware for Garmin Striker + More

SKU Copied

SKU: RAM-B-101-G4

UPC Copied

UPC: 793442933219







RAM® Double Ball Mount with Hardware for Garmin Striker + More

Copy SKU
RAM-B-101-G4 SKU: RAM-B-101-G4

Copy UPC
793442933219 | UPC: 793442933219

B SIZE

MEDIUM ARM

Size Guide

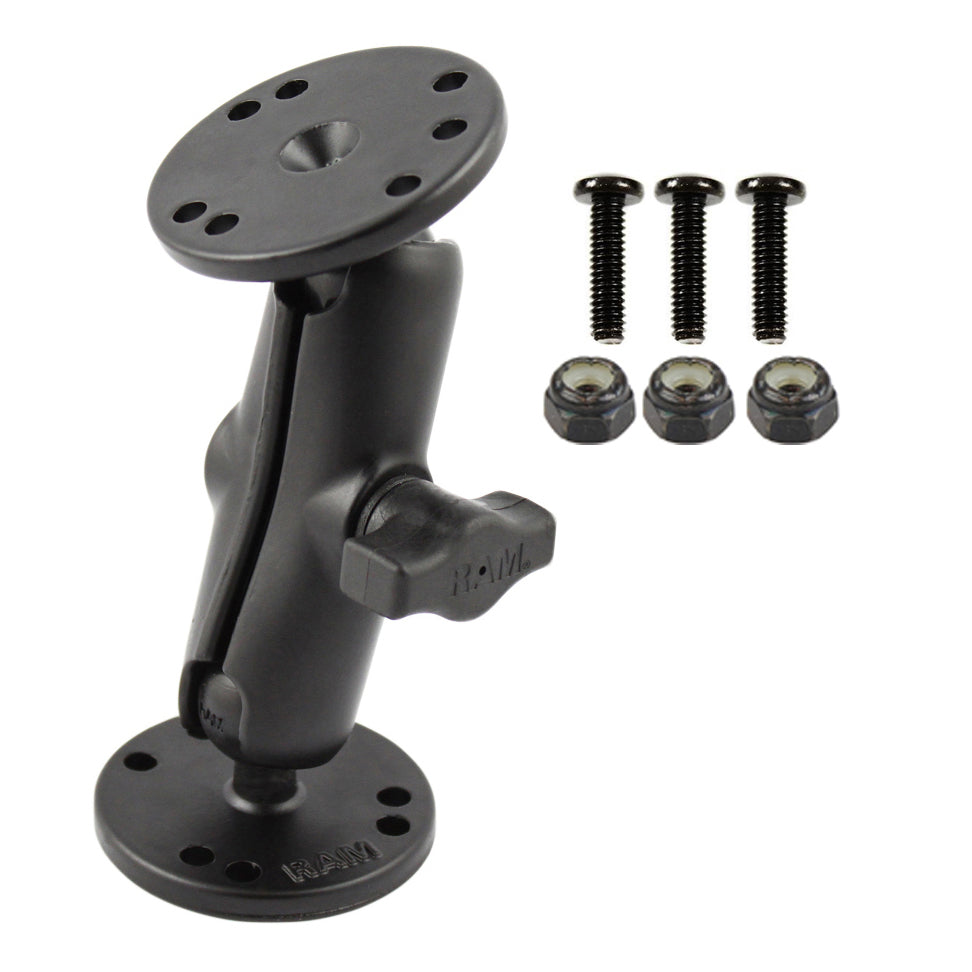

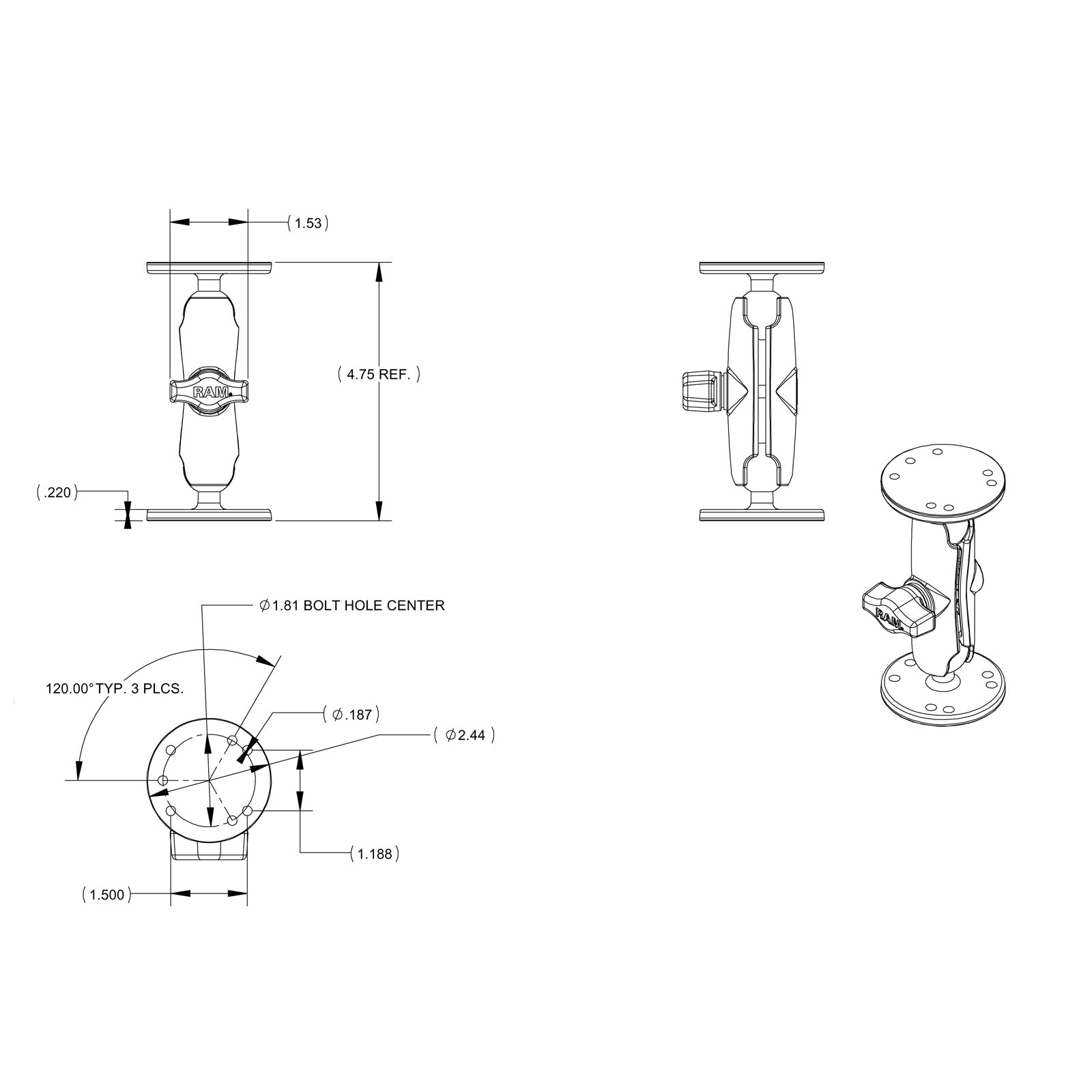

The RAM-B-101-G4 consists of a double socket arm, 6.35cm (2.5") diameter round base with the universal AMPS hole pattern and round adapter base that attaches directly to the bottom of the Garmin echo and Striker 4 Series. Designed into the mount is a 2.54cm (1") diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo to the RAM Mount.
