The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

GDS® Powered USB-C 2.0 Phone Dock with Drill-Down Double Ball Mount

SKU Copied
SKU: RAM-B-138-GDS-DOCK-V1CPU
UPC Copied
UPC: 793442801778

GDS® Powered USB-C 2.0 Phone Dock with Drill-Down Double Ball Mount
Copy SKU
SKU: RAM-B-138-GDS-DOCK-V1CPU
Copy UPC
| UPC: 793442801778

B SIZE
MEDIUM ARM
Size Guide

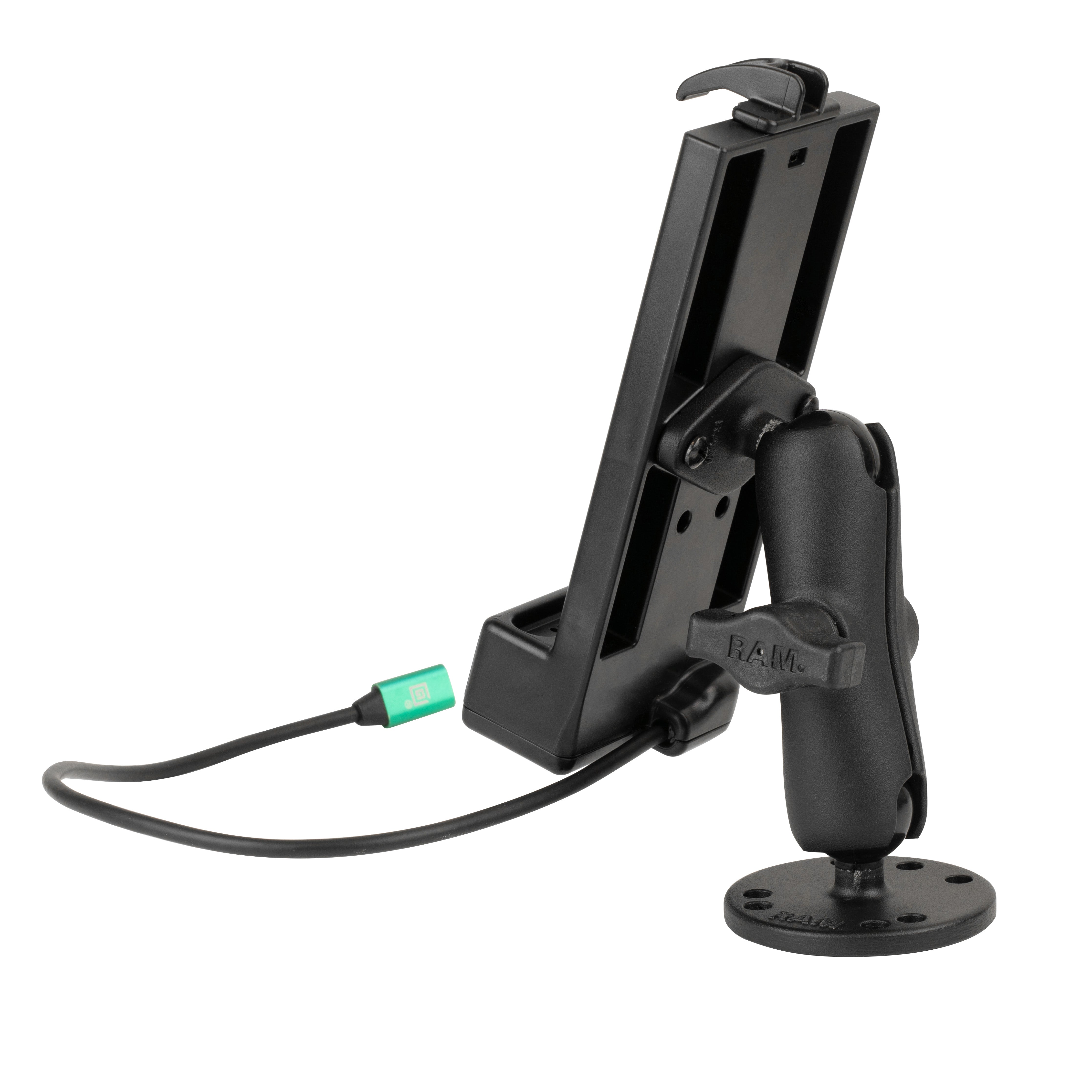

The RAM-B-138-GDS-DOCK-V1CPU consists of a 6.35cm (2.5") diameter round base with the universal AMPS hole pattern, double socket arm, diamond adapter base, and the RAM Universal Vehicle Phone Dock with GDS Technology. This mount can drill down to any hard surface and is suitable for rough environments and vehicle dashboards. The adjustment points at both ends of the double socket arm allow for near-infinite adjustment and perfect viewing angles. The vehicle dock is a spring-loaded, quick-release cradle that offers a secure fit with easy access to the mounted phone or tablet and compatible with any phone or tablet wrapped in IntelliSkin. The integrated GDS Technology platform enables charging of the mounted device and safely secures the phone in a variety of applications. Without the need to remove the IntelliSkin from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged.

Features
  • Bundle includes spring-loaded RAM® Universal Vehicle Phone Dock, 6.35cm (2.5") diameter round base with the universal AMPS hole pattern, double socket arm, and diamond adapter base
  • Drill-down base mounts to any hard surface and is suitable for rough environments and vehicle dashboards

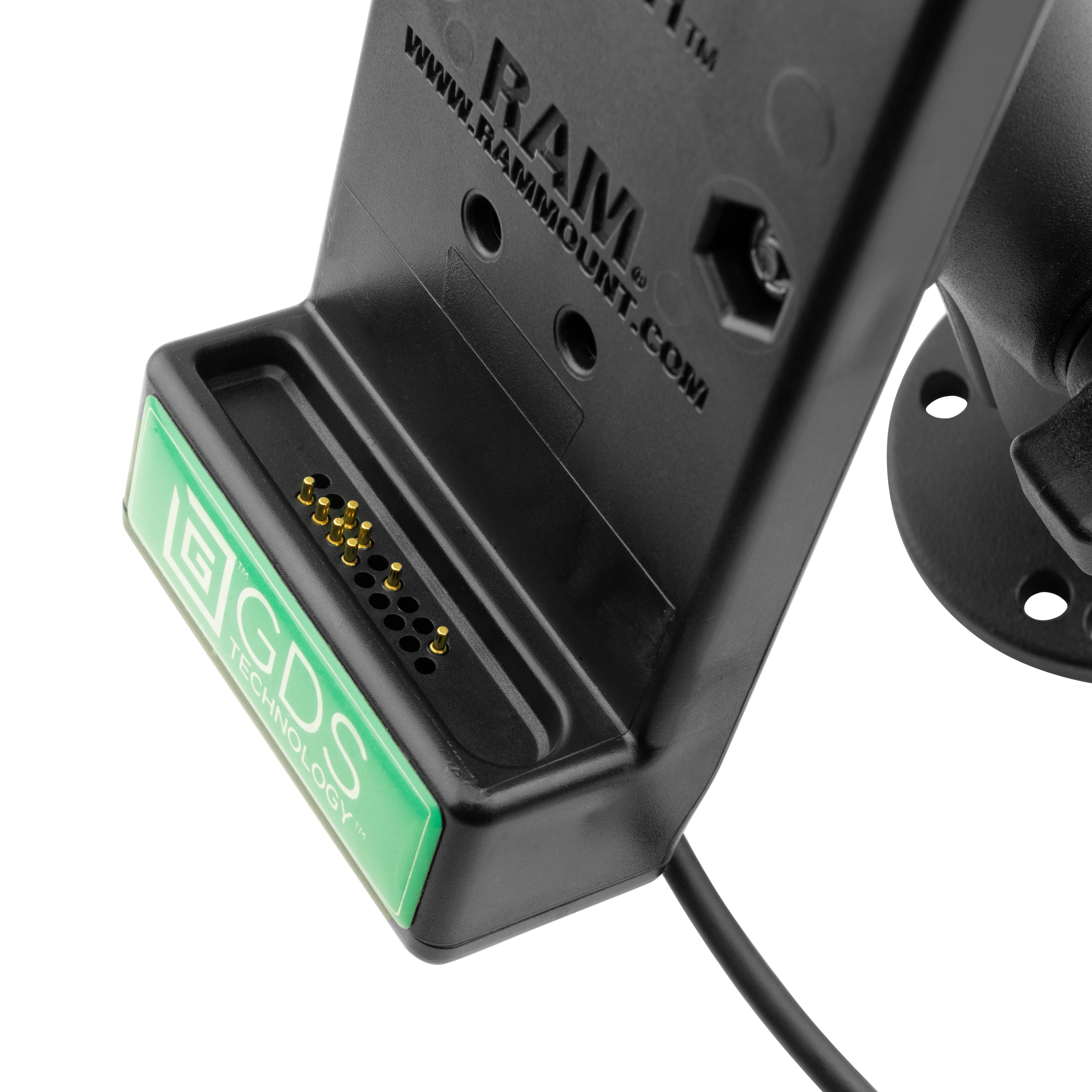

  • Dock features GDS® Technology™ for charging capabilities via Type-C connector
  • Backed by a 3-year warranty

Information

Resources

Information

Product Weight
0.42 kg (0.93 lbs)
Hardware Included
Assembly Hardware
Socket To Socket Length
7.62cm (3")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Plate Size
6.35cm (2.5") Diameter
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag
Output Voltage
Type-C Devices: 5V - 12V @ 3A maxmUSB Devices: 5V @ 1.5A max
Power Output
15W
Input Connector
USB Type-C

Resources

INSTRUCTIONS
