The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Lock Spring Loaded Holder for 7-8" Tablets with Cases

SKU Copied
SKU: RAM-HOL-TABL23U
UPC Copied
UPC: 793442947704
01 29 230832ram Hol Tabl23u1jpg

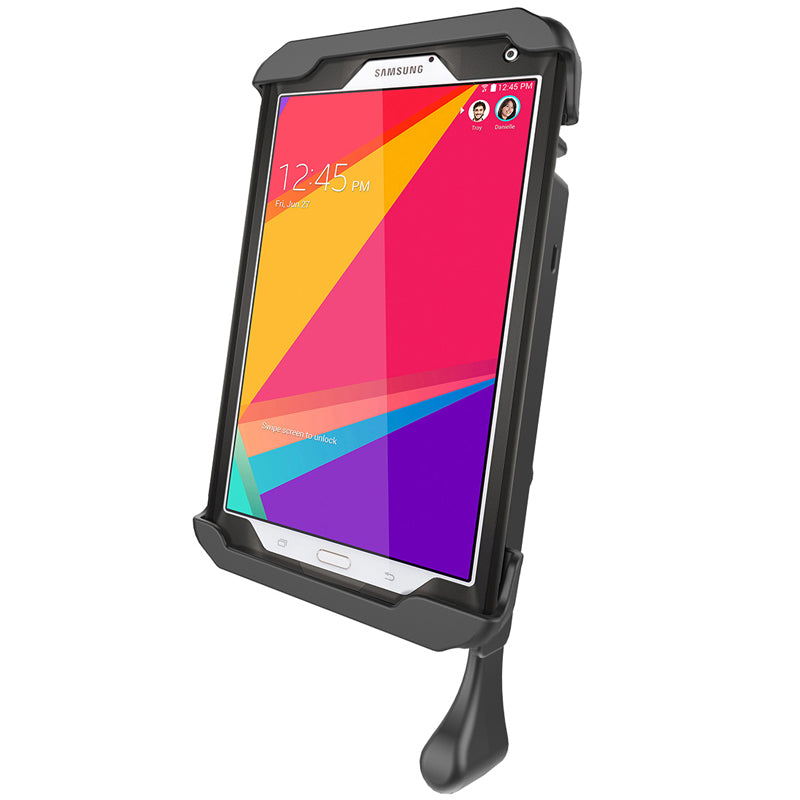

01 29 230832ram Hol Tabl23u2jpg

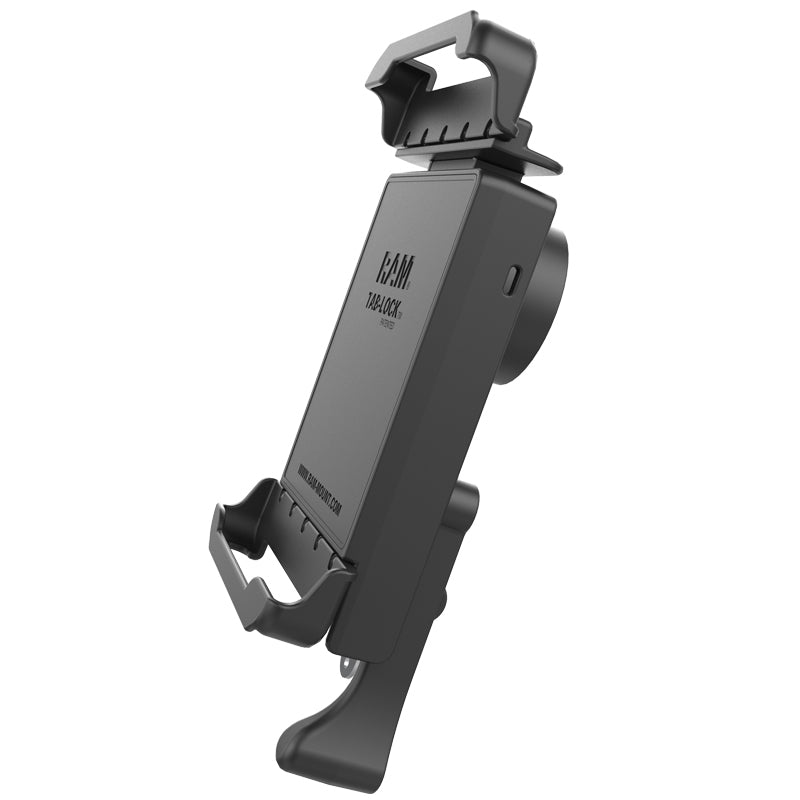

01 29 230832ram Hol Tabl23u3jpg

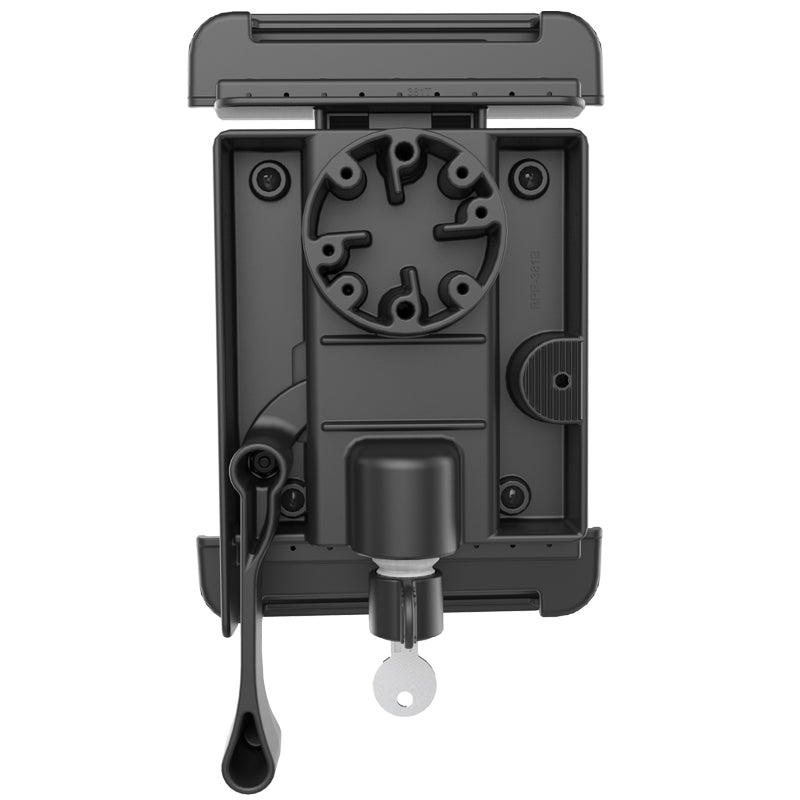

01 29 230832ram Hol Tabl23u4jpg

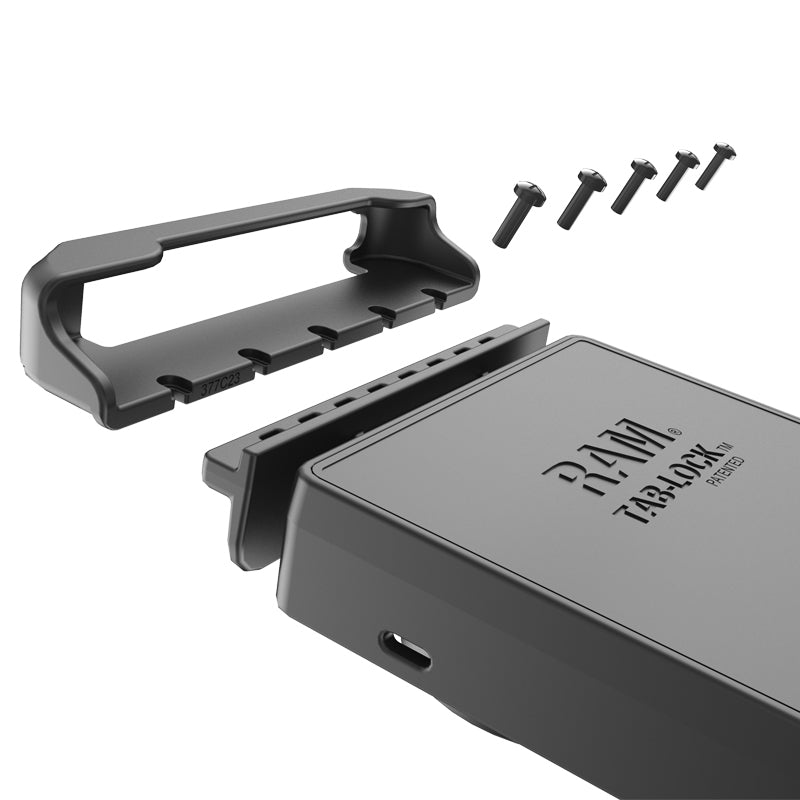

01 29 230833ram Hol Tabl23u5jpg

RAM® Tab-Lock Spring Loaded Holder for 7-8" Tablets with Cases
Copy SKU
SKU: RAM-HOL-TABL23U
Copy UPC
| UPC: 793442947704

Overview
The RAM® Tab-Lock spring loaded, quick release cradle with a keyed lock offers a secure fit with easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4 8.0 and Tab S 8.4 with an Otterbox Defender case. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Lock cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Product consists of holder only. Case not included.

Features
  • Locking mechanism for theft deterrence
  • Support cups contain open slots to accomodate for tablets of various sizes
  • Back plate can support various size support cups
  • Spring loaded tension provides secure support and quick release for your tablet
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Hardware Included

Assembly Hardware
(2) #8 x 12.70 cm (5")/20.32 cm (8") Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nylock Nuts
(2) Keys

Holder Dimensions

Height Range: 21.13cm (8.32") - 27.74cm (10.92")
Width Range: 11.25cm (4.43") - 13.46cm (5.3")
Depth Range: 0.33cm (0.13") - 1.57cm (0.62")

Hole Pattern

4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")

Materials

High strength composite

Packaging Type

Poly Bag

Weight

0.56 kg (1.23 lbs)

Resources

Instructions

Compatible Devices

Add to Enquiry

Components

01 29 230822ram Hol Tab23 Cupsu1jpg
RAM Mounts
Copy SKU
RAM-HOL-TAB23-CUPSU
RAM® Tab-Tite™ End Cups for 7-8" Tablets with Cases
01 29 230838ram Hol Tablbu1jpg
RAM Mounts
Copy SKU
RAM-HOL-TABLBU
RAM® Tab-Lock Backplate with Hardware
