The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview / GPS

RAM^® Brake/Clutch Reservoir Mount for Garmin nuvi 1100, 1260T + More

SKU Copied

SKU: RAM-B-174-GA33U

UPC Copied

UPC: 793442929830







RAM^® Brake/Clutch Reservoir Mount for Garmin nuvi 1100, 1260T + More

Copy SKU
RAM-B-174-GA33U SKU: RAM-B-174-GA33U

Copy UPC
793442929830 | UPC: 793442929830

B SIZE

MEDIUM ARM

Size Guide

Overview

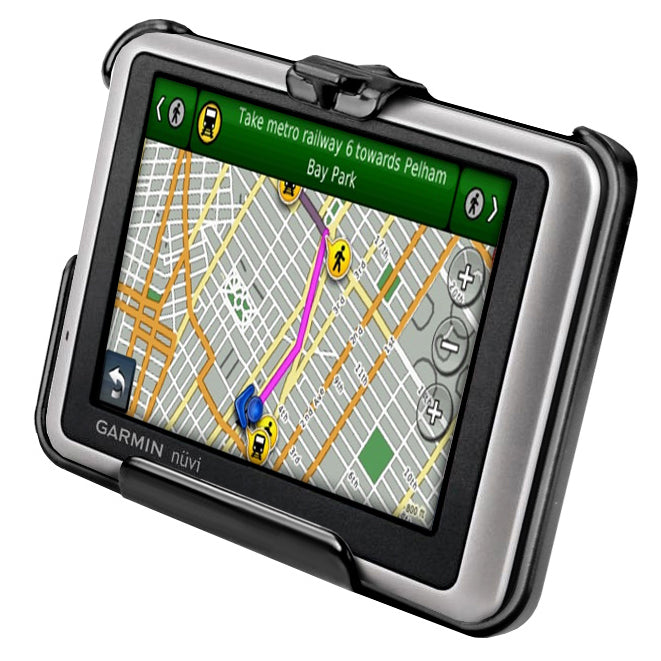

The RAM-B-174-GA32U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 1.27cm (0.5") to 3.18cm (1.25") in diameter, diamond adapter base and custom high strength composite cradle for the Garmin nuvi 500 series. Designed into the mount is a 2.54cm (1") diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle nuvi mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

Tags: .5" - 1.25", B Size 1" (Holds 2 lbs), Bolt Head Adapter, Brake/Clutch Reservoir, Complete kits, Custom Form-Fit, Garmin, goldwing, GPS, Handlebar, Medium Arm, Motorcycle

Information

Resources

Compatible Devices

Information

Hardware Included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 5.08cm (2") Hex Bolts
(2) 1/4" -20 x 52.07cm (20.5") Hex Bolts
(2) 1.27cm (00.5") Spacers
(2) 0.64cm (0.25") Split Lock Washers
(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails
(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails
(2) 1/4" -20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs)
Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminum
High strength composite

Packaging Type

Poly Bag
