Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® X-Grip® Wheelchair Seat Track Mount for 9"-11" Tablets

SKU Copied

SKU: RAM-238-WCT-9-UN9

UPC Copied

UPC: 793442008122







RAM® X-Grip® Wheelchair Seat Track Mount for 9"-11" Tablets

Copy SKU
RAM-238-WCT-9-UN9 SKU: RAM-238-WCT-9-UN9

Copy UPC
793442008122 | UPC: 793442008122

C SIZE

Size Guide

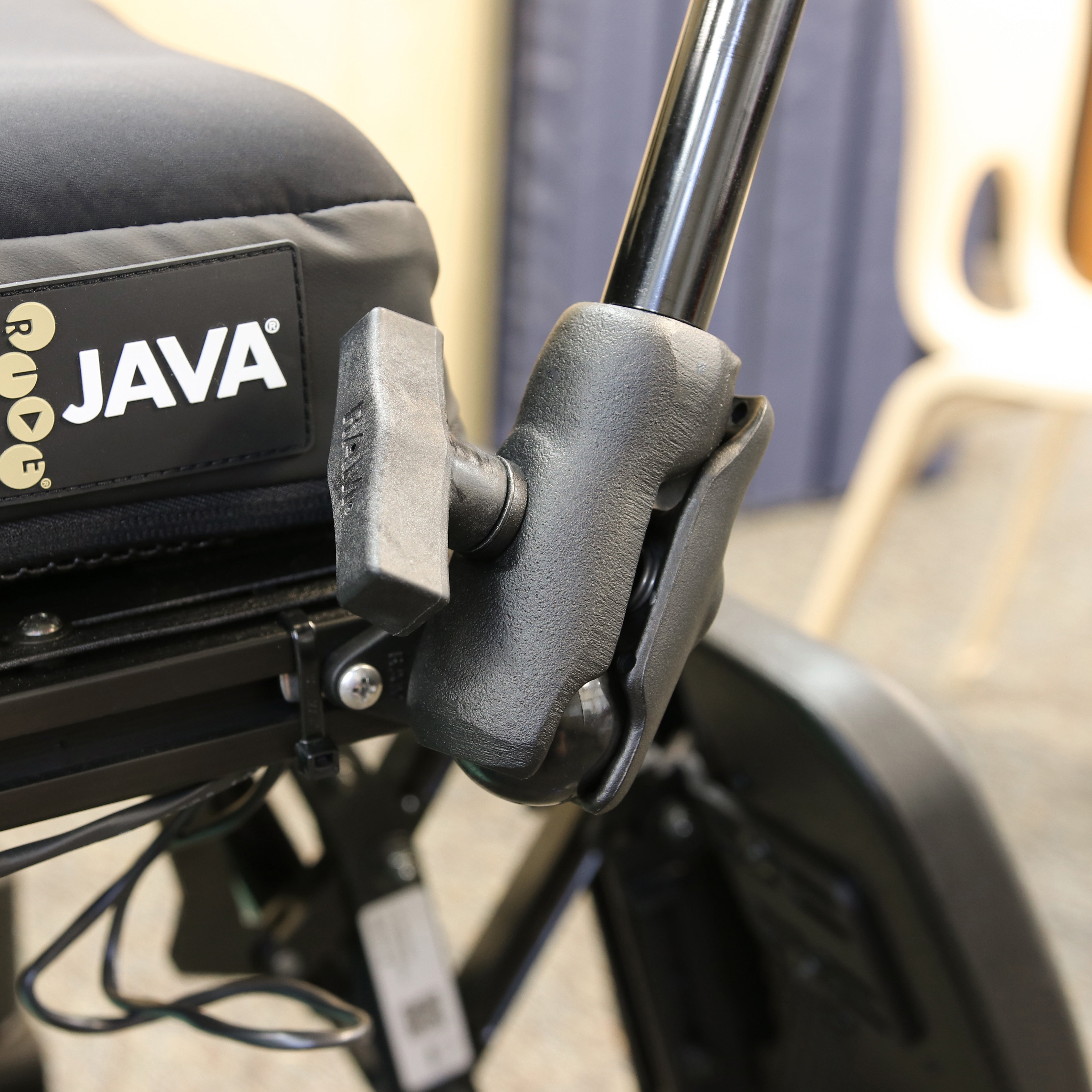

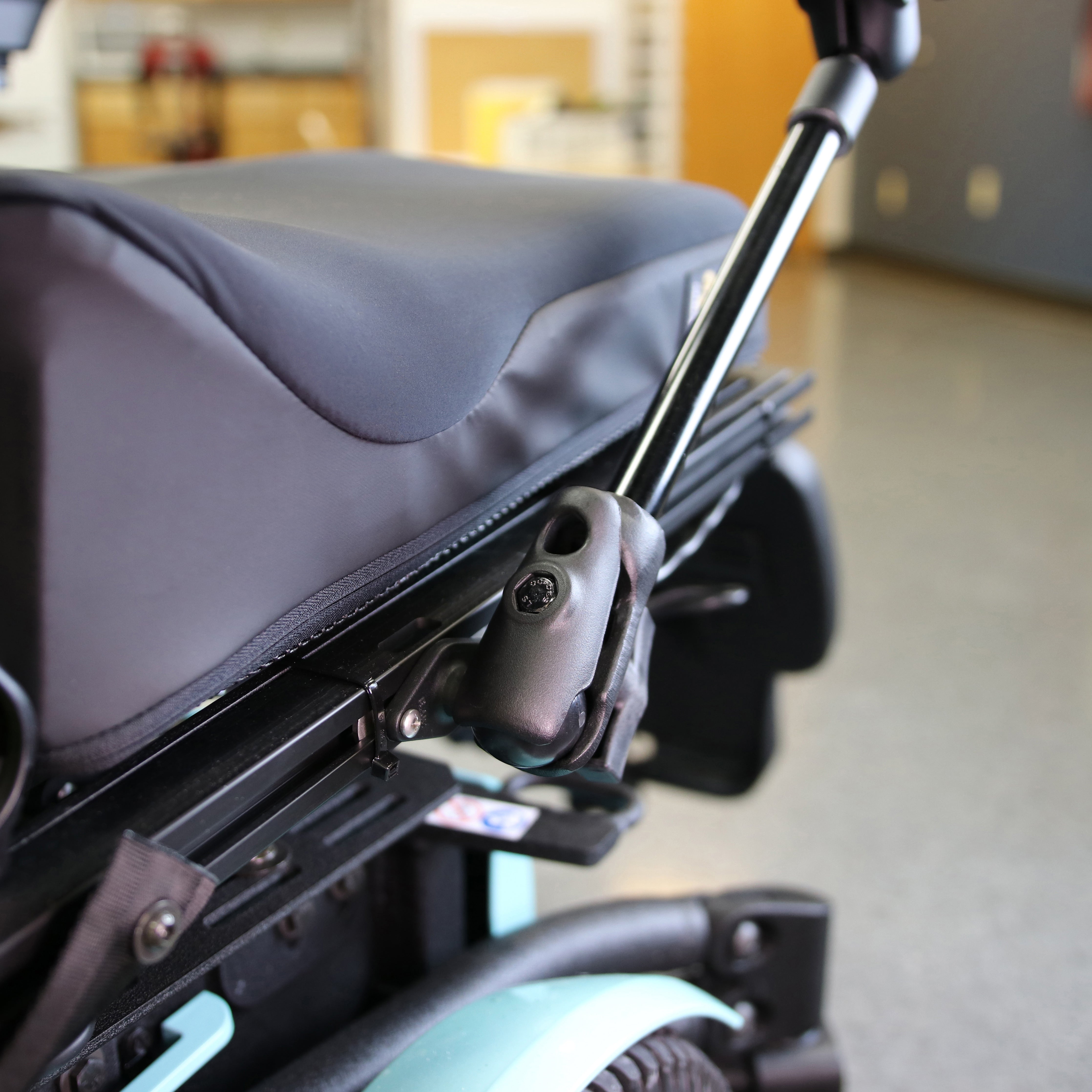

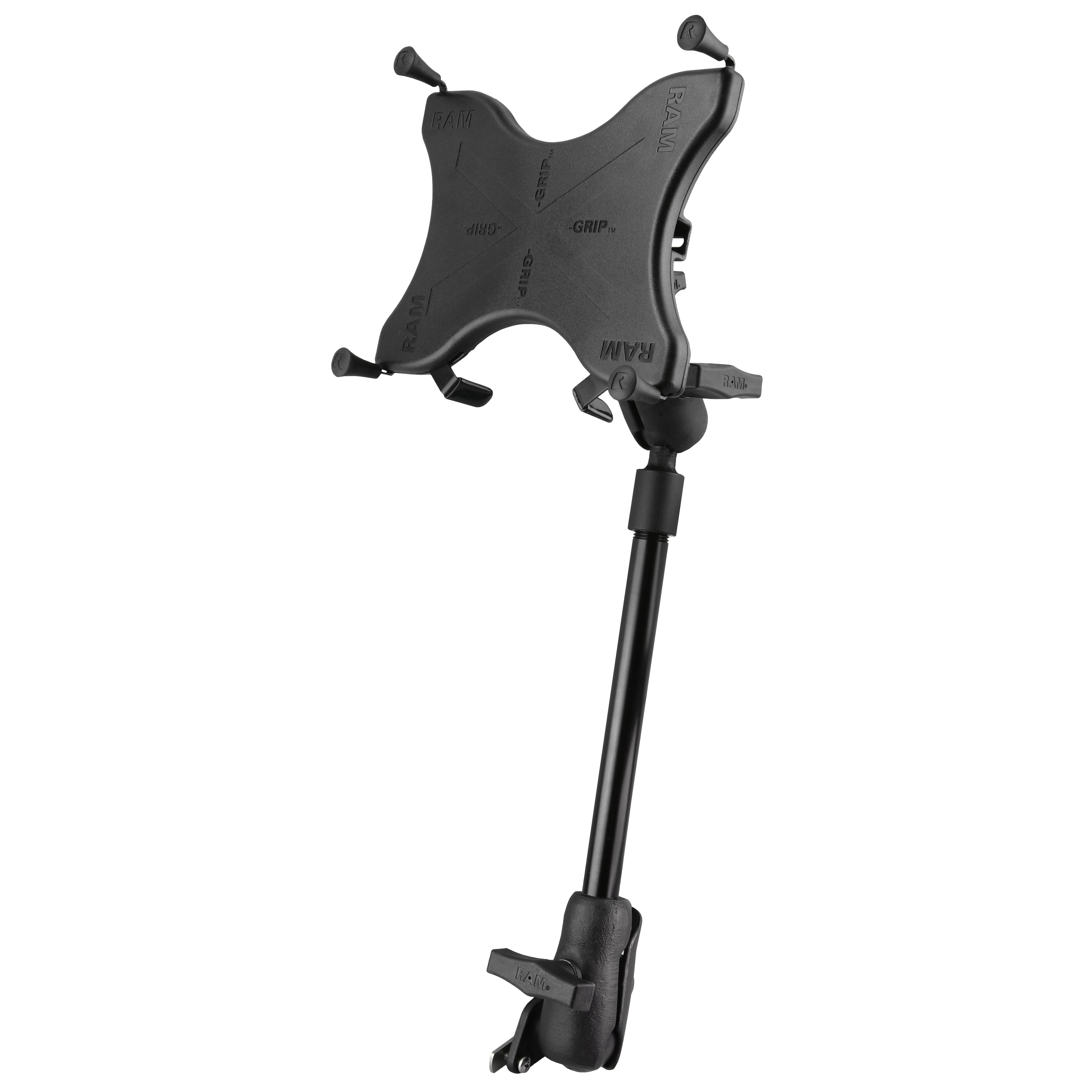

This kit includes a C size RAM diamond ball base with a universal hardware pack that accommodates the seat track on most major wheelchair brands, including Invacare, Permobil, and Quickie. With the included short single socket arm, pipe extension, and double socket arm, connect the RAM X-Grip universal holder for 9-11 tablets. The spring-loaded RAM X-Grip provides a perfect fit for your tablet and can be easily adjusted to the ideal position.

Tags: AMPS 2-Hole, Apple, C Size 1.5" (Holds 4 lbs), Complete kits, Galaxy Tab A9 Plus, iPad (10th Gen), Lenovo, Miix 720, RAM-238-WCT-9-UN9, RHINO T100, Samsung, Social Mobile, Supports Device With Case, Tablet, Wheelchair, Wheelchair - Seat Track

Information

Resources

Compatible Devices

Information

Product Weight

1.27 kg (2.81 lbs)

Hardware Included

Assembly Hardware(2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 1.27cm (0.5") Machine Screws(2) M4 x 12mm Machine Screws(2)M4 x 20mm Machine Screws(2) M4 Stainless Steel Washers(2) M4 Nylock Nuts

Holder Dimensions

Max Height: 26.04cm (10.25") (using optional supports)Width Range: 15.88cm (6.25") - 20.57cm (8.1") Max Depth: 2.22cm (0.875")

T Bolt Dimensions

Large: 1.22 cm (0.48") X 2.41 cm (0.95") Small: 0.95 cm (0.375") X 1.51 cm (0.593")

Hole Pattern

2-Hole AMPS 4.86cm (1.912")

Ball Size

C Size ( 3.81cm (1.5") )

Weight Capacity

Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)

Materials

Marine-grade aluminumHigh strength composite
