World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Phone Mount with RAM® Tough-Claw™ Small Clamp Base - Medium

SKU Copied
SKU: RAM-B-400-HOL-UN7BU
UPC Copied
UPC: 793442948664

RAM® X-Grip® Phone Mount with RAM® Tough-Claw™ Small Clamp Base - Medium
Copy SKU
SKU: RAM-B-400-HOL-UN7BU
Copy UPC
| UPC: 793442948664

B SIZE
MEDIUM ARM
Size Guide

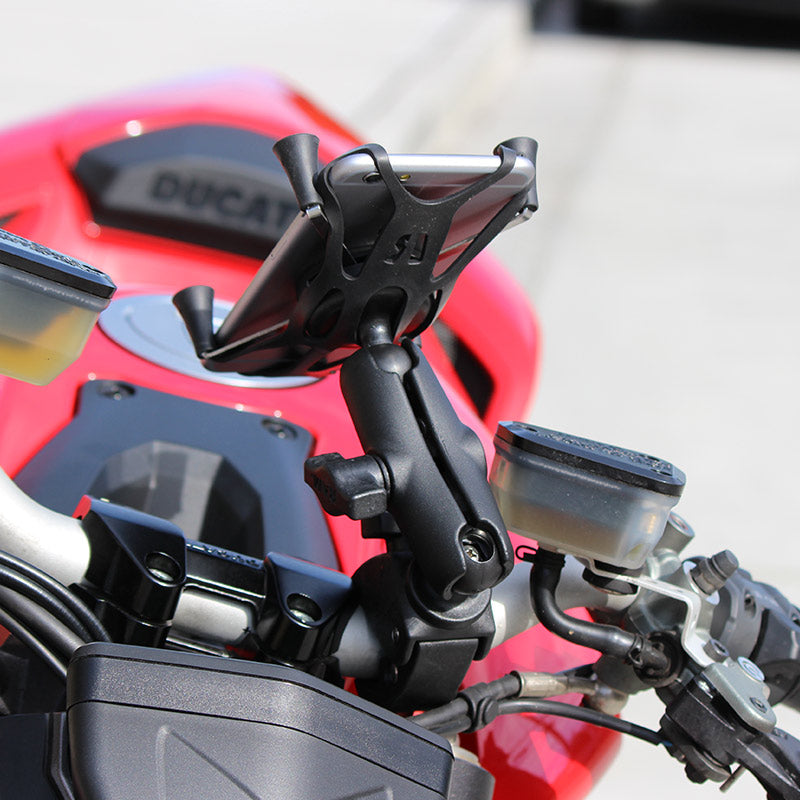

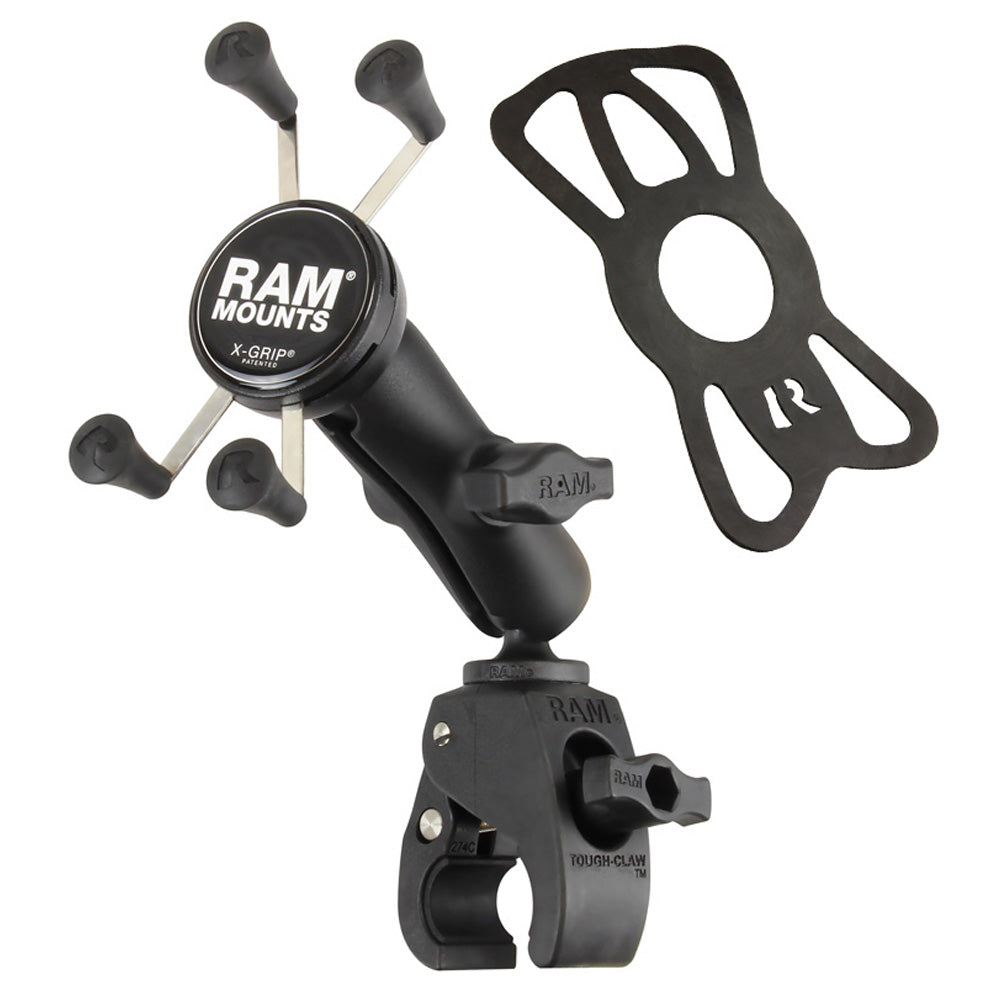

The RAM Tough-Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM Tough-Claw includes a B size 2.54cm (1") rubber ball and can quickly be clamped on rails ranging from 4.75cm (1.87") to 8.26cm (3.25") in outer diameter ideal for mounting mounting on the yoke of an aircraft, handlebars of bicycles and motorcycles, or even on kayak rails and roll bars. This kit includes a medium length double socket arm and the popular spring-loaded RAM X-Grip phone holder, featuring an 'X' design that expands and contracts to provide a perfect fit for your device even if it's in a case. The standard size version of the RAM X-Grip fits phones ranging from 4.45cm (1.75") to 11.43cm (4.5") in width and keeps your device completely functional and accessible. For outdoor applications, the RAM X-Grip includes a device tether that is recommended for added security and peace of mind.

Features
  • Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1.59cm (0.625") to 2.90cm (1.14") in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.37 kg (0.81 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Clamp Range
1.59cm (0.625") - 2.90cm (1.14") diameter

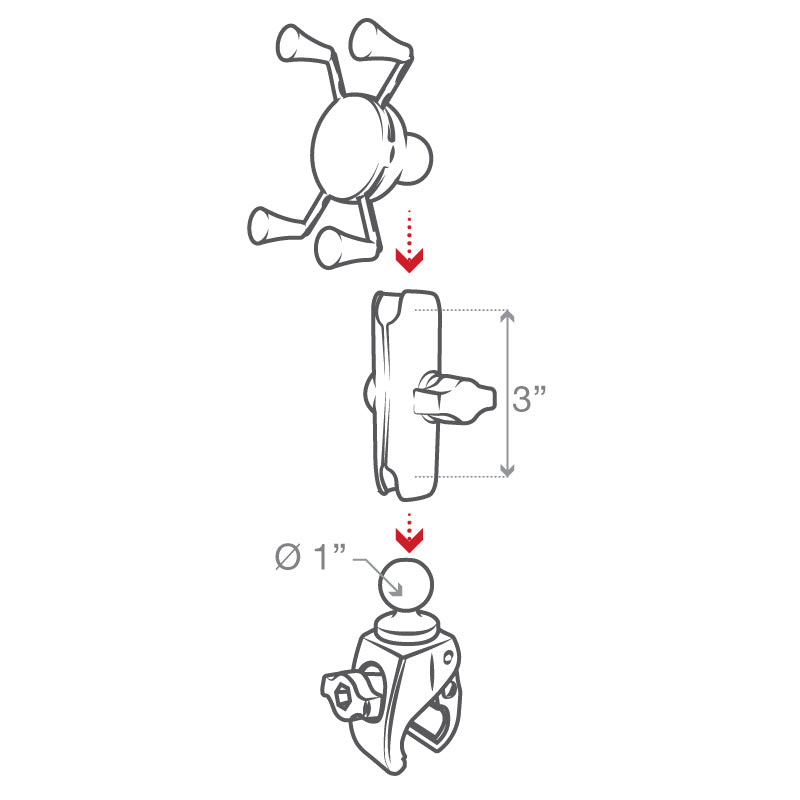

Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-201U
RAM® Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAM-HOL-UN7BU
RAM® X-Grip® Universal Phone Holder with Ball - B Size
RAM Mounts
Copy SKU
RAP-B-400U
RAM® Tough-Claw™ Small Clamp Base with Ball


Complete Your Solution

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack

RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms

RAM Mounts
Copy SKU
RAM-B-273U
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
