The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Phone Mount with RAM® Stubby™ Cup Holder Base

SKU Copied
SKU: RAP-B-299-4-UN7U
UPC Copied
UPC: 793442952968

RAM® X-Grip® Phone Mount with RAM® Stubby™ Cup Holder Base
Copy SKU
SKU: RAP-B-299-4-UN7U
Copy UPC
| UPC: 793442952968

B SIZE
MEDIUM ARM
Size Guide

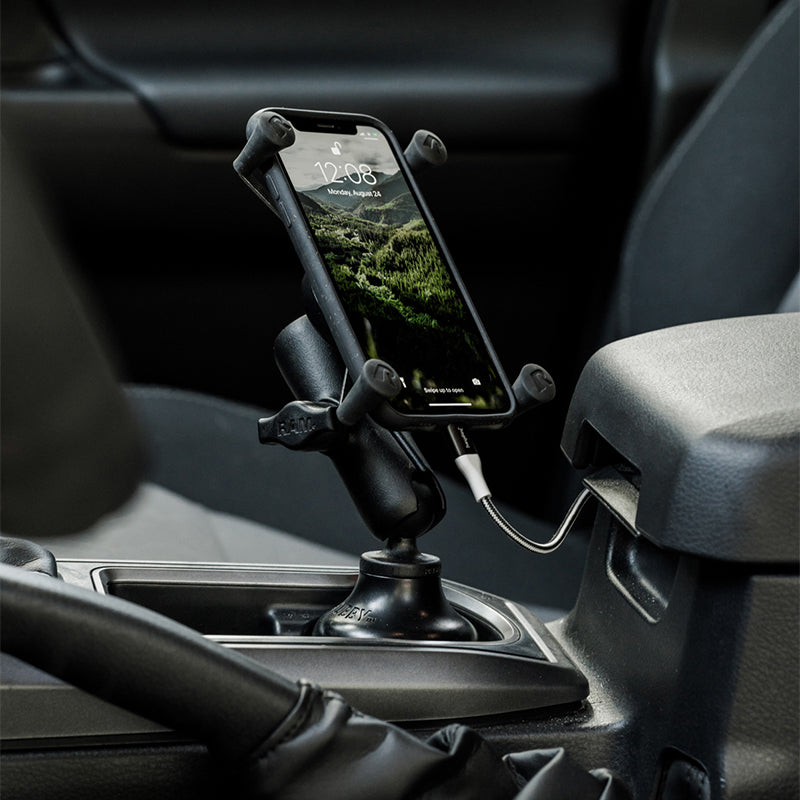

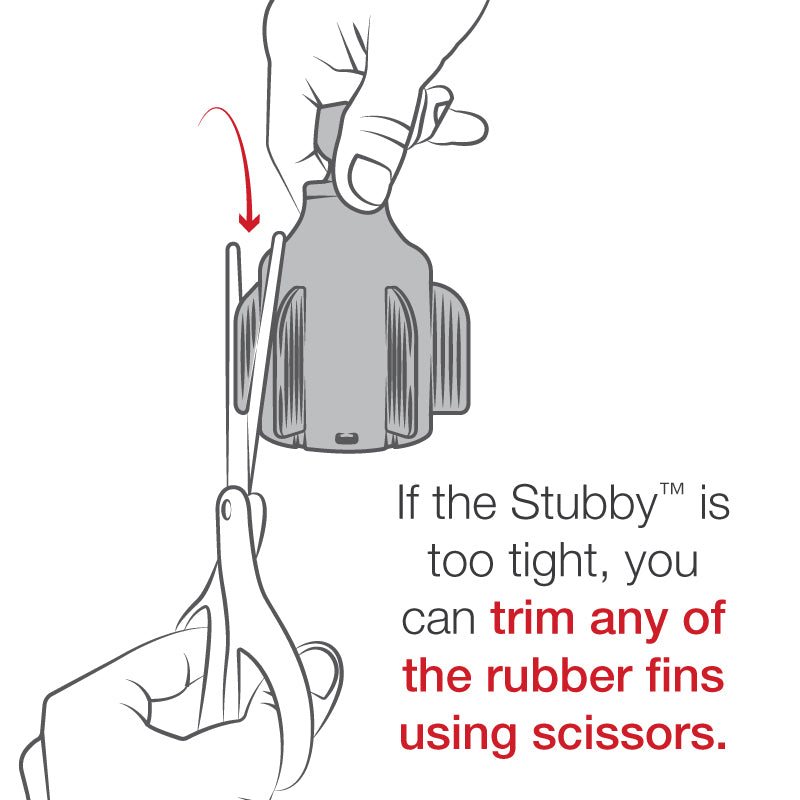

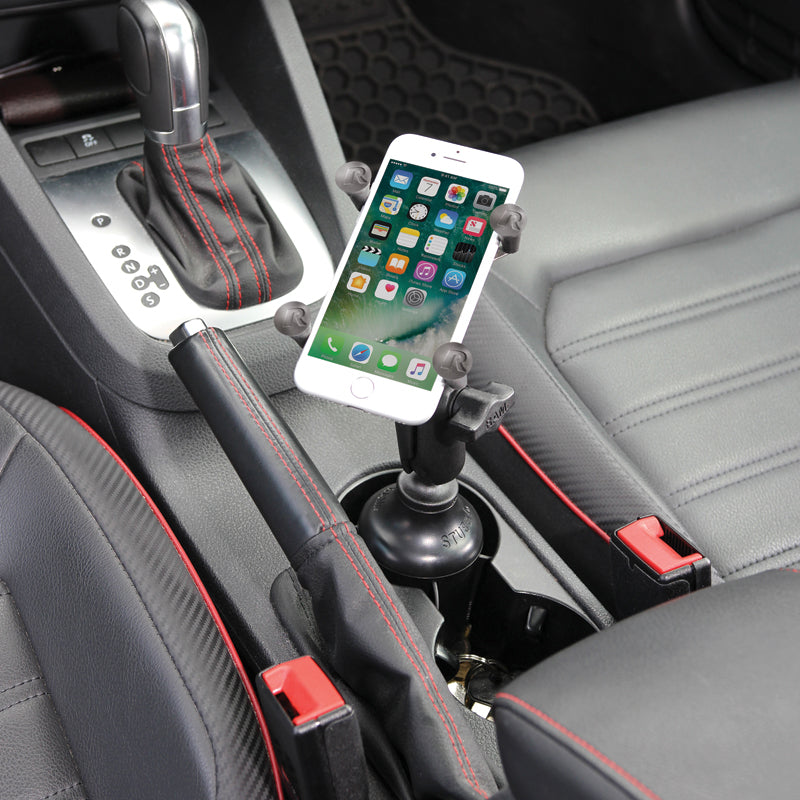

Sometimes, it's all about the design. If you are looking for a compact mount for your cell phone without that cookie cutter shape, you've found it. The RAM X-Grip has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. This mount comes with the RAM Stubby cup holder mount. The durable composite shell construction and flexible support fins can be trimmed to size make this cup holder base a portable and versatile solution. The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. Compatible with any vehicle cup holder with an inside diameter range of 6.53cm (2.57") to 8.89cm (3.5") . The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

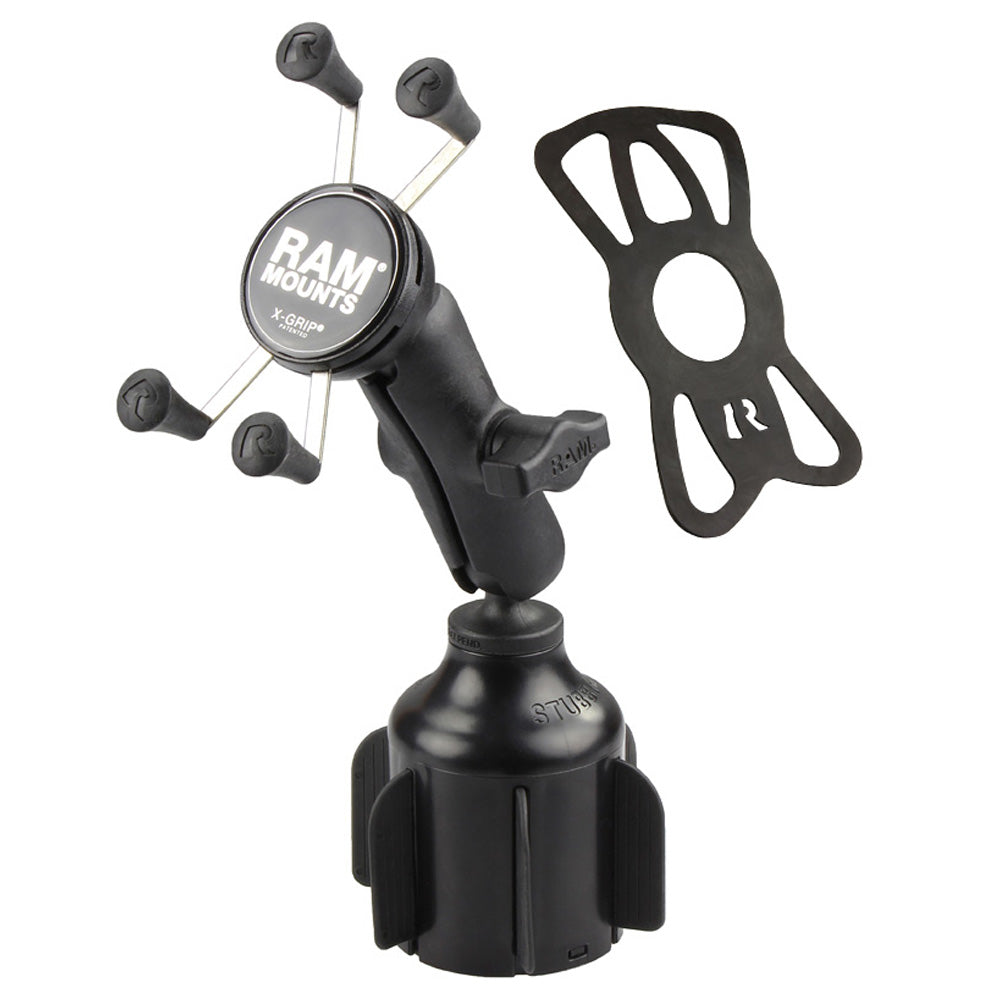

  • Includes RAM® Stubby™ cup holder ball base, medium length B size RAM® double socket arm, and standard RAM® X-Grip® phone holder
  • Spring-loaded 'X' design for standard size phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Made of powder-coated, marine-grade aluminum, stainless steel, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
0.68 kg (1.50 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps
Product Dimensions
Overall Height: 23.24cm (9.15")
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Wedge Dimensions

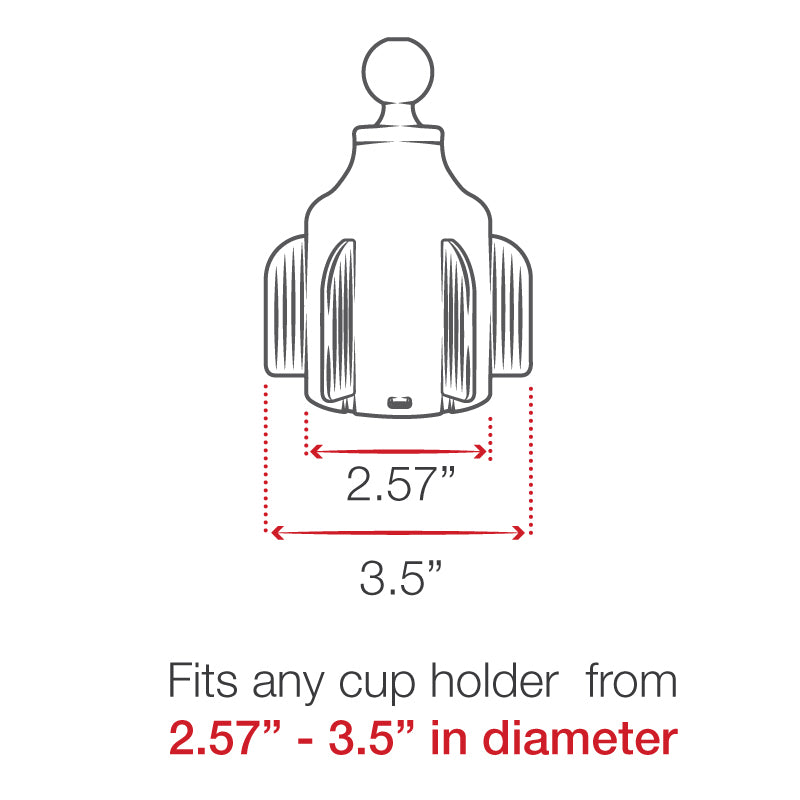

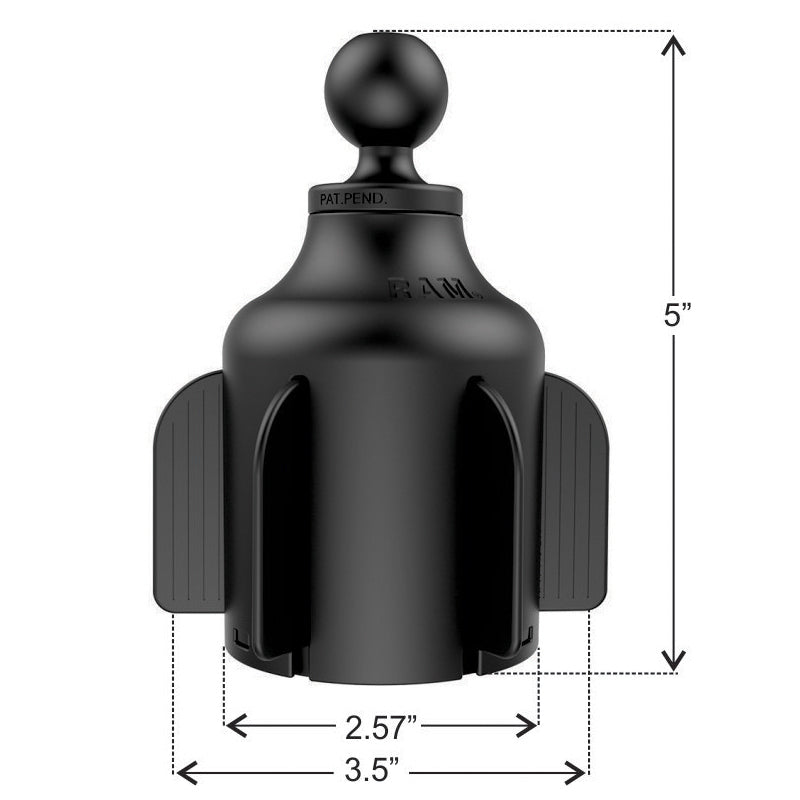

Fits cup holders between 6.53cm (2.57") - 8.89cm (3.5") inside diameter
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength compositeStainless steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-HOL-UN7BU
RAM® X-Grip® Universal Phone Holder with Ball - B Size
RAM Mounts
Copy SKU
RAP-B-201U
RAM® Composite Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAP-B-299-4U
RAM® Stubby™ Cup Holder Ball Base


Complete Your Solution

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack
