The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Phone Mount with RAM® Bow-Cam™ Base

SKU Copied
SKU: RAP-B-379-312437-UN7
UPC Copied
UPC: 793442007064

RAM® X-Grip® Phone Mount with RAM® Bow-Cam™ Base
Copy SKU
SKU: RAP-B-379-312437-UN7
Copy UPC
| UPC: 793442007064

B SIZE
MEDIUM ARM
Size Guide

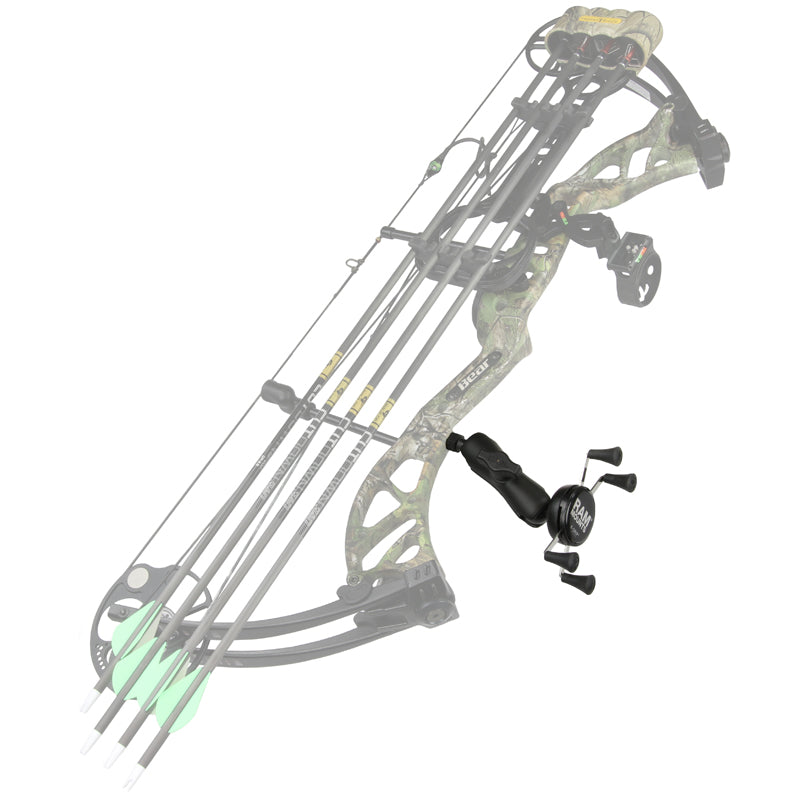

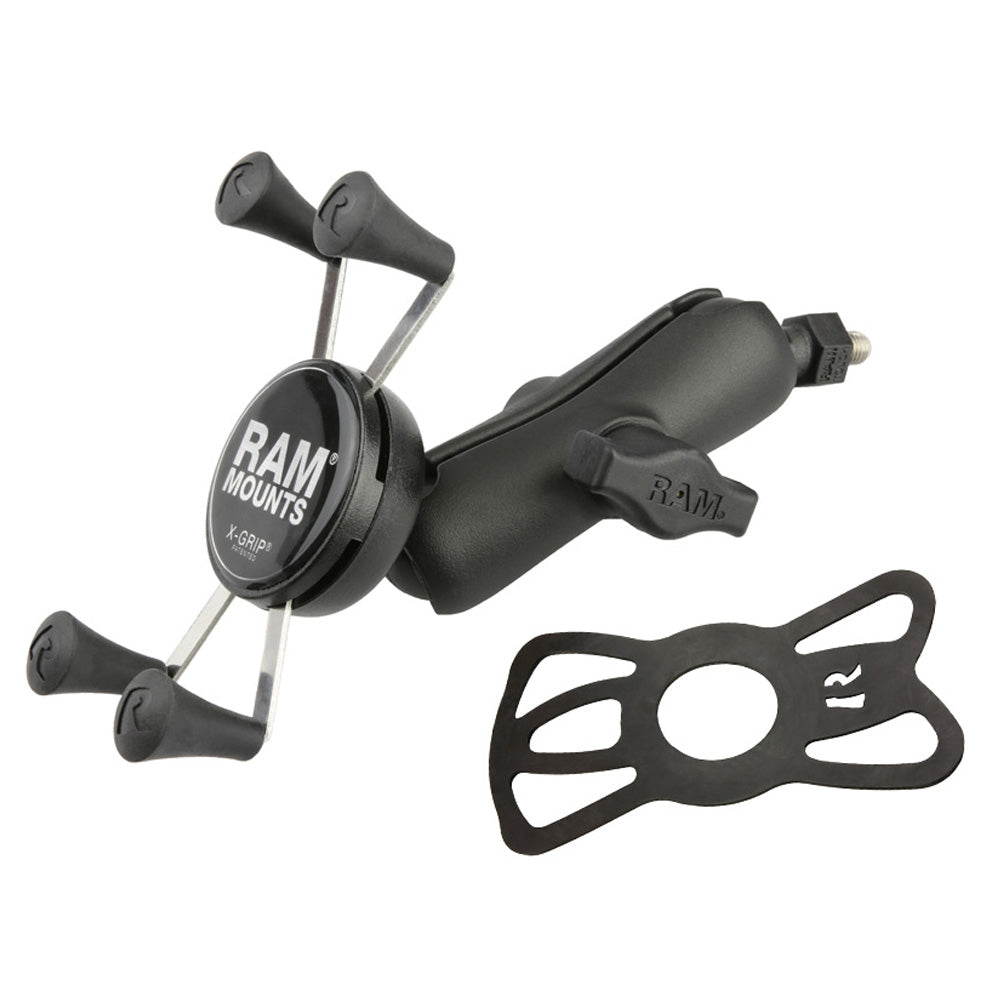

Easily attach your phone to your bow with the RAM Bow-Cam. The included RAM Tough-Ball with a male threaded post connects to your bow's stabilizer port, allowing the standard length arm and RAM X-Grip phone cradle to be adjusted to the perfect angle. RAM double ball and socket mounts feature vibration damping, so your camera achieves a stable shot from your bow. The RAM Bow-Cam mount is also available for action cameras. Compatible with any Hoyt, Matthews, Bear, PSE or Diamond bow. The RAM X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone. Includes RAM® Tough-Ball™ features a 12.70 cm (5")/40.64 cm (16") -24 x 0.95cm (00.375") male threaded post for connection to a variety of devices
  • Includes RAM® Tough-Ball™ with a 12.70 cm (5")/40.64 cm (16") -24 x 0.95cm (00.375") male threaded post for connecting to a bow's stabilizer port and medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites with stainless steel thread post for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Compatible Devices

Information

Product Weight
0.26 kg (0.57 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength compositeStainless steel
Packaging Type
Retail Bag

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-201U
RAM® Double Socket Arm - B Size Medium
RAM Mounts
Copy SKU
RAM-HOL-UN7BU
RAM® X-Grip® Universal Phone Holder with Ball - B Size
RAM Mounts
Copy SKU
RAP-B-379U-312437
RAM® Tough-Ball™ with 5/16"-24 X .375" Threaded Stud - B Size


Complete Your Solution

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack
