World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Phone Mount with Low-Profile Small Tough-Claw™

SKU Copied
SKU: RAM-HOL-UN7-400-2U
UPC Copied
UPC: 793442027079

RAM® X-Grip® Phone Mount with Low-Profile Small Tough-Claw™
Copy SKU
SKU: RAM-HOL-UN7-400-2U
Copy UPC
| UPC: 793442027079

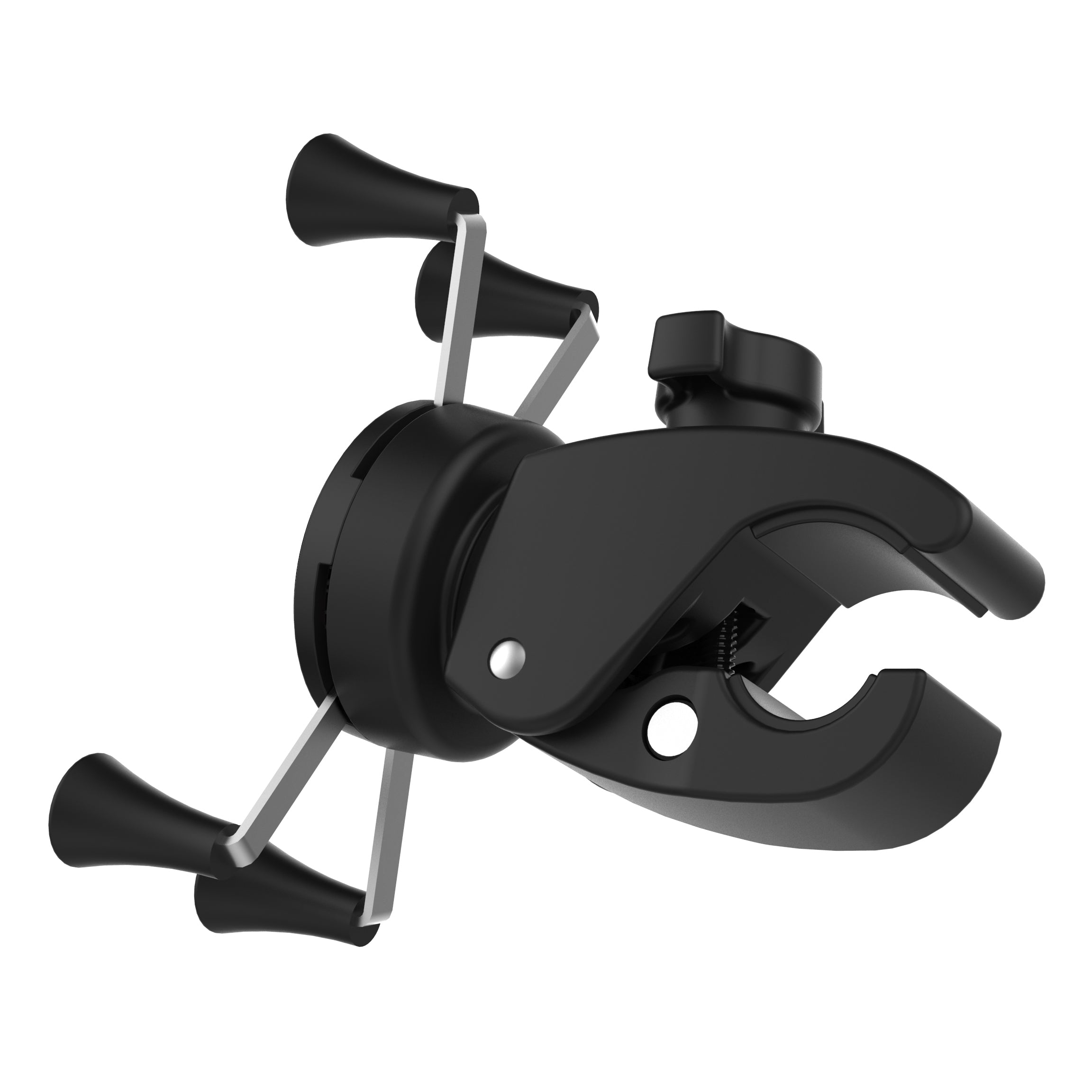

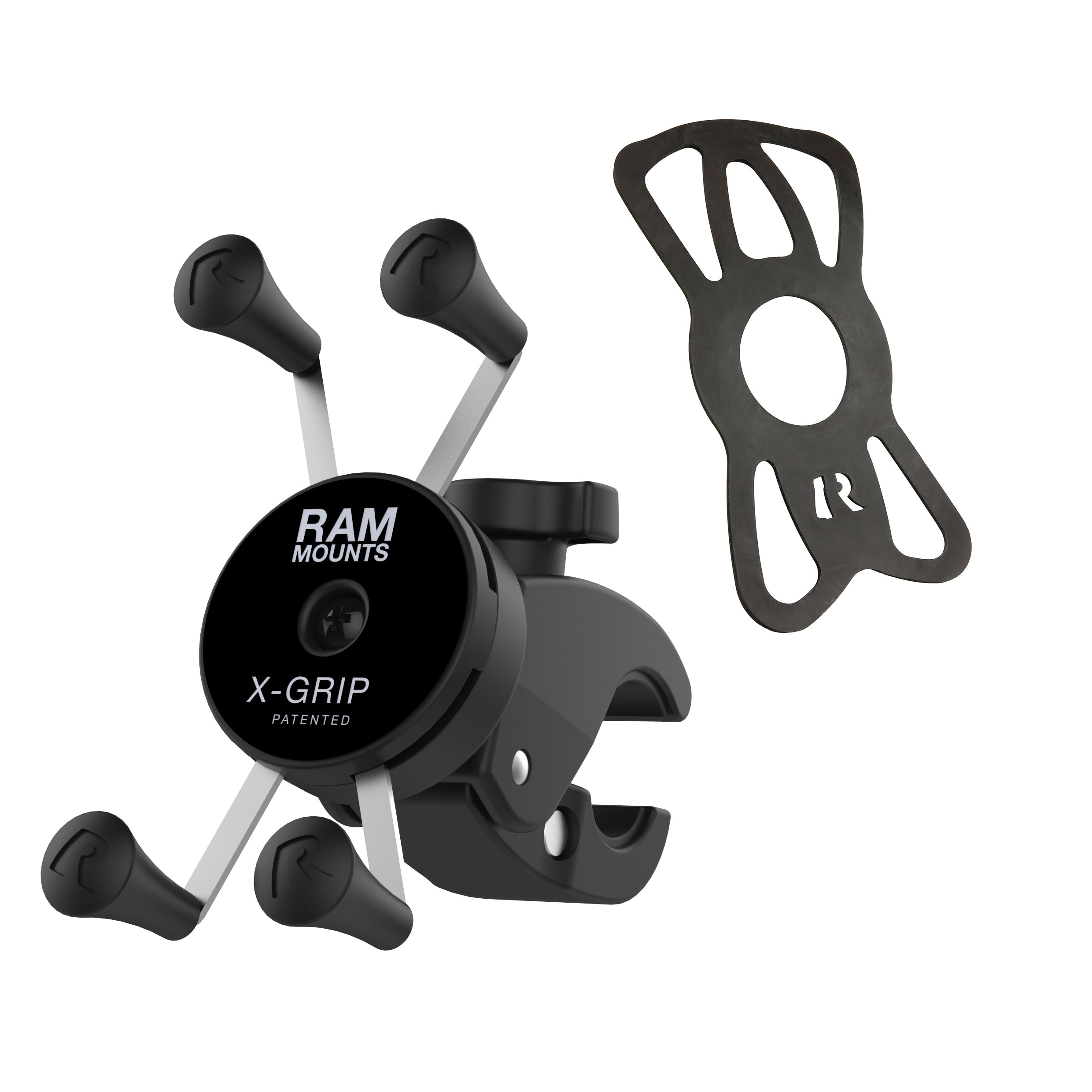

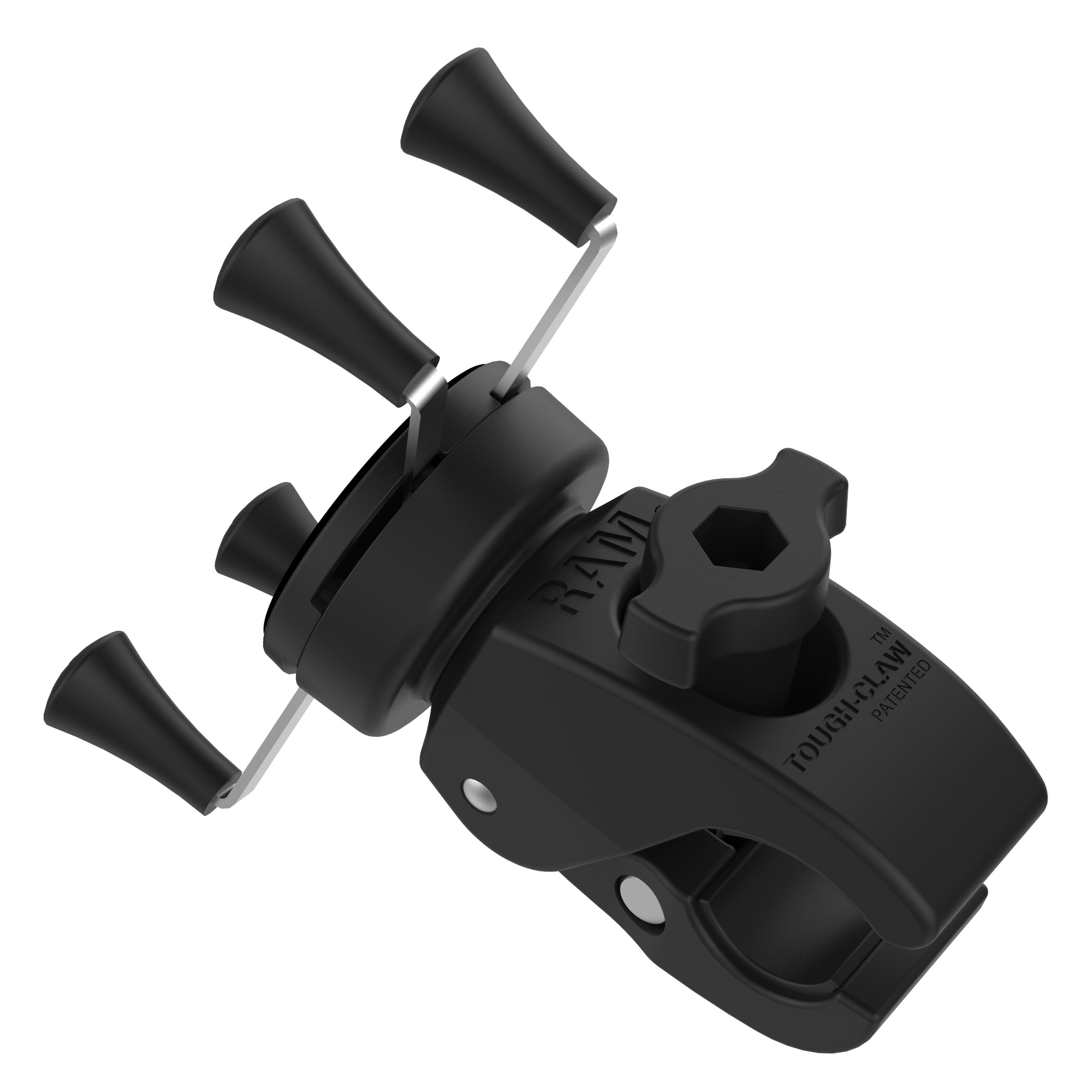

The RAM X-Grip Phone Mount with Low-Profile RAM Tough-Claw (RAM-HOL-UN7-400-2U) consists of the small RAM Tough-Claw base and universal large RAM X-Grip phone holder, connected by the RAM Pin-Lock adapter. The RAM X-Grip features an X design that expands and contracts to secure your phone, and includes a device tether recommended for outdoor applications. With the RAM Tough-Claw base connected, easily attach the RAM X-Grip on round, square, and odd-shaped rails and bars ranging from .625 to 1.14 in outer diameter. This kit is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Features
  • Low profile phone mount clamps to your handlebar with the turn of a single knob
  • Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1.59cm (0.625") to 2.90cm (1.14") in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Spring-loaded 'X' design for standard size phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use; check compatibility section below to see if your phone will fit
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.21 kg (0.47 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Clamp Range
1.59cm (0.625") - 2.90cm (1.14") diameter
Materials
High strength compositeStainless steel
Packaging Type
Poly Bag

Resources

DOCUMENTS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-TETHER1U
RAM® X-Grip® Rubber Tether for Phone Mounts
RAM Mounts
Copy SKU
RAP-400NBU
RAM® Tough-Claw™ Small Clamp Base with RAM® Pin-Lock™ Pattern
RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement


Complete Your Solution

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack
