The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Phone Mount with 9mm Angled Bolt Head Adapter

SKU Copied
SKU: RAM-B-272-A-UN7
UPC Copied
UPC: 793442939969

RAM® X-Grip® Phone Mount with 9mm Angled Bolt Head Adapter
Copy SKU
SKU: RAM-B-272-A-UN7
Copy UPC
| UPC: 793442939969

B SIZE
SHORT ARM
Size Guide

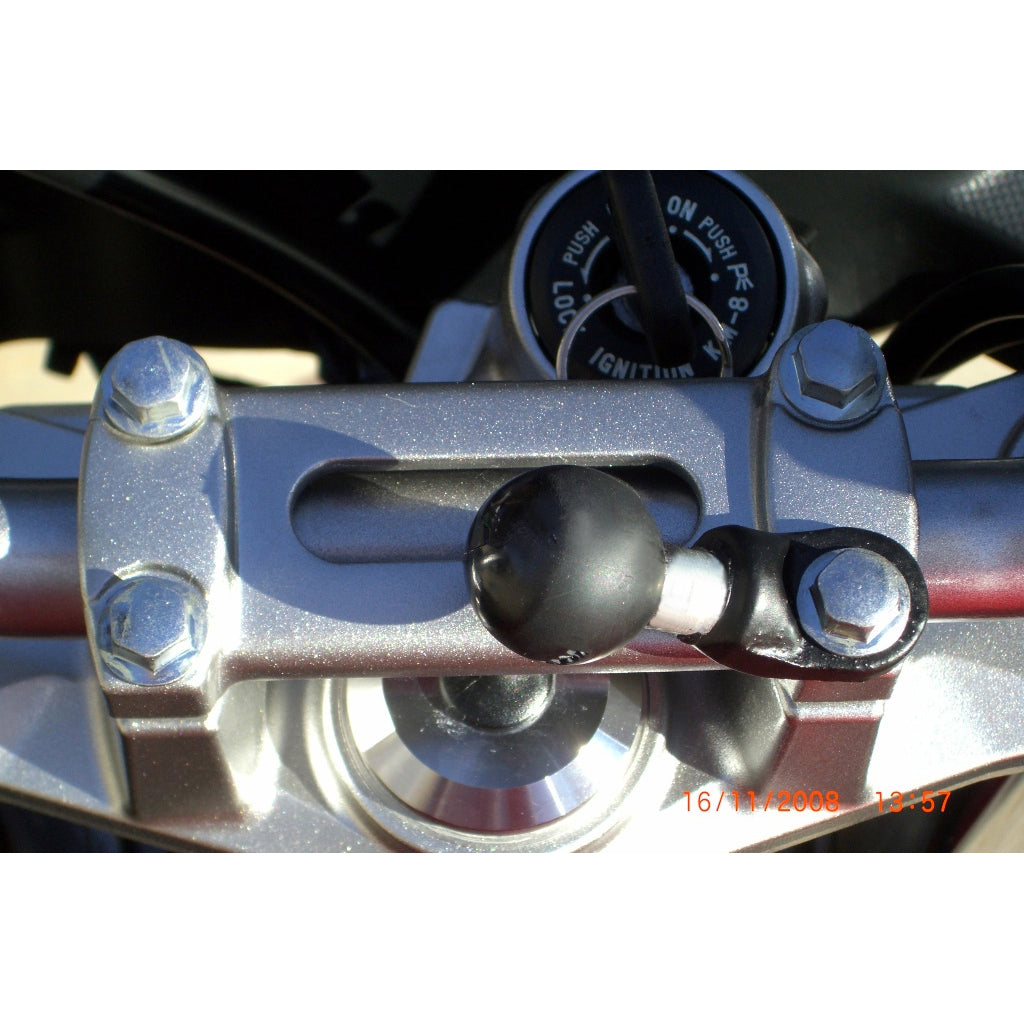

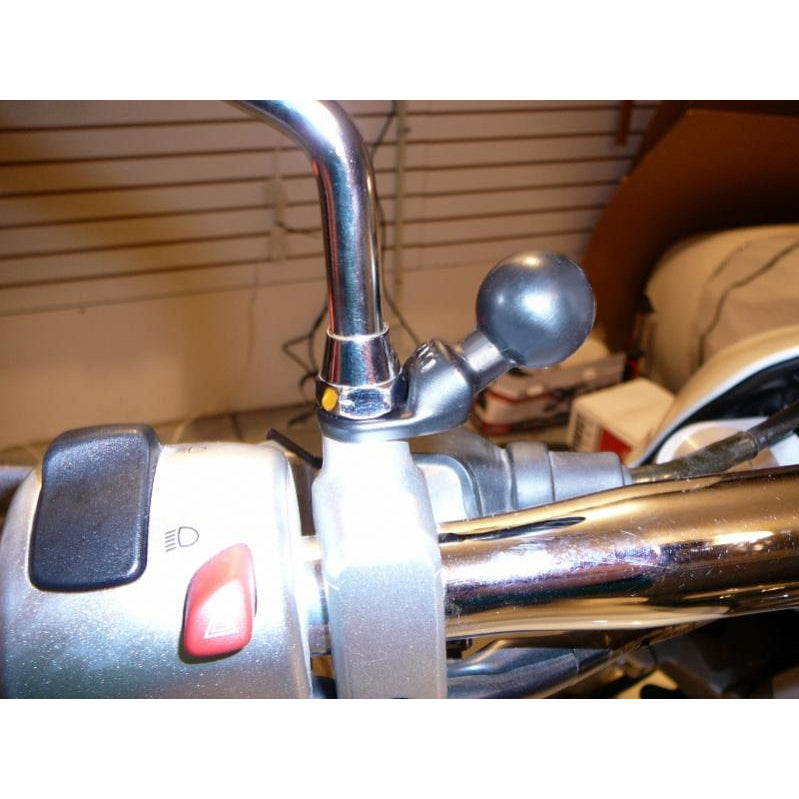

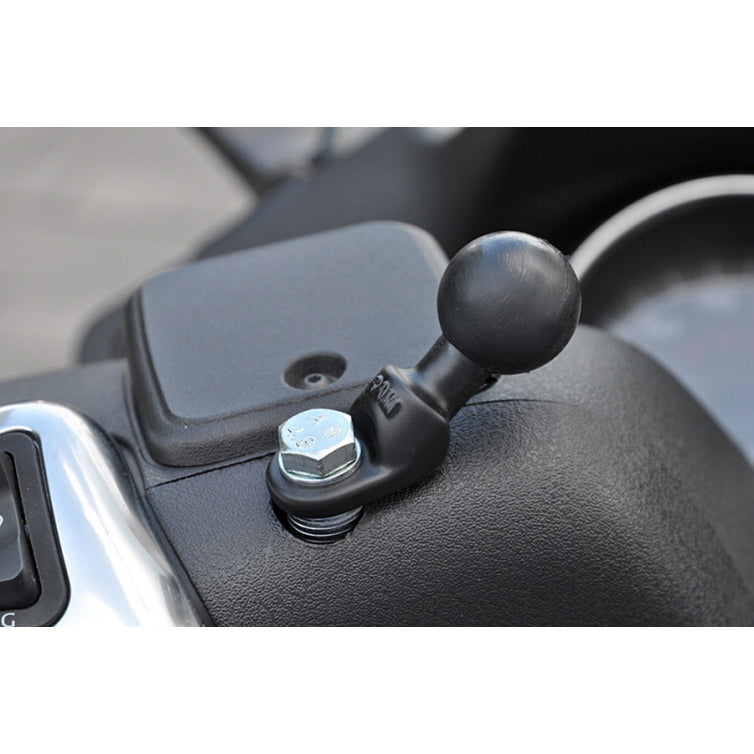

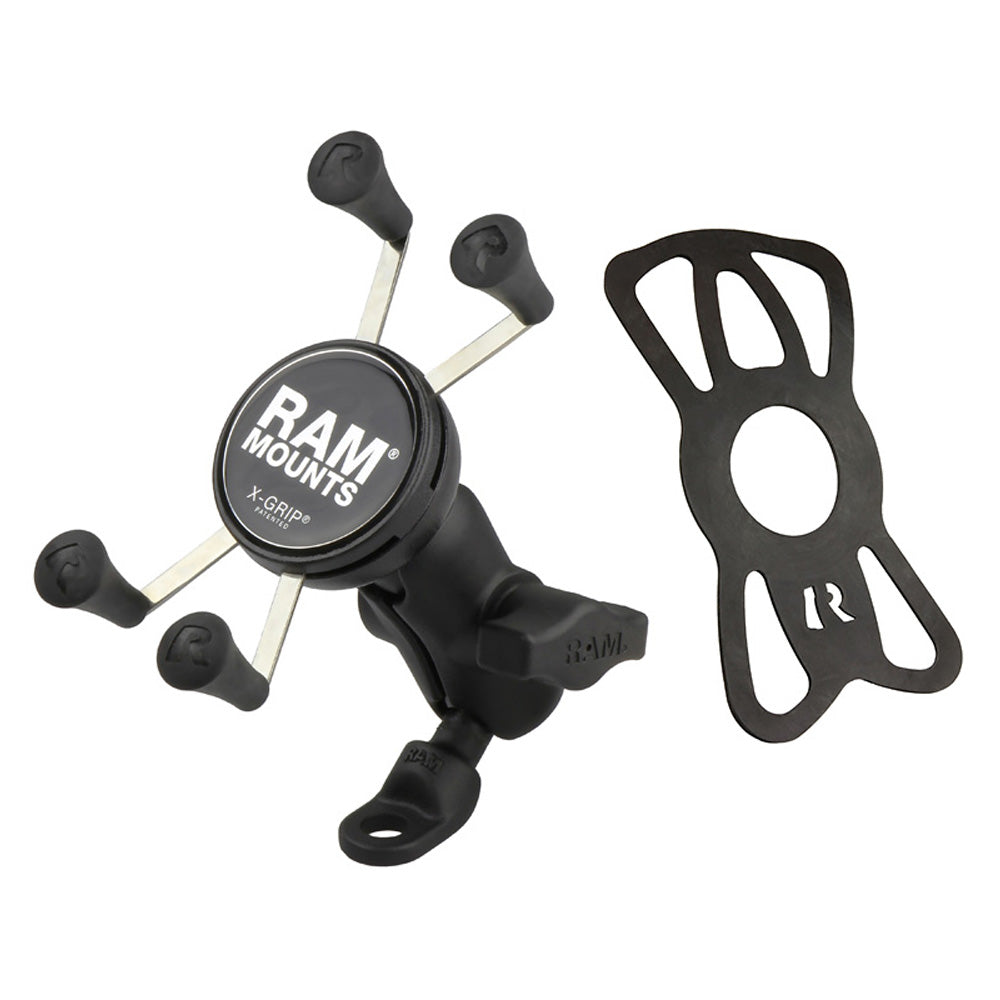

The RAM-B-272-A-UN7 consists of an angled base with 9mm hole, SHORT double socket arm and universal spring loaded X-Grip cradle for cell phones. The angled base is often used on motorcycles, attaching to the mirror frame, the main brand of bike for this part is BMW. The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip is the cell phone cradle evolved. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Compatible with RAM® 9mm Angled Bolt Head Base for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.24 kg (0.52 lbs)
Hardware Included
(1) Optional Tether(1) Glue Tube for Rubber Caps
Holder Dimensions
Width Range: 4.76cm (1.875") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Socket To Socket Length
4.45cm (1.75")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength compositeStainless steel
Packaging Type
Retail Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-201U-A
RAM® Double Socket Arm - B Size Short
RAM Mounts
Copy SKU
RAM-B-272U
RAM® 9mm Angled Bolt Head Adapter Ball Base
RAM Mounts
Copy SKU
RAM-HOL-UN7BU
RAM® X-Grip® Universal Phone Holder with Ball - B Size


Complete Your Solution

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack

Locking Knobs for B Size Socket Arms

RAM Mounts
Copy SKU
RAM-KNOB3LSU
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB3-7U
RAM® Pin-Lock™ Security Knob with 7-Pin Pattern for B Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB3U
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
