Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Mount with RAM® Tough-Wedge™ for 7"-8" Tablets - Long Arm

SKU Copied
SKU: RAM-B-407-C-UN8U
UPC Copied
UPC: 793442023255

RAM® X-Grip® Mount with RAM® Tough-Wedge™ for 7"-8" Tablets - Long Arm
Copy SKU
SKU: RAM-B-407-C-UN8U
Copy UPC
| UPC: 793442023255

B SIZE
LONG ARM
Size Guide

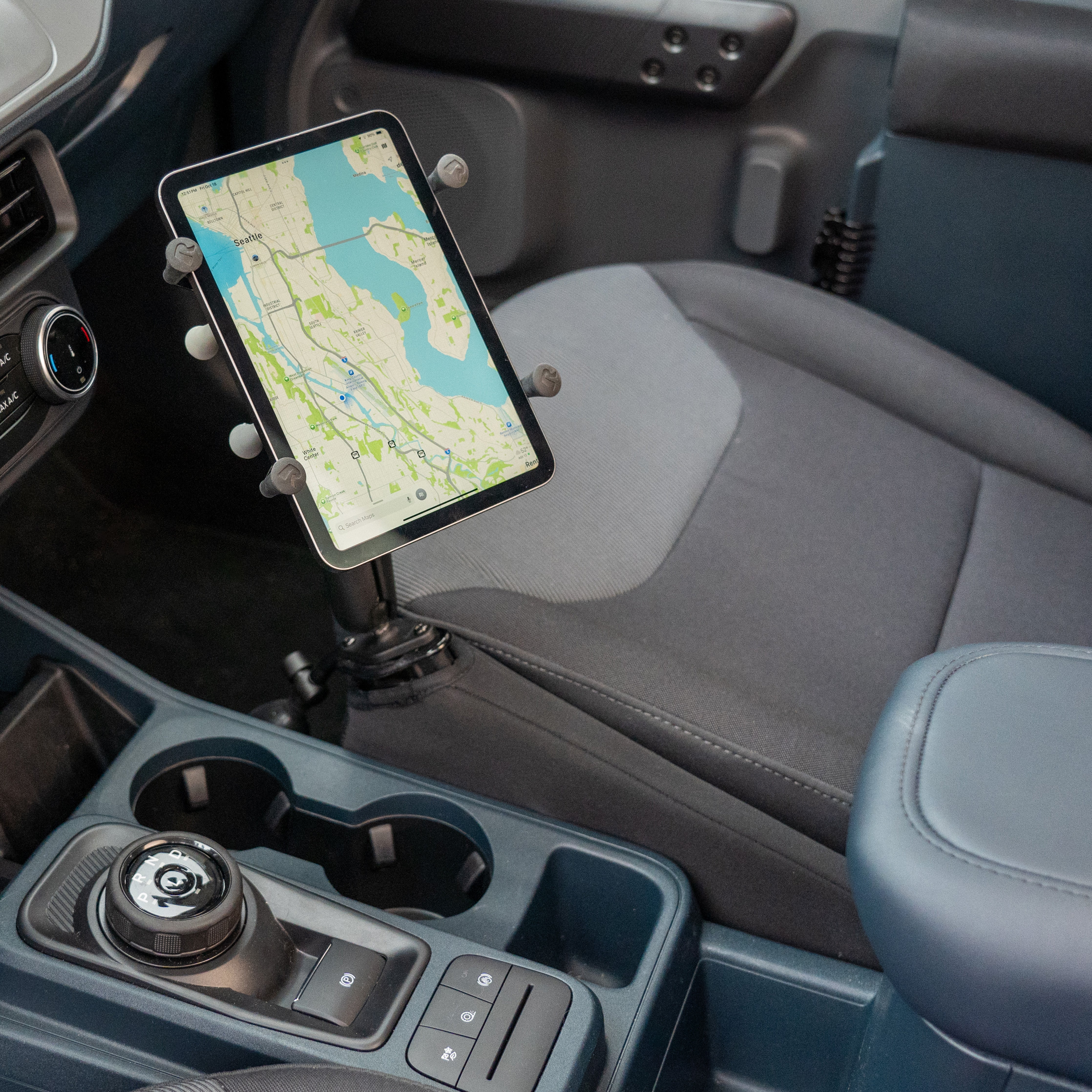

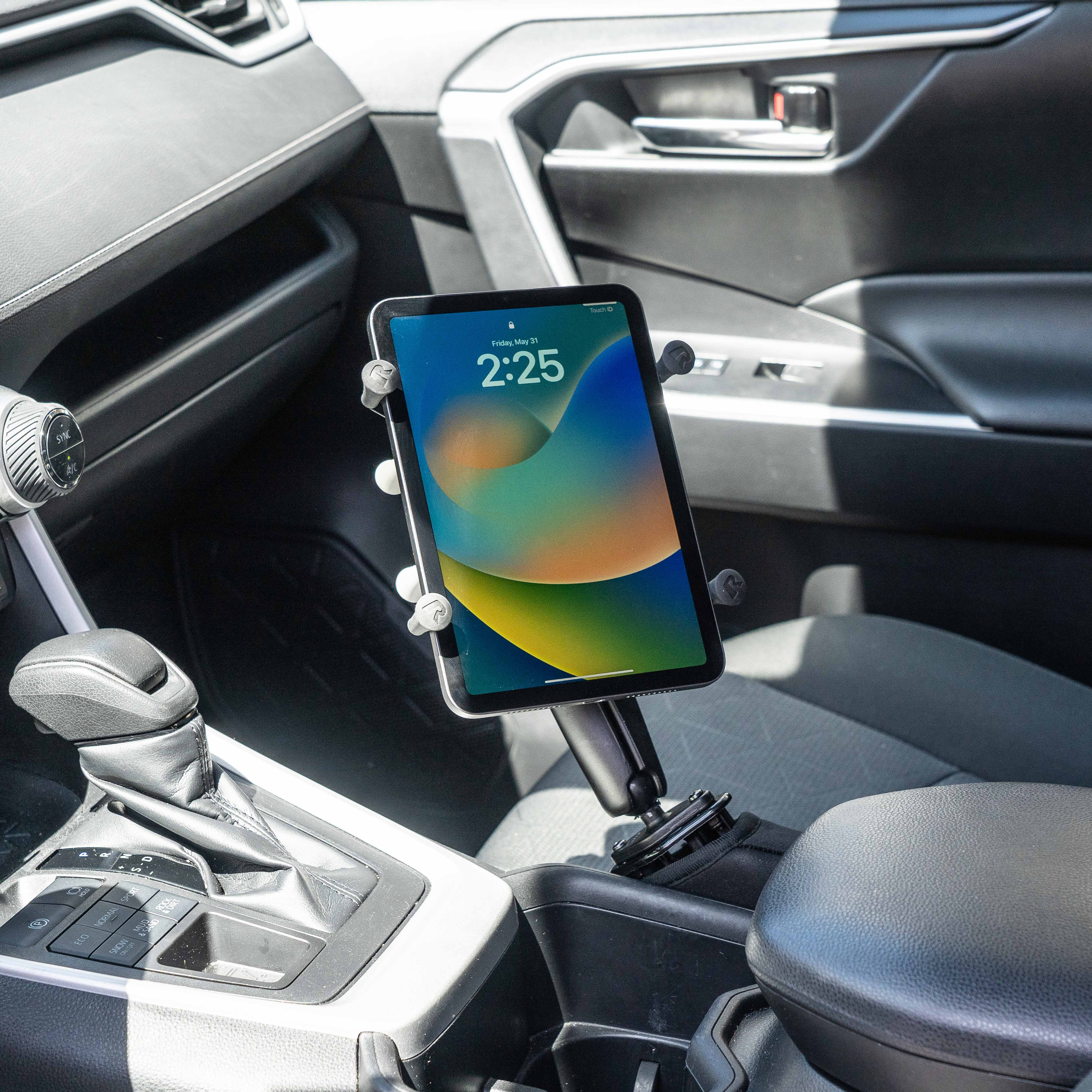

The RAM X-Grip Mount with RAM Tough-Wedge for 17.78cm (7") -20.32cm (8") Tablets - Long Arm (RAM-B-407-C-UN8U) is a low-profile solution for vehicles with a center console, allowing easy access and operation of a small, 7-20.32cm (8") tablet. Easily fit the wedge base in between the driver or passenger's vehicle set and the center console and can be faced towards the front passengers or the backseat passengers. The RAM X-Grip for 7-20.32cm (8") tablets features easy access grip knobs located on the back of the cradle for quick release of your tablet. The RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle while also extending the life of your tablet by providing shock and vibration damping. This version of the RAM X-Grip holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.

Features

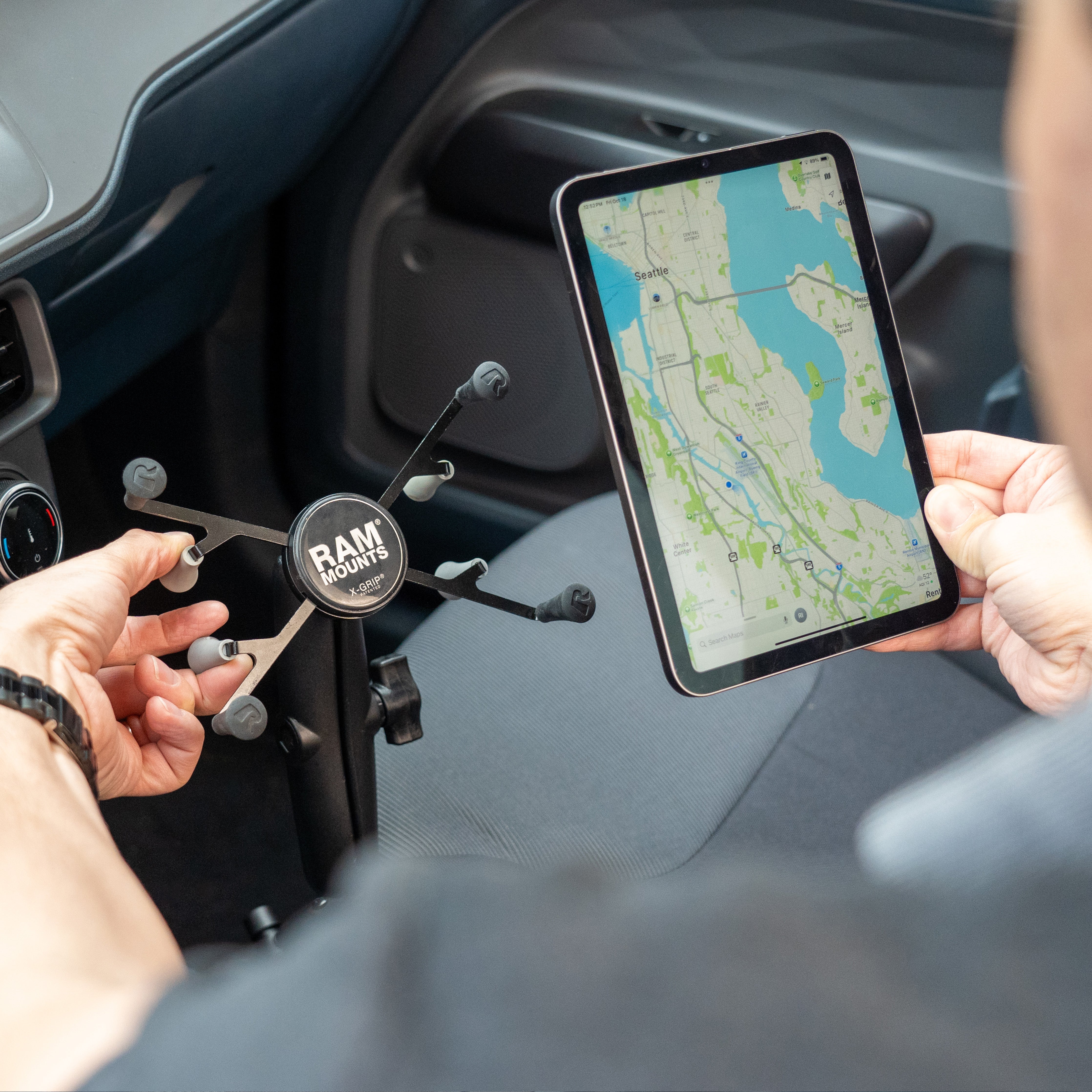

  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 17.78cm (7") -20.32cm (8") tablets and includes optional device tether for peace of mind during rugged use

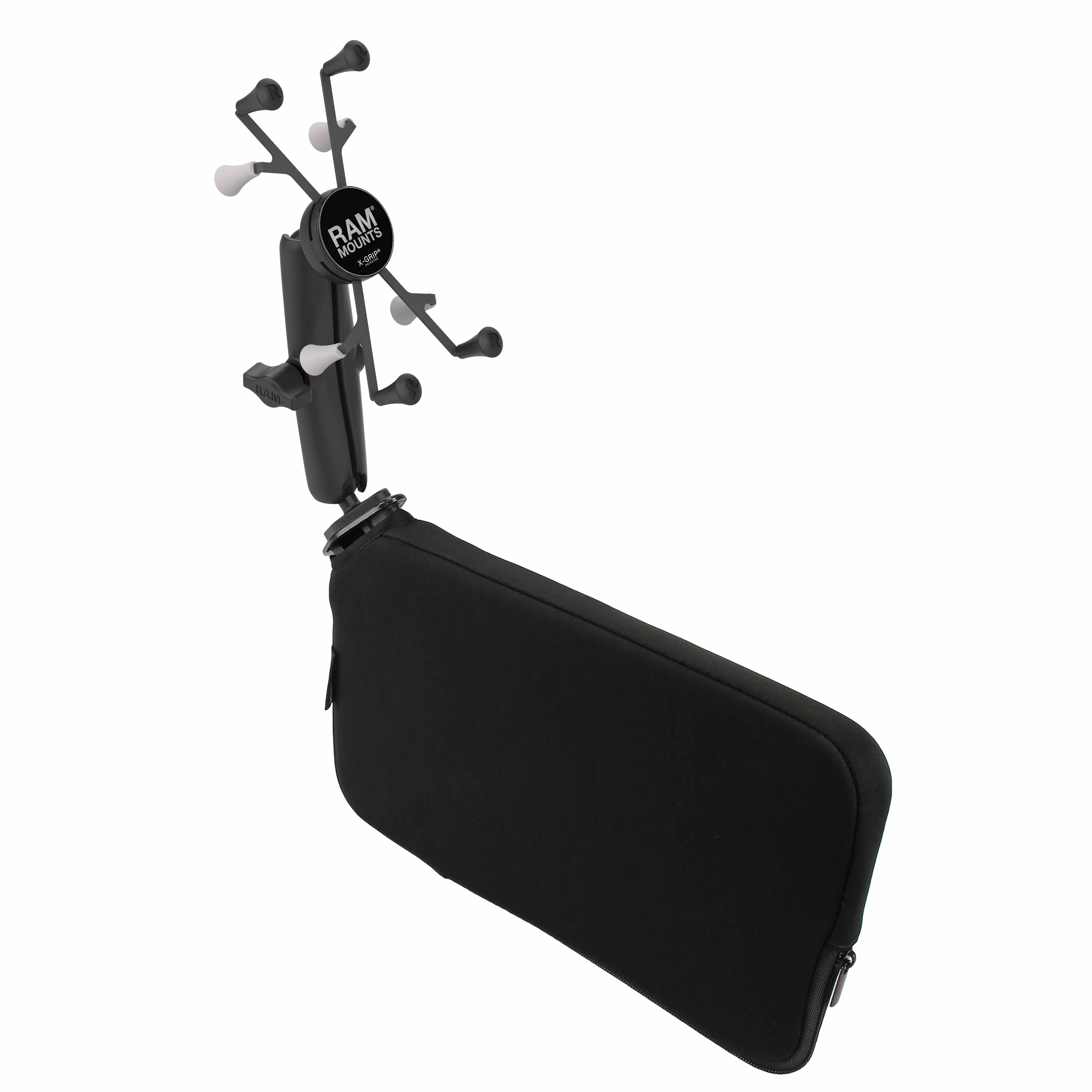

  • RAM® Tough-Wedge™ fits in gap between vehicle seat and center console for ideal placement of your device; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
1.00 kg (2.20 lbs)
Hardware Included
Assembly Hardware
Holder Dimensions
Width Range: 6.35cm (2.5") - 14.61cm (5.75") Depth Range: 2.22cm (0.875") max
Wedge Dimensions
Length: 33.66cm (13.25") Height: 20.96cm (8.25") Thickness: 2.54cm (1")
Socket To Socket Length
13.49cm (5.31")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-B-201U-C
RAM® Double Socket Arm - B Size Long
RAM Mounts
Copy SKU
RAM-B-407U
RAM® Tough-Wedge™ Base with Ball
RAM Mounts
Copy SKU
RAM-HOL-UN8BU
RAM® X-Grip® Universal Holder for 7"-8" Tablets with Ball - B Size


Complete Your Solution

RAM® Tough-Wedge™ Expansion Pouch Accessory

RAM Mounts
Copy SKU
RAP-407-PUMPU
RAM® Tough-Wedge™ Expansion Pouch Accessory

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack
