World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® Mount with Double U-Bolt Base for 9"-11" Tablets

SKU Copied
SKU: RAM-HOL-UN9-235U
UPC Copied
UPC: 793442947209
Ram X Grip Tablet Holders

RAM® X-Grip® Mount with Double U-Bolt Base for 9"-11" Tablets
Copy SKU
SKU: RAM-HOL-UN9-235U
Copy UPC
| UPC: 793442947209

C SIZE
MEDIUM ARM
Size Guide

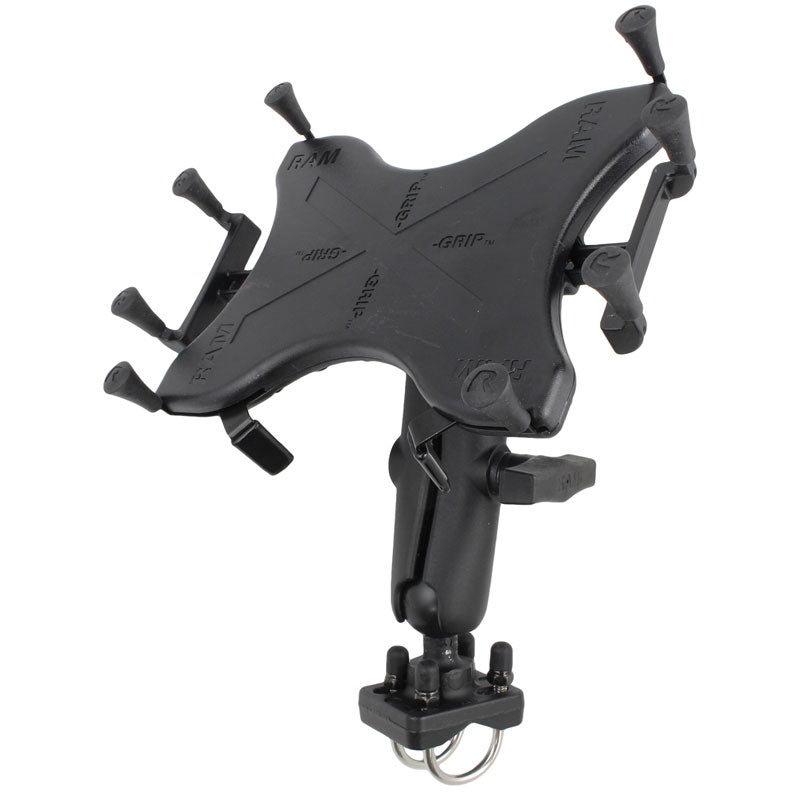

The RAM-HOL-UN9-235U consists of a double stainless steel u-bolt base, double socket arm, round base adapter and universal X-Grip clamping cradle for 22.86cm (9") -27.94cm (11") tablets. Included in this package is hardware that will accommodate rails from 2.54cm (1") to 3.18cm (1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 3.81cm (1.5") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip clamping cradle expands and contracts for perfect fit of most 22.86cm (9") -27.94cm (11") tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip.

Information

Resources

Compatible Devices

Information

Product Weight
1.16 kg (2.55 lbs)
Hardware Included
Assembly Hardware(2) 1/4" -20 U-Bolts for 2.54cm (1") - 3.18cm (1.25") Rails(4) 1/4" -20 Nylock Nuts(4) Rubber Caps
Holder Dimensions
Max Height: 26.04cm (10.25") (using optional supports)Width Range: 15.88cm (6.25") - 20.57cm (8.1") Max Depth: 2.22cm (0.875")
Clamp Range
2.54cm (1") - 3.18cm (1.25") diameter
Socket To Socket Length
7.62cm (3")
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-201U
RAM® Double Socket Arm - C Size Medium
RAM Mounts
Copy SKU
RAM-202U
RAM® Round Plate with Ball - C Size
RAM Mounts
Copy SKU
RAM-235U
RAM® Double U-Bolt Ball Base for 1" - 1.25" Rails - C Size
RAM Mounts
Copy SKU
RAM-HOL-UN9U
RAM® X-Grip® Universal Holder for 9"-11" Tablets


Complete Your Solution

Locking Knobs for C Size Socket Arms

RAM Mounts
Copy SKU
RAM-KNOB5LU
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB5U
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-KNOB5-7U
RAM® Pin-Lock™ 7-Pin Security Knob for C Size and Swing Arms

RAM® X-Grip® Caps

RAM Mounts
Copy SKU
RAP-UN-CAP-4U
RAM® X-Grip® Rubber Cap 4-Pack Replacement
RAM Mounts
Copy SKU
RAP-UN-CAP-4-BLUEU
RAM® X-Grip® Blue Rubber Cap 4-Pack
RAM Mounts
Copy SKU
RAP-UN-CAP-4-REDU
RAM® X-Grip® Red Rubber Cap 4-Pack
