World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® X-Grip® 12"-13" Tablet Mount with No-Drill™ Universal Base

SKU Copied
SKU: RAM-VB-196-UN11
UPC Copied
UPC: 793442922718
Ram X Grip Tablet Holders

RAM® X-Grip® 12"-13" Tablet Mount with No-Drill™ Universal Base
Copy SKU
SKU: RAM-VB-196-UN11
Copy UPC
| UPC: 793442922718

C SIZE
Size Guide

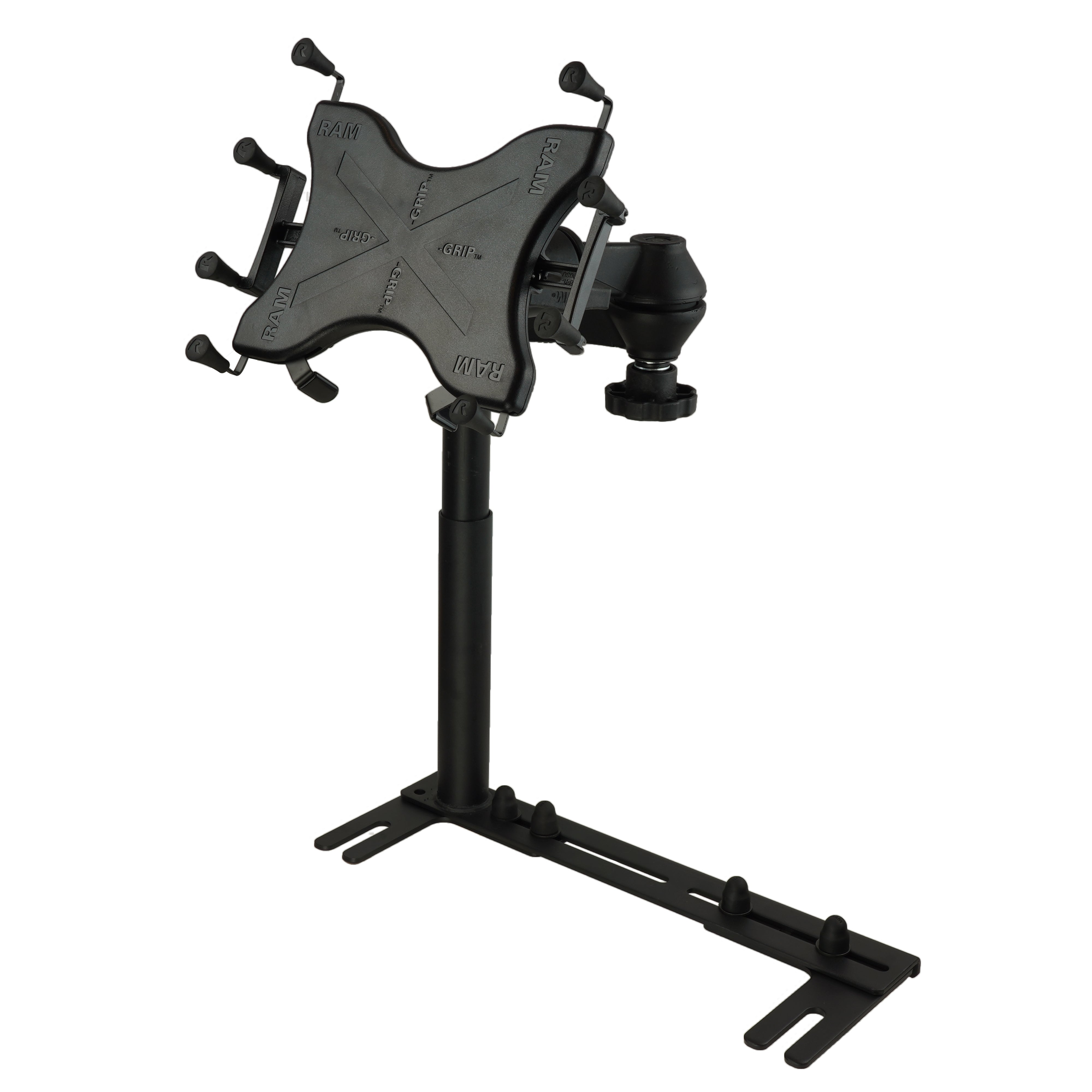

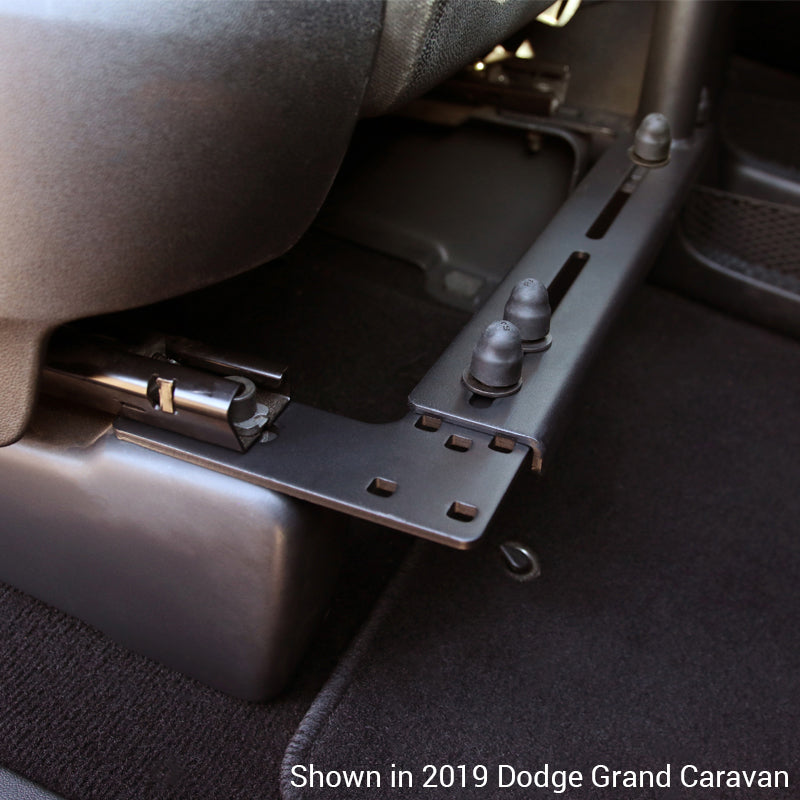

This vehicle bundle consists of the RAM No-Drill mounting system and the RAM X-Grip universal holder for 30.48cm (12") tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18. Dual swing arms provide articulation and 12 of reach for passenger and driver access to the mounted device. The RAM X-Grip features an 'X' design that expands and contracts to provide a perfect fit for your device even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM X-Grip holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.

Features
  • Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 30.48cm (12") - 33.02cm (13") tablets
  • RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

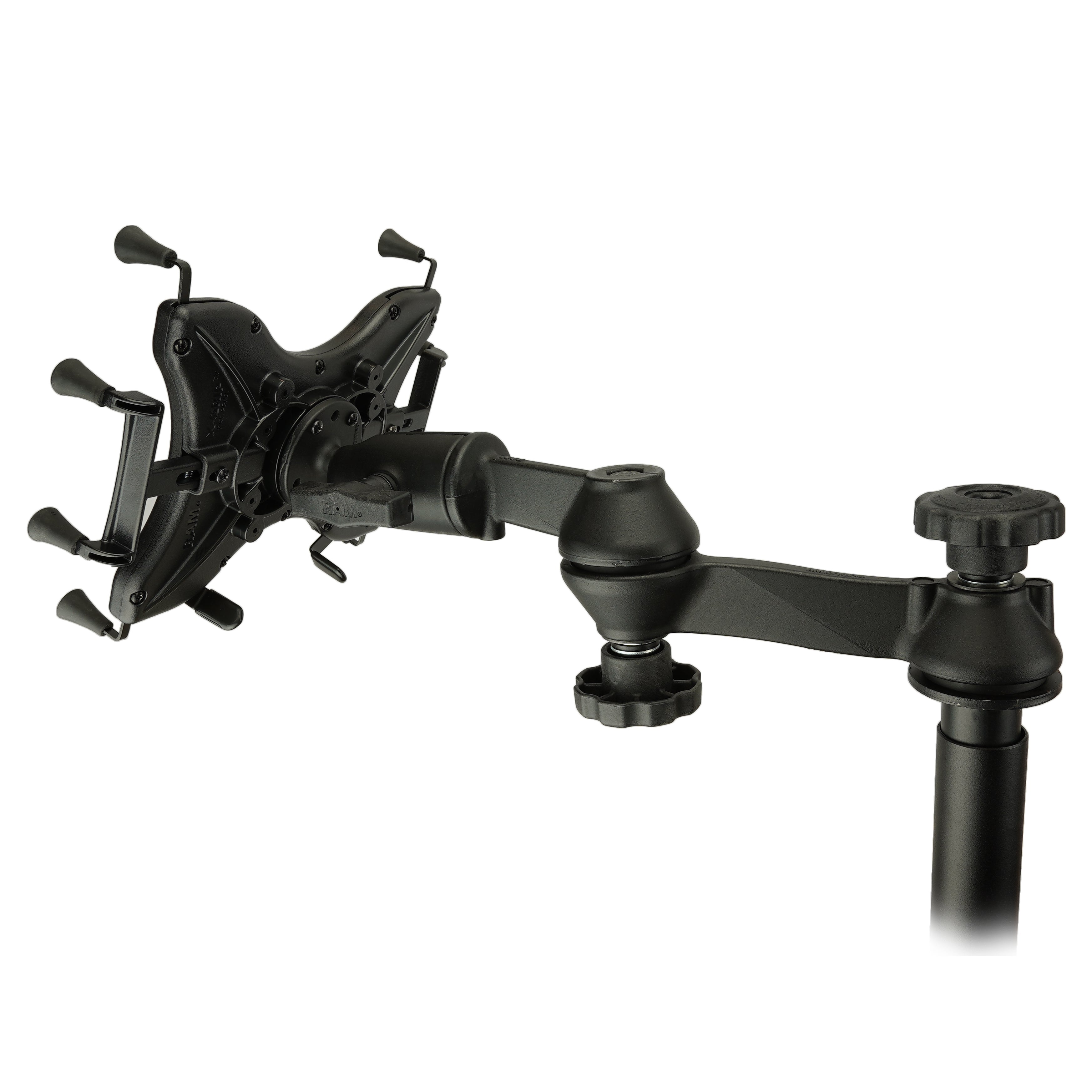

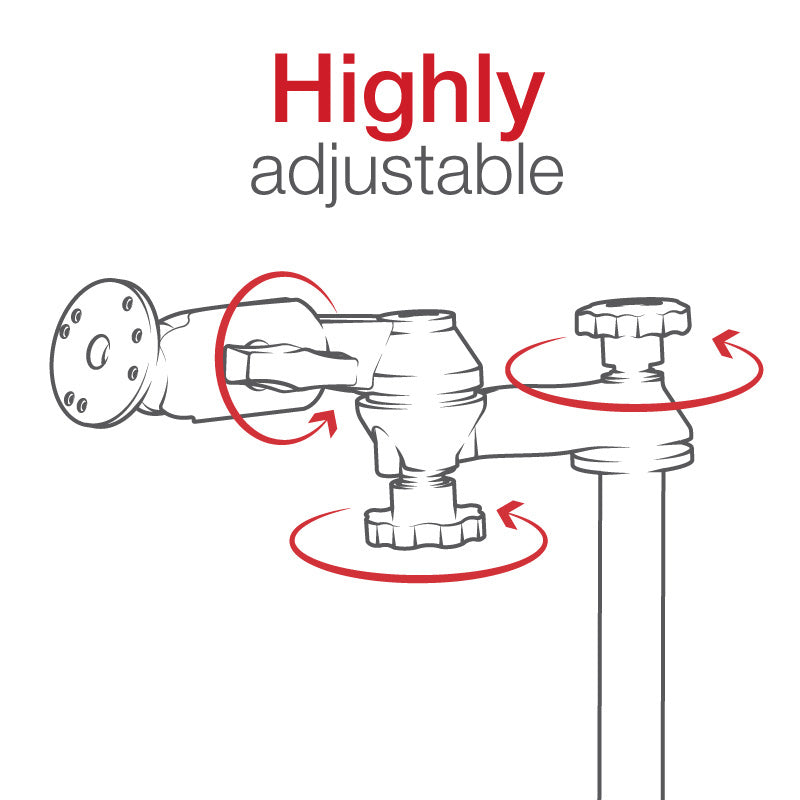

  • Dual articulating swing arm allows for ideal device placement
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
5.52 kg (12.18 lbs)
Hardware Included
Assembly HardwareStabilizer Foot
Holder Dimensions
Max Height: 26.04cm (10.25") (using optional supports)Width Range: 18.42cm (7.25") - 22.23cm (8.75") Max Depth: 2.22cm (0.875")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") DiameterSeat Bolt Distance: 22.86cm (9") - 47.94cm (18.875") center to center
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Powder coated steelMarine grade-aluminumHigh strength composite
Packaging Type
Box

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-HOL-UN11U
RAM® X-Grip® Universal Holder for 12"-13" Tablets
RAM Mounts
Copy SKU
RAM-VB-196-SW2
RAM® No-Drill™ Universal Vehicle Floor Mount
