World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Vertical 5" Offset Drill-Down Laptop Mount

SKU Copied
SKU: RAM-VB-184T-SW1
UPC Copied
UPC: 793442926297

RAM® Vertical 5" Offset Drill-Down Laptop Mount
Copy SKU
SKU: RAM-VB-184T-SW1
Copy UPC
| UPC: 793442926297

C SIZE
Size Guide

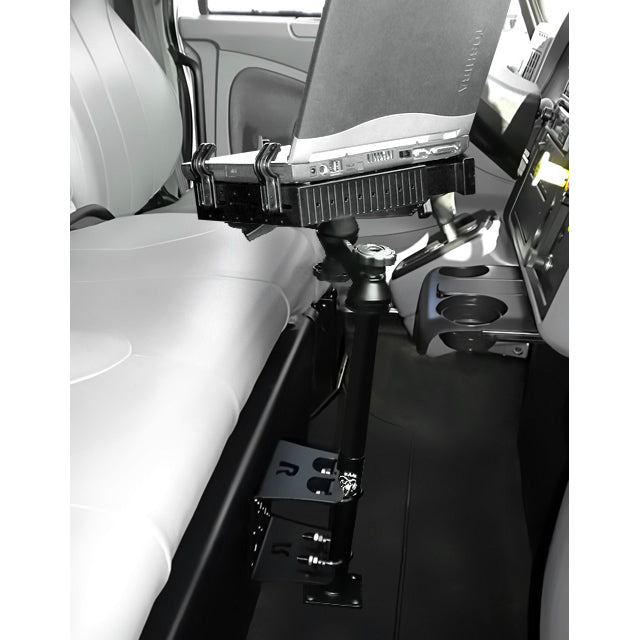

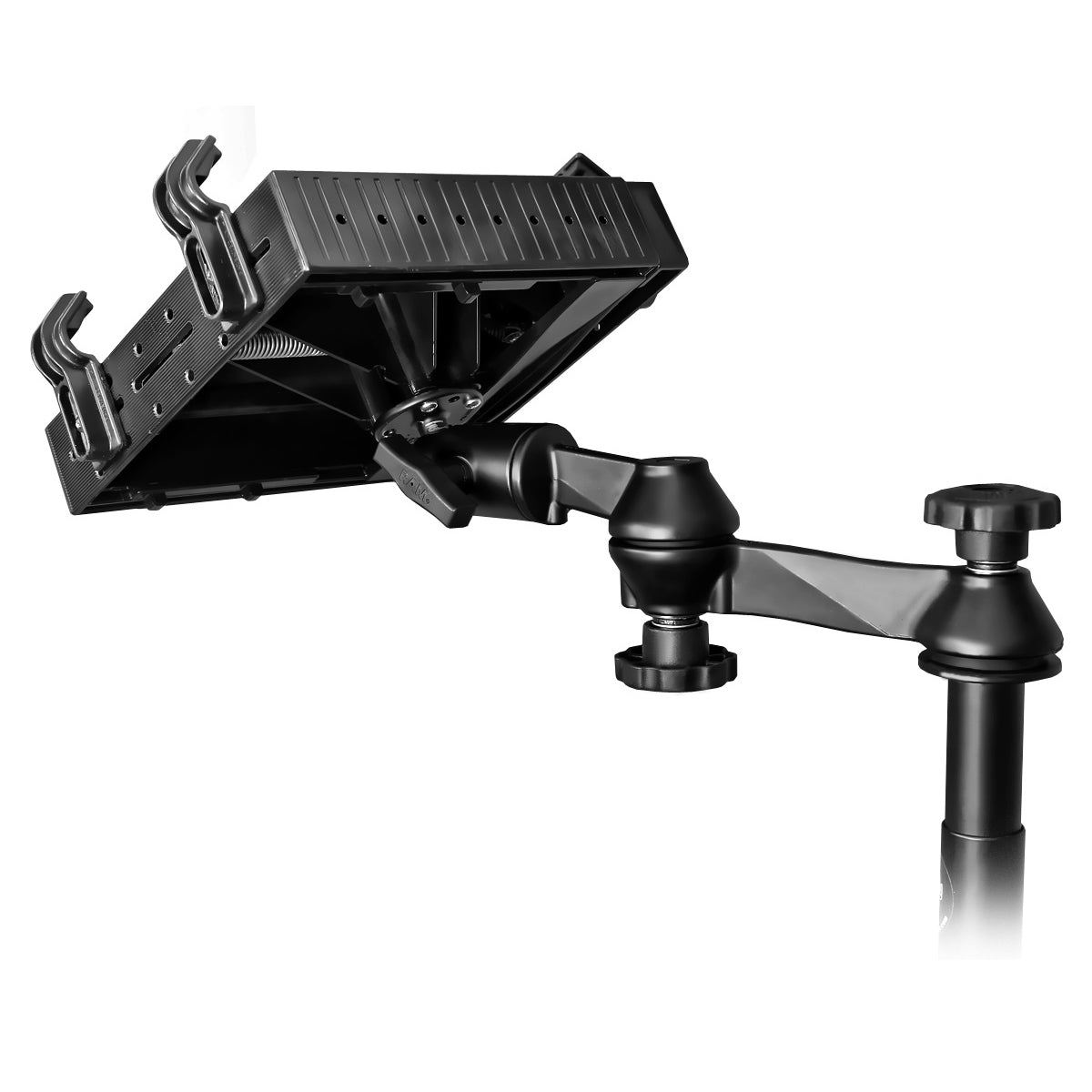

The RAM Tough-Tray is spring loaded expandable tray that can accommodate 10 to 16 inch wide laptops. The tray includes four (4) side clamping arm with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS, PDAs or other electronics. The Tough-Tray is compatible with laptops that have 43.18cm (17") screens. Truck fleets world wide will appreciate the well crafted universal multi-function vehicle base now offered by RAM. Considering the wide variety of seating arrangements in the commercial vehicle market, this new vehicle base is reversible by design. Now installers dont have to choose between locating a flat surface or round tubing to attach to under the vehicle seat. RAM has you covered with either configuration. Tubing framed seats can be attached to in minutes using the supplied u-bolts. Once in place and safely secured, several hole patterns are available allowing the freedom to choose how best to create your custom mounting solution. Steel box frame seats need only four discrete holes drilled to secure the base. Using hardware chosen and supplied by the installer, secure the base where its most convenient. Using the supplied u-bolt hardware, attach any number of RAM pedestal mounts to create a mounting system unmatched in its versatility and stability. There simply is no substitute for RAM vehicle products.

Information

Resources

Information

Product Weight
5.90 kg (13.00 lbs)
Hardware Included
Assembly Hardware(2) 1/4" -20 x 8.57cm (3.375") U-Bolts(4) 1/4" -20 Nylock Nuts(4) 0.64cm (0.25") Flat Washers
Tray Dimensions
Width Range: 25.40cm (10") - 40.64cm (16") Side Arm Clamp Height: 1.27cm (0.5") - 4.45cm (1.75") Tray Depth: 25.40cm (10") Tray Thickness: 5.40cm (2.125")
Hole Pattern
See Drawing
Ball Size
C Size ( 3.81cm (1.5") )
Materials
Powder coated steelMarine grade-aluminumHigh strength composite
Packaging Type
Box

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-234-3
RAM® Tough-Tray™ Spring Loaded Laptop Tray
RAM Mounts
Copy SKU
RAM-VB-184T
RAM® Vertical Drill-Down Vehicle Base with Lower RAM® Tele-Pole™
RAM Mounts
Copy SKU
RAM-VP-SW1-8
RAM® 8" Upper Pole with Double Swing Arms & Round Plate


Complete Your Solution

RAM® Laptop Tray Accessories

RAM Mounts
Copy SKU
RAM-234-5U
RAM® Power Caddy™ Accessory Holder for RAM® Tough-Tray™
RAM Mounts
Copy SKU
RAM-234-S2U
RAM® Adjustable Laptop Screen Support Arm
RAM Mounts
Copy SKU
RAM-234K1-4U
RAM® Tough-Tray™ Flat Clamping Arm Kit

Lower Pole Accessories

RAM Mounts
Copy SKU
RAM-VB-REM1
RAM® Remove-A-Pole™ Riser for Vehicle Laptop Mounts
RAM Mounts
Copy SKU
RAP-404U
RAM® Tough-Claw™ Medium Clamp Ball Base
RAM Mounts
Copy SKU
RAP-B-404U
RAM® Tough-Claw™ Medium Clamp Base with Ball
