The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Universal Forklift Post Mount with Round Plate & Accessory Option

SKU Copied
SKU: RAM-D-247-C-254-DIS1U
UPC Copied
UPC: 793442019654

RAM® Universal Forklift Post Mount with Round Plate & Accessory Option
Copy SKU
SKU: RAM-D-247-C-254-DIS1U
Copy UPC
| UPC: 793442019654

D SIZE
SHORT ARM
Size Guide

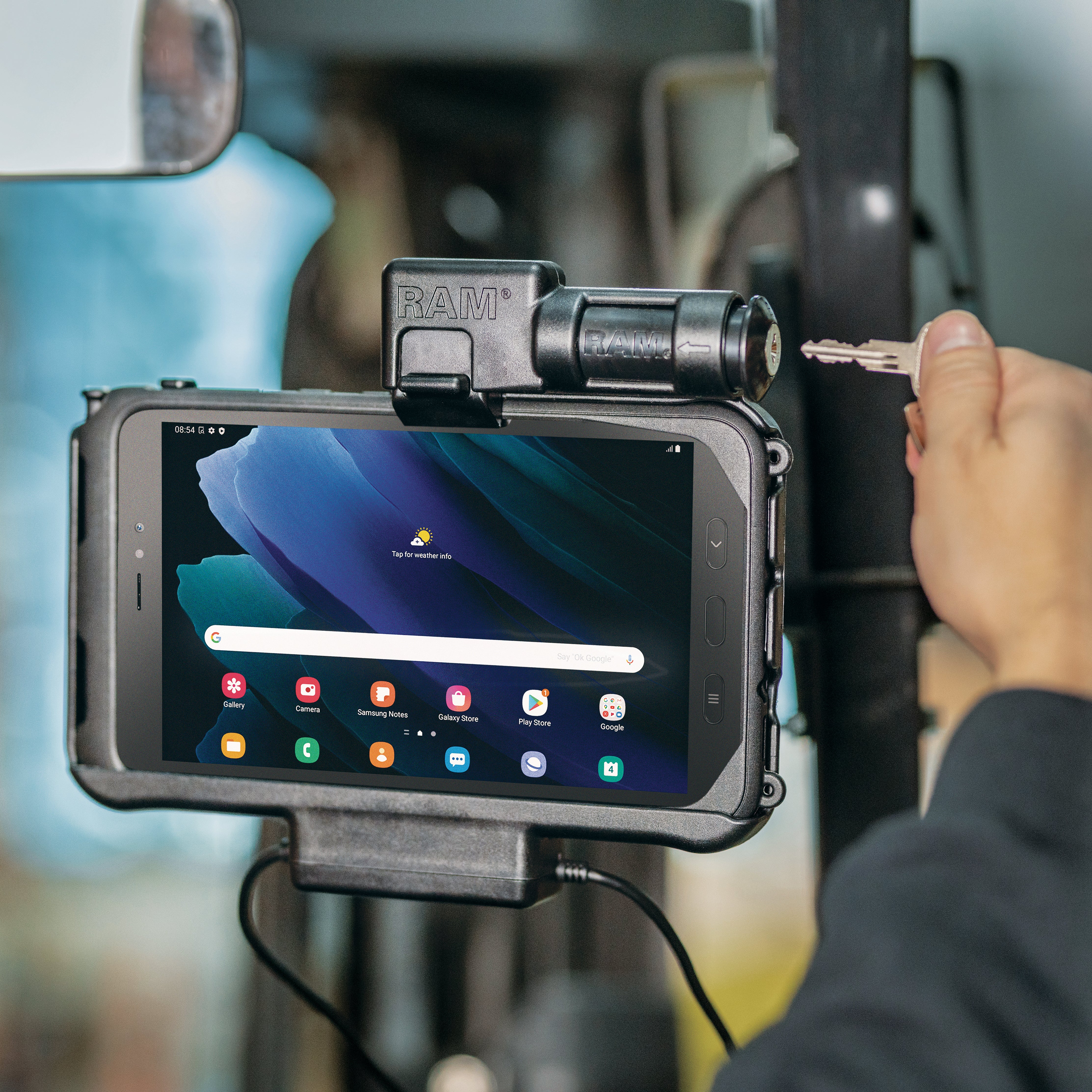

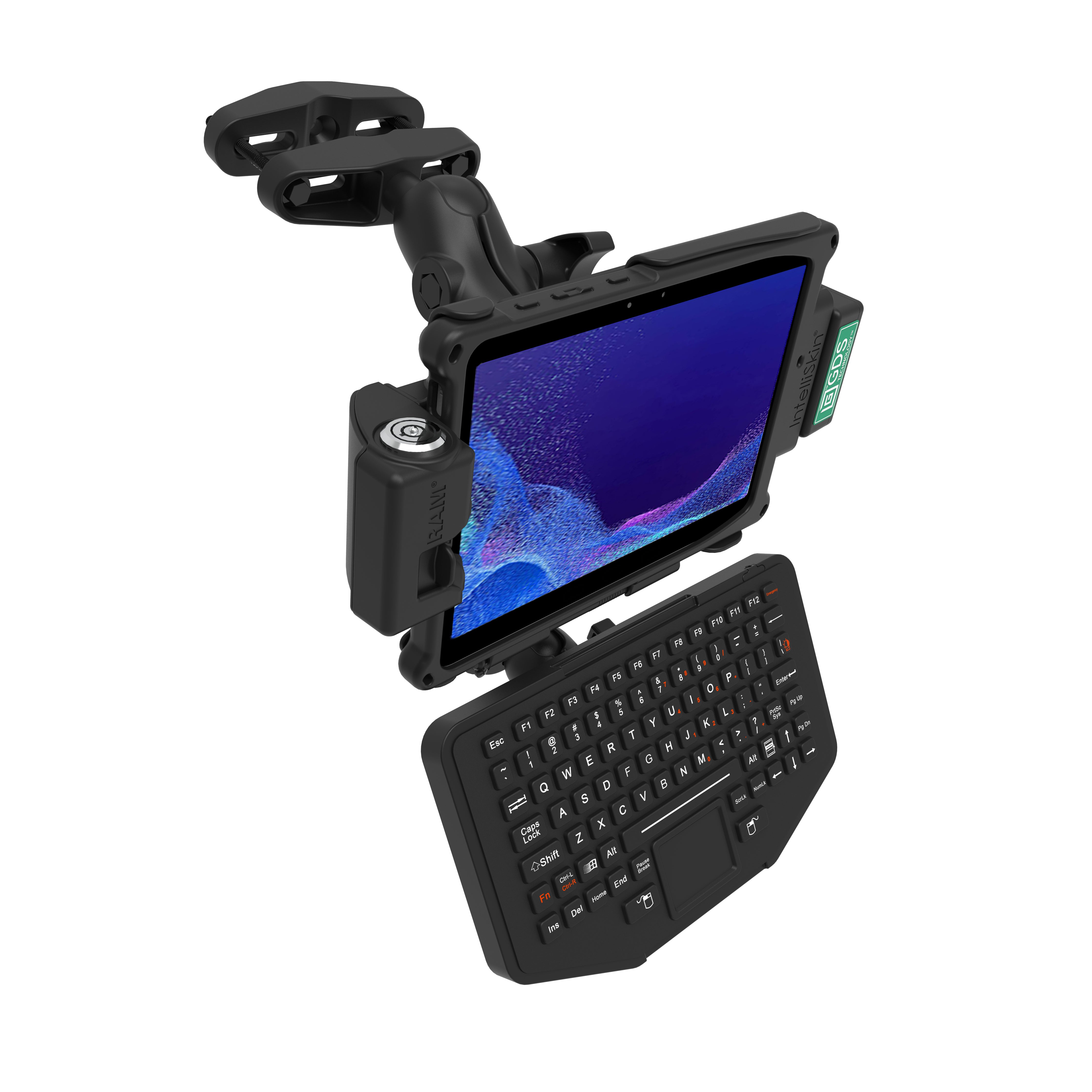

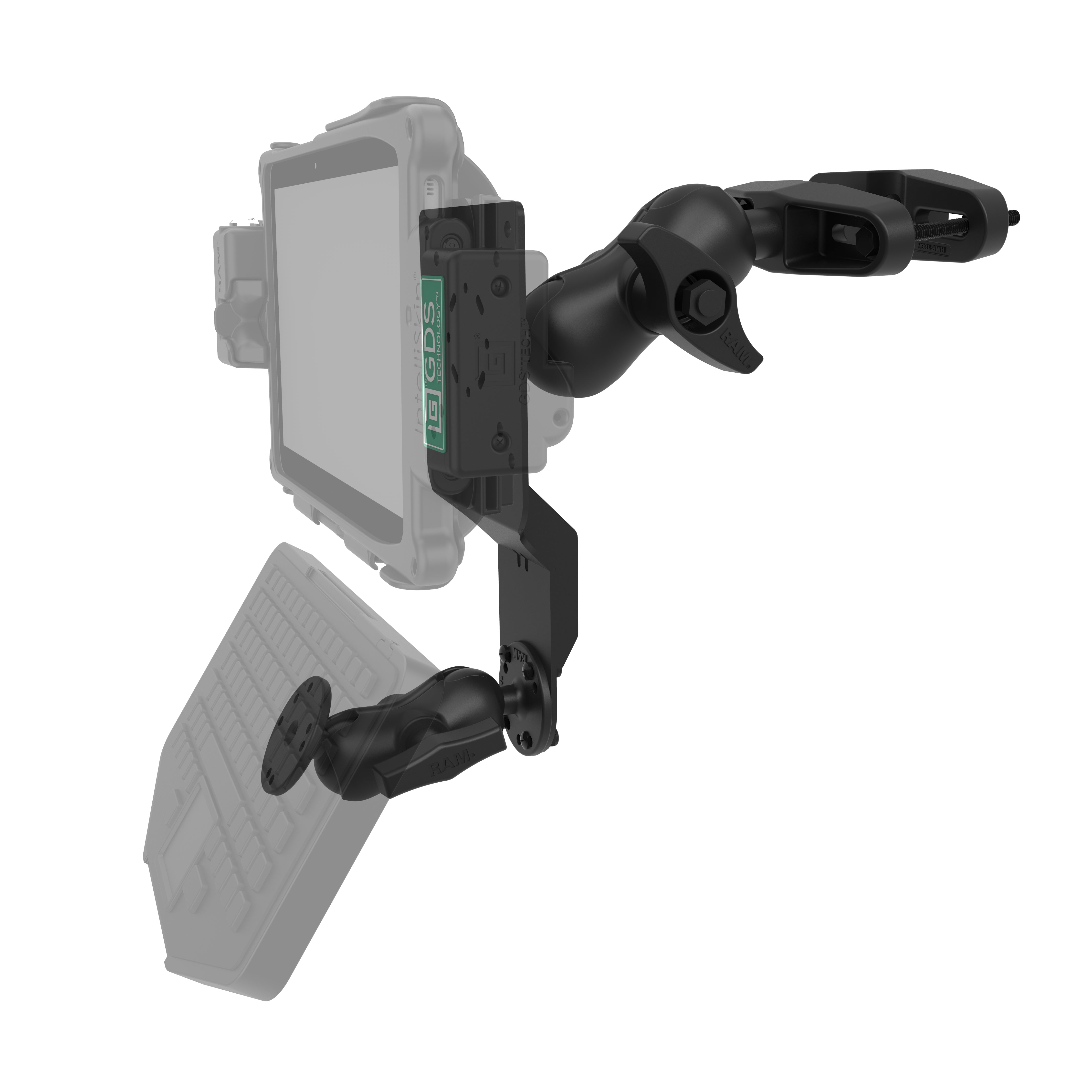

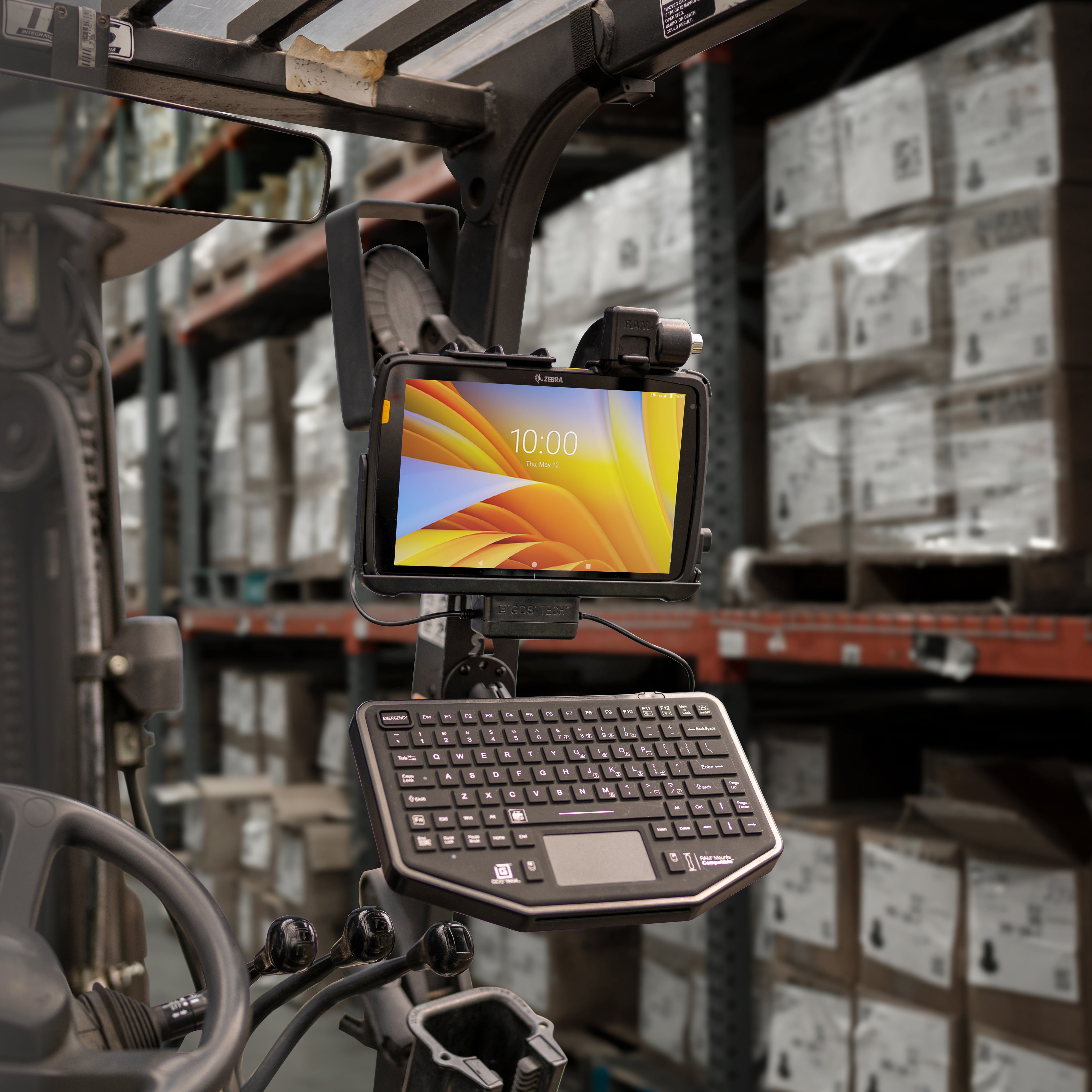

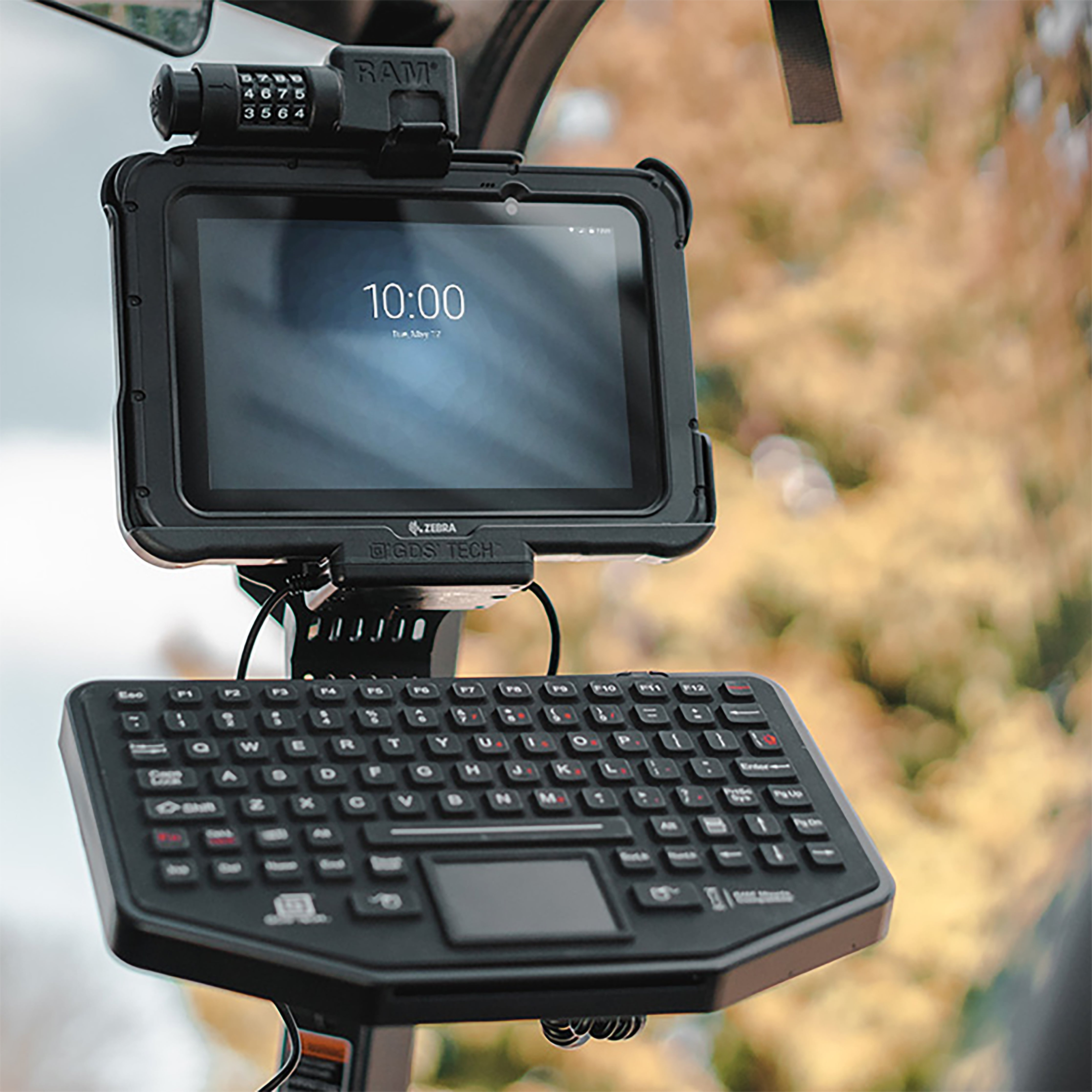

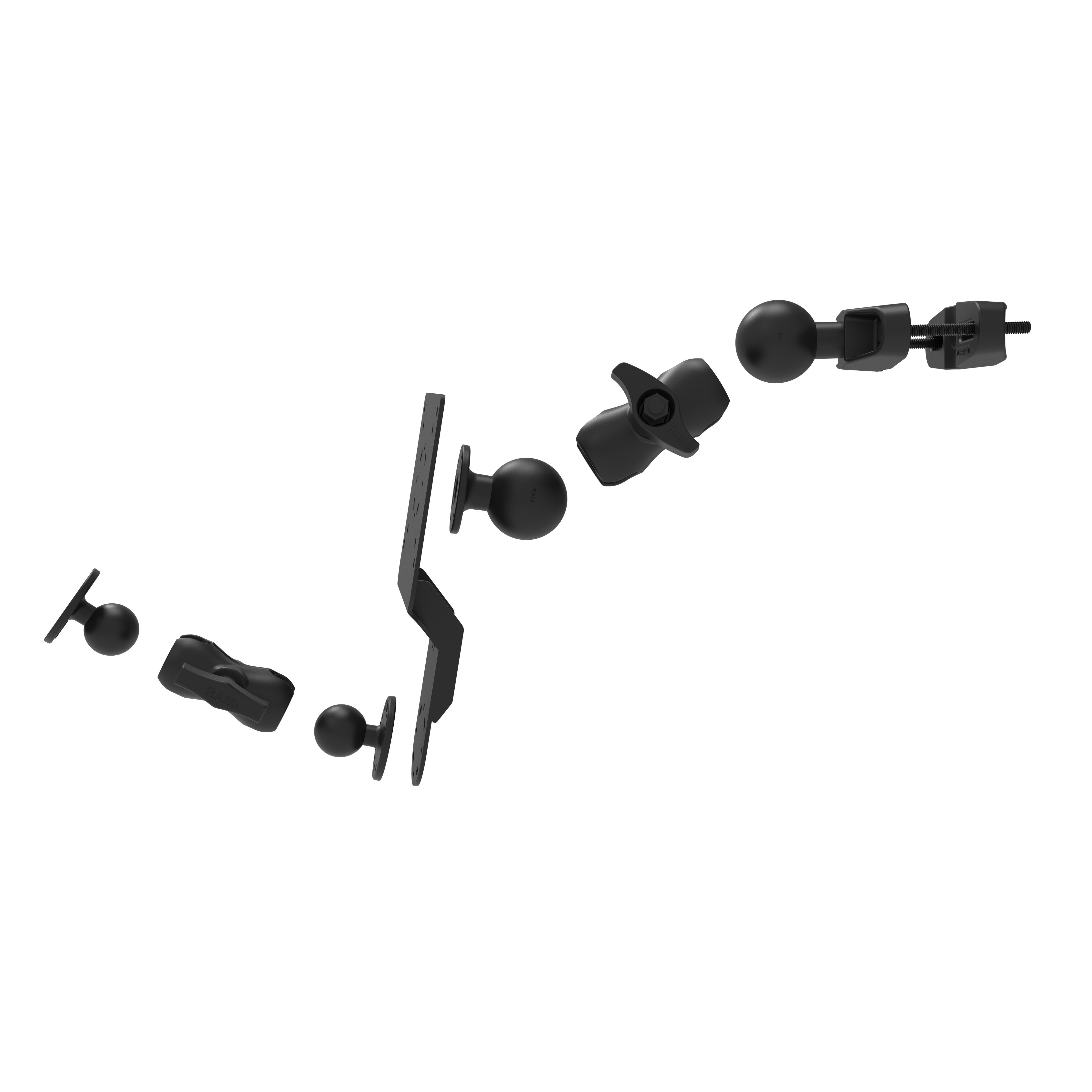

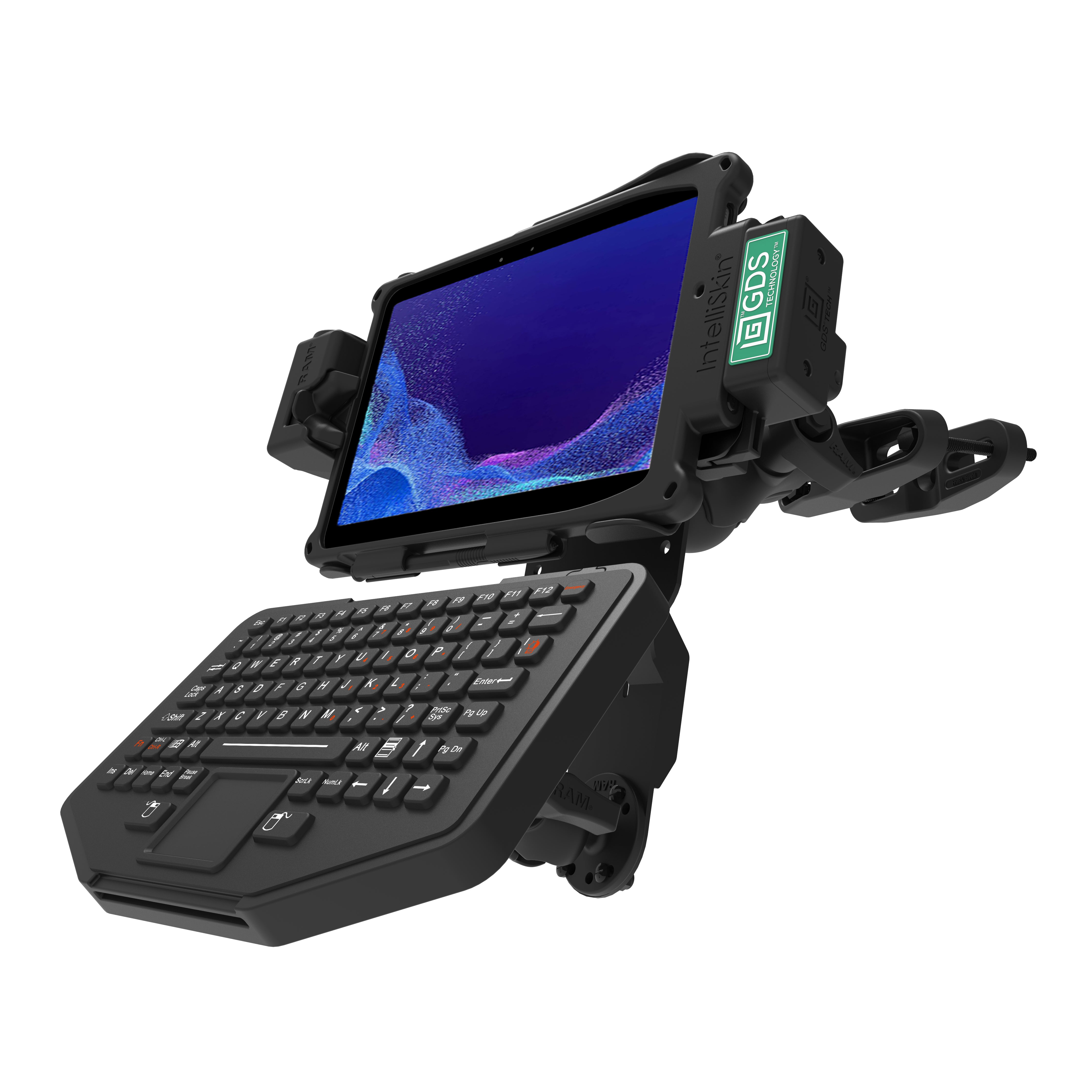

The RAM Universal Forklift Post Mount with Round Plate & Accessory Option (RAM-D-247-C-254-DIS1U) is a mounting solution designed to secure tablets and one additional accessory, such as a keyboard, to forklifts. This kit consists of one (1) steel reinforced square clamp base, one (1) standard heavy-duty accessory/display bracket, one (1) D size AMPS Plate with Ball, one (1) short D size double socket arm, and one (1) short C size double ball mount with two round plates. The square post clamp will wrap around a square post with a maximum width of 10.16cm (4") and is tightened by screwing the two plates together with the included nuts and bolts. The RAM rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

Features
  • Display bracket designed to mount a tablet or monitor, keyboard, phone, docks, hubs, speakers, and more; take full advantage of the GDS® Ecosystem™

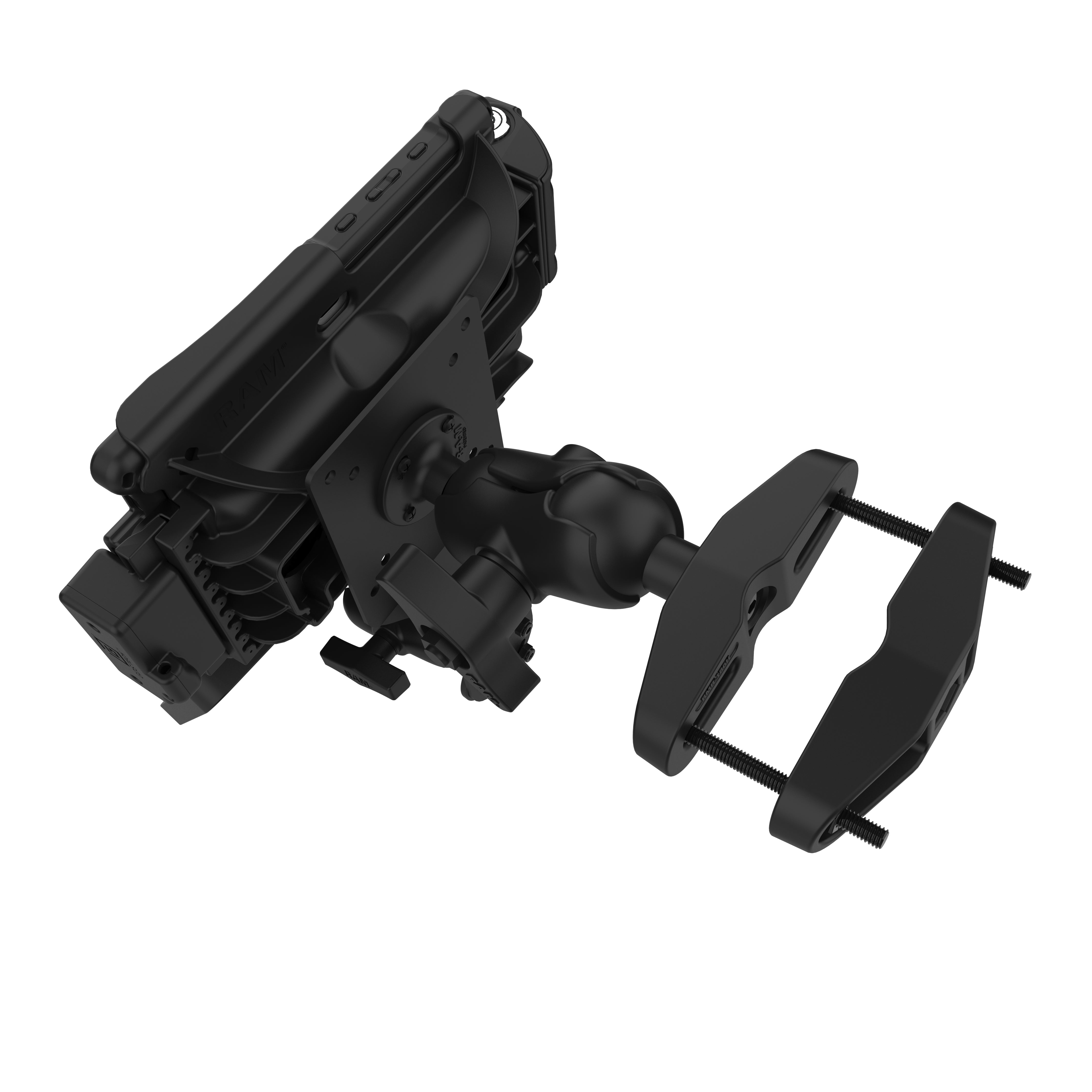

  • Includes 10.16cm (4") clamping base to secure the entire solution to a forklift's square post
  • Utilizes D size components for connecting display bracket to forklift and C size components for the additional accessory
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Information

Product Weight
2.87 kg (6.33 lbs)
Hardware Included
Assembly Hardware
Clamp Range
4.45cm (1.75") - 10.16cm (4") width
Socket To Socket Length
C-Size Mount: 6.35cm (2.5") D-Size Mount: 9.14cm (3.6")
Ball Size
D Size ( 5.72cm (2.25") )
Weight Capacity
2.72 kg (6 lbs)
Materials
Marine-grade aluminumPowder coated steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-101U-B
RAM® Universal Double Ball Mount with Two Round Plates - C Size Short
RAM Mounts
Copy SKU
RAM-D-201U-C
RAM® Double Socket Arm - D Size Short
RAM Mounts
Copy SKU
RAM-D-254U
RAM® Round AMPS Plate with Ball
RAM Mounts
Copy SKU
RAM-D-247U
RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - D Size
RAM Mounts
Copy SKU
RAM-DIS-103-1AU
RAM® Standard Heavy Duty Accessory/Display Bracket
