The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Tray™ Laptop Holder with Vertical Swing Arm Mount

SKU Copied
SKU: RAM-109V-234U
UPC Copied
UPC: 793442907654

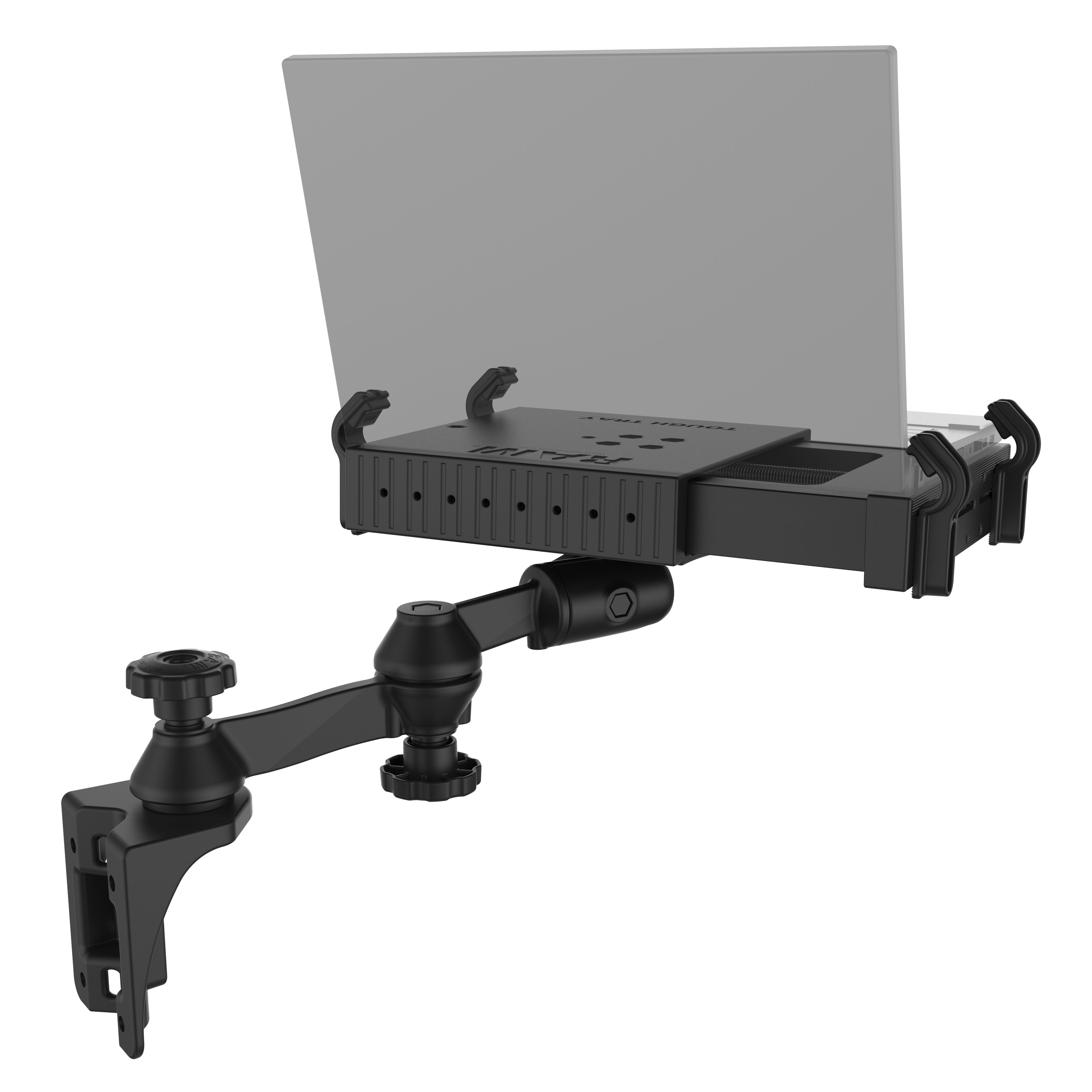

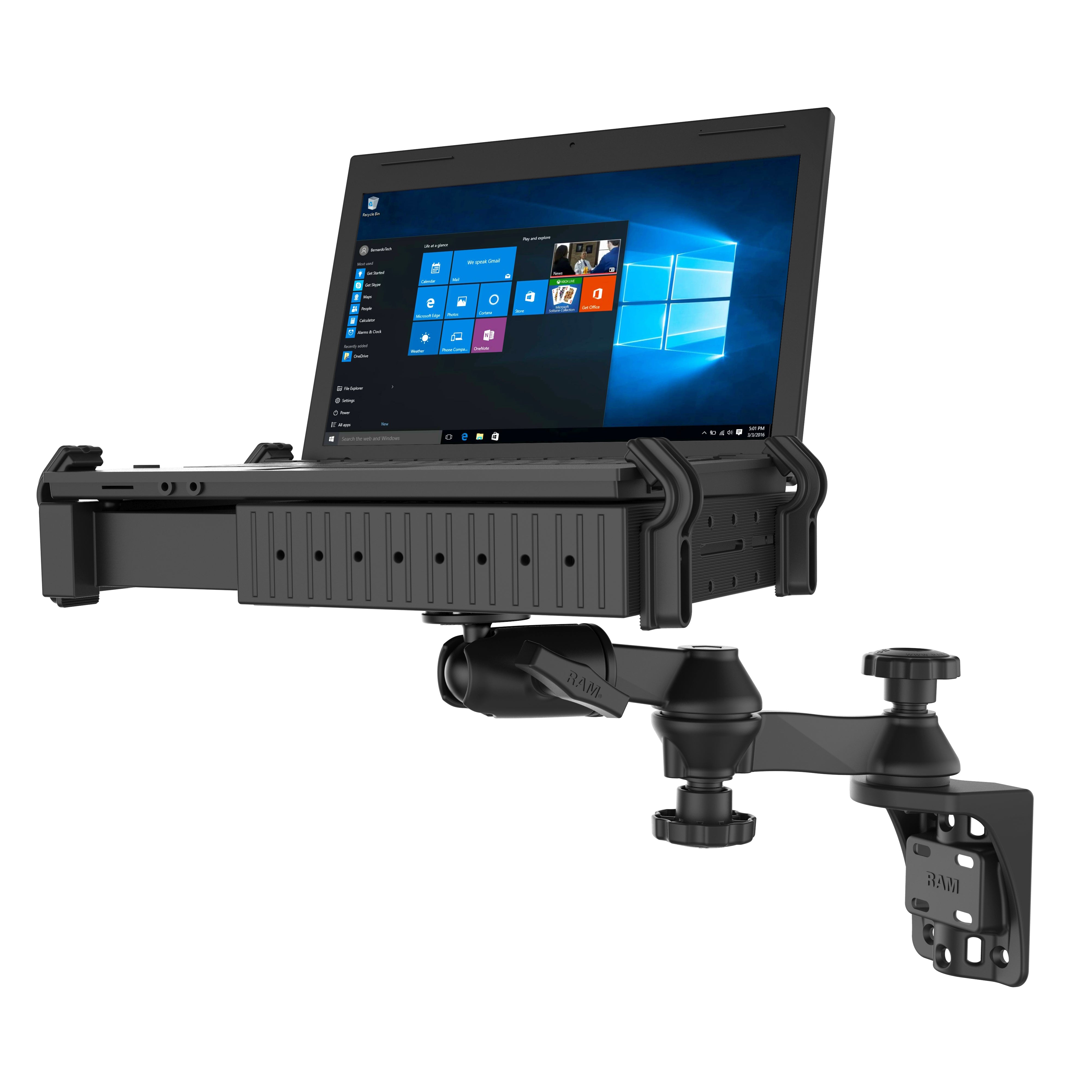

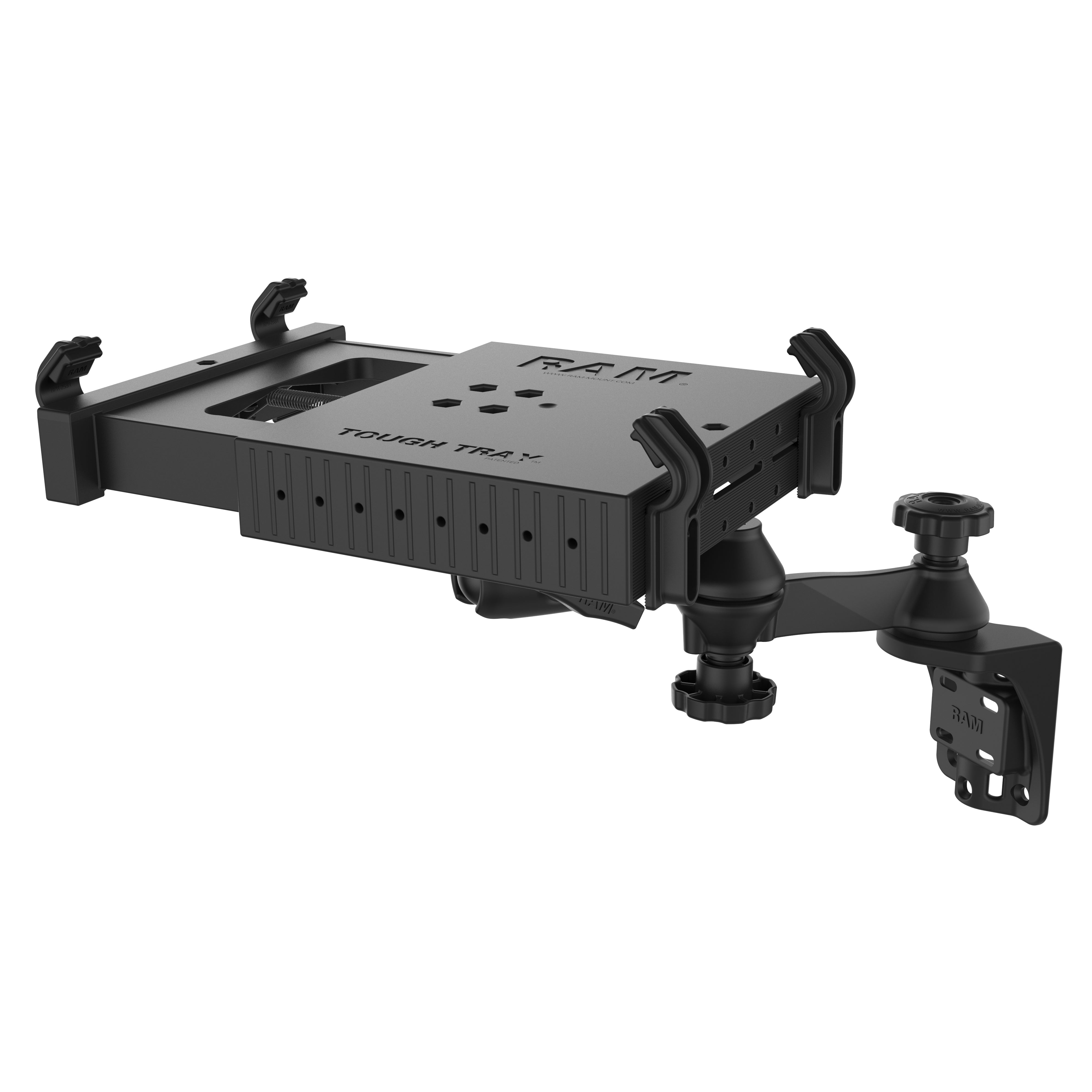

RAM® Tough-Tray™ Laptop Holder with Vertical Swing Arm Mount
Copy SKU
SKU: RAM-109V-234U
Copy UPC
| UPC: 793442907654

C SIZE
Size Guide
The RAM-109V-234U consists of two straight swing arms as well as a drill-down base for vertical surfaces as well as the RAM Tough-Tray Spring Loaded Laptop Holder.

Information

Resources

Information

Product Weight
3.63 kg (8.00 lbs)
Hole Pattern
See Drawing
Plate Size
10.08 cm (3.97") X 12.32 cm (4.85")
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-234-3
RAM® Tough-Tray™ Spring Loaded Laptop Tray
RAM Mounts
Copy SKU
RAM-VB-109-3U
RAM® 6" Swing Arm Extension
RAM Mounts
Copy SKU
RAM-VB-110-5U
RAM® 6" Single Swing Arm with Round Plate, Bolt & Knob
RAM Mounts
Copy SKU
RAM-109V-BU
RAM® Vertical Swing Arm Base


Complete Your Solution

RAM® Laptop Tray Accessories

RAM Mounts
Copy SKU
RAM-234-5U
RAM® Power Caddy™ Accessory Holder for RAM® Tough-Tray™
RAM Mounts
Copy SKU
RAM-234-S2U
RAM® Adjustable Laptop Screen Support Arm
RAM Mounts
Copy SKU
RAM-234K1-4U
RAM® Tough-Tray™ Flat Clamping Arm Kit

RAM® Pin-Lock™ Security Kit for Single Swing Arms on RAM® Vehicle Kits

RAM Mounts
Copy SKU
RAP-S-KNOB-VB-109U
RAM® Pin-Lock™ Security Kit for Single Swing Arms on RAM® Vehicle Kits
