World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

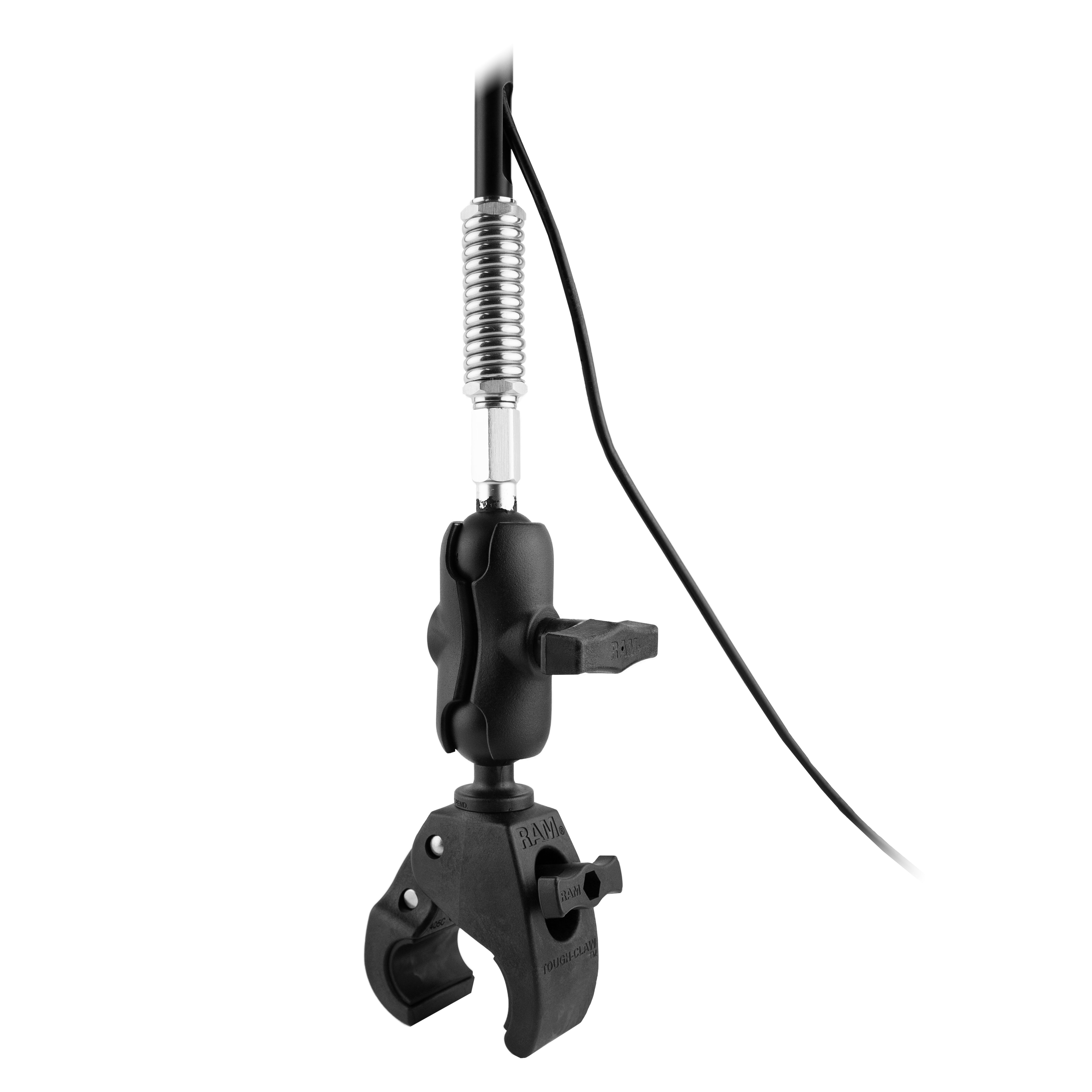

RAM® Tough-Claw™ Heavy Duty Mount for weBoost

SKU Copied
SKU: RAM-451-B-404U
UPC Copied
UPC: 793442018305

RAM® Tough-Claw™ Heavy Duty Mount for weBoost
Copy SKU
SKU: RAM-451-B-404U
Copy UPC
| UPC: 793442018305

C SIZE
SHORT ARM
Size Guide
The RAM Tough-Claw Heavy Duty Mount for weBoost (RAM-451-B-404U) is a mounting kit that includes a C size ball with a 7.62 cm (3")/20.32 cm (8") -24 x 1.59cm (00.625") threaded hole compatible with the weBoost antenna, a C size short length socket arm, and a C size medium clamp RAM Tough-Claw to mount to 2.54cm (1") to 4.06cm (1.6") rails and bars such as a vehicle ladder, or roof/bed rack. The adjustability of the RAM Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with Drive Reach OTR and Drive X antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.

Features
  • Kit includes a C size ball with a 7.62 cm (3")/20.32 cm (8") -24 x 1.59cm (00.625") threaded hole that screws onto the thread adapter of the weBoost antenna, C size short length socket arm and C size medium clamp RAM® Tough-Claw™ to mount to 2.54cm (1") to 4.06cm (1.6") rails and bars such as a vehicle ladder or roof/bed rack
  • The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas
  • Made of marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Compatible Devices

Information

Product Weight
0.60 kg (1.33 lbs)
Clamp Range
2.54cm (1") - 4.06cm (1.6") diameter
Socket To Socket Length
6.35cm (2.5")
Thread Pitch
7.62 cm (3")/20.32 cm (8") -24
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-201U-B
RAM® Double Socket Arm - C Size Short
RAM Mounts
Copy SKU
RAP-404U
RAM® Tough-Claw™ Medium Clamp Ball Base
RAM Mounts
Copy SKU
RAM-451U
RAM® Ball Adapter with 3/8”-24 Threaded Hole
