World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Claw™ 9" Pipe Mount with Round Plate Adapter

SKU Copied
SKU: RAP-401-9-BC-202U
UPC Copied
UPC: 793442010422

RAM® Tough-Claw™ 9" Pipe Mount with Round Plate Adapter
Copy SKU
SKU: RAP-401-9-BC-202U
Copy UPC
| UPC: 793442010422

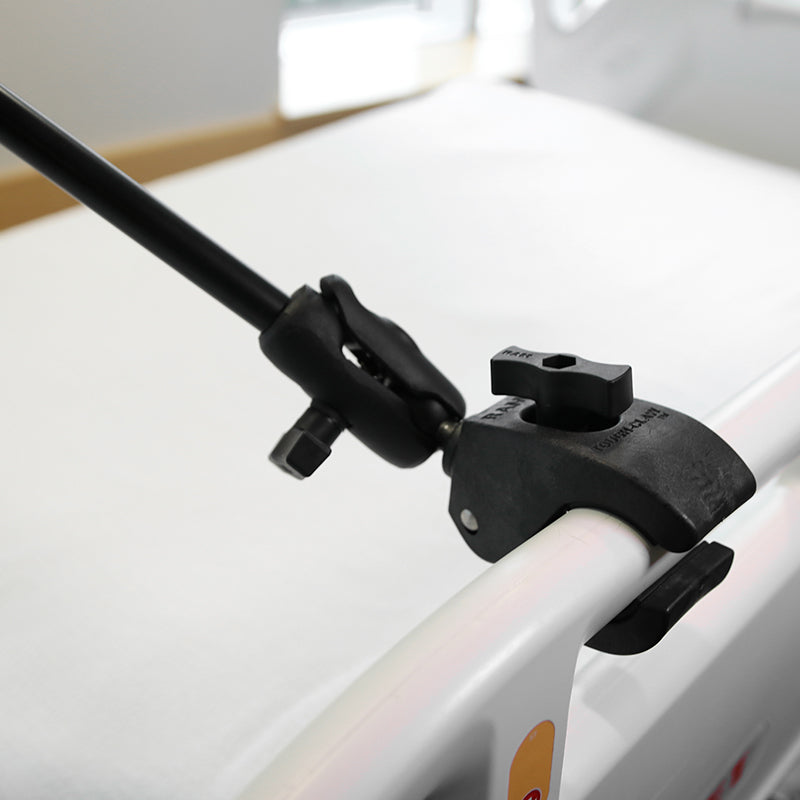

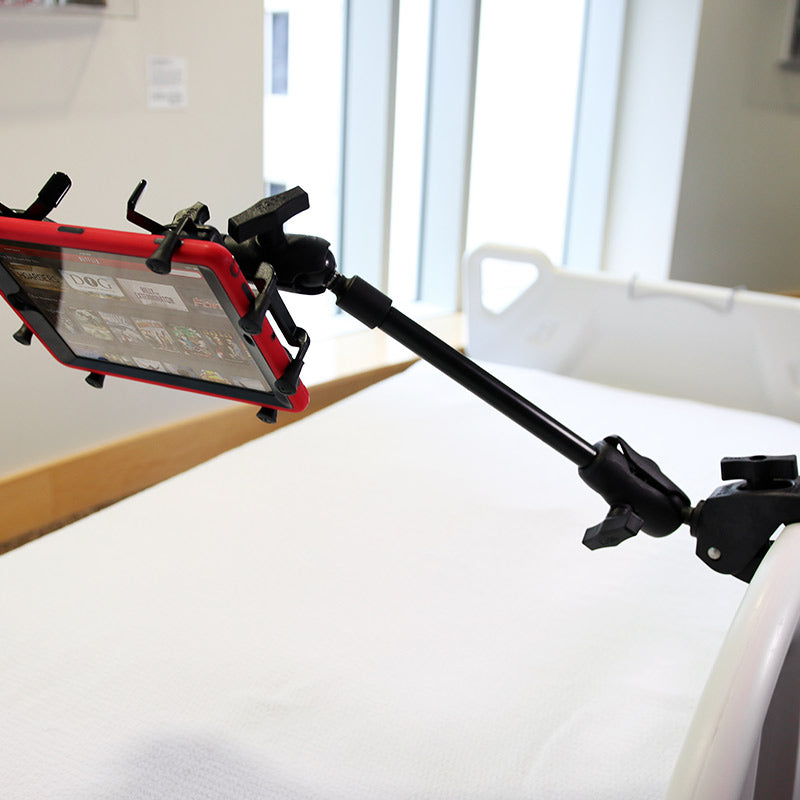

This bedside mounting kit includes the large RAM Tough-Claw clamping base, 9 extension pole, swiveling double socket arm, and a RAM round ball plate. The RAM Tough-Claw attaches with the twist of a knob to bedside rails and bars that range from 1 to 2.25 in outer diameter. In addition, the 9 long extension pole, swiveling double socket arm, and round ball plate can be easily adjusted to keep your choice of device holder at an ideal viewing and operating position. When not in use, the tablet holder and extension pole can simply be rotated away from the bed.

Features
  • Large version of the RAM® Tough-Claw™ base is designed to bedside rails and bars ranging from 2.54cm (1") to 5.59cm (2.2") in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • RAM® round ball plate connects to a wide variety of device holders for phones and tablets
  • Swiveling double socket arm and extension pole allows for ideal tablet placement
  • Backed by a lifetime warranty

Information

Information

Product Weight
1.14 kg (2.51 lbs)
Product Dimensions
Overall Height: 63.50cm (25")
Clamp Range
2.54cm (1") - 5.59cm (2.2") diameter
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Plate Size
6.35cm (2.5") Diameter
Ball Size
Bottom of Arm: C Size ( 3.81cm (1.5") )Top of Arm: B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-200-9-BC-201
RAM® Pipe & Socket 19" Extension Arm for Wheelchairs
RAM Mounts
Copy SKU
RAM-B-202U
RAM® Round Plate with Ball - B Size
RAM Mounts
Copy SKU
RAP-401U
RAM® Tough-Claw™ Large Clamp Ball Base
