The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Charge™ 15W Wireless Charging Mount with Tough-Claw™

SKU Copied
SKU: RAM-B-400-A-UN12W-V7M-1
UPC Copied
UPC: 793442900105

RAM® Tough-Charge™ 15W Wireless Charging Mount with Tough-Claw™
Copy SKU
SKU: RAM-B-400-A-UN12W-V7M-1
Copy UPC
| UPC: 793442900105

B SIZE
SHORT ARM
Size Guide

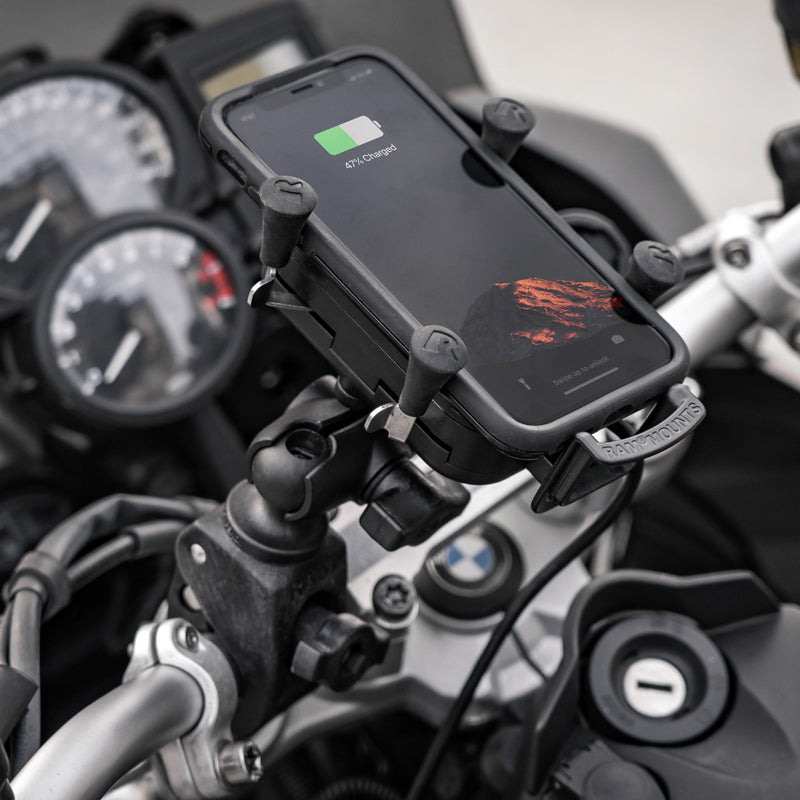

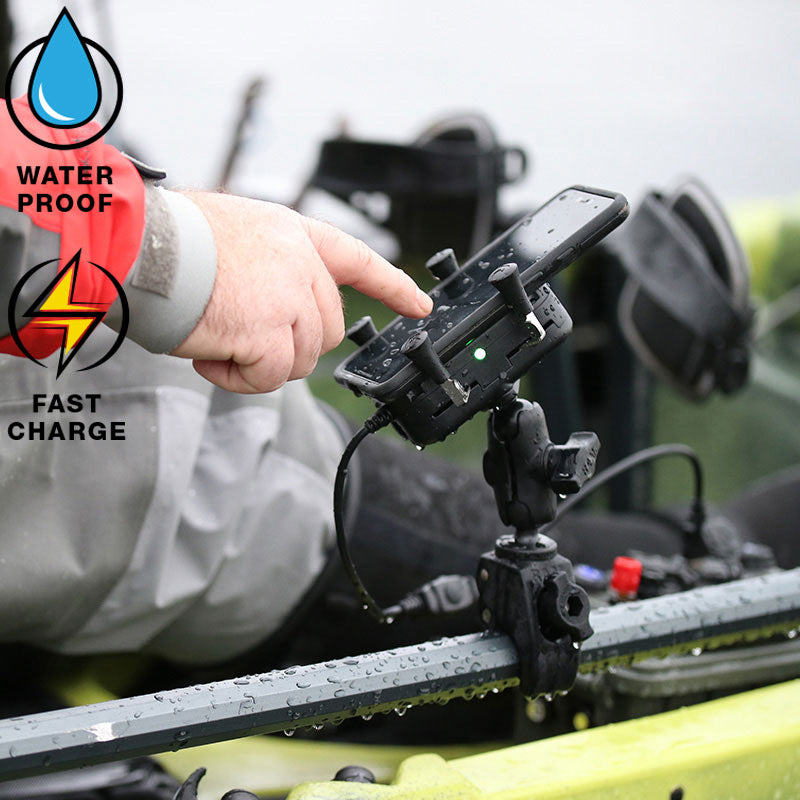

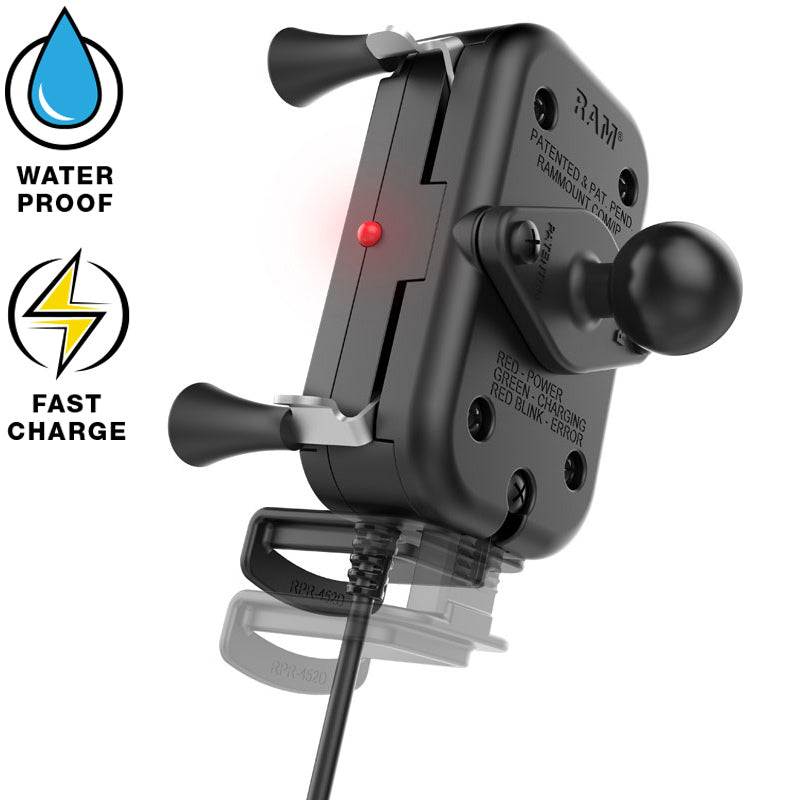

The RAM Tough-Charge with X-Grip Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM X-Grip Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included thats recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM Tough-Charge with X-Grip Technology wireless charging kit includes a B size diamond base featuring a 1 rubber ball, short length double socket arm, and a RAM Tough-Claw clamping base. With the RAM Tough-Claw base, you can easily attach the wireless phone charger to round, square, and odd-shaped rails and bars ranging from .625 to 1.14 in outer diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

Features
  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output

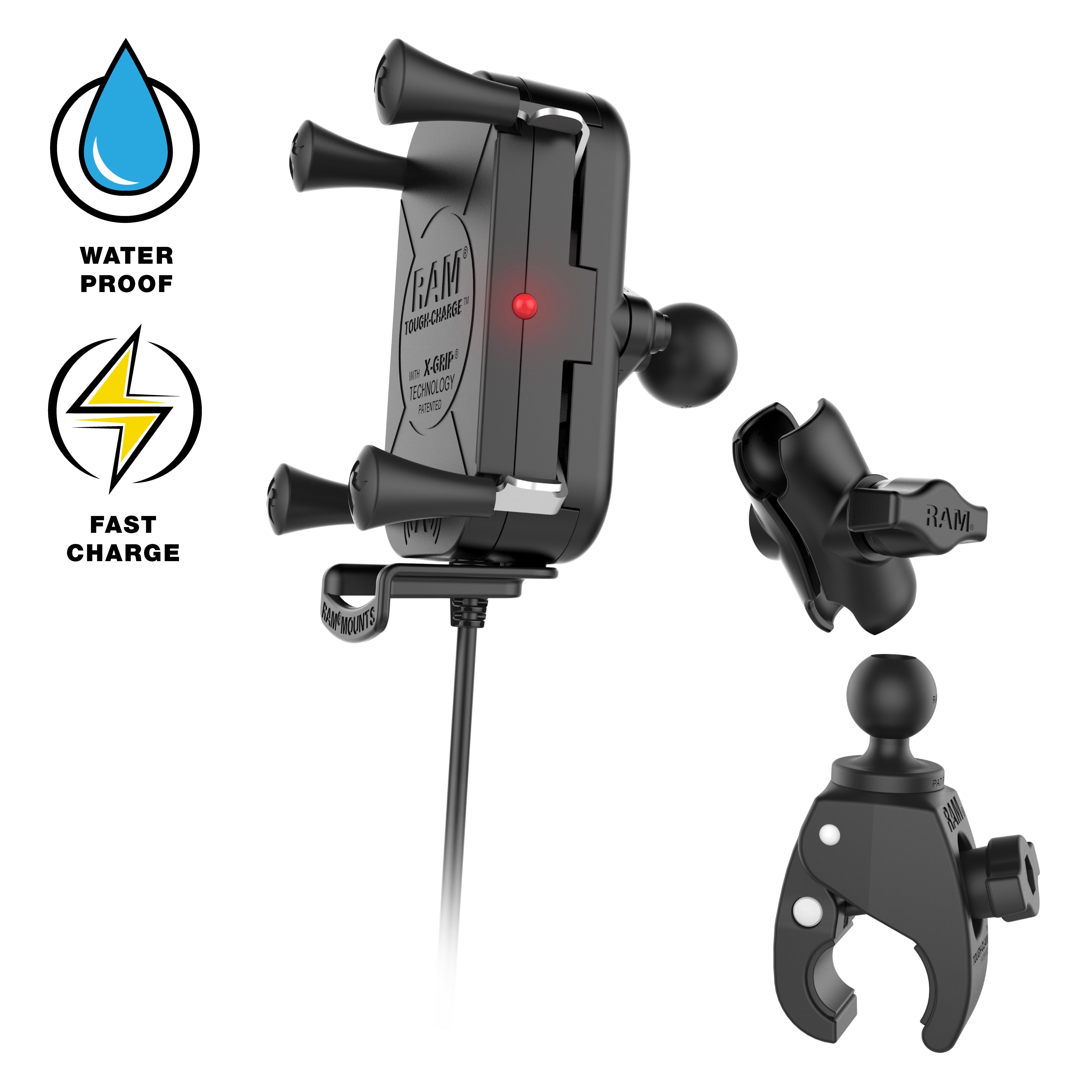

  • Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-Claw™ clamping base, and hardwire charger
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

Information

Resources

Compatible Devices

Information

Product Weight
0.82 kg (1.81 lbs)
Hardware Included

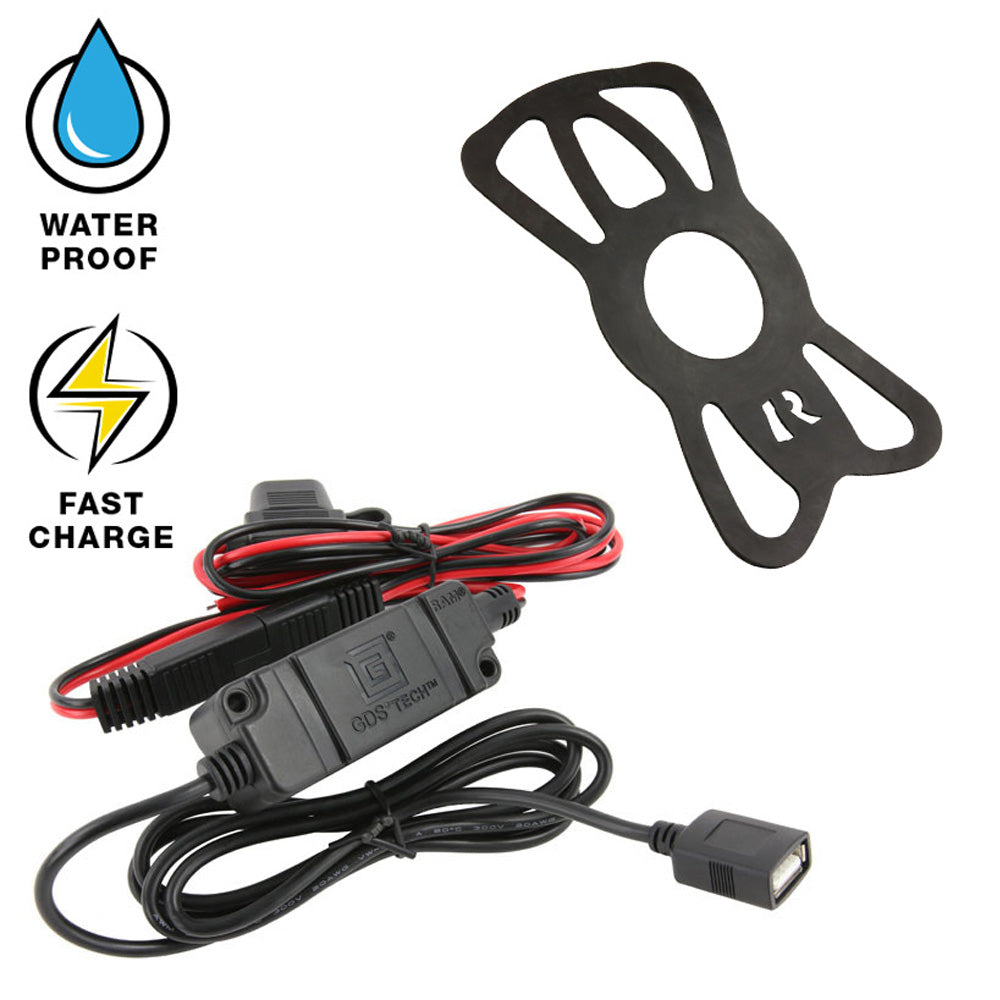

(1) Safety Tether(1) Glue Tube for Rubber Caps(1) Cradle Leg(1) Cradle Leg Cover(1) Silicon sleeve for USB waterproof connection(1) Hardwire Charger with Cable(4) Small zip ties(4) Large zip ties
Holder Dimensions
Width Range: 6.03cm (2.375") - 8.26cm (3.25") Depth Range: 2.22cm (0.875") max
Clamp Range
1.59cm (0.625") - 2.90cm (1.14") diameter
Socket To Socket Length
4.45cm (1.75")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength compositeStainless steel
Packaging Type
Retail Box
Power Specifications
Input Power:5V-2A; 9V-1.67AOutput: 15WConversion Efficiency: 85% MaxMaximum Case Thickness: 6mmWorking Frequency: 110-205KHZProduct Standard: WPC v.1.2.4QI CompatibleCompatible with QC2.0/QC3.0 power supplies
Operating Temperature
0°C to +37.7°C
Regulatory
Over Voltage ProtectionShort Circuit ProtectionReverse Polarity ProtectionRoHS ComplianceWEEE ComplianceSAE J-1113-5 Load Dump (Transient Voltage)Moisture Resistant
Certifications
CE CertificationE-Mark CertificationRCM CertificationFCC Certification

Resources

INSTRUCTIONS

Compatible Devices
