World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Ball™ Camera Mount with RAM® Tough-Claw™ Small Clamp Base

SKU Copied
SKU: RAM-400-379-252025U
UPC Copied
UPC: 793442934087

RAM® Tough-Ball™ Camera Mount with RAM® Tough-Claw™ Small Clamp Base
Copy SKU
SKU: RAM-400-379-252025U
Copy UPC
| UPC: 793442934087

C SIZE
MEDIUM ARM
Size Guide

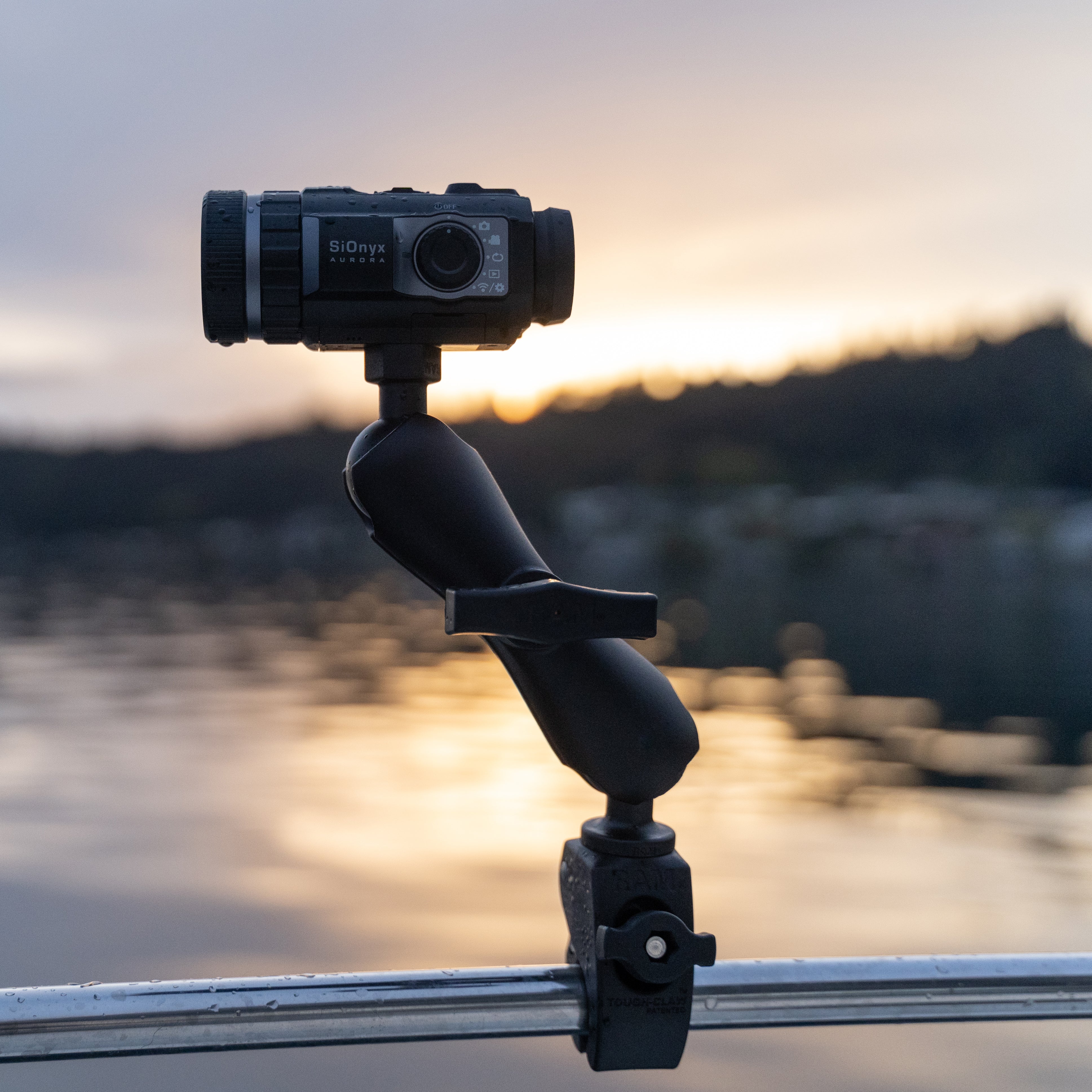

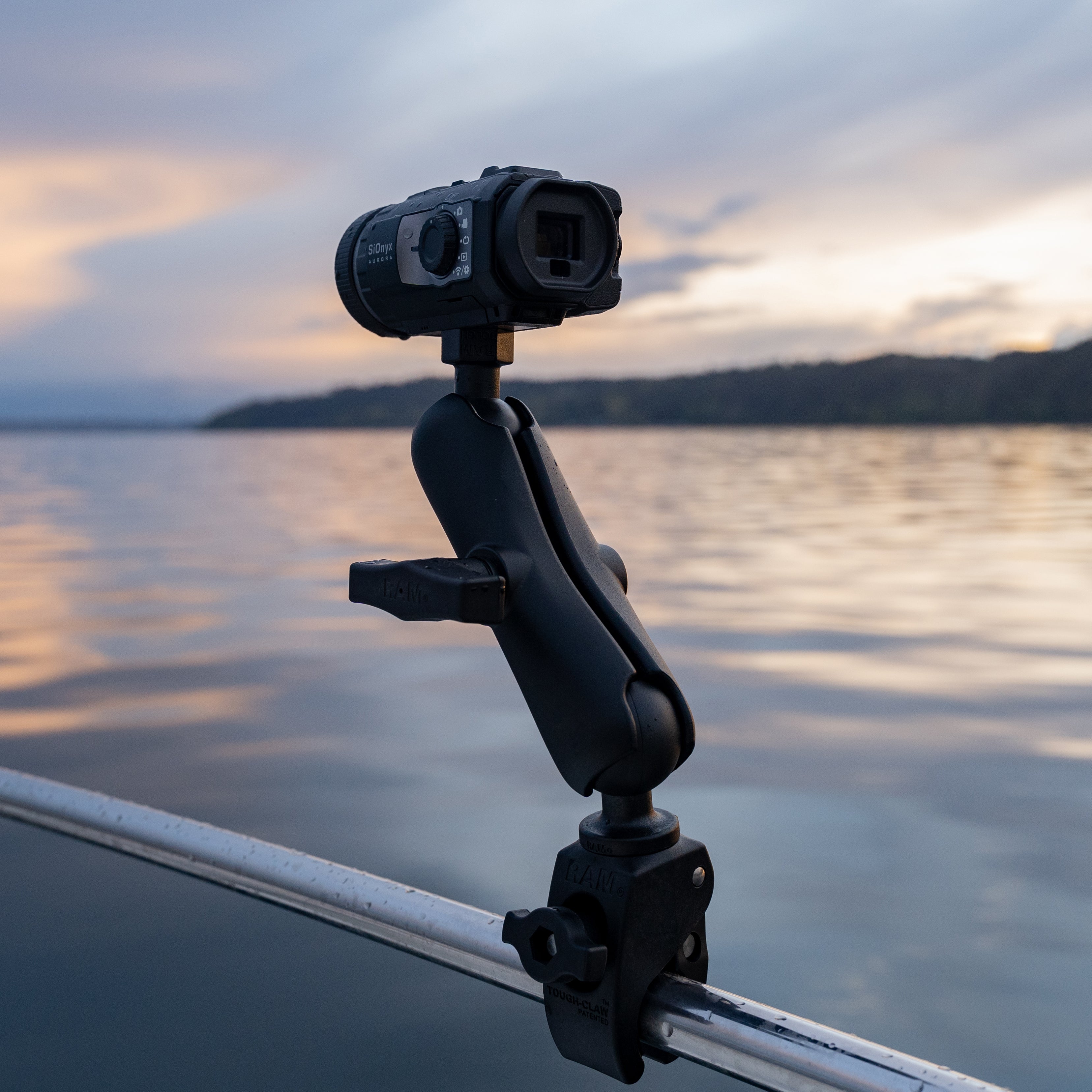

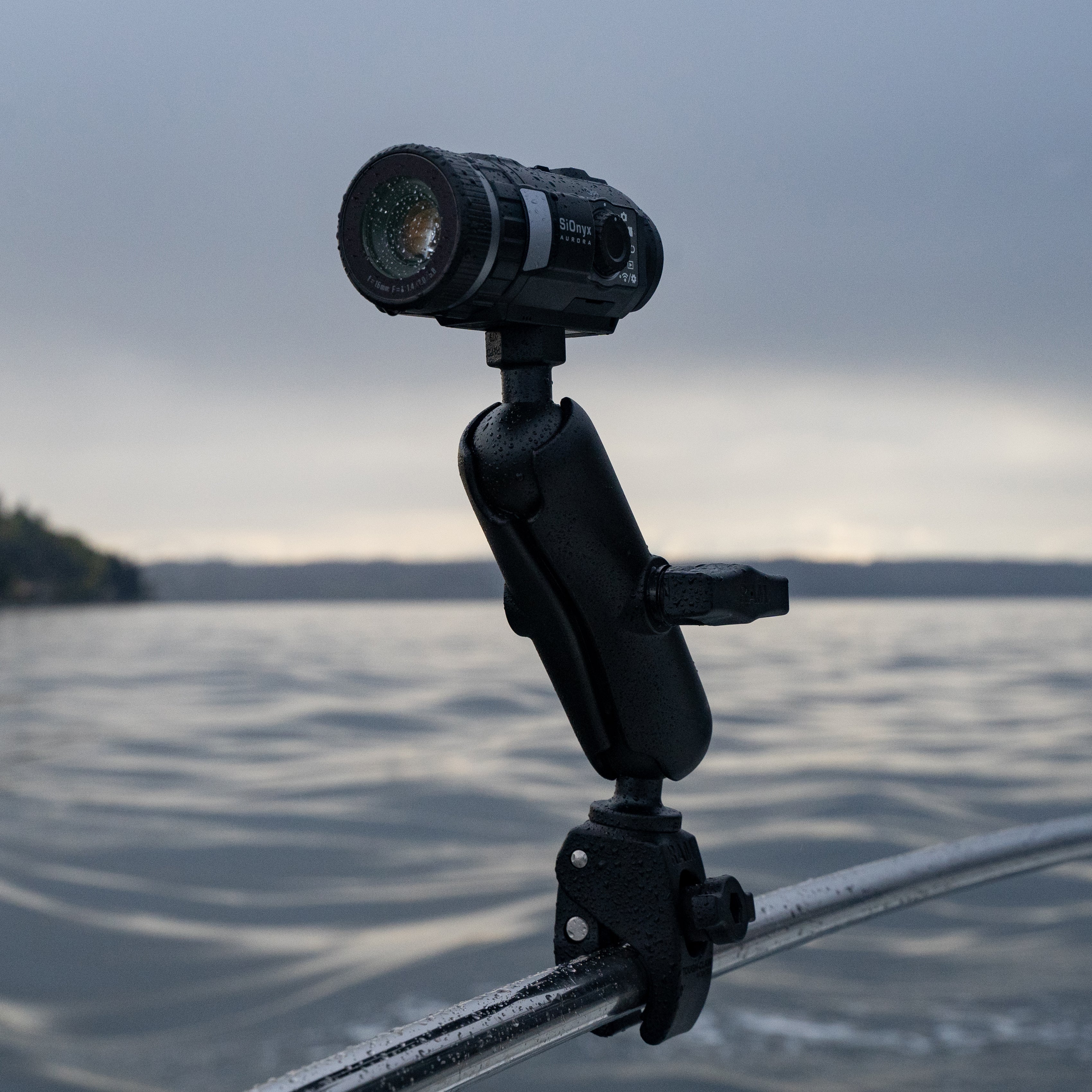

The RAM Tough-Claw and Tough-Ball are the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM Tough-Claw can quickly be clamped on rails ranging from 1.59cm (00.625") to 2.90cm (1.14") in outer diameter and is ideal for mounting heavy duty cameras including SIONYX night vision cameras. Perfectly suited for mounting on handlebars, rails or any flat edge. The seamless transition between RAM versatility and steel durability allows for a multitude of real world, and out of this world, applications. With so many of the things we use incorporating threads and fasteners, there really is no limit to the number of uses you'll find for the RAM Tough-Ball. Consists of a 3.81cm (1.5") diameter rubber ball, connected to a 0.64cm (000.25") -20 x 0.64cm (00.25") male threaded post. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera.

Features
  • Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1.59cm (00.625") to 2.90cm (1.14") in outer diameter; rubber pads provide stable gripping and protection of mounting surface.
  • Medium length double socket arm has an overall length of 14.45cm (5.69") and a socket-to-socket length of 11.84cm (4.66") . RAM® Tough-Ball™ features a 0.64cm (000.25") -20 x 0.64cm (00.25") male threaded post for connection to a variety of devices
  • Included C size 3.81cm (1.5") RAM® rubber balls allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Information

Product Weight
0.55 kg (1.21 lbs)
Clamp Range
1.59cm (0.625") - 2.90cm (1.14") diameter
Socket To Socket Length
11.84cm (4.66")
Thread Pitch
1/4" -20 x 0.64cm (0.25")
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-201U
RAM® Double Socket Arm - C Size Medium
RAM Mounts
Copy SKU
RAP-379U-252025
RAM® Tough-Ball™ with 1/4"-20 x .25" Threaded Stud - C Size
RAM Mounts
Copy SKU
RAP-400U
RAM® Tough-Claw™ Small Clamp Ball Base
