The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Temp-Right™ Dock Heating Module for Zebra ET4x

SKU Copied
SKU: RAM-DOCK-HEATER1-DU
UPC Copied
UPC: 793442016202

RAM® Temp-Right™ Dock Heating Module for Zebra ET4x
Copy SKU
SKU: RAM-DOCK-HEATER1-DU
Copy UPC
| UPC: 793442016202

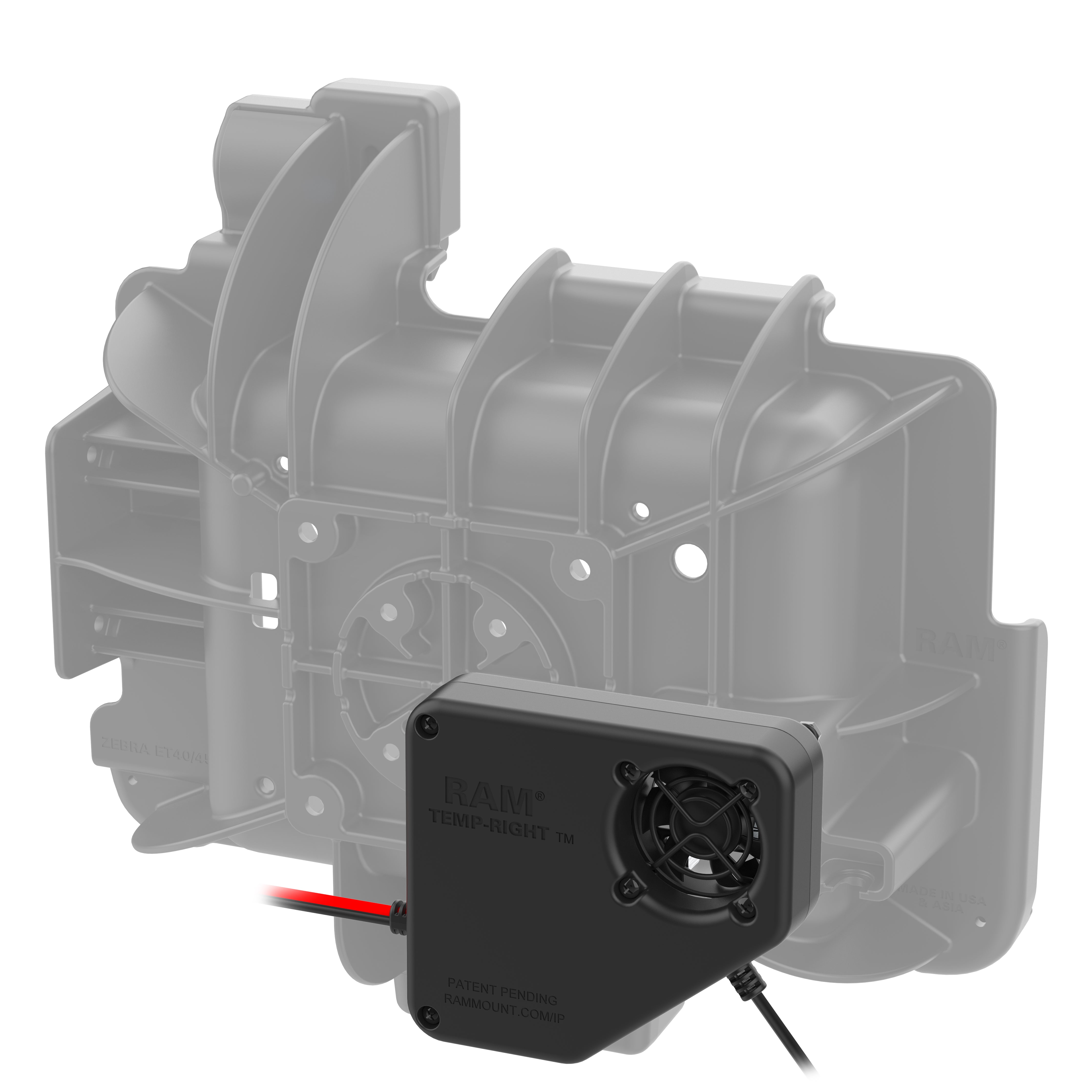

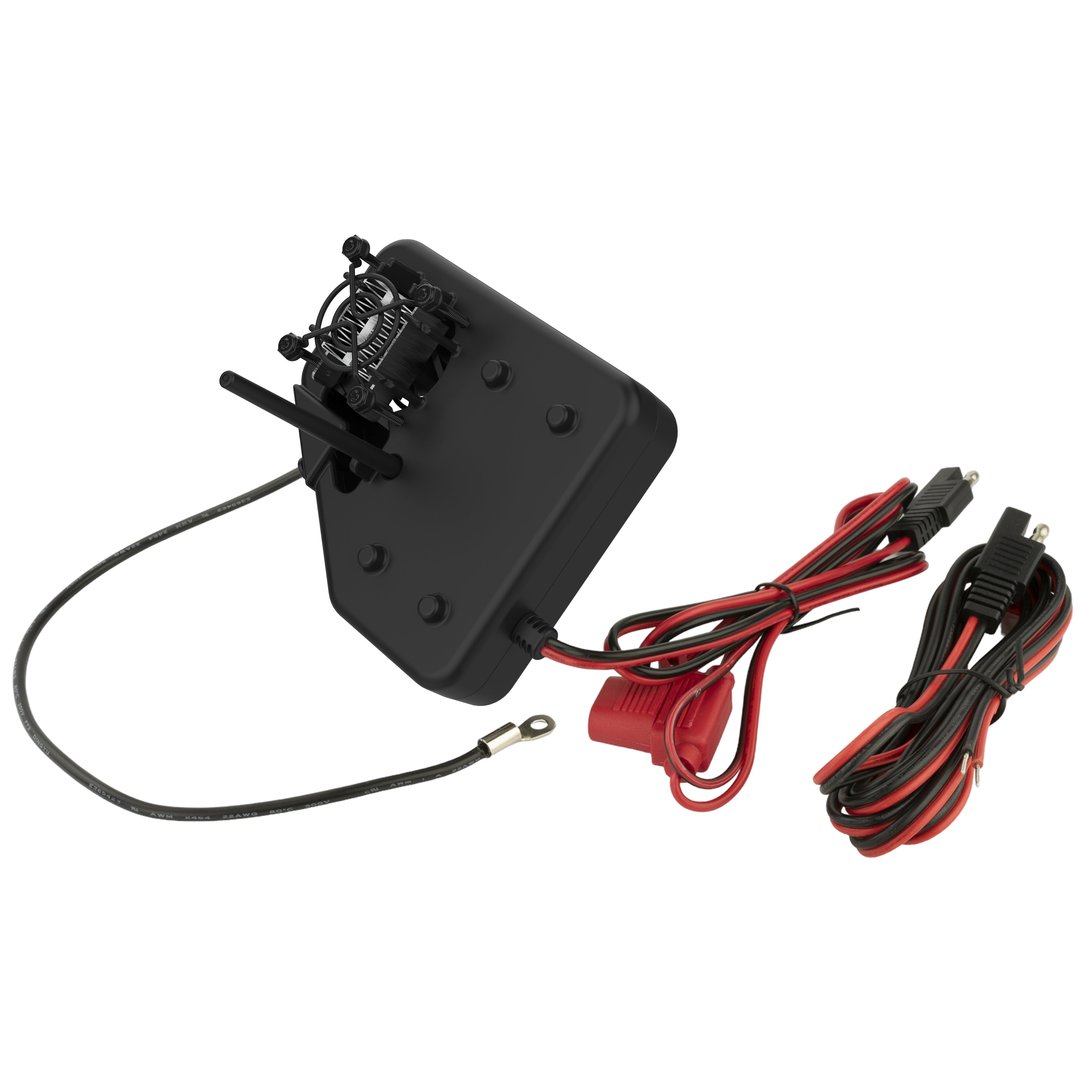

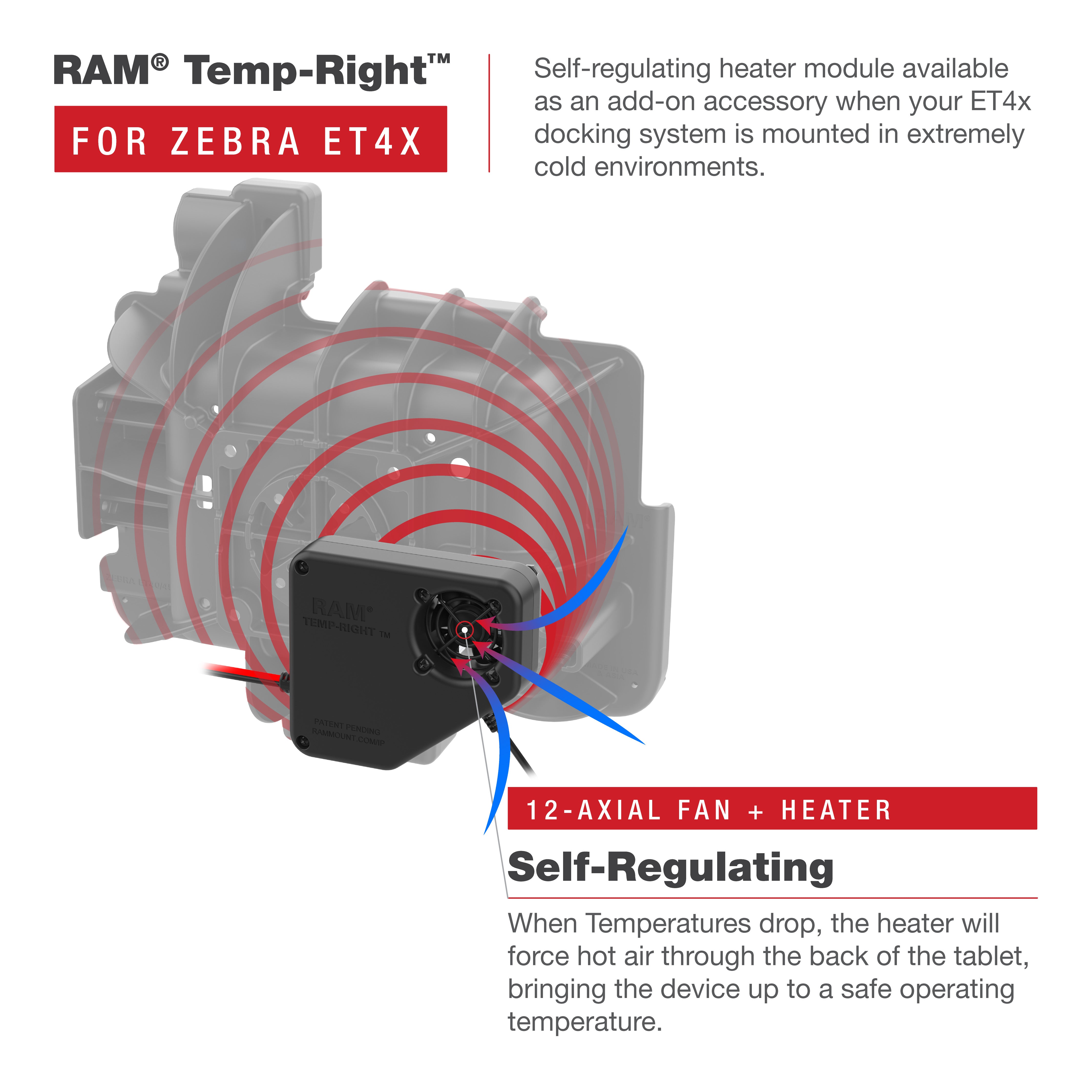

The RAM Temp-Right Dock Heating Module for Zebra ET4x tablet docks (RAM-DOCK-HEATER1-DU) is a self-regulating heater module available as an add-on accessory when your ET4x docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan. The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases.

Features
  • Heater module designed specifically for the Zebra ET4x RAM® and GDS® tablet docks
  • Regulates the tablet's operating temperature by generating forced heat to the back of the tablet
  • Integrated thermistor detects temperature and automatically activates the heater when temps reach below approximately 32-degrees fahrenheit
  • Built-in safety plunger deactivates the heater when the device is undocked
  • Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.27 kg (0.59 lbs)
Hardware Included
Assembly Hardware
Materials
High strength compositeStainless Steel
Packaging Type
Poly Bag
Input Voltage
11-16VDC
Output Voltage
12V @ 7.5A
Power Output
85W
Output Current
7.5A max
Input Cable Length
1 Meter
Operating Temperature
-30°C to +70°C
Storage Temperature
-40°C to +85°C
Regulatory
WEEE and RoHS Compliant

Resources

INSTRUCTIONS

Compatible Devices
