The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Tite™ with RAM® Tough-Wedge™ Mount for 10" Tablets

SKU Copied
SKU: RAM-B-407-201-C-TAB3U
UPC Copied
UPC: 793442949647

RAM® Tab-Tite™ with RAM® Tough-Wedge™ Mount for 10" Tablets
Copy SKU
SKU: RAM-B-407-201-C-TAB3U
Copy UPC
| UPC: 793442949647

B SIZE
LONG ARM
Size Guide

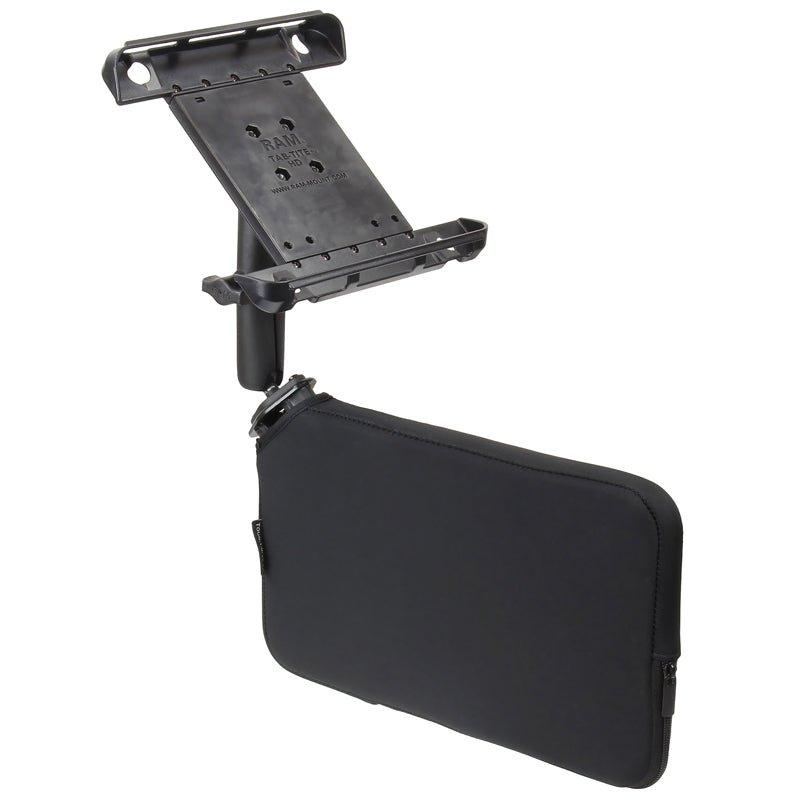

The RAM-B-407-201-C-TAB3u consists of the Tough-Wedge and long length double socket arm with a . The Tough-Wedge is a seat wedge mount that fits in the gap between the vehicle seat and center console; allowing easy access and operation of your mobile device. The Tough-Wedge can also be used for back-seat applications, inserted into the pockets located on the back of the front seats. The mount is designed with a RAM 2.54cm (1") diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm. The long length double socket arm measures 15.24cm (6") and will connect to all RAM cradles/adapters with a 2.54cm (1") ball. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features
  • Spring-loaded holder secures a wide range of tablets with light-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • RAM® Tough-Wedge™ fits in gap between vehicle seat and center console for ideal placement of your device. Ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
1.32 kg (2.90 lbs)
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 21.59cm (8.5") - 28.26cm (11.125") Width Range: 16.21cm (6.38") - 19.69cm (7.75") Depth Range: 0.33cm (0.13") - 1.42cm (0.56")
Wedge Dimensions
Length: 33.66cm (13.25") Height: 20.96cm (8.25") Thickness: 2.54cm (1")
Socket To Socket Length
13.49cm (5.31")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
