The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tab-Tite™ Spring Loaded Holder for 7"-8" Tablets with Cases

SKU Copied
SKU: RAM-HOL-TAB4U
UPC Copied
UPC: 793442932267

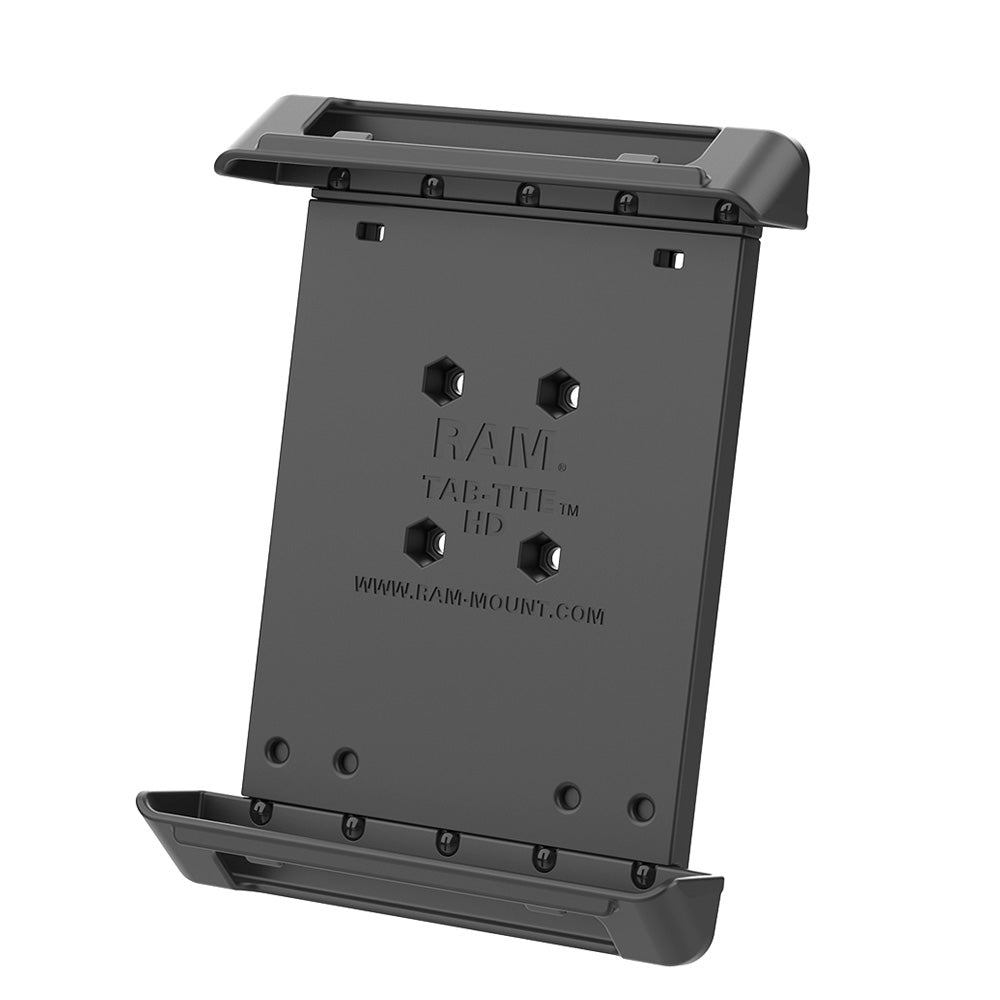

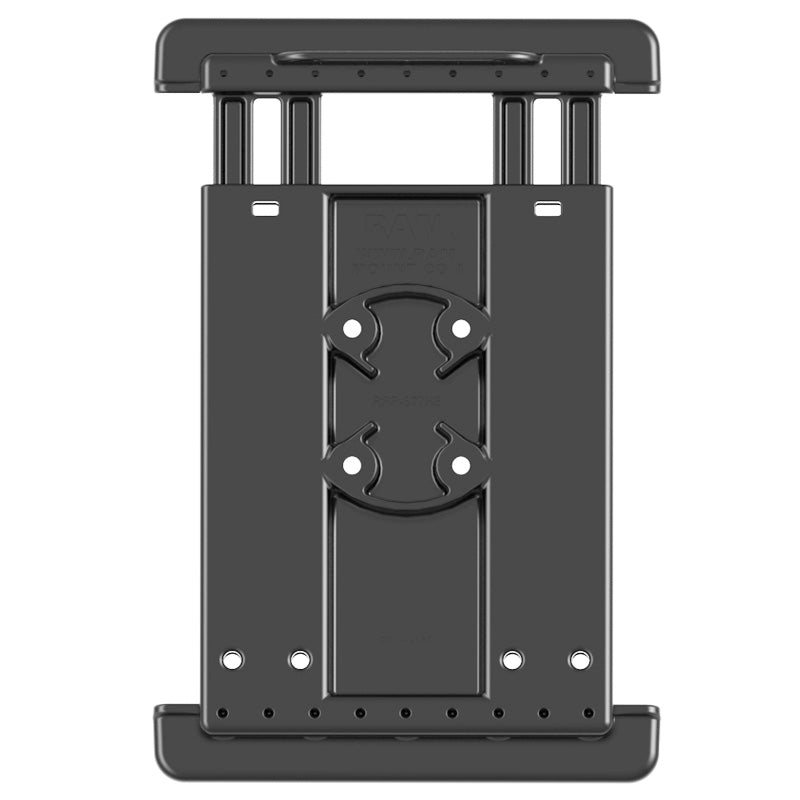

RAM® Tab-Tite™ Spring Loaded Holder for 7"-8" Tablets with Cases
Copy SKU
SKU: RAM-HOL-TAB4U
Copy UPC
| UPC: 793442932267

Get the most out of your tablet with the RAM Tab-Tite spring loaded, quick release cradle. With interchangeable cup ends, you can fit the cradle to your tablet for a near custom fit. This spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, this new RAM product is just what you need to get the most out of your tablet. The included backplate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the backplate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

Features
  • Spring-loaded holder secures small tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
  • Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.23 kg (0.50 lbs)
Hardware Included
Assembly Hardware(4) #8-32 x 12.70 cm (5")/20.32 cm (8") Machine Screws(4) #8-32 x 1.27cm (0.5") Machine Screws(4) #8-32 Nylock Nuts
Holder Dimensions
Height Range: 18.73cm (7.375") - 25.40cm (10") Width Range: 10.16cm (4") - 13.49cm (5.31") Depth Range: 0.33cm (0.13") - 2.69cm (1.06")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Materials
High strength composite
Packaging Type
Poly Bag
