Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Strap Hole Clamp Mount for Garmin 695 & 696

SKU Copied

SKU: RAM-B-108-GA38U

UPC Copied

UPC: 793442927669







RAM® Strap Hole Clamp Mount for Garmin 695 & 696

Copy SKU
RAM-B-108-GA38U SKU: RAM-B-108-GA38U

Copy UPC
793442927669 | UPC: 793442927669

B SIZE

MEDIUM ARM

Size Guide

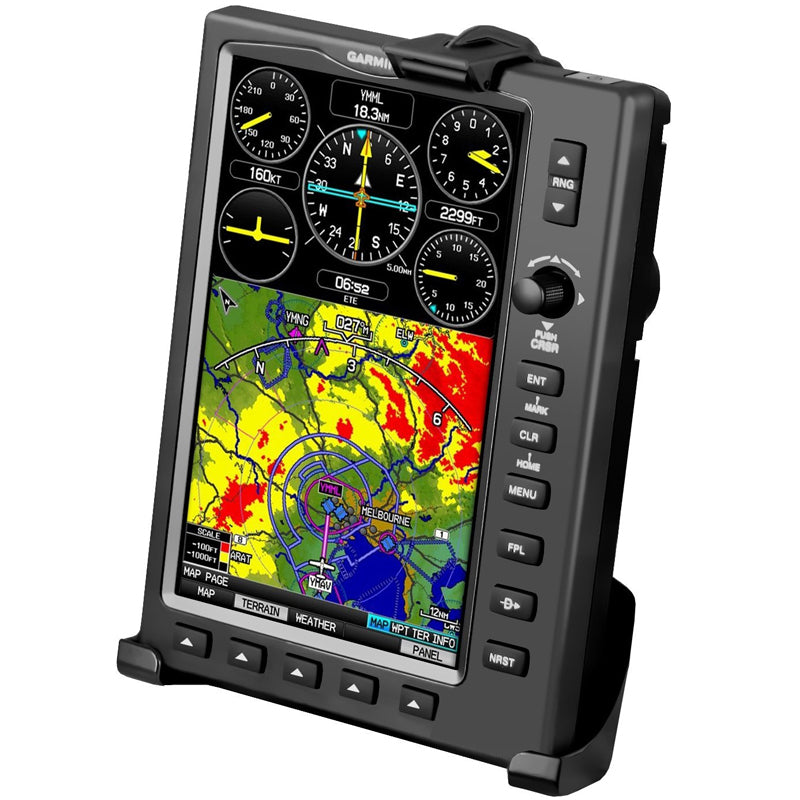

The RAM-B-108-GA38U consists of a v-saddle strap base, double socket arm and custom high strength composite cradle for the Garmin GPSMAP 695 and 696. The v-saddle strap base accommodates rails from 2.54cm (1") to a maximum of 7.62cm (3") in diameter. To mount the base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for aircraft such as the Bonanza or Beech with a throw over yoke.
