The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Single Pivot Magnetic Mount with Knob

SKU Copied
SKU: RAP-101-PV4-MAG88U
UPC Copied
UPC: 793442025433

RAM® Single Pivot Magnetic Mount with Knob
Copy SKU
SKU: RAP-101-PV4-MAG88U
Copy UPC
| UPC: 793442025433

The RAM Single Pivot Magnetic Mount with Knob (RAP-101-PV4-MAG88U) is a low-profile, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock while the other end features the RAM Tough-Mag magnetic base. This solution uses tooth-lock washers to allow users to pivot their device up to 180 degrees and the extended knob makes it easy to adjust the viewing angle of your device. The RAM Tough-Mag base features 10 industrial-strength N52 grade magnets that magnetize to any non-ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Features
  • Low-profile, magentic mounting solution for heavy-duty environments

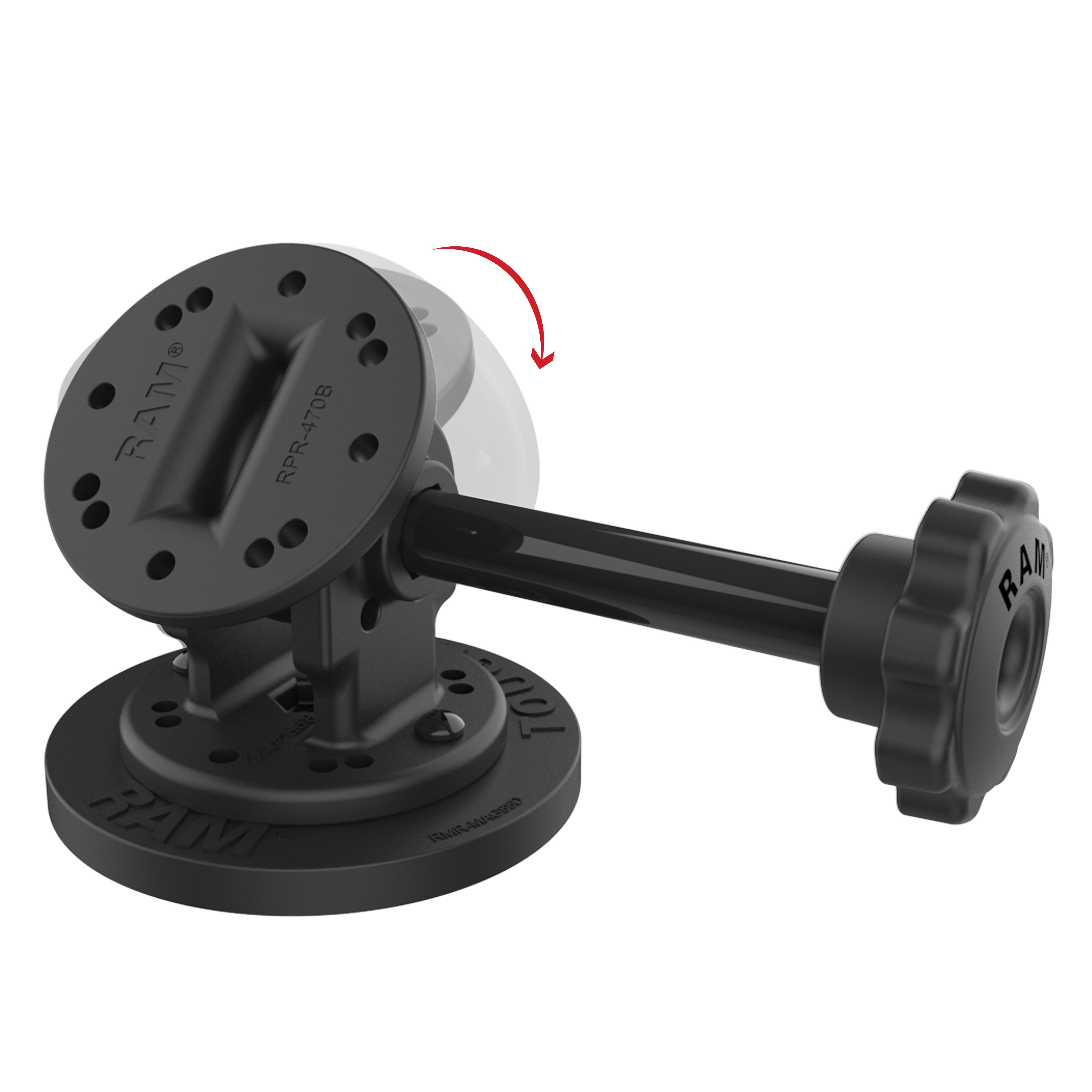

  • Single articulation joint pivots up to 180 degrees; extended knob for easy adjustments

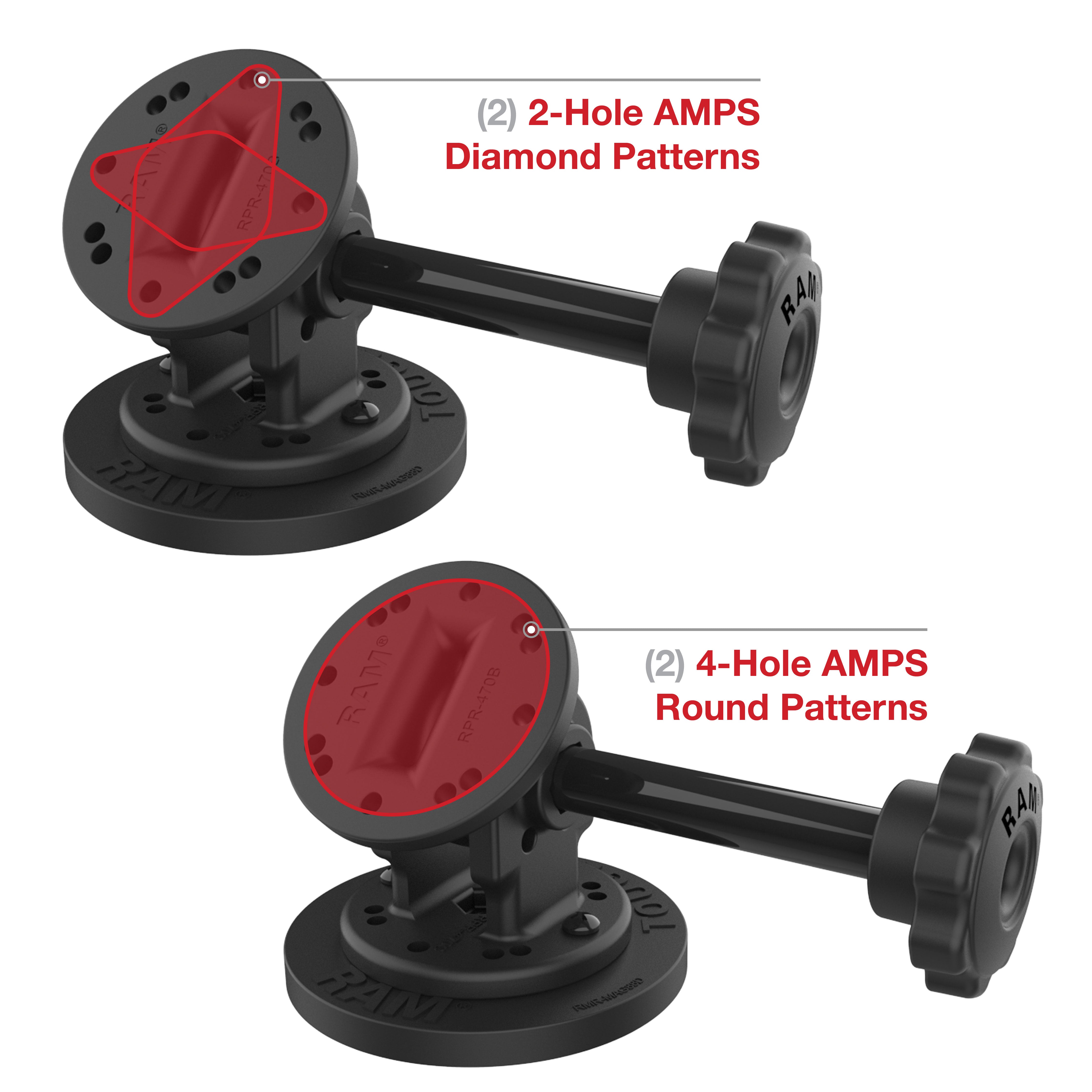

  • One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Information

Hole Pattern

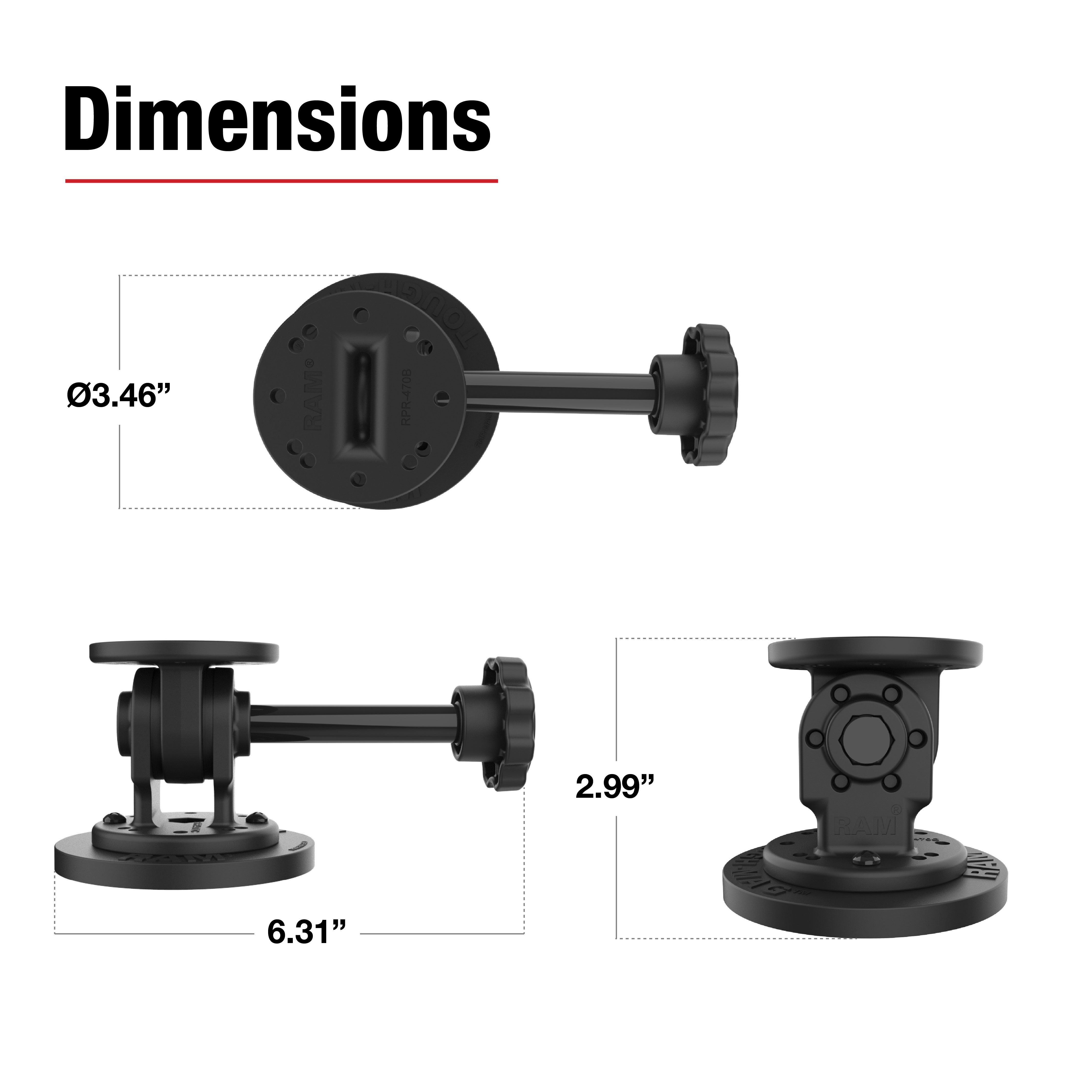

4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 2-Hole AMPS: 4.86cm (1.912")
Plate Size
Top Plate: 6.35cm (2.5") DiameterMagnetic Base: 8.79cm (3.46") Diameter
Materials
High strength composite
Packaging Type
Poly Bag
