The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Pod HD™ 30" Vehicle Mount with RAM® X-Grip® for 12"-13" Tablets

SKU Copied
SKU: RAM-316-HD-18-UN11U
UPC Copied
UPC: 793442915079
Ram X Grip Tablet Holders

RAM® Pod HD™ 30" Vehicle Mount with RAM® X-Grip® for 12"-13" Tablets
Copy SKU
SKU: RAM-316-HD-18-UN11U
Copy UPC
| UPC: 793442915079

C SIZE
MEDIUM ARM
Size Guide

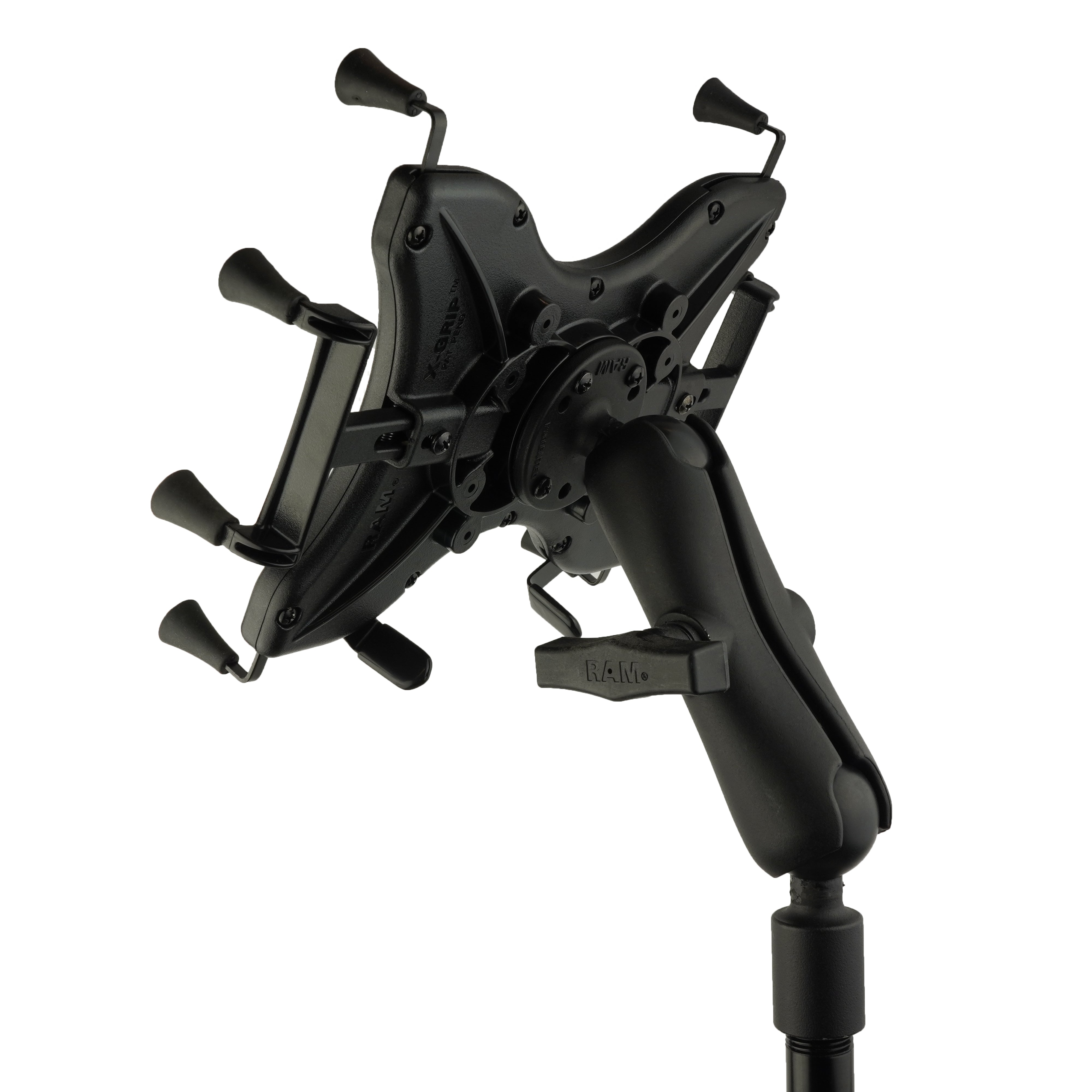

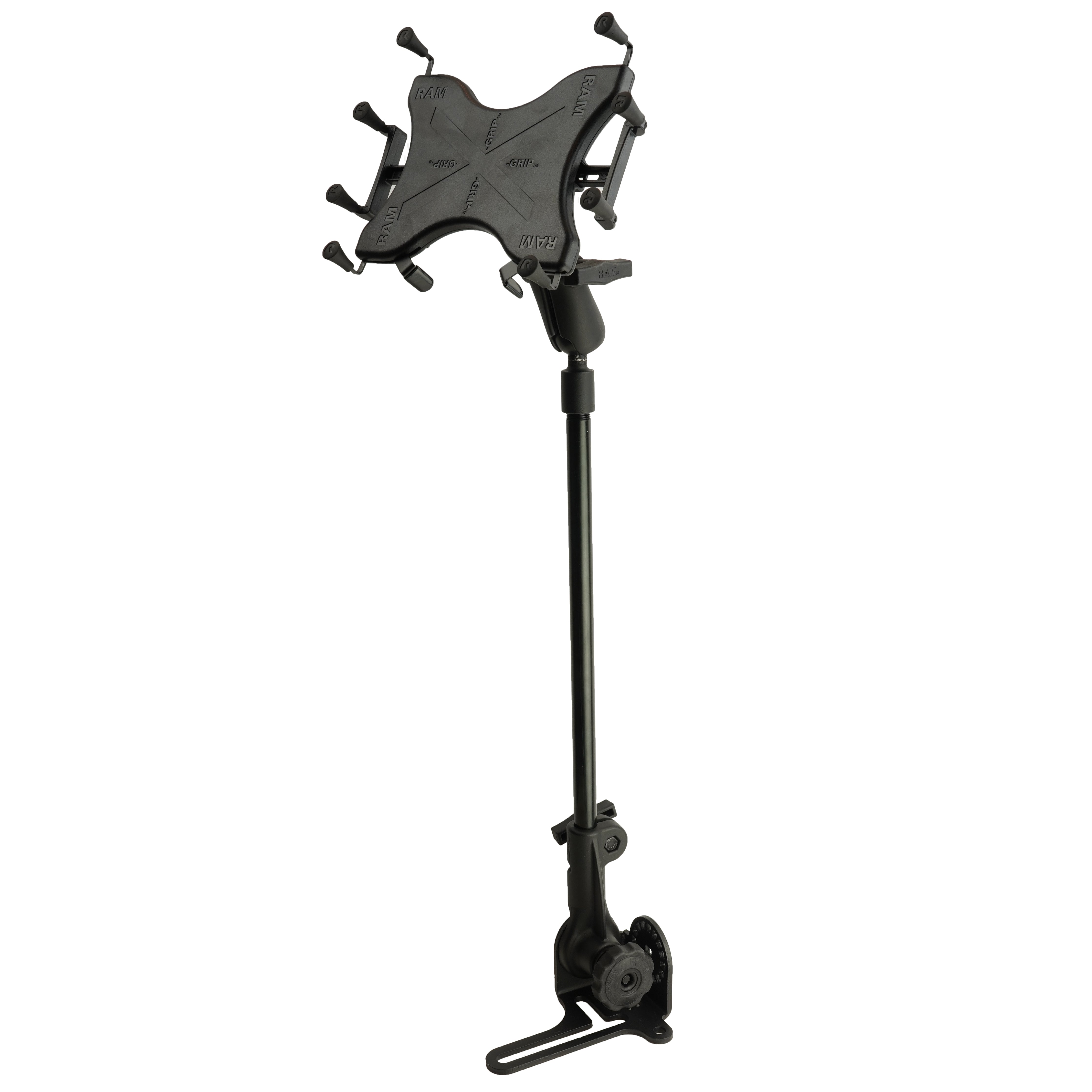

This RAM X-Grip bundle includes the RAM X-Grip Universal Holder for 30.48cm (12") -33.02cm (13") Tablets and the RAM Pod HD Vehicle Mount with 45.72cm (18") Aluminum Rod and Round Plate. The RAM X-Grip Universal Holder for 30.48cm (12") -33.02cm (13") tablets features an 'X' design that expands and contracts to provide a perfect fit for your device even if it's in a case. Easy-to-access grip knobs located on the back of the holder enable quick release of your tablet and the RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle. The included RAM Pod HD Vehicle Mount with 45.72cm (18") Aluminum Rod and Round Plate blends the best of versatility, strength, and installation ease; the RAM Pod HD is a workhorse for fleet and serious consumers alike. Compatible with a wide range of vehicles and simple to install, the RAM Pod HD is an ideal solution for mounting tablets. Requiring minimal space in the vehicle cab, the pipe can be removed quickly without the use of tools. The versatility of the RAM Pod HD makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types, and other applications which require a robust mounting platform for your tablet.

Features
  • Spring-loaded 'X' design with rubber caps sports great holding power without obstructing your tablet; fits most 30.48cm (12") - 33.02cm (13") tablets
  • Universal vehicle mount attaches to seat rail without any drilling necessary; ideal for tablets and small laptops
  • Round plate features C size 3.81cm (1.5") RAM® rubber ball and industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
  • Made of high-strength composite and steel components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
3.00 kg (6.61 lbs)
Hardware Included
Assembly HardwareStabilizer Foot
Product Dimensions
Height Range: 62.87cm (24.75") - 80.65cm (31.75") Pipe Diameter: 2.13cm (0.84") OD
Holder Dimensions
Max Height: 26.04cm (10.25") (using optional supports)Width Range: 18.42cm (7.25") - 22.23cm (8.75") Max Depth: 2.22cm (0.875")
Socket To Socket Length
11.84cm (4.66")
Hole Pattern
See Drawing
Plate Size
See Drawing
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Powder coated steelMarine-grade aluminumHigh strength composite
Packaging Type
Poly Bag
