The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Pod HD™ 30" Vehicle Mount for 8" Tablets

SKU Copied
SKU: RAM-316-HD-18-TAB24U
UPC Copied
UPC: 793442310065

RAM® Pod HD™ 30" Vehicle Mount for 8" Tablets
Copy SKU
SKU: RAM-316-HD-18-TAB24U
Copy UPC
| UPC: 793442310065

C SIZE
MEDIUM ARM
Size Guide

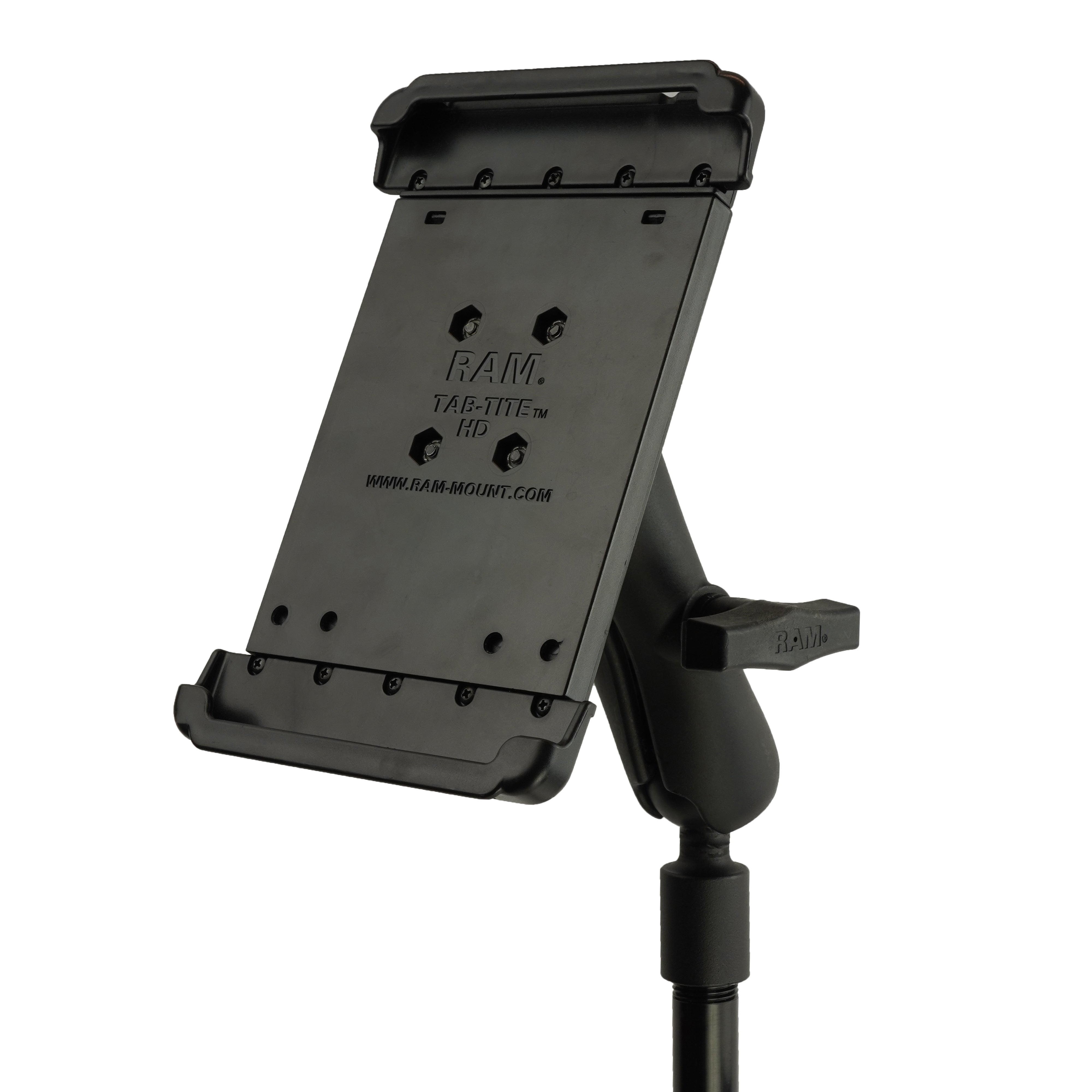

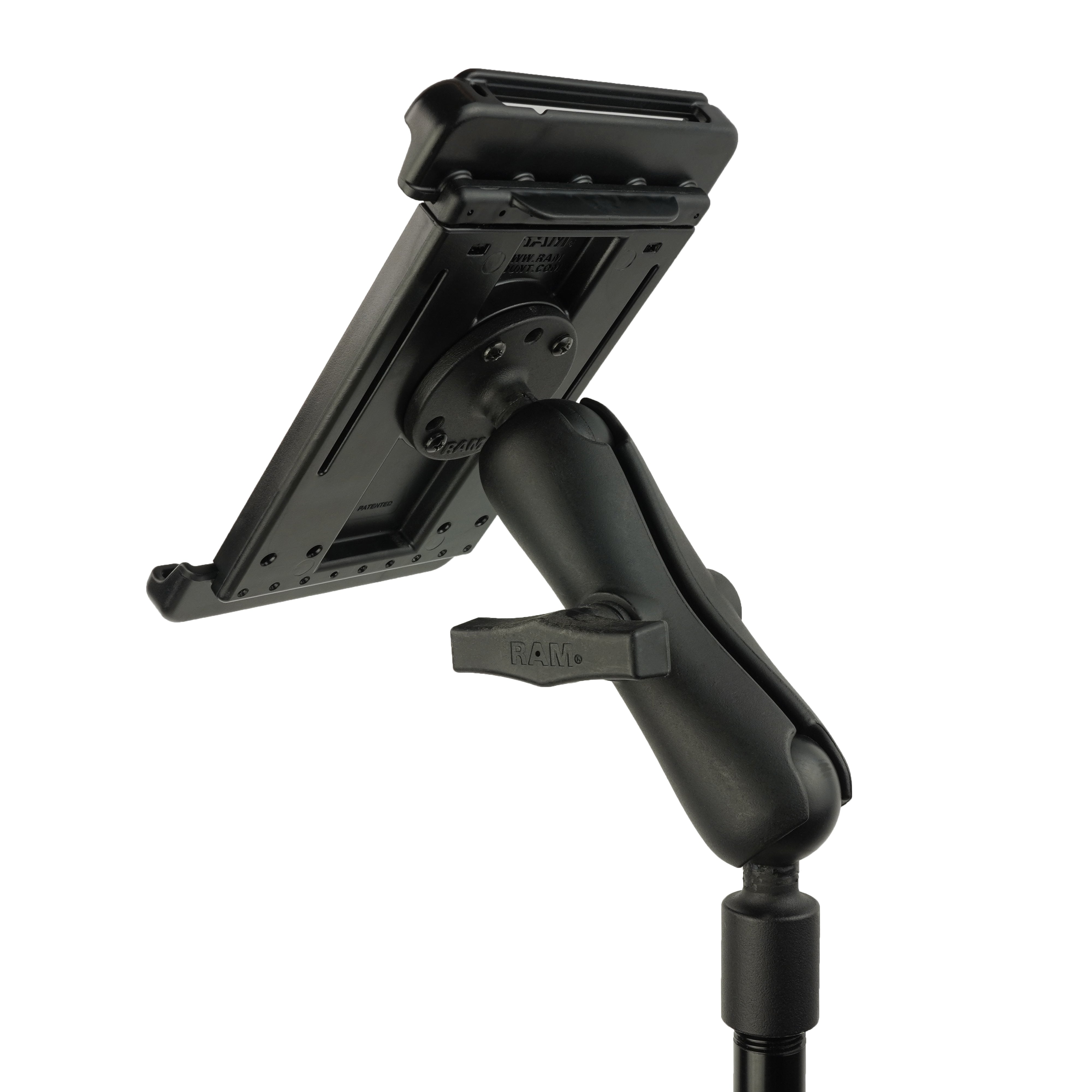

The RAM Tab-Tite bundle is a rugged mount including the RAM Tab-Tite and the RAM Pod HD Vehicle Mount with 45.72cm (18") Aluminum Rod and Round Plate. The RAM Tab-Tite spring loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. The included RAM Pod HD Vehicle Mount with 45.72cm (18") Aluminum Rod and Round Plate blends the best of versatility, strength and installation ease; the RAM Pod HD is a workhorse for fleet and serious consumers alike. Requiring minimal space in the vehicle cab, the pipe can be removed quickly without the use of tools. The versatility of the RAM Pod HD makes it an ideal solution for mixed vehicle fleets, consumer vehicles of all types and other applications which require a robust mounting platform for your tablet.

Features
  • Spring-loaded holder secures 17.78cm (7") -20.32cm (8") tablets; interchangeable end cups allow you to modify the holder when upgrading devices

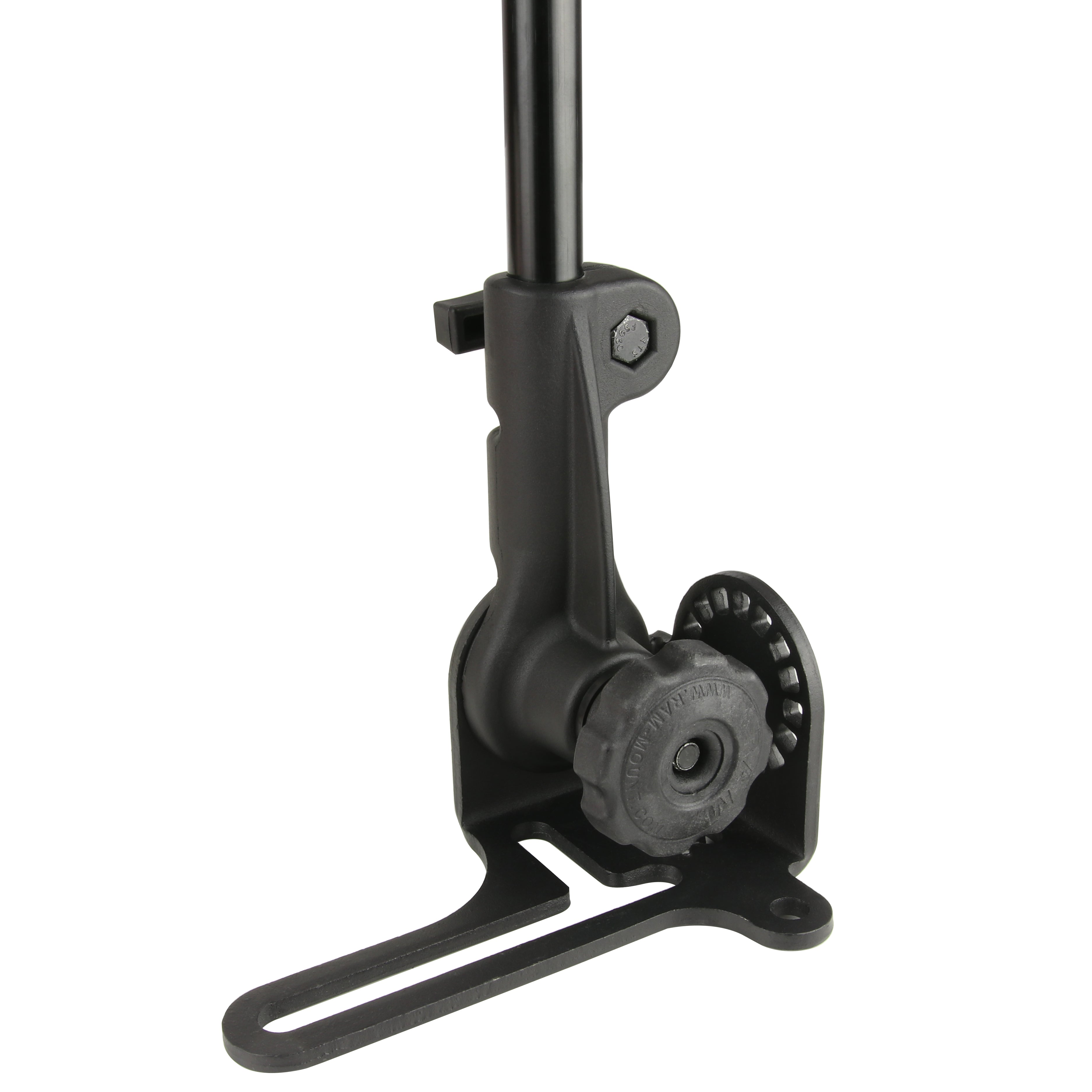

  • Universal vehicle mount attaches to seat rail without any drilling necessary
  • Round plate features C size 3.81cm (1.5") RAM® rubber ball and industry-standard AMPS hole pattern; connects to a variety of RAM® device holders
  • Made of high-strength composite and steel components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
2.60 kg (5.74 lbs)
Hardware Included
Assembly HardwareStabilizer Foot
Product Dimensions
Height Range: 62.87cm (24.75") - 80.65cm (31.75") Pipe Diameter: 2.13cm (0.84") OD
Holder Dimensions
Height Range: 20.52cm (8.08") - 27.15cm (10.69") Width Range: 9.58cm (3.77") - 12.60cm (4.96") Depth Range: 0.33cm (0.13") - 0.91cm (0.36")
Socket To Socket Length
11.84cm (4.66")
Hole Pattern
See Drawing
Plate Size
See Drawing
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Powder coated steelMarine-grade aluminumHigh strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-316-HD-18-202U
RAM® Pod HD™ 30" Vehicle Mount with Round Plate
RAM Mounts
Copy SKU
RAM-HOL-TAB24U
RAM® Tab-Tite™ Spring Loaded Holder for 8" Tablets
