The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Pin-Lock™ Security Kit for Single Swing Arms and Gimbal Brackets

SKU Copied
SKU: RAP-S-KNOBG-109U
UPC Copied
UPC: 793442946165

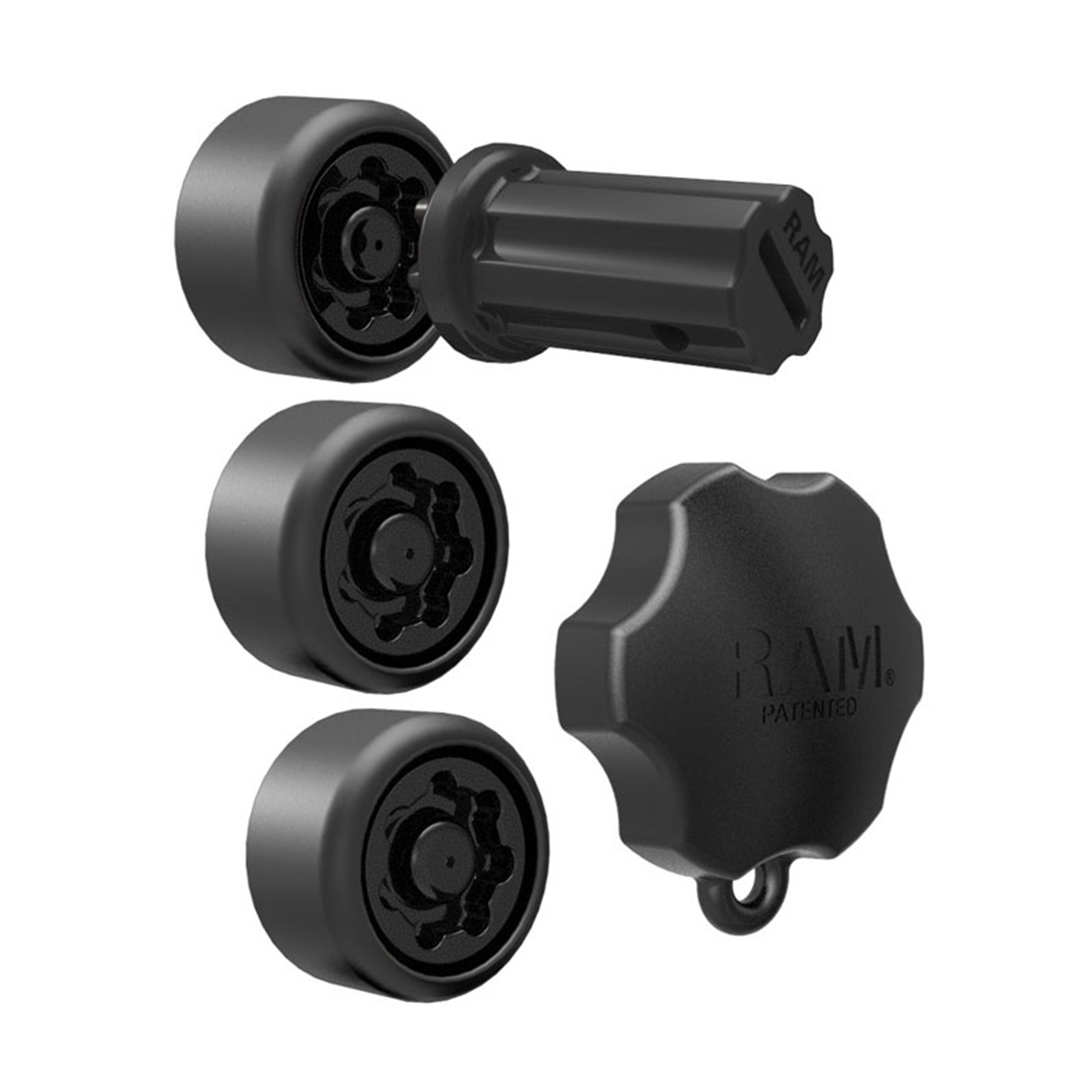

RAM® Pin-Lock™ Security Kit for Single Swing Arms and Gimbal Brackets
Copy SKU
SKU: RAP-S-KNOBG-109U
Copy UPC
| UPC: 793442946165

The RAP-S-KNOBG-109U includes Pin-Lock security knobs/keys for single swing arms and Gimbal brackets. The RAP-S-KNOBG-109U offers the ideal amount of leverage to properly tighten your mount to prevent slippage in heavy chop or in extreme vibration environments. With an emphasis on aesthetics and function, the RAP-S-KNOBG-109U is low in profile and only adds a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of currently available keyed locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price. The included Pin-Lock security knob for Gimbal brackets is a universal design that utilizes various stud sizes to accommodate most popular GPS, chart plotter, fish finder and VHF radio brands. With a simplistic design, our security knob is extremely affordable and simple to install. Pair this with a security knob for your RAM mount and you can feel at ease when leaving your expensive electronics in public places without the concern of theft or tampering.

Information

Resources

Information

Product Weight
0.24 kg (0.52 lbs)
Hardware Included
(2) RAM Pin-Lock Security Keys(1) 3.18cm (1.25") Nylon Washer(1) #10-24 x 1.83cm (0.72") Threaded Stud Adapter(1) 12.70 cm (5")/40.64 cm (16") -18 x 2.69cm (1.06") Threaded Stud Adapter(1) 1/4" -20 x 3.40cm (1.34") Threaded Stud Adapter(1) M5-.8 x 12mm Threaded Stud Adapter(1) M6-1 x 16mm Threaded Stud Adapter(1) M8-1.25 x 21mm Threaded Stud Adapter(4) 1.83cm (0.72") Nylon Washers(1) 1.96cm (0.77") Nylon Washer
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
DOCUMENTS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAP-S-KNOB-109U

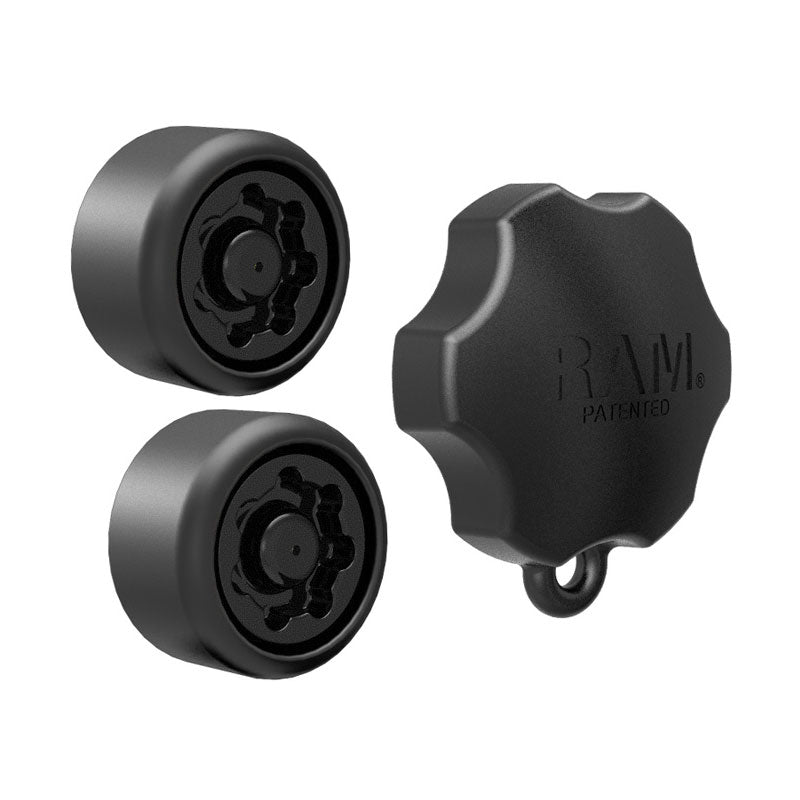

RAM® Pin-Lock™ Security Kit for Single Curved Swing Arms
RAM Mounts
Copy SKU
RAP-S-KNOBGU
RAM® Pin-Lock™ Security Knob for Gimbal Brackets
