The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - D Size Medium

SKU Copied
SKU: RAM-SG-D-111U
UPC Copied
UPC: 793442945335

RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - D Size Medium
Copy SKU
SKU: RAM-SG-D-111U
Copy UPC
| UPC: 793442945335

D SIZE
MEDIUM ARM
Size Guide

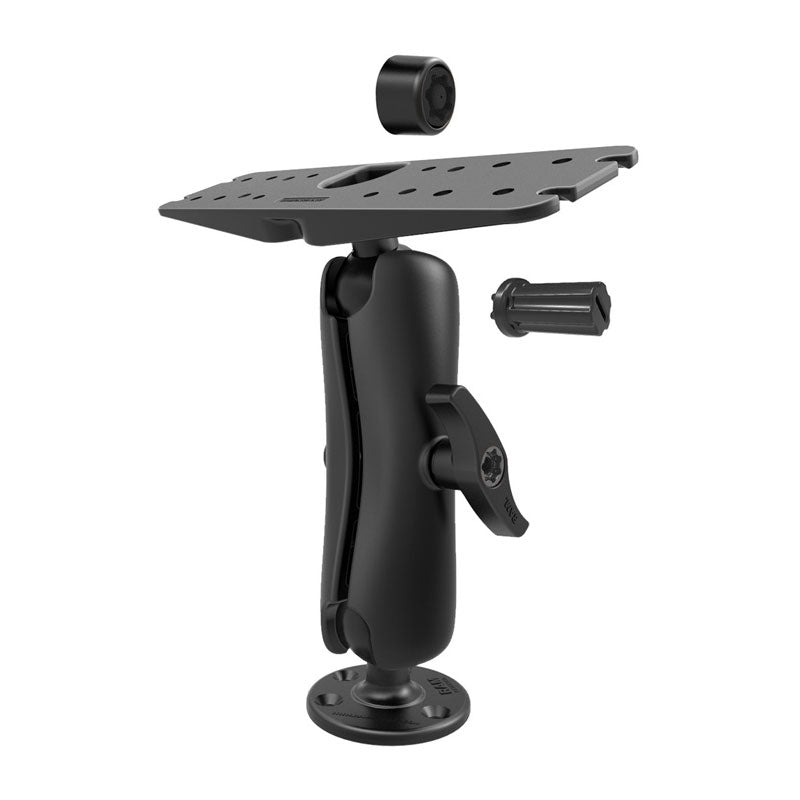

The RAM-SG-D-111U consists of a 9.35cm (3.68") diameter round base, STANDARD LENGTH double socket arm, 27.94 cm (11") X 7.62 cm (3") rectangular base, RAM mixed combination Pin-Lock security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.

Information

Resources

Compatible Devices

Information

Product Weight
2.03 kg (4.47 lbs)
Hardware Included
(2) RAM Pin-Lock Security Keys(4) 0.79 cm (0.312") X 0.47 cm (0.187") Shoulder Washers
Product Dimensions
Overall Height: 29.21cm (11.5")
Socket To Socket Length
17.48cm (6.88")
Hole Pattern
See Drawings
Plate Size
Top Plate: 7.62 cm (3") X 27.94 cm (11") Bottom Plate: 9.35cm (3.68") Diameter
Ball Size
D Size ( 5.72cm (2.25") )
Weight Capacity
Standard Use: 2.72 kg (6 lbs) Heavy-Duty Use: 2.27 kg (5 lbs)
Materials
Marine-grade aluminum
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices

Add to Enquiry

Components

RAM Mounts
Copy SKU
RAM-D-111BU
RAM® Large Marine Electronics Ball Adapter - D Size
RAM Mounts
Copy SKU
RAM-D-201-SU
RAM® Double Socket Arm with RAM® Pin-Lock™ Security Nut - D Size Medium
RAM Mounts
Copy SKU
RAM-D-202U
RAM® Large Round Plate with Ball - D Size
RAM Mounts
Copy SKU
RAP-S-KNOBGU
RAM® Pin-Lock™ Security Knob for Gimbal Brackets


Complete Your Solution

RAM® Accessories for D Size Knobs

RAM Mounts
Copy SKU
RAM-KNOB9HU
RAM® Hi-Torq™ Wrench for D Size Socket Arms
RAM Mounts
Copy SKU
RAP-S-NUT5U
RAM® Pin-Lock™ Security Nut for D & E Size Socket Arms

Accessories for 3-Hole Pattern (Large) Components

RAM Mounts
Copy SKU
RAP-402U
RAM® Cable Manager for Large Electronic Mounts
RAM Mounts
Copy SKU
RAP-356U
RAM® Adapt-To-RAM™ Hole Pattern Plate Adapter
