The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Level Cup™ XL 32oz Drink Holder with Single Socket Arm

SKU Copied
SKU: RAP-B-417-200-1U
UPC Copied
UPC: 793442953040

RAM® Level Cup™ XL 32oz Drink Holder with Single Socket Arm
Copy SKU
SKU: RAP-B-417-200-1U
Copy UPC
| UPC: 793442953040

B SIZE
Size Guide

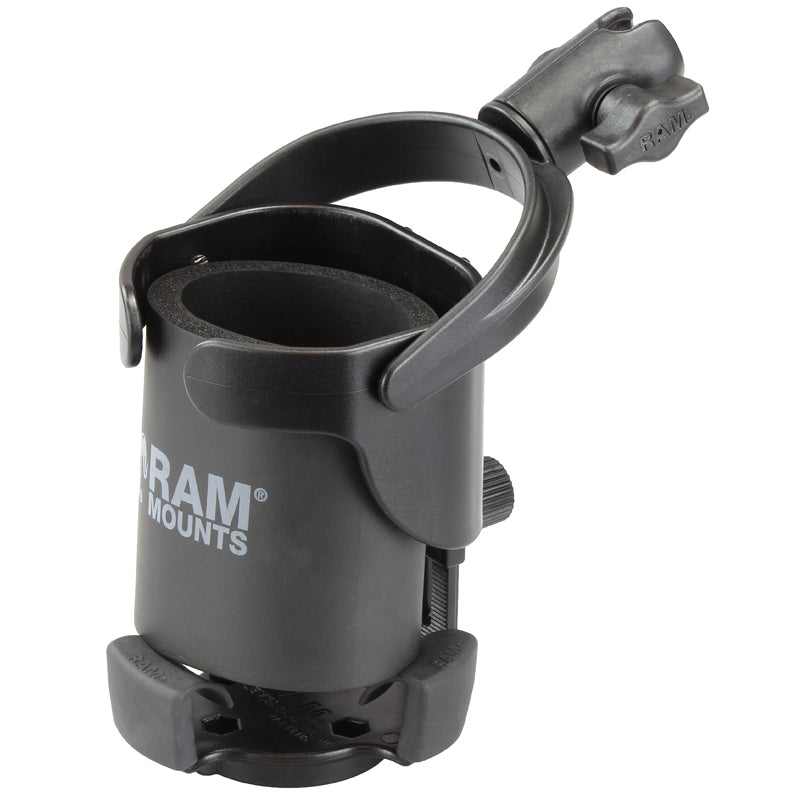

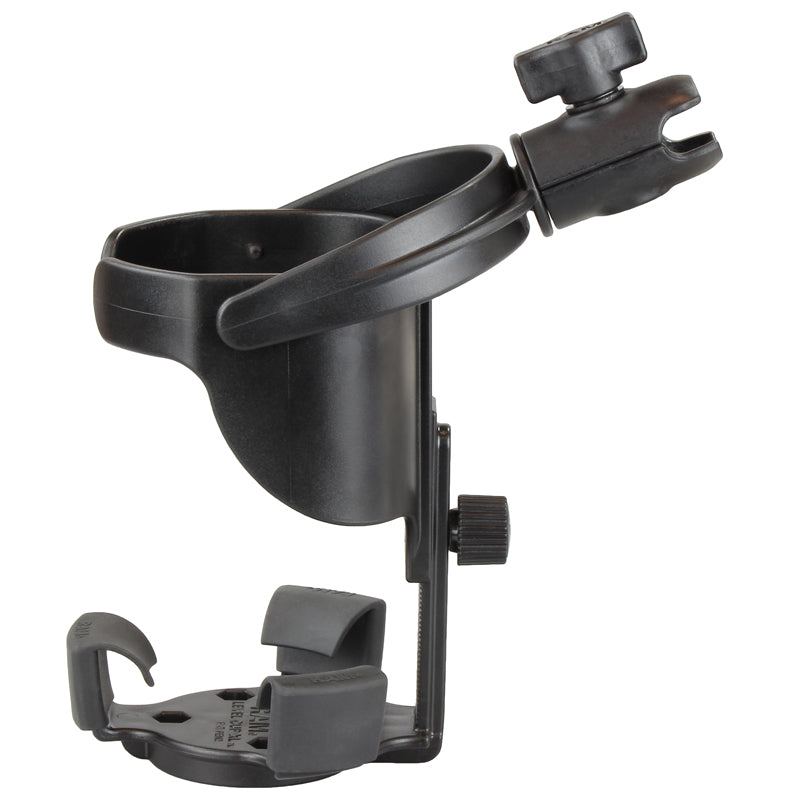

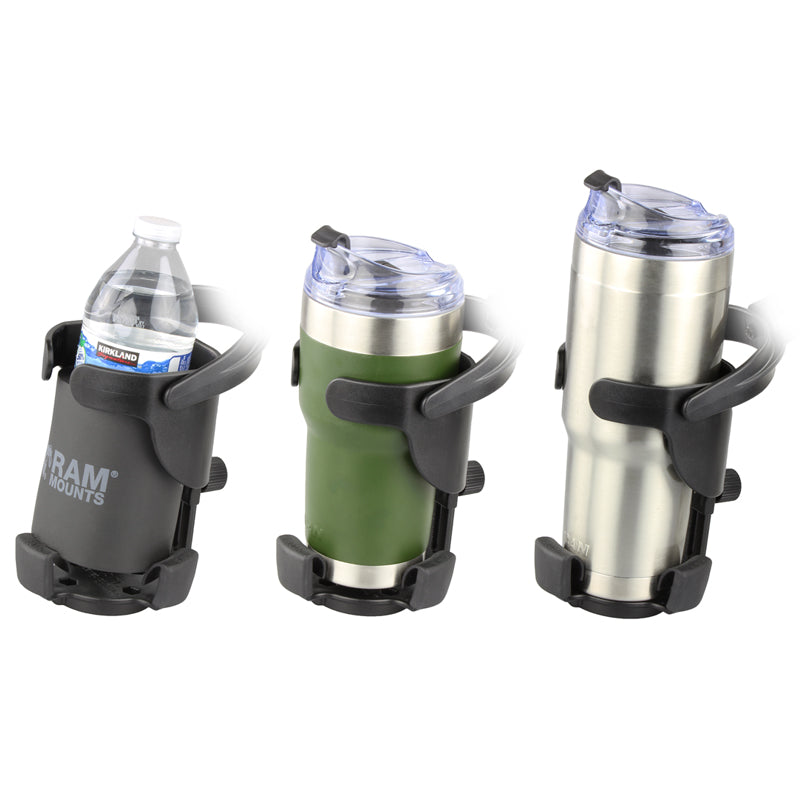

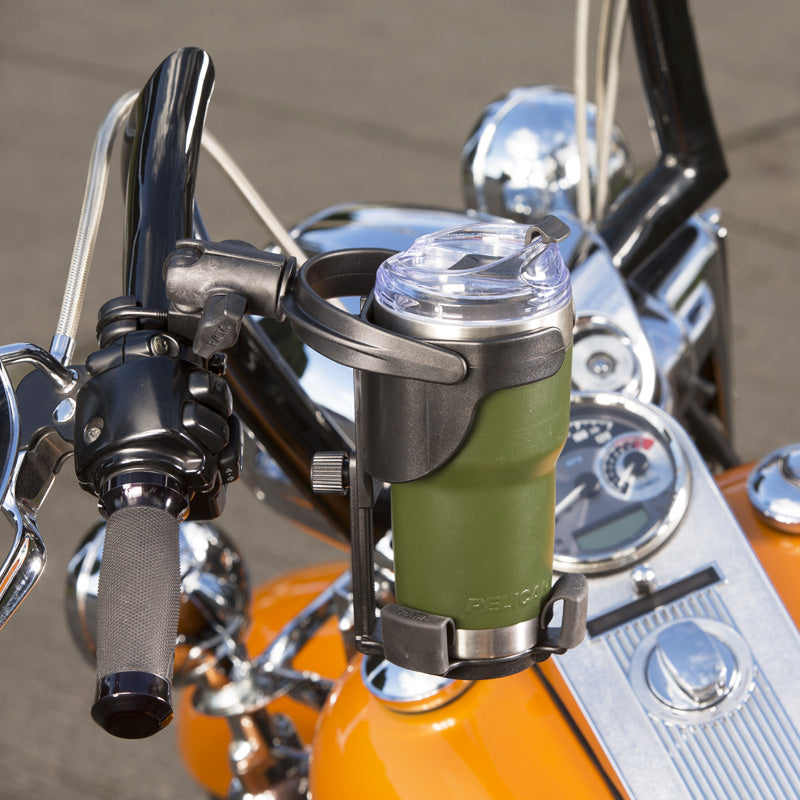

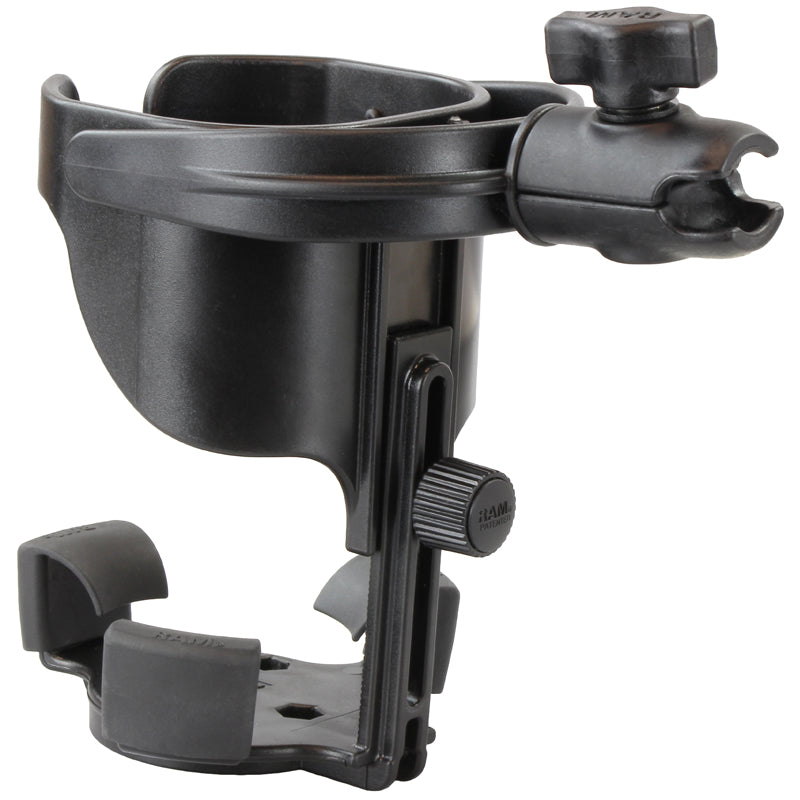

Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup XL keeps your drink upright, regardless of the conditions. This kit includes a Level Cup XL that has an integrated single-socket arm. This cup holder can attach to any B-size base or RAM Mounts B-size ball accessory. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. The rubber feet flex to fit various size cups as well. RAM Mounts has refined the self-leveling action to keep your cups full.

Information

Resources

Information

Product Weight
0.31 kg (0.68 lbs)
Hardware Included
(3) Rubber Support Fins(1) Glue Tube for Rubber Fins
Drink Size
12-32 oz
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
Add to Enquiry

Components

RAM Mounts
Copy SKU
RAP-B-200-1U
RAM® Single Socket Arm with Octagon Button Socket
RAM Mounts
Copy SKU
RAP-417-CAP-3U
RAM® Replacement Fin Caps for RAM® Level Cup™ XL


Complete Your Solution

B Size 1" Ball Bases

RAM Mounts
Copy SKU
RAM-B-202U
RAM® Round Plate with Ball - B Size
RAM Mounts
Copy SKU
RAM-B-238U
RAM® Diamond Ball Base - B Size
RAM Mounts
Copy SKU
RAP-B-354U-TRA1
RAM® Track Ball™ Base with T-Bolt Attachment - B Size
