Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Large Marine Electronics Mount - D Size Short

SKU Copied

SKU: RAM-D-111U-C

UPC Copied

UPC: 793442902277







RAM® Large Marine Electronics Mount - D Size Short

Copy SKU
RAM-D-111U-C SKU: RAM-D-111U-C

Copy UPC
793442902277 | UPC: 793442902277

D SIZE

SHORT ARM

Size Guide

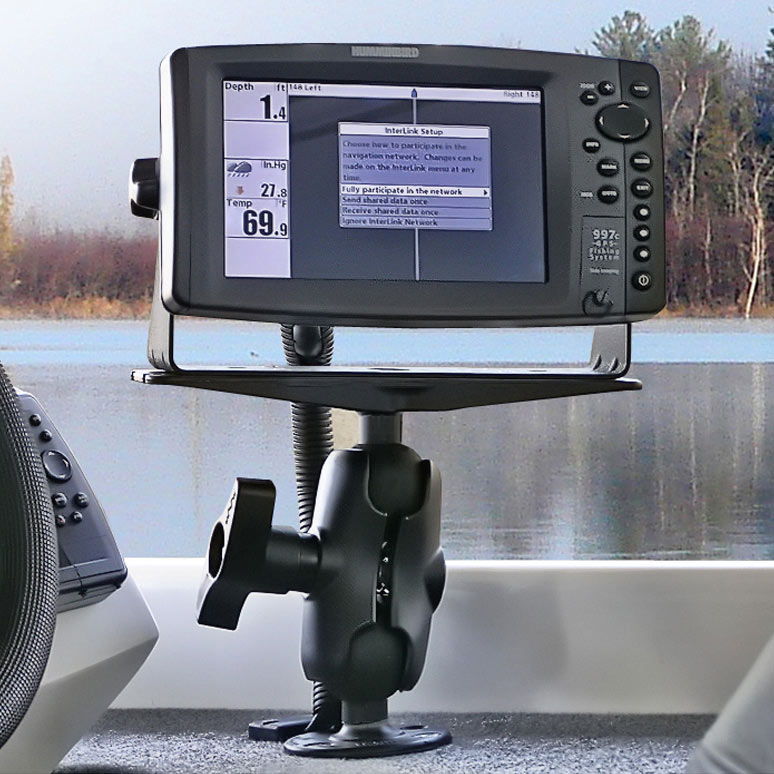

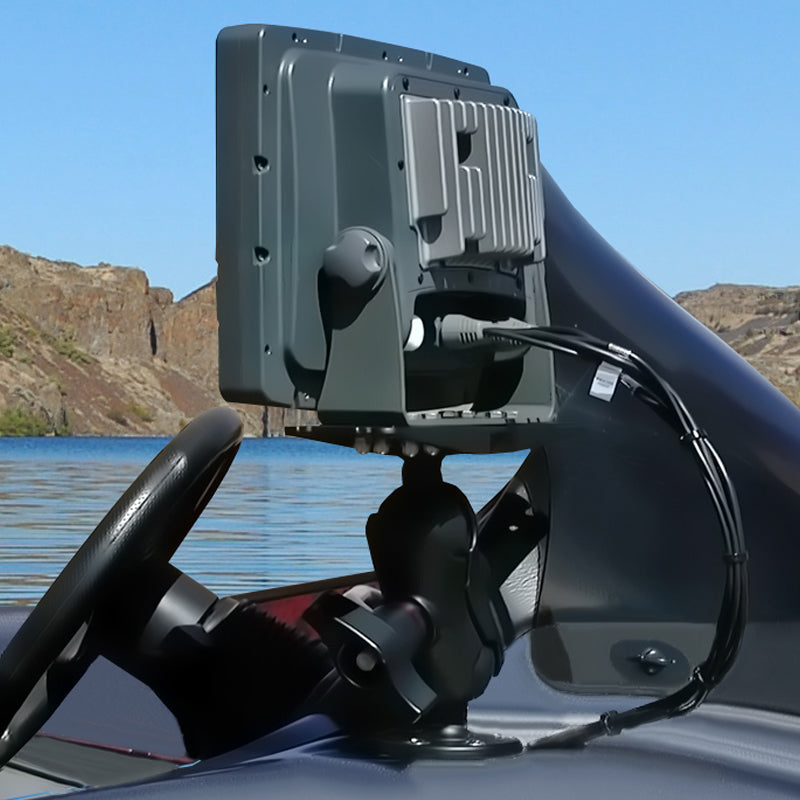

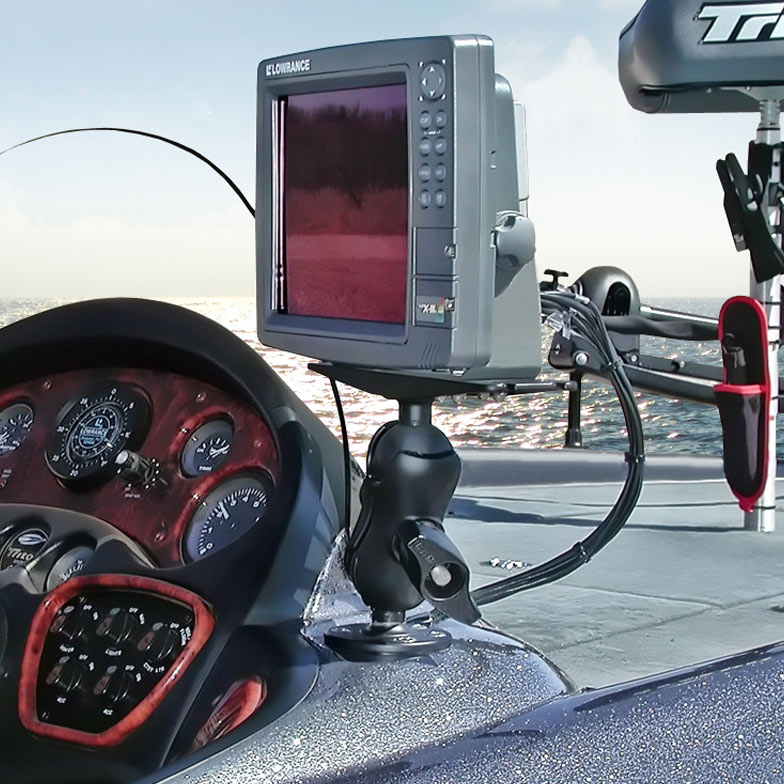

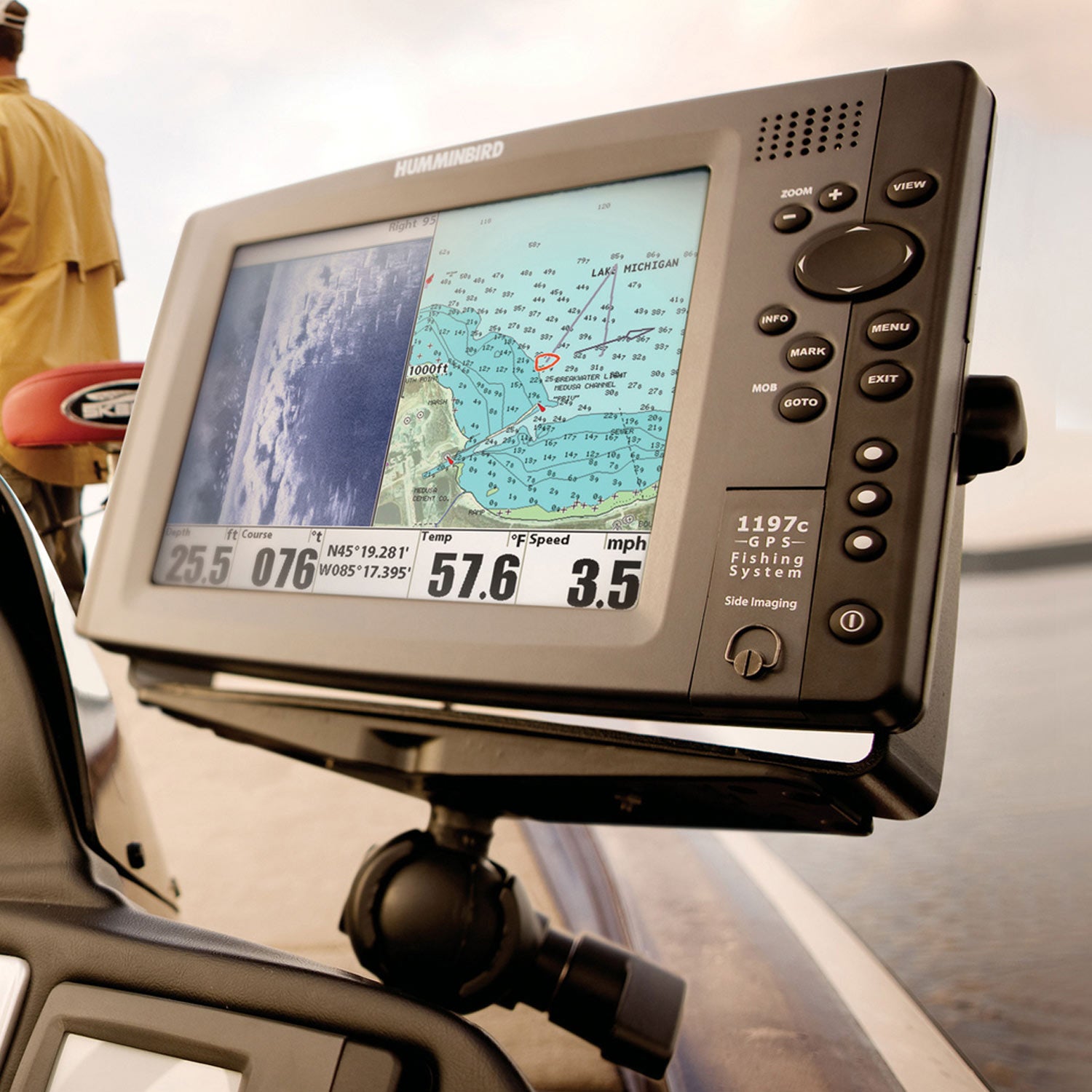

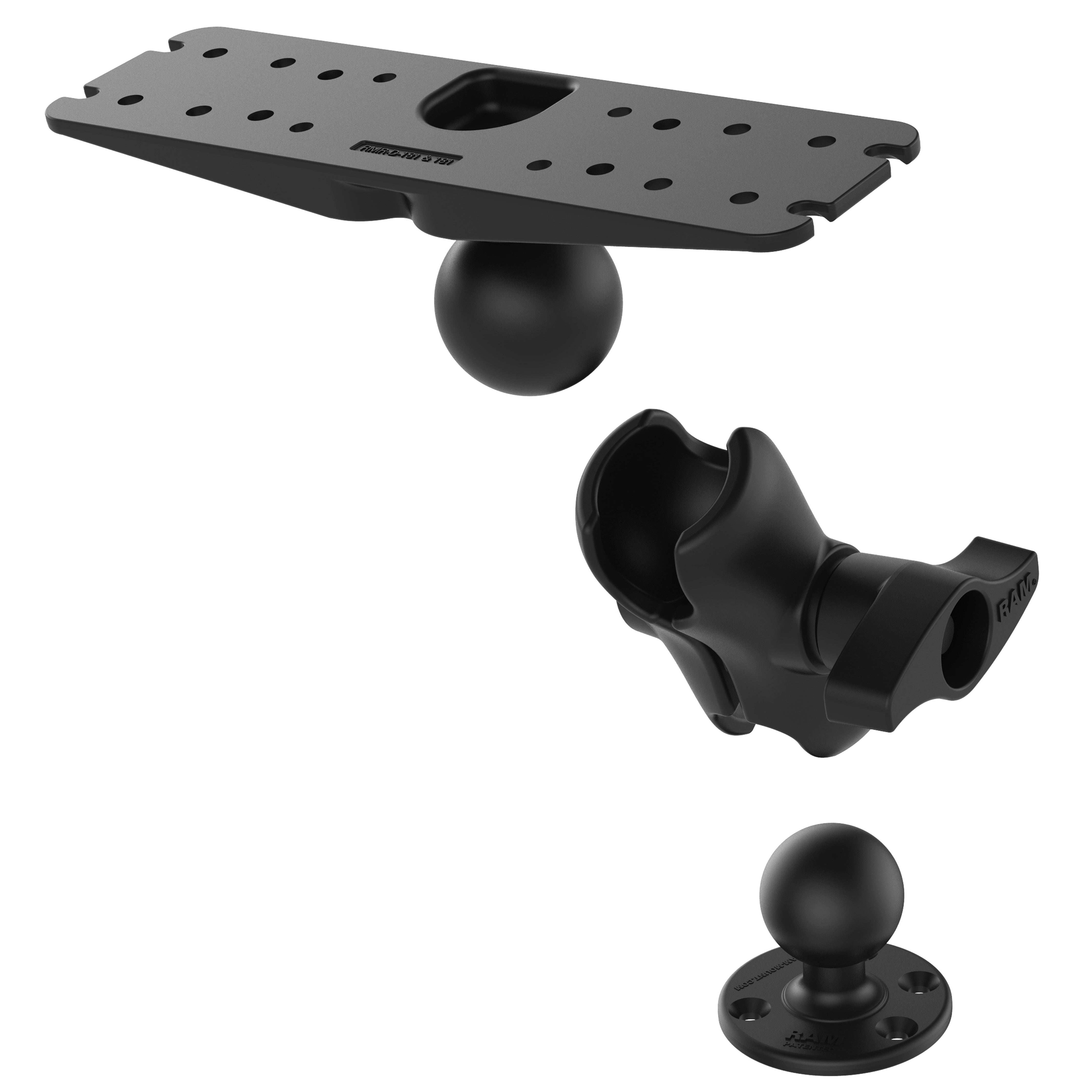

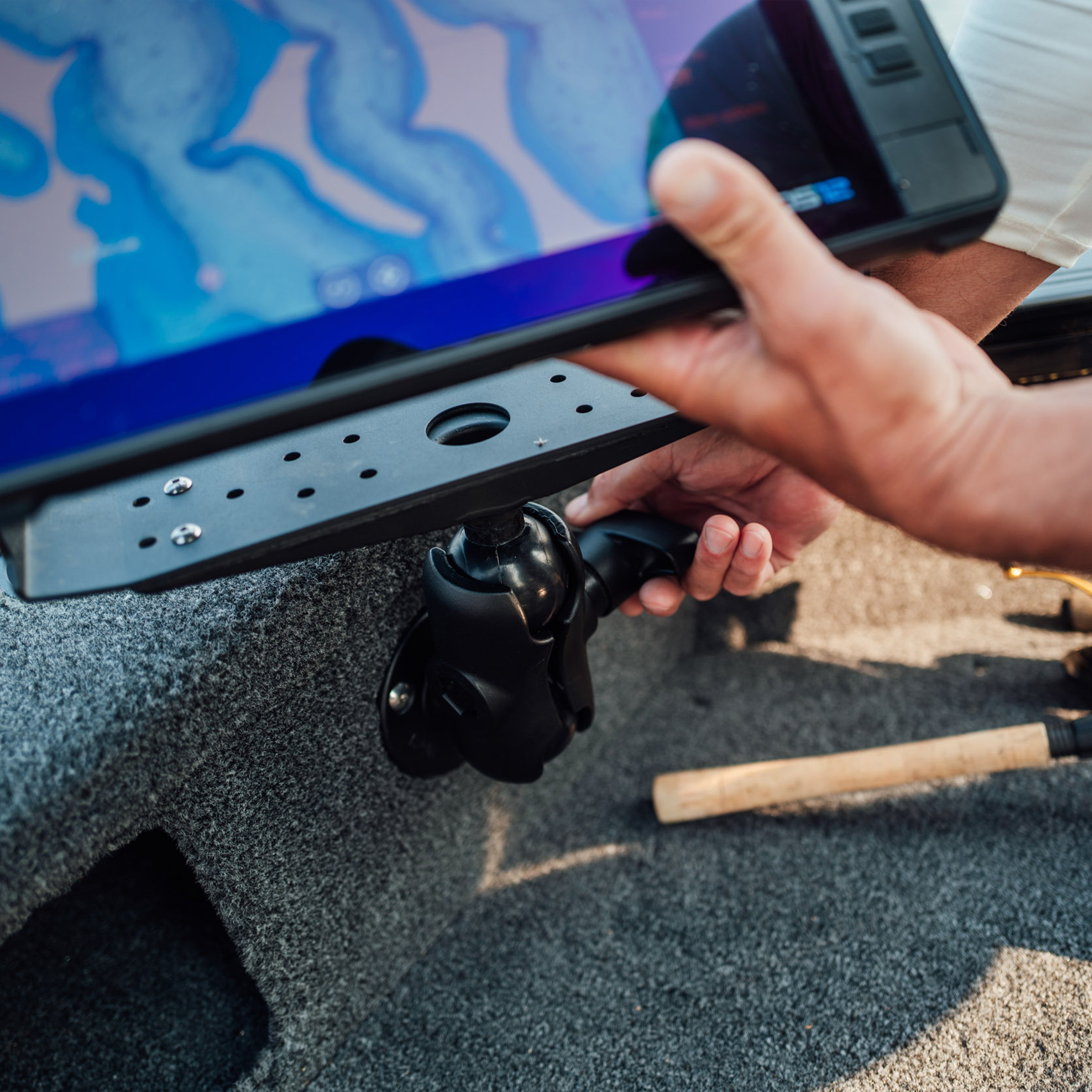

The RAM-D-111U-C consists of a short double socket arm, 9.35cm (3.68") diameter round base, and 27.94 cm (11") X 7.62 cm (3") rectangle base. The round base includes a 5.72cm (2.25") D size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 5.72cm (2.25") D size rubber ball and contains a variety of pre-drilled holes that are compatible with several large marine electronic devices, including fishfinders and chartplotters. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.

Features

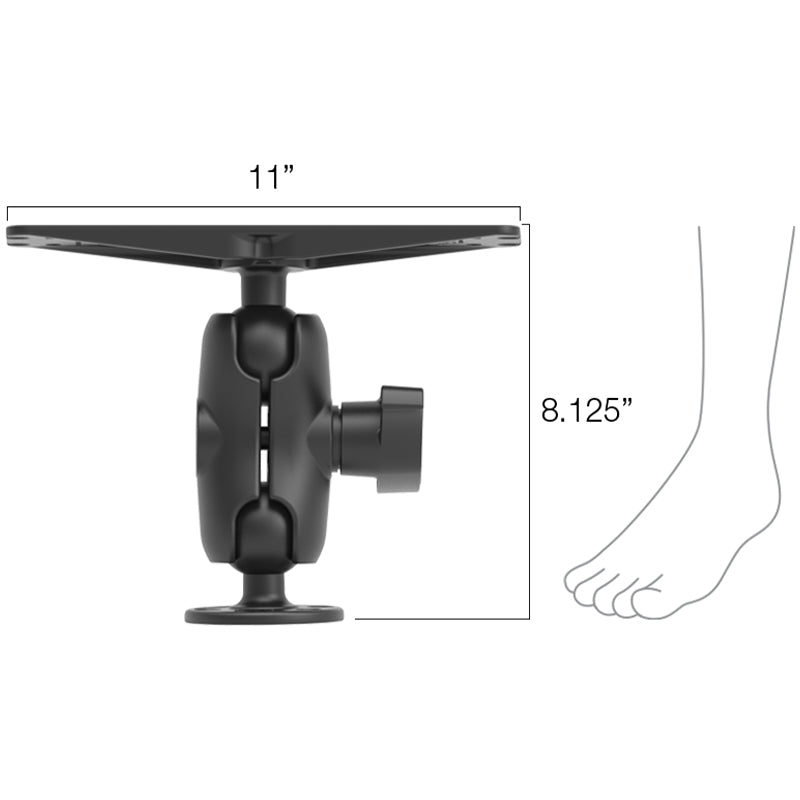

Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 20.64cm (8.125")

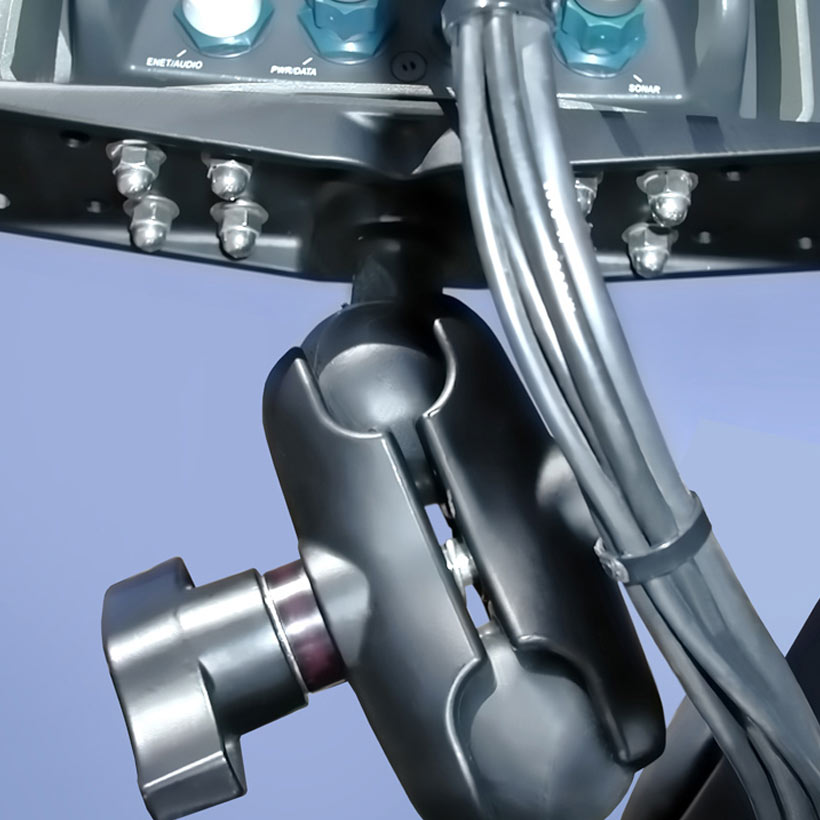

RAM® Mounts ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty
