The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® Finger-Grip™ Universal Mount with Brake/Clutch Reservoir Base

SKU Copied

SKU: RAM-B-174-UN4U

UPC Copied

UPC: 793442910524







RAM® Finger-Grip™ Universal Mount with Brake/Clutch Reservoir Base

Copy SKU
RAM-B-174-UN4U SKU: RAM-B-174-UN4U

Copy UPC
793442910524 | UPC: 793442910524

B SIZE

MEDIUM ARM

Size Guide

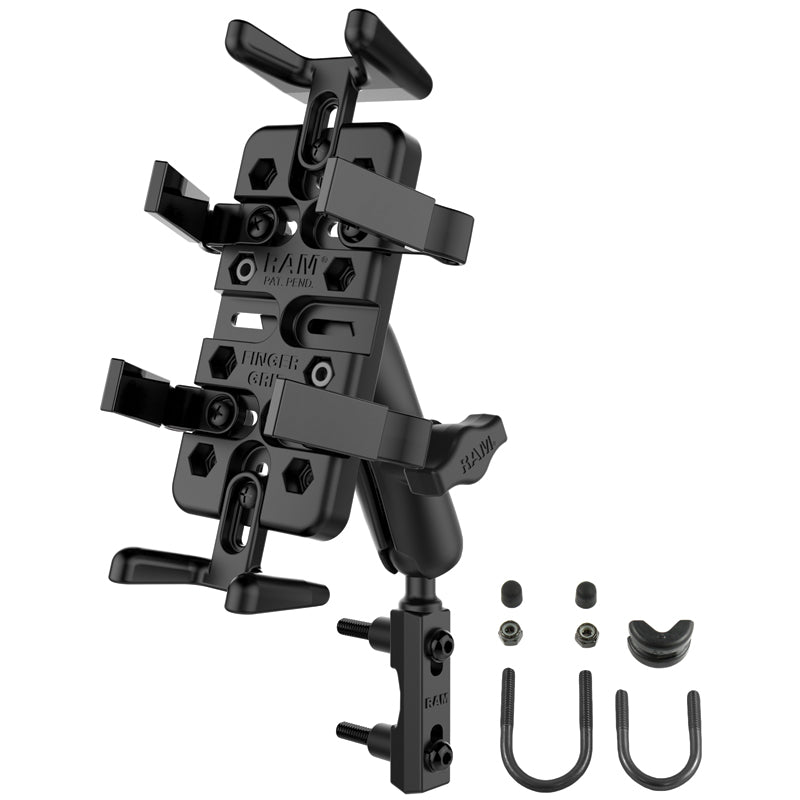

The RAM-B-174-UN4U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 1.27cm (0.5") to 3.18cm (1.25") in diameter, double socket arm, diamond adapter base and high strength universal Finger Grip cradle. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 2.39cm (0.94") and a maximum of 4.01cm (1.58") .

Information

Resources

Compatible Devices

Information

Product Weight

0.55 kg (1.22 lbs)

Hardware Included

Assembly Hardware(2) M6 x 55mm Hex Bolts(2) #1/4-20 x 5.08cm (2") Hex Bolts(2) 1/4" -20 x 6.35cm (2.5") Hex Bolts(2) 1.27cm (0.5") Spacers(2) 0.64cm (0.25") Split Lock Washers(1) 1/4" -20 U-Bolt for 1.27cm (0.5") - 2.54cm (1") Rails(1) 1/4" -20 U-Bolt for 2.54cm (1") - 3.18cm (1.25") Rails(2) 1/4" -20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer

Holder Dimensions

Height Range: 18.42cm (7.25") max (using optional supports)Width Range: 3.18cm (1.25") - 8.89cm (3.5") Max Depth: 3.81cm (1.5")

Clamp Range

1.27cm (0.5") - 3.18cm (1.25") diameter

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

Marine-grade aluminumHigh strength composite
