World-Class Mounting Systems

Size Guide

Ball Sizes
Arm Sizes
X
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Finger-Grip™ Universal Holder with Composite Double Socket Arm

SKU Copied
SKU: RAP-HOL-UN4-201U
UPC Copied
UPC: 793442938184

RAM® Finger-Grip™ Universal Holder with Composite Double Socket Arm
Copy SKU
SKU: RAP-HOL-UN4-201U
Copy UPC
| UPC: 793442938184

B SIZE
MEDIUM ARM
Size Guide

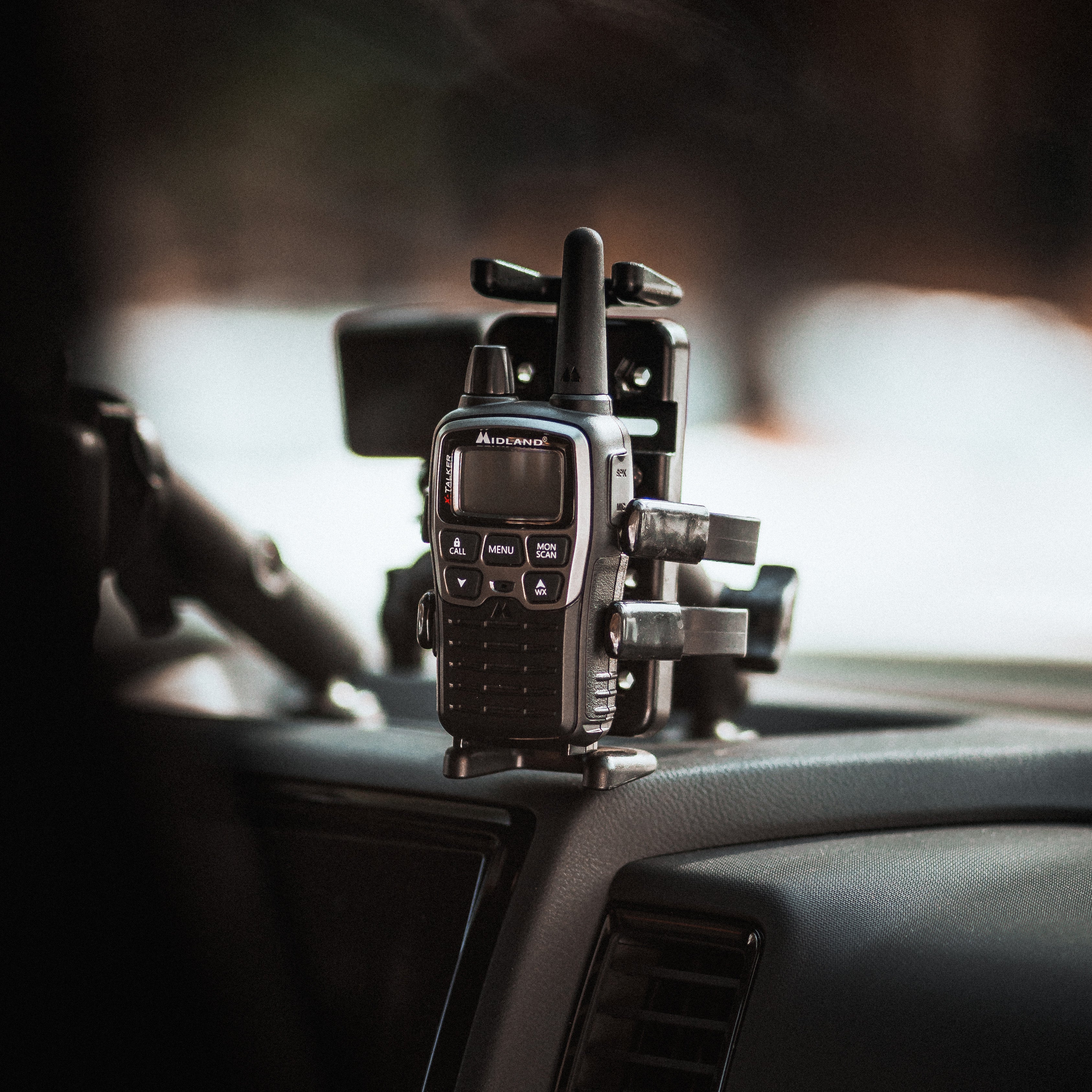

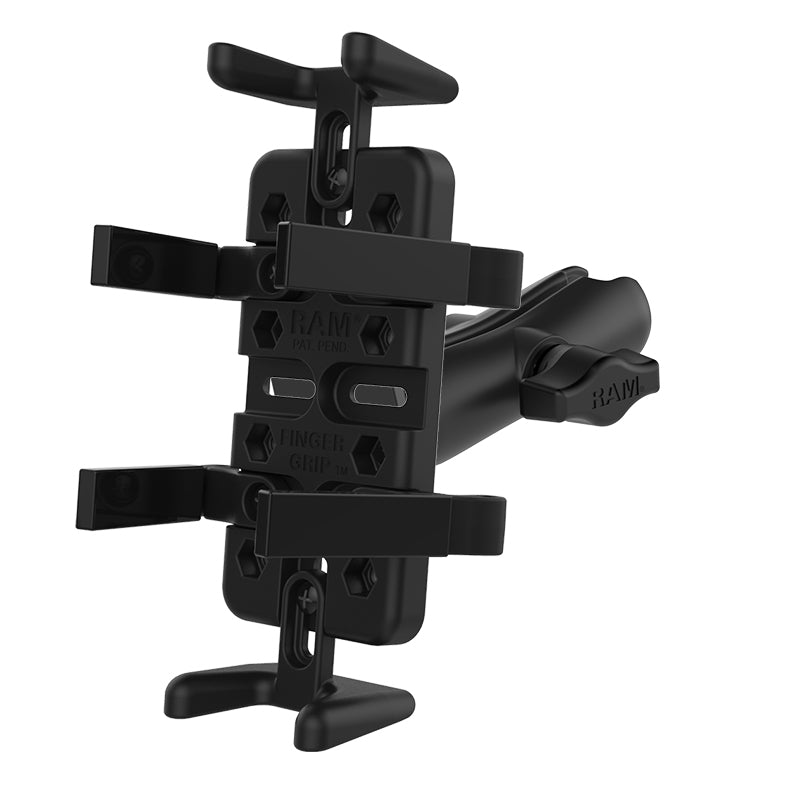

The RAM Finger-Grip is a universal holder that can accommodate a wide range of devices including GPS, handheld radios, phones, bluetooth speakers, and much more. Included with the holder are three sets of four flexible rubber-coated fingers to grip your device and a medium length B size double socket arm. The main backing plate consists of multiple slotted holes where any set of finger grips can be positioned to hold your device firmly. When positioned correctly, your device can easily wedge in and out of the holder; suited for any rough environment. Also included are two sets of optional top and bottom supports to add even more stability to your device if needed. The back of the RAM Finger-Grip contains multiple 4-hole AMPS hole patterns for connecting to any RAM components using the included set of nuts and bolts. Mount your handheld device virtually anywhere with the RAM Finger-Grip. See compatible device dimension ranges below.

Features
  • Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends
  • Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
  • Compatible with B size ball bases; ball and socket technology allows for near-infinite adjustability
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.35 kg (0.77 lbs)
Hardware Included
Assembly Hardware
Holder Dimensions
Height Range: 18.42cm (7.25") max (using optional supports)Width Range: 3.18cm (1.25") - 8.89cm (3.5") Max Depth: 3.81cm (1.5")
Socket To Socket Length
7.62cm (3")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
High strength composite
Packaging Type
Poly Bag

Resources

INSTRUCTIONS

Compatible Devices
