Size Guide

Ball Sizes

Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® EZ-Strap™ Rail Mount with Long RAM® to Garmin Double Ball Adapter

SKU Copied

SKU: RAP-SB-187GLU

UPC Copied

UPC: 793442931215







RAM® EZ-Strap™ Rail Mount with Long RAM® to Garmin Double Ball Adapter

Copy SKU
RAP-SB-187GLU SKU: RAP-SB-187GLU

Copy UPC
793442931215 | UPC: 793442931215

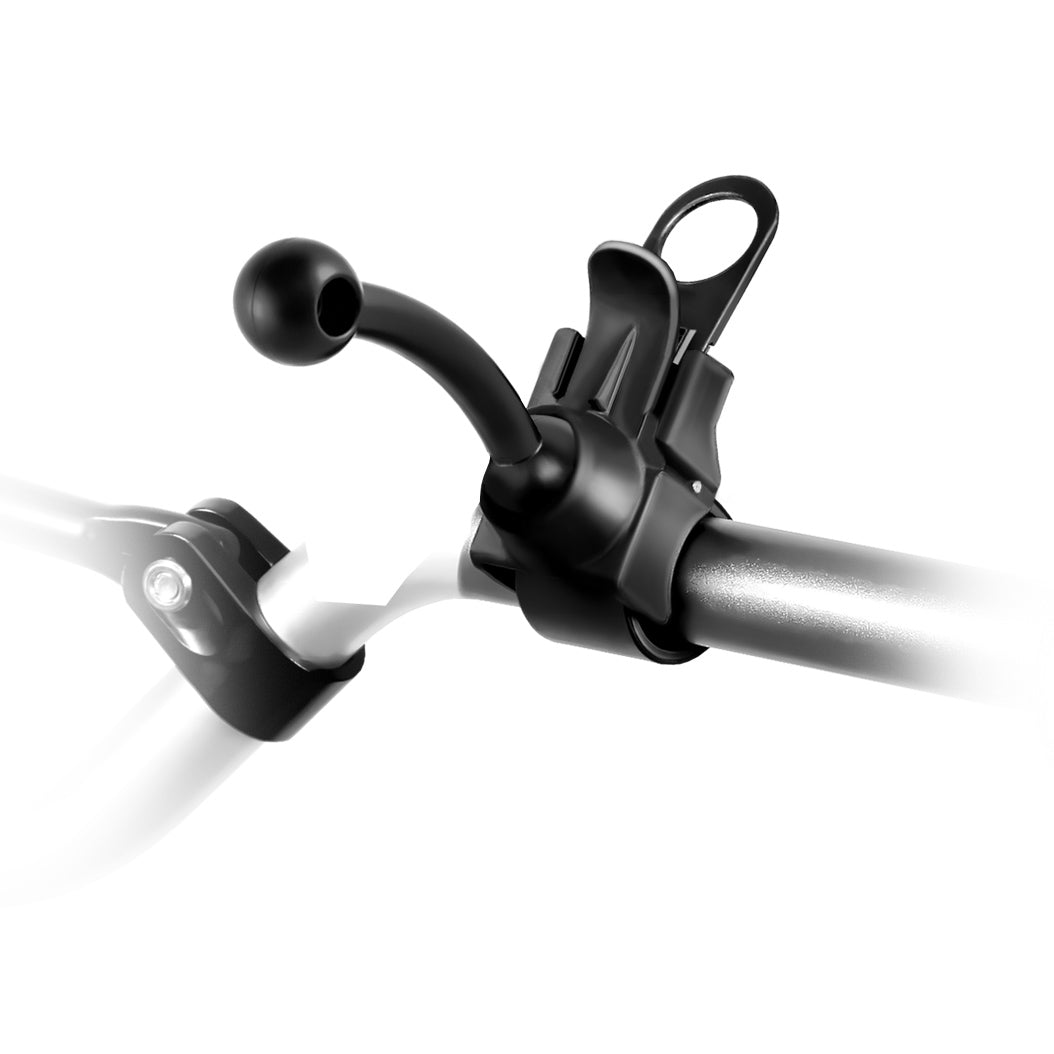

If you are looking for a mounting solution that is fast, simple, and won't mark up your handle bar, this is it. Don't waste your time looking for something better because this is the best. The RAM EZ-Strap installs in seconds and grips tubing, square rails and irregular shapes like a Python. This gem of a mount is ideally suited for smaller electronic devices like the Garmin nuvi, and other similar devices. Attach devices to your motorcycle, bicycle, atv, golf cart and more. The RAM EZ-Strap is extremely strong and low cost. The RAM EZ-Strap, with RAM-to-Garmin long double ball, can be cut to fit tubing, square rails and irregular shapes from 1.27cm (0.5") to 6.55cm (2.58") in diameter. The EZ-Strap mount attaches directly to any Garmin GPS device with a factory mounting bracket that accommodates the Garmin "G-Ball". The overall length of the SHORT arm adapter is 7.62cm (3") . This mount rotates 180 degrees.
