The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

B Size

Holds 2 lbs / 0.91 KG

1" Ball

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs / 1.81 KG

1.5" Ball

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs / 2.72 KG

2.25" Ball

Monitors, Large Fishfinders

E Size

Holds 15 lbs / 6.8 KG

3.38" Ball

Heavy Monitors

Ball Sizes		Short Arm	Medium Arm	Long Arm
B Size	Overall Length	2.42" / 6.1468cm	3.73" / 9.47cm	6.00" / 15.24cm
B Size	Socket-to-Socket Length	1.75" / 4.45cm	3.00" / 7.62cm	5.31" / 13.49cm
C Size	Overall Length	3.56" / 9.04cm	5.69" / 14.45cm	9.13" / 23.19cm
C Size	Socket-to-Socket Length	2.50" / 6.35cm	4.66" / 11.84cm	8.00" / 20.32cm
D Size	Overall Length	5.10" / 12.95cm	8.44" / 21.44	12.98" / 32.97
D Size	Socket-to-Socket Length	3.60" / 9.14cm	6.88" / 17.48cm	11.41" / 28.98cm
E Size	Overall Length	7.31" / 18.57cm	12.63" / 32.08cm	N/A
E Size	Socket-to-Socket Length	4.98" / 12.65cm	9.88" / 25.10cm	N/A

 / Overview /

RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3

SKU Copied

SKU: RAM-101-225B2-SAM60CP-V7CU

UPC Copied

UPC: 793442022159

Ram Semi Truck Backing Plate Mounting Instructions







RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3

Copy SKU
RAM-101-225B2-SAM60CP-V7CU SKU: RAM-101-225B2-SAM60CP-V7CU

Copy UPC
793442022159 | UPC: 793442022159

C SIZE

MEDIUM ARM

Size Guide

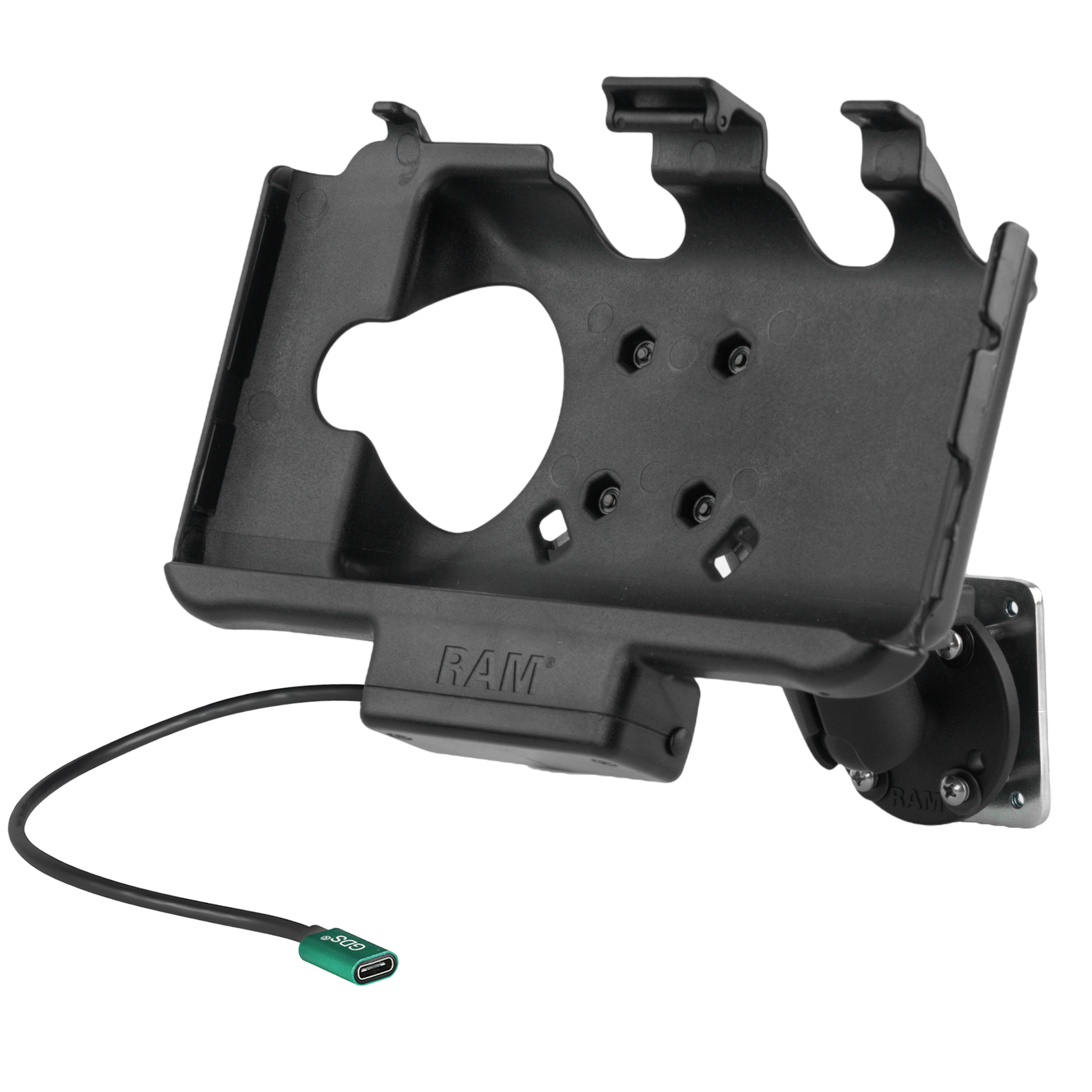

RAM Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 & 2. Compatible with the Samsung OEM case as well as the RAM Skin, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 5.33 cm (2.10") X 6.60 cm (2.60") steel backing plate with #8-32 threaded holes, two 2.5 round ball plates, medium length double socket arm, and a GDS modular hardwire charger an ideal solution for providing power to the Galaxy Tab Active5, 3 & 2.

Features

RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
Backed by a 3-year warranty

Information

Resources

Compatible Devices

Information

Product Weight

0.86 kg (1.89 lbs)

Hardware Included

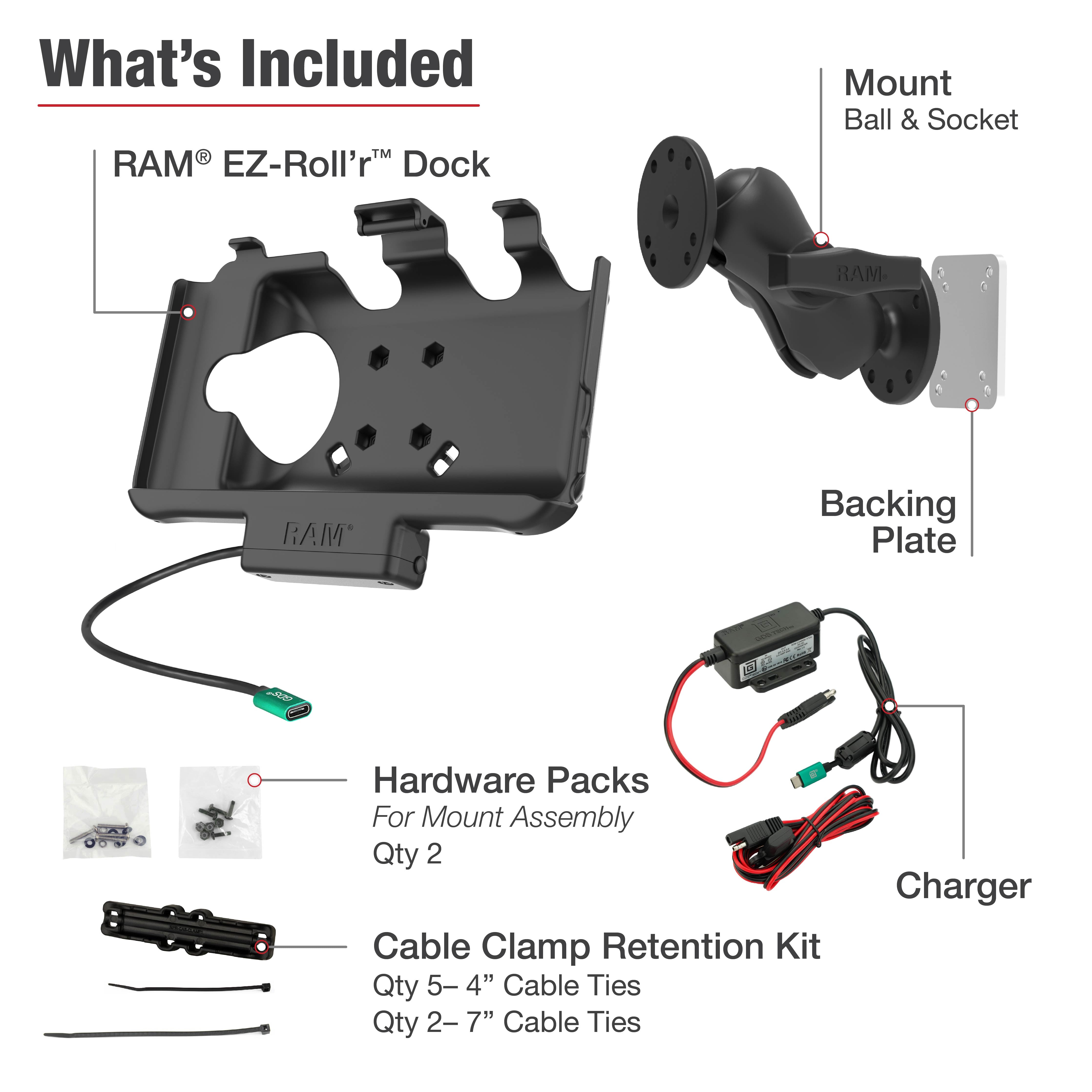

Assembly Hardware(1) 5.33 cm (2.10") X 6.60 cm (2.60") Steel Backing Plate(4) #8-32 x 2.54cm (1") Screws(4) #8 Split Lock Washers(4) #8 Flat Washers(1) Cable Clamp(1) Hardwire Charger

Socket To Socket Length

7.62cm (3")

Ball Size

B Size (1")

Weight Capacity

Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)

Materials

SteelMarine-grade alluminumHigh strength composite

Packaging Type

Poly Bag

Input Voltage

5.3-5.4VDC
