The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Double Ball Adapter - B Size

SKU Copied
SKU: RAM-B-230U
UPC Copied
UPC: 793442002212

RAM® Double Ball Adapter - B Size
Copy SKU
SKU: RAM-B-230U
Copy UPC
| UPC: 793442002212

B SIZE
Size Guide

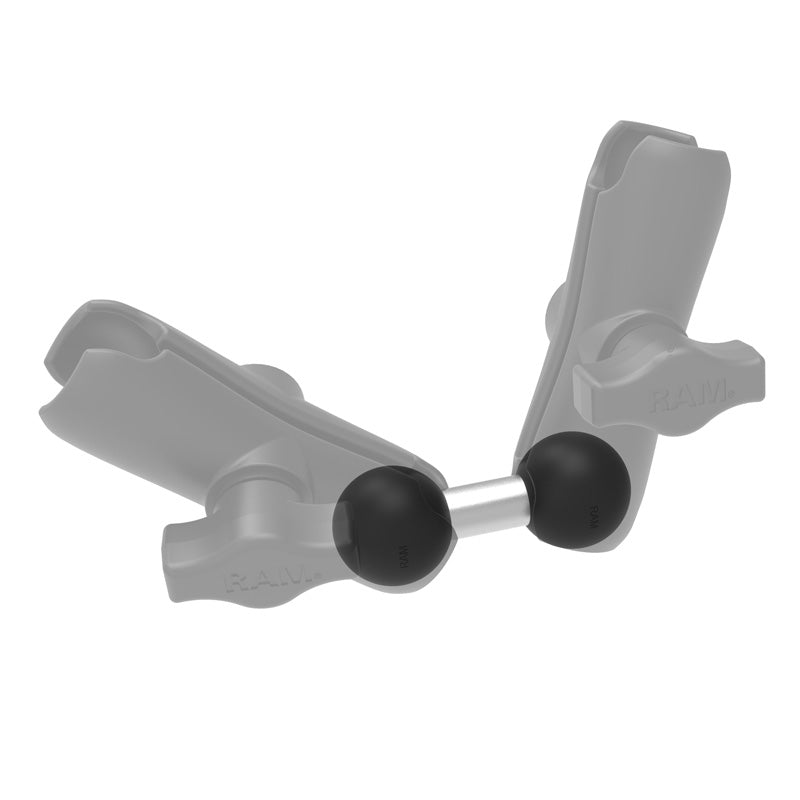

The RAM-B-230U double ball adapter consists of two attached B size 2.54cm (1") rubber balls that allow the connection of two B size double socket arms. When measured from ball center to ball center, the length is 27.31cm (10.75") .

Features

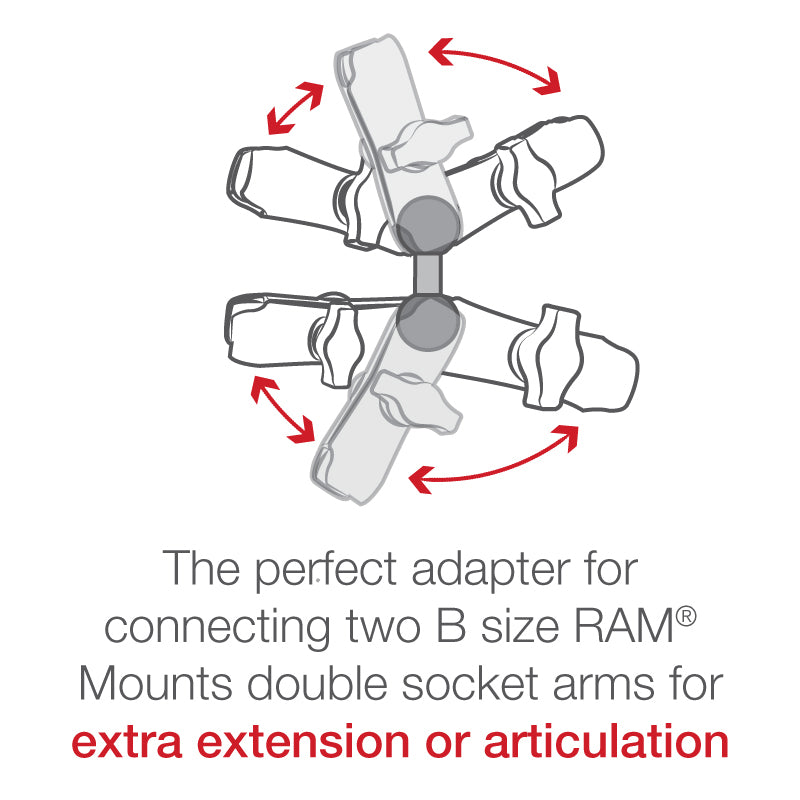

  • The perfect adapter for connecting two B size RAM® Mounts double socket arms for extra extension or articulation
  • Consists of two B size 2.54cm (1") RAM® rubber balls connected by a 1.91cm (0.75") length post
  • Post is made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Information

Information

Product Weight
0.04 kg (0.09 lbs)
Product Dimensions
Overall Length: 6.45cm (2.54")
Socket To Socket Length
4.45cm (1.75")
Ball Size
B Size (1")
Weight Capacity
Standard Use: 0.91 kg (2 lbs) Heavy-Duty Use: 0.45 kg (1 lbs)
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
