The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
B Size
Holds 2 lbs / 0.91 KG
1" Ball
Phones, Action Cameras, Light Duty Tablets
C Size
Holds 4 lbs / 1.81 KG
1.5" Ball
Fishfinders, Heavy Duty Tablets
D Size
Holds 6 lbs / 2.72 KG
2.25" Ball
Monitors, Large Fishfinders
E Size
Holds 15 lbs / 6.8 KG
3.38" Ball
Heavy Monitors
Ball Sizes Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases

SKU Copied
SKU: RAM-101B2-TAB23U
UPC Copied
UPC: 793442816574
Ram Semi Truck Backing Plate Mounting Instructions

RAM® Dashboard Mount with Backing Plate for 7"-8" Tablets with Cases
Copy SKU
SKU: RAM-101B2-TAB23U
Copy UPC
| UPC: 793442816574

C SIZE
SHORT ARM
Size Guide

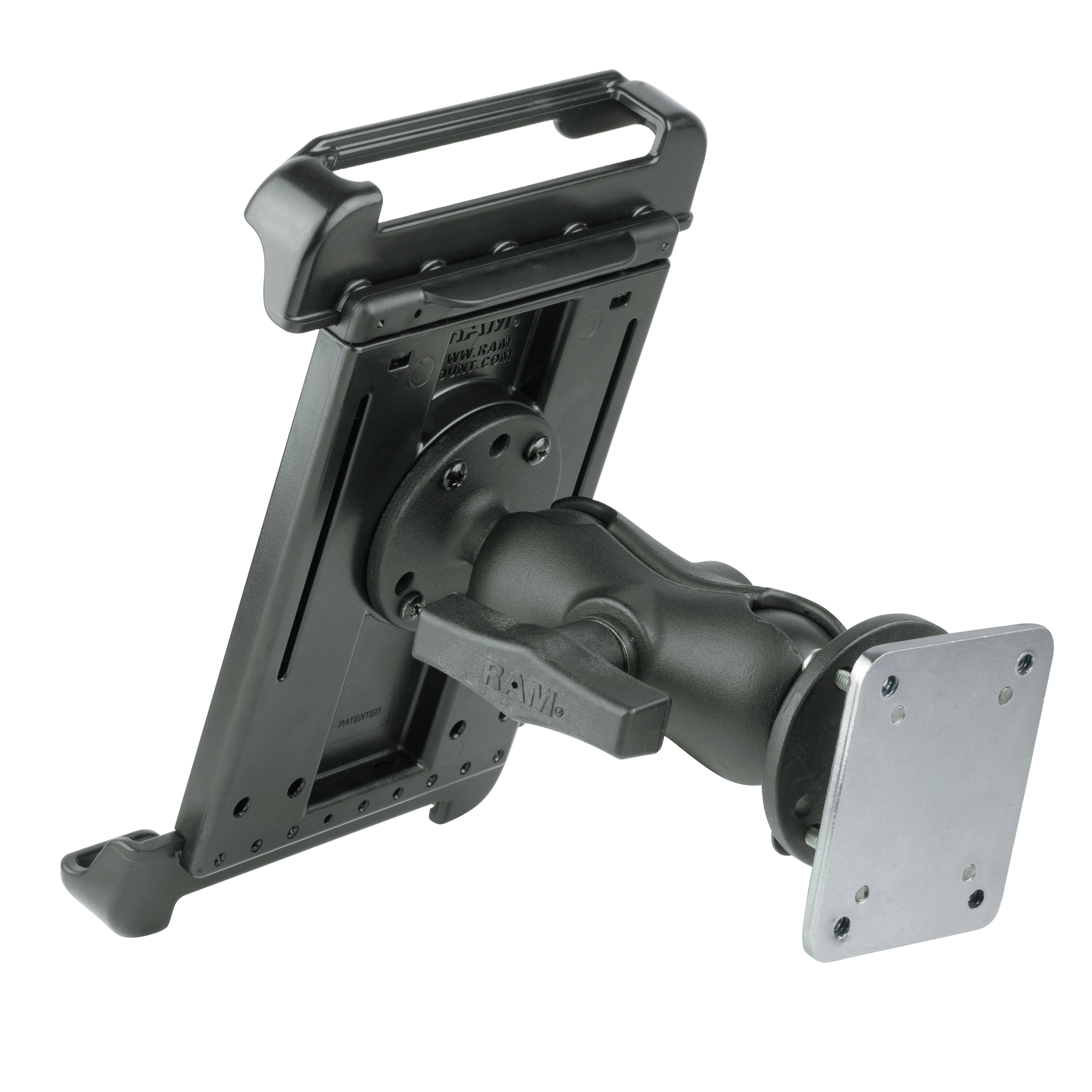

The RAM Tab-Tite bundle is a rugged mount including the RAM Tab-Tite, RAM Universal Double Ball Mount with Two Round Plates, and RAM Backing Plate Adapter. The RAM Tab-Tite spring loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The RAM-101U-B consists of a short double socket arm and two 6.35cm (2.5") diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 3.81cm (1.5") diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. The included 5.33 cm (2.10") X 6.60 cm (2.60") steel backing plate with #8-32 threaded holes attaches to a variety of RAM Mounts ball bases.

Features
  • Spring-loaded holder secures 17.78cm (7") -20.32cm (8") tablets with a case; interchangeable end cups allow you to modify the holder when upgrading devices
  • Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
  • 5.33 cm (2.10") X 6.60 cm (2.60") steel backing plate attaches to a variety of RAM® Mounts ball bases
  • Ball and socket technology allows for near-infinite adjustability
  • Backed by a lifetime warranty

Information

Resources

Compatible Devices

Information

Product Weight
0.76 kg (1.68 lbs)
Hardware Included
Assembly Hardware(1) 5.33 cm (2.10") X 6.60 cm (2.60") Steel Backing Plate(4) #8-32 x 2.54cm (1") Screws(4) #8 Split Lock Washers(4) #8 Flat Washers
Holder Dimensions
Height Range: 21.13cm (8.32") - 27.74cm (10.92") Width Range: 11.25cm (4.43") - 13.46cm (5.3") Depth Range: 0.33cm (0.13") - 1.57cm (0.62")
Socket To Socket Length
6.35cm (2.5")
Hole Pattern
4-Hole AMPS: 3.00 cm (1.181") X 3.80 cm (1.496") 3-Hole 120-Degree: 4.60cm (1.812") Diameter
Ball Size
C Size ( 3.81cm (1.5") )
Weight Capacity
Standard Use: 1.81 kg (4 lbs) Heavy-Duty Use: 1.36 kg (3 lbs)
Materials
Marine-grade aluminumHigh strength compositePowder coated steel
Packaging Type
Poly Bag

Resources

INSTRUCTIONS
